GL RAS – Roof Access Door – Glass
- Ideal for turning a rooftop into a patio deck or any other application where egress is required while letting in an abundance of natural light.
- The RAS Roof Access Door is essential for any commercial or residential roof that may be difficult to access via an exterior ladder or if you want to utilize the roof top as a deck. Using high grade materials produced in North America these skylights are designed to withstand the harshest climates.
- The RAS provides ease of access with its 85° opening capability. Can be installed on a flat or sloped roof that best suits the needs of your application (glass requires min 2:12 pitch).

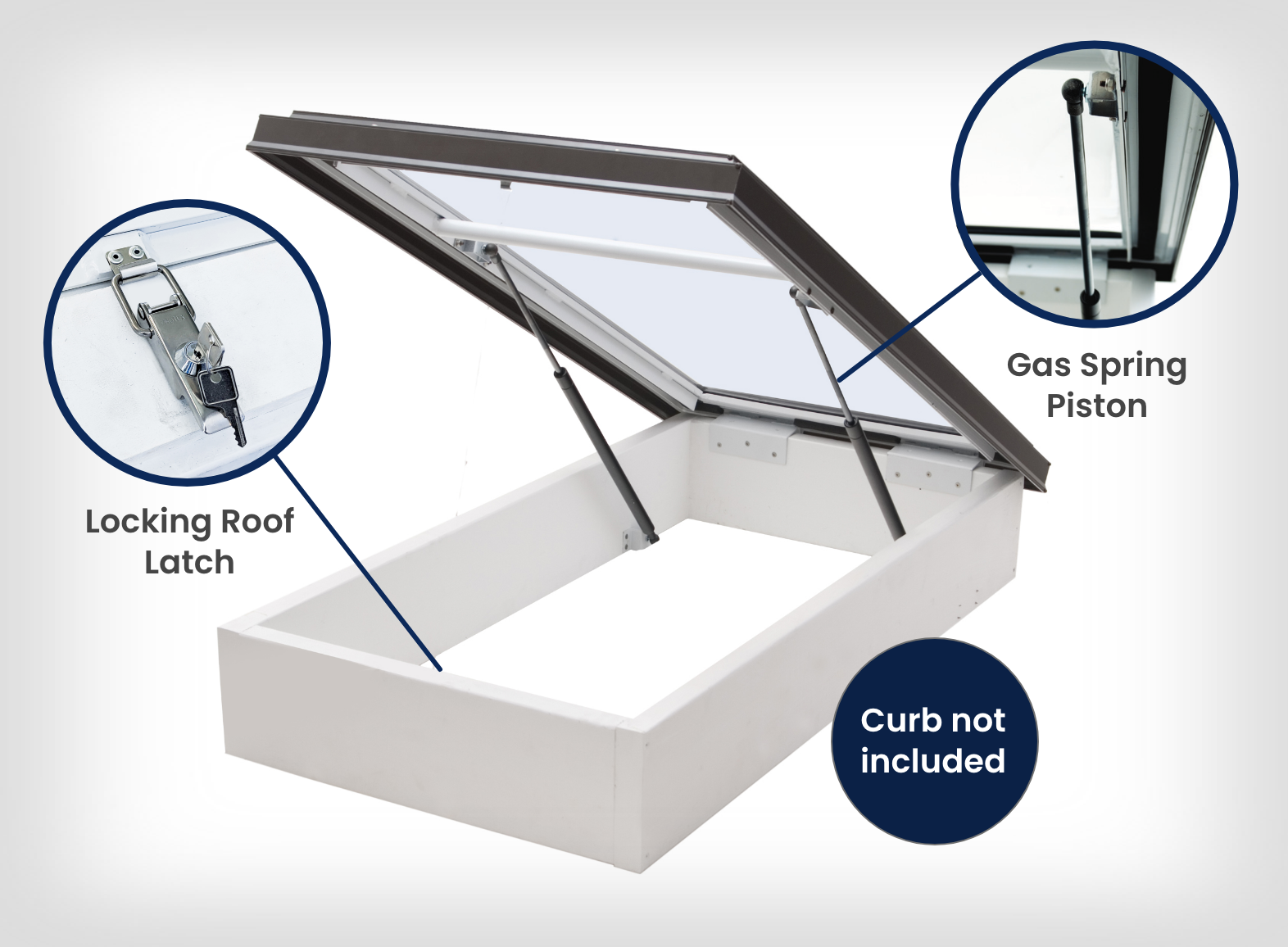

- Gas pistons and the ergonomically placed lifting bar make it smooth and effortless to open the door. Gas pistons hold the door securely when the door is open.
- Locking roof latch to provide security and secure seal.
- Curb supplied by others. RAS finished curb width cannot exceed 1.75” for proper installation.
*Note: the RAS skylight is not designed nor should it be used as a venting skylight. Please refer to our venting skylight product pages.
GL OCM, AC OCM, GL OCM E, AC OCM E and GL OSF, AC OSF, GL OSF E, AC OSF E
FEATURES
- A wide selection of double glazed options available.

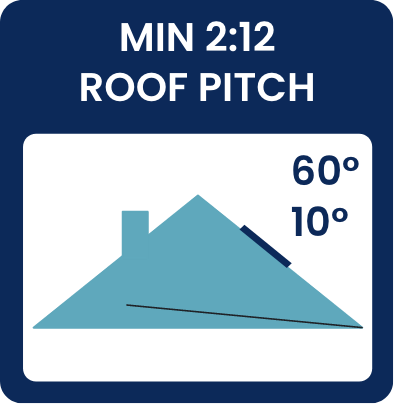

- Glass requires min 2:12 pitch.
- Ideal solution to gain access to rooftop for services (i.e. HVAC) or outdoor living space.
- Internal welded one piece, thermally broken white aluminum frame with pull down handle.
- Unique locking roof latch.
- For optimum thermal efficiency all roof access doors are made with aluminum thermally broken base frames. Internal heliarc welded one piece white aluminum frame with pull down handle.
- Brown standard exterior aluminum frame. Black, grey, white, sandalwood, or mill finish aluminum frame also available.
- 15 standard sizes in acrylic dome and 10 in glass. Custom sizes also available.
- Note: RAS curb width cannot exceed 1.75”.
Recommended Roof
Type
Sloped or Flat with Sloped Curb
Recommended
Location
- Commercial building, rooftop access
- Condominium or townhouse
- Top-floor lofts
- Rooftop patios
- Roof maintenance requirements
Columbia offers a wide range of
high performance glass options
- Columbia offers a wide range of double glazing options for the GL RAS.
- All glazing options are available with LoE3 and Neat coating.
Cardinal Glass Industries is Columbia’s glass supplier, a world leader in high performance glass technology. Cardinal maintains a clear vision – design and fabricate the most advanced residential glass products in the industry.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Blocks 95% of UV rays.
- Advanced condensation
resistance. - Industry standard, identical LoE3 coating from the same
supplier as the competition.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Reduces the effects of sound by up to 30%.
- Additional security:
The innermost interlayer holds the glass together in case of breakage. - Clear or translucent white laminated glass is available.
- Up to 99% UV protection, reduces fading of furnishings.
- 10 year hail warranty on cracking or breakage due to hail.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Neat coating breaks up organic material on the glass.
- Reduces water spotting and disperses water evenly.
- Blocks 95% of UV rays.
- Neat coating available as an add on to all glazing options.
- Dual pane with argon gas. Superior LoE3 triple coating is virtually invisible.
- LoE3 coatings applied on two surfaces for enhanced energy efficiency.
- Close to triple pane performance.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2011.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Glare reduction.
- Ideal for rooms requiring a softer light.
- Reduces solar heat gain.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
Columbia offers the widest choice of skylight frame colours in North America
If you can’t find the size you want in our standard sizes, go to our Custom size page.

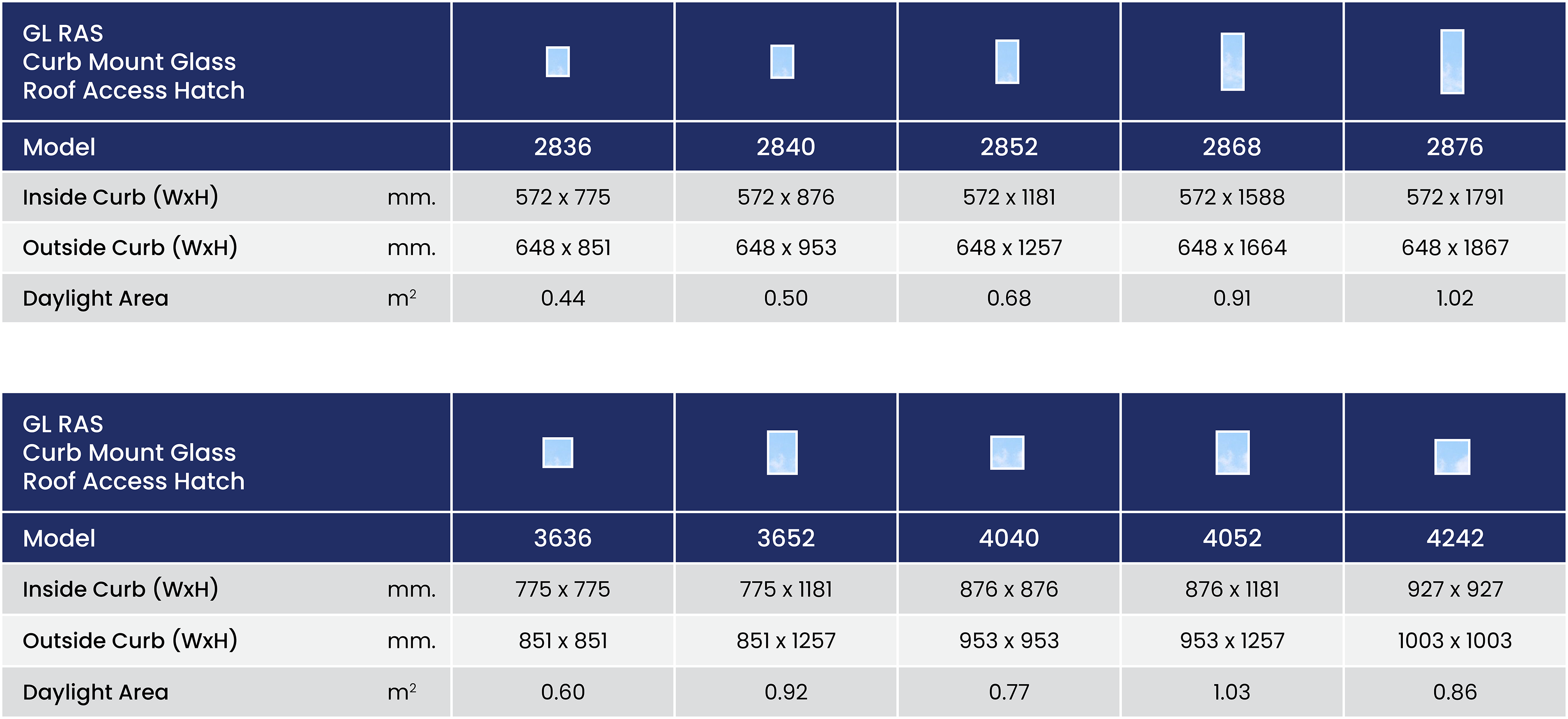

Standard skylight measurement are available in both options.
The yellow star indicates the most popular sizes.
Inside Curb | 22½ | 30½ | 34½ | 36½ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30½ |
Model: 2836
Inside Curb (WxH)
22½” x 30½” Outside Curb (WxH)
25½” x 33½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Inside Curb (WxH)
572mm x 775mm Outside Curb (WxH)
648mm x 851mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Inside Curb (WxH)
30½” x 30½” Outside Curb (WxH)
33½” x 33½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Inside Curb (WxH)
775mm x 775mm Outside Curb (WxH)
851mm x 851mm Daylight Area (Glass)
0.60 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
34½ |
Model: 2840
Inside Curb (WxH)
22½” x 34½” Outside Curb (WxH)
25½” x 37½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Inside Curb (WxH)
572mm x 876mm Outside Curb (WxH)
648mm x 953mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Inside Curb (WxH)
34½” x 34½” Outside Curb (WxH)
37½” x 37½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Inside Curb (WxH)
876mm x 876mm Outside Curb (WxH)
953mm x 953mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
36½ |
Model: 4242
Inside Curb (WxH)
36½” x 36½” Outside Curb (WxH)
39½” x 39½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Inside Curb (WxH)
927mm x 927mm Outside Curb (WxH)
1003mm x 1003mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
46½ |
Model: 2852
Inside Curb (WxH)
22½” x 46½” Outside Curb (WxH)
25½” x 49½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Inside Curb (WxH)
572mm x 1181mm Outside Curb (WxH)
648mm x 1257mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Inside Curb (WxH)
30½” x 46½” Outside Curb (WxH)
33½” x 49½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Inside Curb (WxH)
775mm x 1181mm Outside Curb (WxH)
851mm x 1257mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Inside Curb (WxH)
34½” x 46½” Outside Curb (WxH)
37½” x 49½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Inside Curb (WxH)
876mm x 1181mm Outside Curb (WxH)
953mm x 1257mm Daylight Area (Glass)
1.03 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
62½ |
Model: 2868
Inside Curb (WxH)
22½” x 62½” Outside Curb (WxH)
25½” x 65½” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Inside Curb (WxH)
572mm x 1588mm Outside Curb (WxH)
648mm x 1664mm Daylight Area (Glass)
0.91 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
70½ |
Model: 2876
Inside Curb (WxH)
22½” x 70½” Outside Curb (WxH)
25½” x 73½” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Inside Curb (WxH)
572mm x 1791mm Outside Curb (WxH)
648mm x 1867mm Daylight Area (Glass)
1.02 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
For multiple models go to the Drawings & Specification Library page.
Accessories
IWS – Roofing Underlayment
Why Columbia
Find Out Why Columbia Skylights Don’t Leak
Columbia’s Canadian made skylights are designed and manufactured with the latest materials and parts, combined with over 5 decades of experience. We are proud to have supplied over 1 million skylights for North American roofs.
Our skylights don’t leak – the frame design is proven to repel the worst of Canadian weather, and we use high performance glazing from one of the top manufacturers in the world – North American-based Cardinal Glass Industries. Acrylic and polycarbonate are supplied by the highest quality North American manufacturer. Our skylights combine a durable extruded aluminum exterior extruded frame and a heavy duty PVC vinyl interior frame.
Our 4 sided rigid condensation gutter has been designed with additional width to allow for 100% drainage.
All our components are manufactured in North America by suppliers we have worked with for decades.
