INDUSTRIAL GRADE RESIDENTIAL & COMMERCIAL FLAT Roof SKYLIGHTS
- With a diverse range of commercial and residential skylight solutions, Slimlite can fulfill all of your daylighting needs.
- We are pleased to work with the largest to smallest general or roofing contractors.
- In the planning stage, we can provide the right design to your architect or designer to ensure the best possible products are used in your specific application.
SLIMLITE FACTS
Slimlite’s line of acrylic/ polycarbonate dome and glass skylights are renowned across the construction industry for their exceptional quality and durability.
Offering standard and custom industrial grade skylights. Built to withstand the extreme Canadian climate.
Decades of experience developing skylight solutions for major architectural projects across North America.
Choose acrylic/polycarbonate (single, double, or triple glazed) or glass (double and triple glazed) based on the requirements of your project.
Slimlite’s Range of Commercial products
Thermally Broken Curb Mount Acrylic Dome Skylight – OF
The TLB-CM-D(OF) utilizes a combination of vinyl and aluminum frames (superior quality). These frames are strong, have better weatherability and less expansion and contraction.
TLB-CM-D(OF) is suitable for any curb thickness.- Outside fastening model – skylight to be secured by fasteners externally atop of the roof.
Thermally Broken Curb Mount Acrylic Pyramid Skylight – OF
This versatile skylight utilizes a combination of vinyl and aluminum frames. They are most commonly used on commercial and institutional buildings.
- TLB-CM-P(OF) is suitable for any curb thickness.
- Outside fastening model – skylight to be secured by fasteners externally atop of the roof.

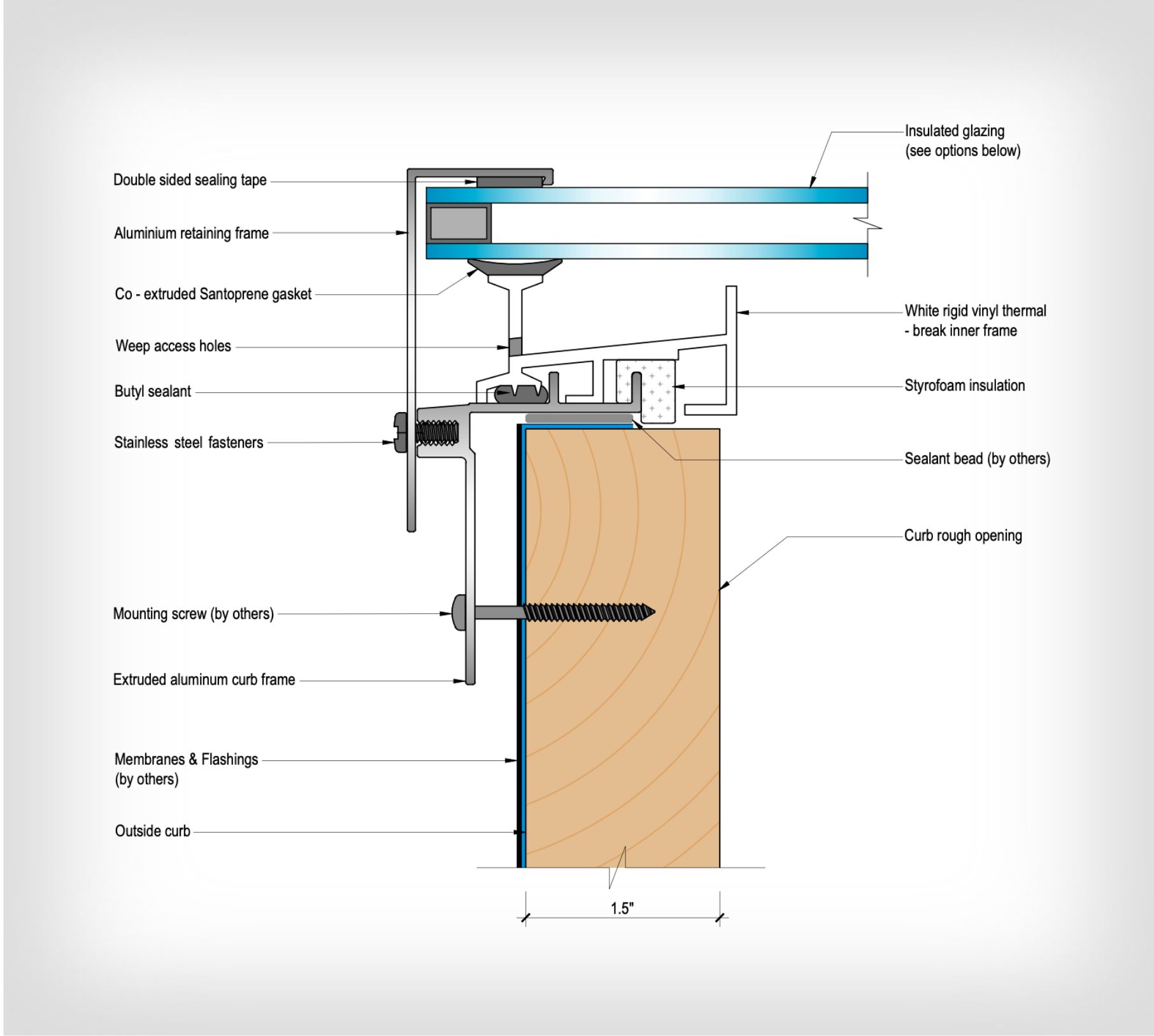

Thermally Broken Curb Mount Glass Skylight – OF
The TLB-CM-G(OF) is engineered for sloped roof applications in combination with a site built curb. Features a hermetically dual sealed glass unit with LoE coating and filled with argon gas.
TLB-CM-G(OF) is suitable for any curb thickness.- Outside fastening model – skylight to be secured by fasteners externally atop of the roof.
Thermally Broken Curb Mount Acrylic Dome Skylight – IF
This Curb Mount Acrylic Dome skylight is designed for a flat roof installation to fit a standard 1½” wood curb. They are primarily used on new construction.
- TLB-CM-D(IF) is suitable for standard 1½” curbs (2” x dimensional lumber).
- Suitable for flat or sloped roof.
- Inside fastening model – skylight is secured with fasteners to the inside of the curb. Maximum curb width 2”.
Thermally Broken Curb Mount Acrylic Pyramid Skylight – IF
Designed for a flat roof application, these pyramid skylights suit any function or aesthetic requirements.
- TLB-CM-P(IF) is suitable for standard 1½” curbs (2” x dimensional lumber).
- Inside fastening model – skylight is secured with fasteners to the inside of the curb. Maximum curb width 2”.
Thermally Broken Curb Mount Glass Skylight – IF
The TLB-CM-G(IF) skylight is ideally used on new construction, on a minimum 2:12 sloped roof. Features a hermetically dual sealed glass unit with LoE coating and filled with argon gas.
- TLB-CM-G(IF) is suitable for standard 1½” curbs (2” x dimensional lumber).
- Inside fastening model – skylight is secured with fasteners to the inside of the curb. Maximum curb width 2”.
Frost Barrier Curb Mount Acrylic Dome Skylight – OF
Designed primarily for a flat roof commercial application. They are mostly used when existing skylights are being replaced.
- FBDD-CM-D(OF) is suitable for site built curbs of any width.
- Outside fastening model – skylight to be secured by fasteners externally atop of the roof.
Frost Barrier Curb Mount Acrylic Pyramid Skylight – OF
Designed primarily for a flat roof commercial application, these pyramid skylights suit any function or aesthetic requirement.
- FBDD-CM-P(OF) is suitable for site built curbs of any width.
- Outside fastening model – skylight to be secured by fasteners externally atop of the roof.
Frost Barrier Curb Mount Acrylic Dome Skylight – IF
These skylights are designed to mount on 1½” wide curbs.
- FBDD-CM-D(IF) is suitable for standard 1½” curbs (2” x dimensional lumber).
- Inside fastening model – skylight is secured with fasteners to the inside of the curb. Maximum curb width 2”.
- Includes vinyl inside leg (frost break).
Frost Barrier Double Dome Acrylic Pyramid Skylight
Designed for a flat roof application these units should be installed on a 1½” wide curb.
- Aluminum Curb Mount suitable for standard 1.5” curbs (2” x dimensional lumber).
- Inside fastening model – skylight is secured with fasteners to the inside of the curb. Maximum curb width 2”.
- Includes vinyl inside leg (frost break).
Thermally Broken Insulated Curb Acrylic Dome Skylight
The TLB-IC-D skylight is designed for a flat roof, no curbs required. The skylight includes a 1 ½” thick integrated insulated curb.
- Standard is a 9” insulated curb model with 3” flange, also available in 12”/14”/16”/18”/24” models.
- Designed for commercial and institutional buildings.
- Includes a vinyl base frame to prevent cold air transfer.
Thermally Broken Insulated Curb Acrylic Pyramid Skylight
The TLB-IC-P skylight is designed for a flat roof, no curbs required. The skylight includes a 1 ½” thick integrated insulated curb.
- Standard is a 9” insulated curb model with 3” flange, also available in 12”/14”/16”/18”/24” models.
- Designed for commercial and institutional buildings.
- Includes a vinyl base frame to prevent cold air transfer.
Frost Barrier Insulated Curb Acrylic Dome Skylight
FBDD-IC-D – This unit is commonly used on large industrial buildings. They come complete with a 2” thick integrated insulated curb.
- Standard is a 12” insulated curb model with 3” flange, also available in 14”/16”/18”/24” models.
- Custom curb heights available.
Frost Barrier Insulated Curb Acrylic Pyramid Skylight
FBDD-IC-P – This unit is commonly used on large industrial buildings. They come complete with a 2” thick integrated insulated curb.
- Standard is a 12” insulated curb model with 3” flange, also available in 14”/16”/18”/24” models.
- Custom curb heights available.

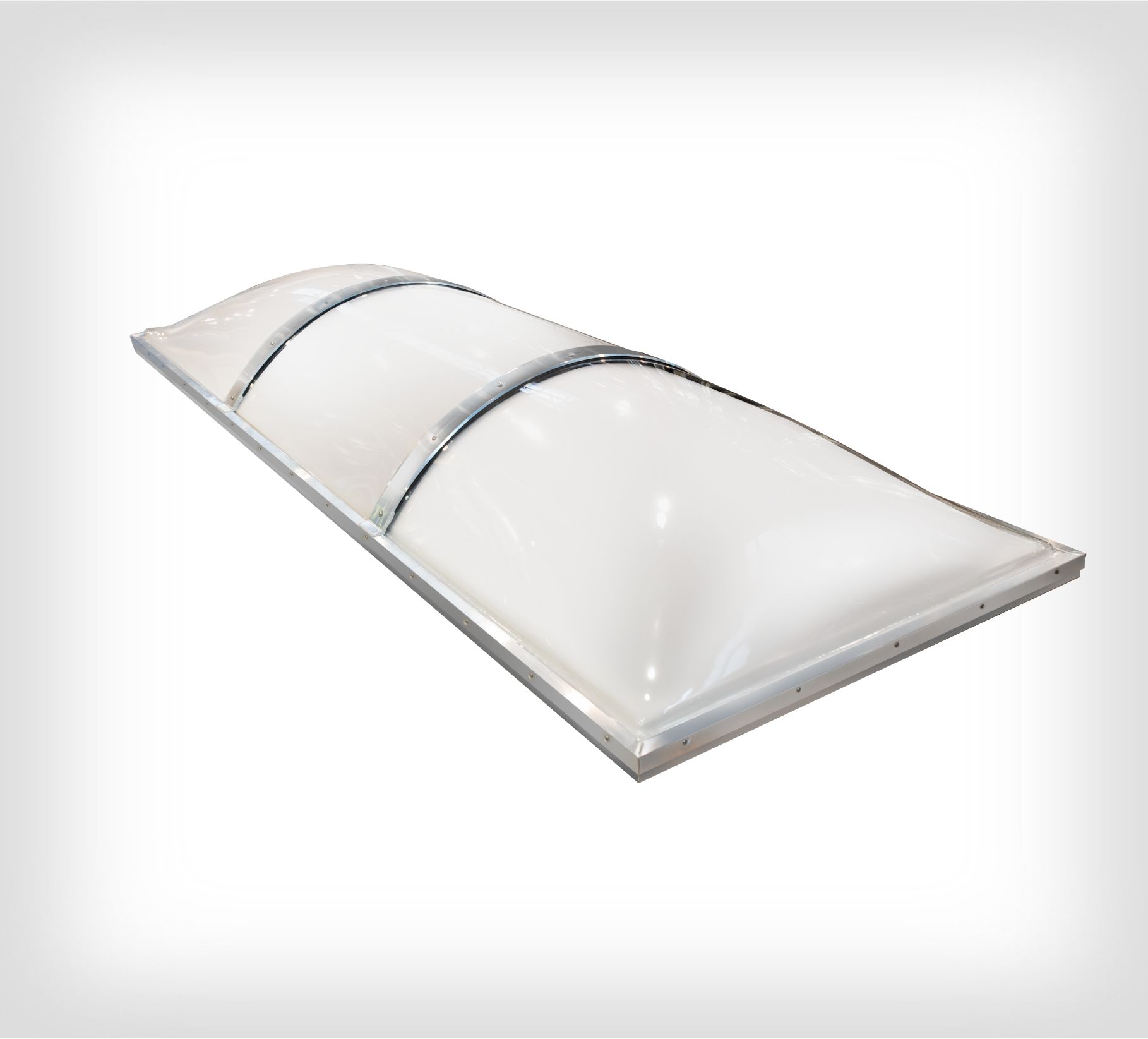

Barrel Vaults
FBDDC
Barrel Vault – Continuous dome units are designed with a minimum of structural aluminum framing to provide any length of continuous skylight. Ideal for commercial, industrial and institutional buildings.
- Maximum distance between interval support is 5’.
- Designed for flat roofs. Available in inside or outside fastening models.
- On units 72’ or wider an aluminum “U” Channels ½” by 1½” is added under intermediate for additional support.
- The maximum distance between the centre lines of intermediate supports is 5’.
- Also available as a single dome unit for use over unheated areas.
- Skylights conform to and exceed test requirements of CGSB63-GP-14M “Skylights Plastic” Class A, Type 2.
- See CMHC Evaluation Report No. (01877).
Thermally Broken Self Flashing Acrylic Dome
Designed for shingle roof with a minimum of 3:12 pitch. The design features permanent weathertight bonding at all critical points. Easy to install for the do-it-yourselfer or professional roofing contractor.
The Aluminum Self Flashing unit includes a built in curb and flashing.- Minimum 3:12 roof pitch.
- Includes vinyl base frame to eliminate cold air transfer.
Thermally Broken Self Flashing Glass Skylight
Designed for shingle roof with a minimum of 3:12 pitch. Features a hermetically dual sealed glass unit with LoE coating and argon gas filled.
- The Aluminum Self Flashing unit includes a built in curb and flashing.
- Minimum 3:12 roof pitch.
- Includes vinyl base frame to eliminate cold air transfer.
CSD Circular Roof Dome
SlimlitE ACRYLIC OR POLYCARBONATE options
- Slimlite manufactures skylights in acrylic and polycarbonate. These versatile glazing materials are able to be produced in double and triple glazing.
- Acrylic comes in a three options – clear, bronze tinted and translucent white.
- Double glazing is the right choice for most Canadian applications.
- Provides a high degree of insulation.
- Clear acrylic gives bright natural light.
- Double glazing is the right choice for most Canadian applications.
- Provides a high degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, creating a warm beautiful light.
- Double glazing is the right choice for most Canadian applications.
- Provides a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, but still has the brightness of natural light.
- Provides privacy.
- Triple glazing is the right choice for Northern Canadian applications and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Triple glazing is the right choice for Northern Canadian applications and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, creating a warm beautiful light.
- Triple glazing is the right choice for Northern Canadian applications and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic delivers the reduces the impact of extreme sunlight, but still has the brightness of natural light.
- Provides privacy.
Slimlite glass options
Cardinal Glass Industries is Slimlite’s glass supplier, a world leader in high performance glass technology.- Cardinal maintains a clear vision – design and fabricate the most advanced residential glass products in the industry.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Blocks 95% of UV rays.
- Advanced condensation resistance.
- Industry standard, identical LoE coating from the same supplier as the competition.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Reduces the effects of sound by up to 30%.
- Additional security: The innermost interlayer holds the glass together in case of breakage.
- Clear or translucent white laminated glass is available. Up to 99% UV protection, reduces fading of furnishings.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Neat coating breaks up organic material on the glass.
- Reduces water spotting and disperses water evenly.
- Blocks 95% of UV rays.
- Neat coating available as an add on to all glazing options.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible. LoE3 366 Clear plus i89 coating.
- High performance double glazed glass.
- Close to triple pane performance.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Glare reduction.
- Ideal for rooms requiring a softer light.
- Reduces solar heat gain.
- Blocks 95% of UV rays. Available in bronze and grey tints.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Mirror finish reflects the sun.
- Lowest visible light transmittance.
- Superior solar heat gain control.
- Blocks 95% of UV rays. Available in bronze and grey tints.
- Triple pane glass with two argon gas filled chambers.
- Industry leader with LoE3 triple coating on surface 2 & 5, or two of three panes of glass.
- Best U-Value in the industry.
- 10 Year hail warranty.
- Triple pane glass with two argon gas filled chambers.
- Additional security: The innermost interlayer holds the glass together in case of breakage.
- Reduces the effects of sound by up to 30%.
