ORDERING
CUSTOM SIZES
The step by step process for ordering a
Columbia custom skylight.
Columbia custom sizes
Any size, any model, any glass or acrylic, any colour frame

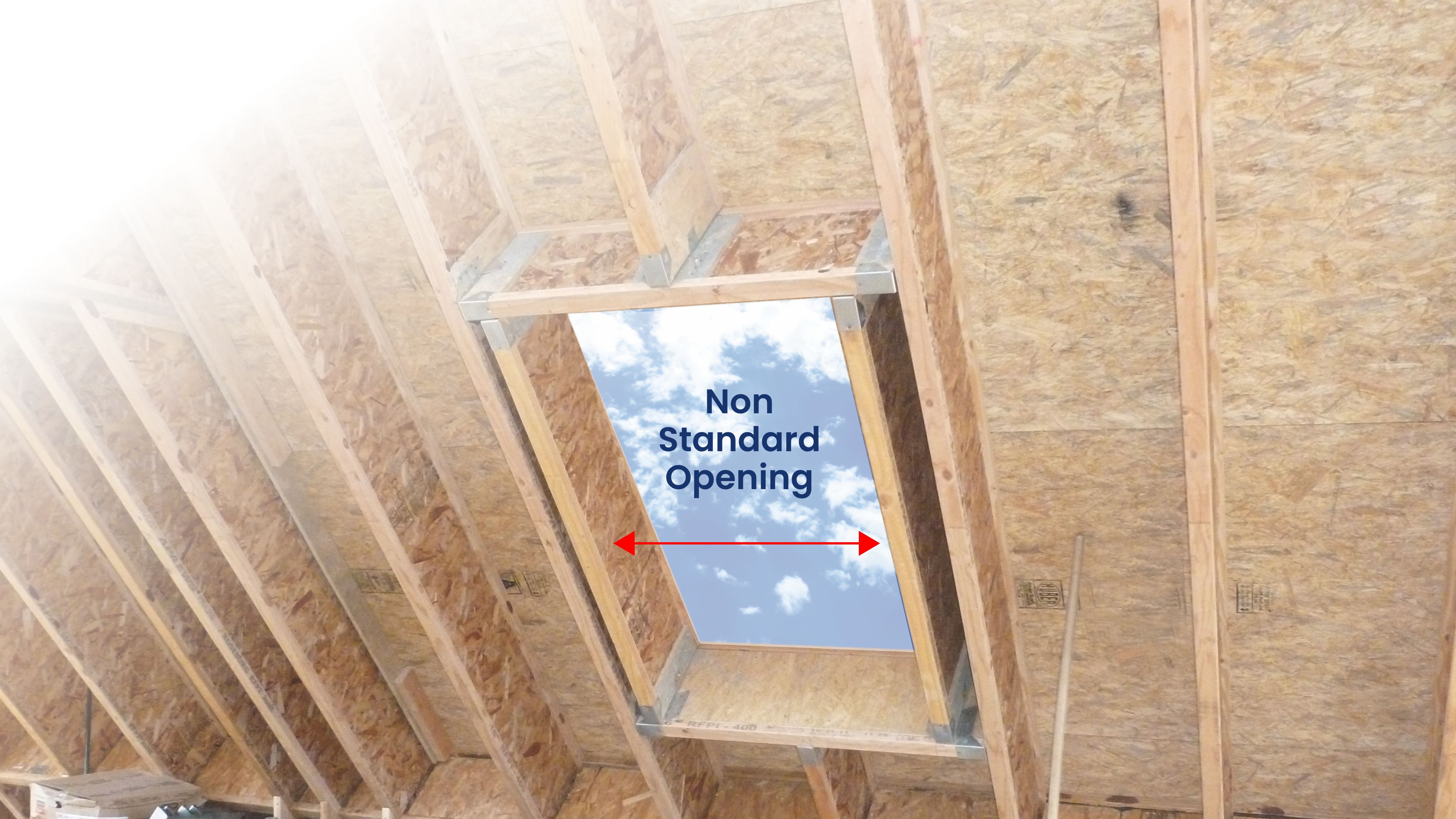

- Custom sizes have many advantages. If you’re replacing an old skylight you don’t have to incur the additional expense of modifying the roof opening and interior finish to fit todays available standard sizes.
- Columbia’s customization program allows you to satisfy all of your client’s demands for size and model.
- Columbia’s custom size program is the best in the industry, delivering flexibility, value and fast delivery.
- We provide you with unequalled customer service, with the industry’s best service and lead times.
The steps to specifying your custom SKYLIGHT
Determine the roof type glazing configuration
Glass is our recommendation for a sloped roof application. Acrylic (or polycarbonate) is typically used on a flat roof.
An acrylic or polycarbonate dome or pyramid can be mounted on a flat roof. A glass skylight can be installed on a flat roof with a site built sloped curb (Min 2:12 pitch).
Choose The Model
- Columbia offers custom sizing on all of its models.
- Glass – we can manufacturer to the maximum size available.
- Choice of any glass or acrylic glazing options on all custom sized models.
- The maximum size is noted below each model of skylight.
- An acrylic skylight can be manufactured to a larger size than glass.
- Pyramid skylights are only available with a square base (equal side measurements).
AVAILABLE SKYLIGHT MODELS & MAXIMUM SIZE
Square Base Only
Choose the Mounting Type

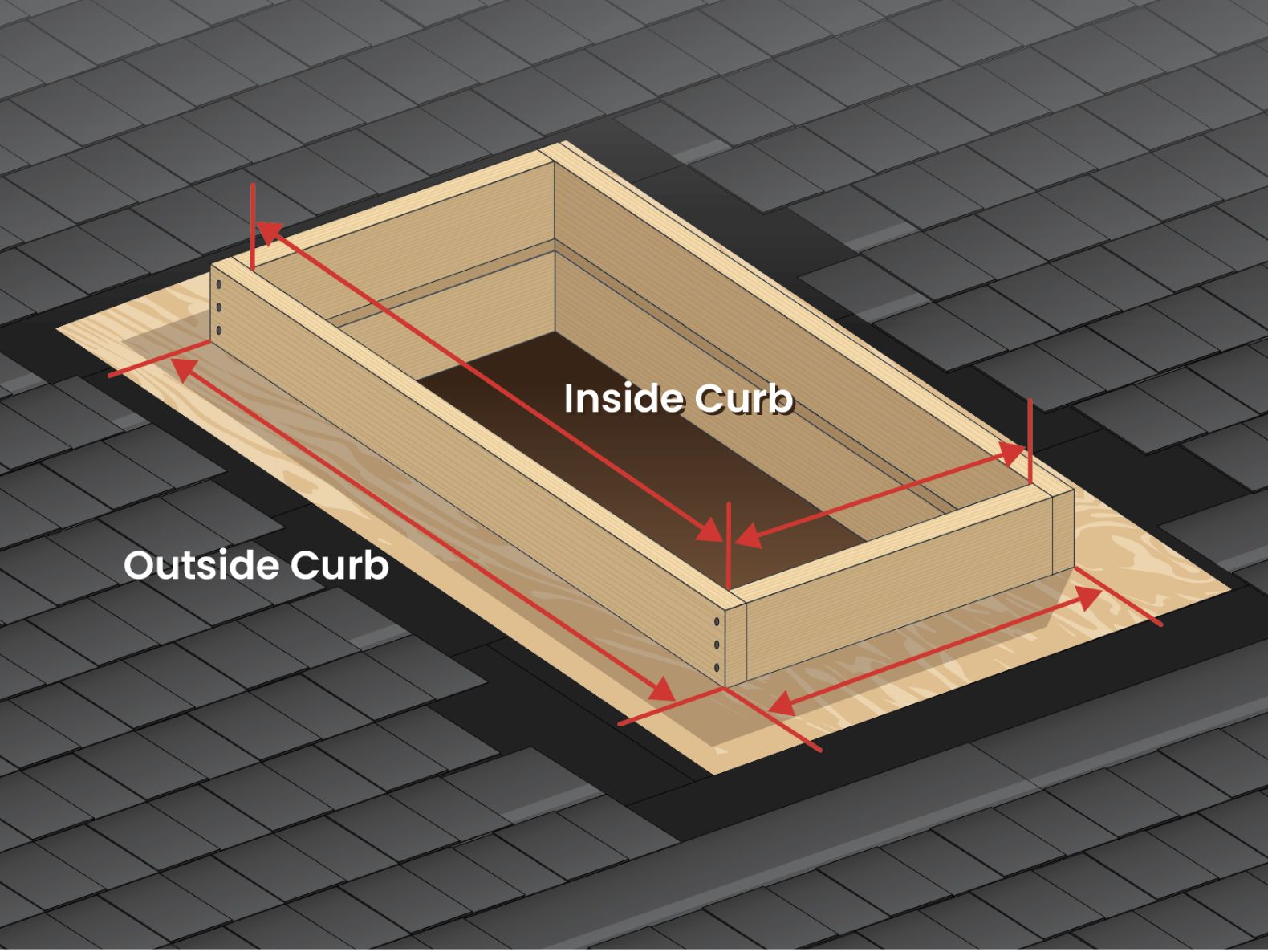

For Curb Mount skylights, measure the inside and outside curb dimensions carefully. Width x Height. Exclude any interior finishing materials.

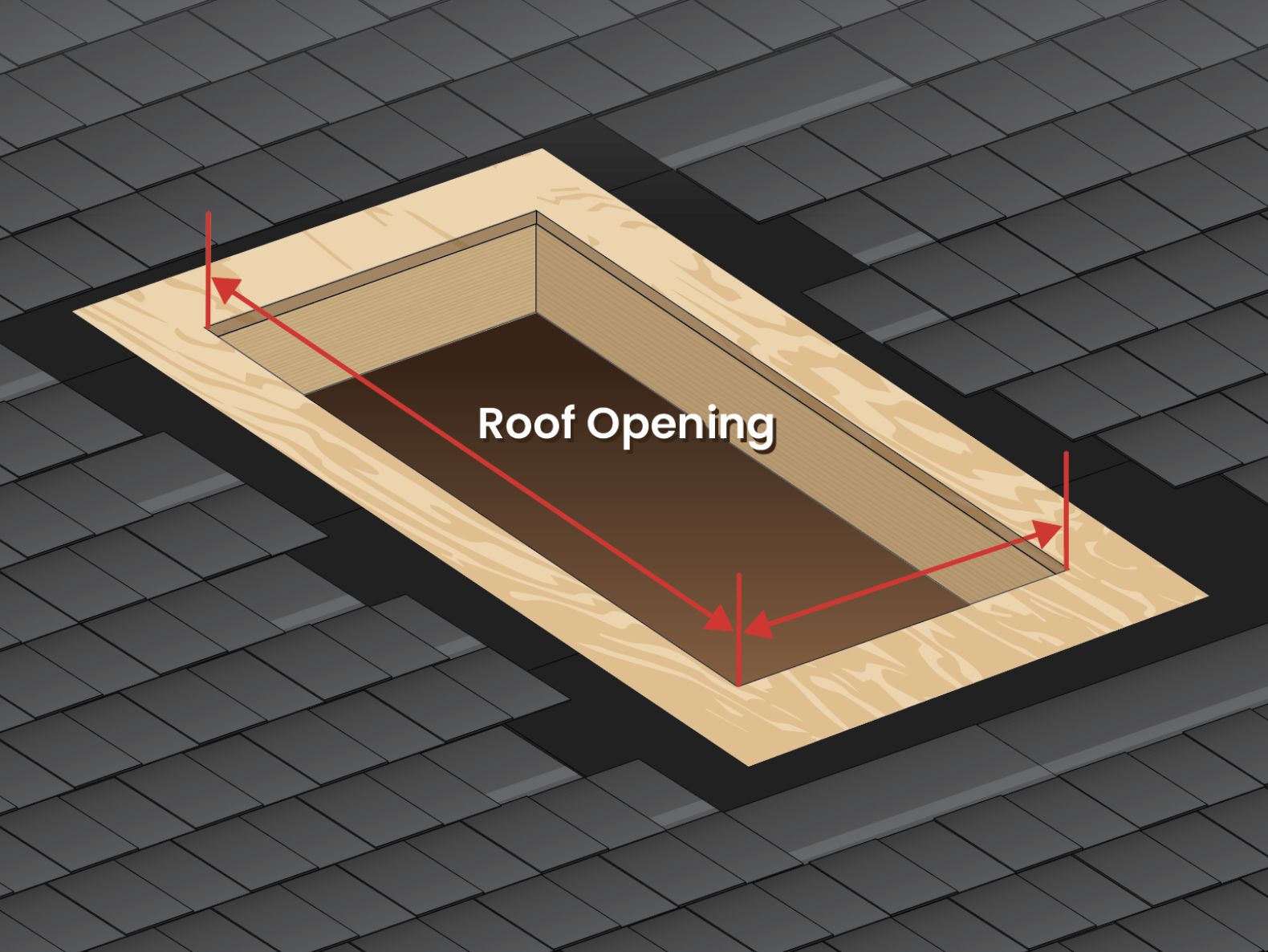

For Self Flashing skylights measure the inside of the roof opening. Width x Height. Exclude any interior finishing materials.
Choose The Glazing Configuration
(Double or Triple)
MAXIMUM SIZE
4’ x 6’
Glass Type
- LoE3 366 Clear
- LoE3 366 Clear/Laminated
- LoE3 366 Neat
- LoE3 366 Tinted Bronze or Grey
- LoE3 366 Reflective Bronze or Grey
- LoE3 366 i89
- LoE3 366 Triple Glazed Clear
- LoE3 366 Triple Glazed Laminated
(Double or Triple)
MAXIMUM SIZE
Square
8’ x 8’
Rectangular
6’ x 10’
Acrylic Type
Double or Triple Glazed Acrylic
or Polycarbonate.
Clear, White, or Bronze Tint.
Select the frame colour
Select from 7 standard colours (more than most competitors), or we offer unlimited custom colour matching – provide your dealer with a colour paint swatch and we can quote on the custom colour.
If you are ordering an Electric Venting Skylight: Columbia offers 3 Electric Motor & Remote Options
Designed by Truth Hardware™, UL listed and CSA approved.- Operates from 110 volt household current.
- Available on the following venting models: Vinyl Self Flashing OSF E; and Vinyl Curb Mount OCM E.
- Available for Glass or Acrylic models.
VE STANDARD
Best Value Convenience
When all you need is a wall mounted switch. Perfect for most customers.
VE DELUXE
Popular Choice – Remote and Rain Sensor
This elegant remote control provides the flexibility of a hand held unit, and includes a rain sensor.
VE ELITE
Feature Packed – Remote, Rain Sensor & Thermostat
This top of the line remote comes with a thermostat, adjusting to your room temperature setting, and includes a rain sensor.
Choose Columbia’s Flashing Kit or Underlayment?
- Columbia supplies a ready-to-use painted aluminum flashing kit and a high performance waterproof underlayment. For sloped asphalt shingle or wood shake roofing applications.
- Order Flashing & Underlayment at the same time you order your skylight to make your installation as efficient and trouble free as possible. Recommended for use on all skylight installations
FKCM – Flashing Kit
Only suitable for sloped roof (Min 2:12), asphalt shingles, and wood shake.
IWS – Underlayment
Order through your local Distributor.
