Manually
Operated
flat roof
Windows
DMF – Manual Venting Flat Roof
Deck Mounted Skylight.
DMF Manual Venting Flat Roof Deck MOUNTED Skylight

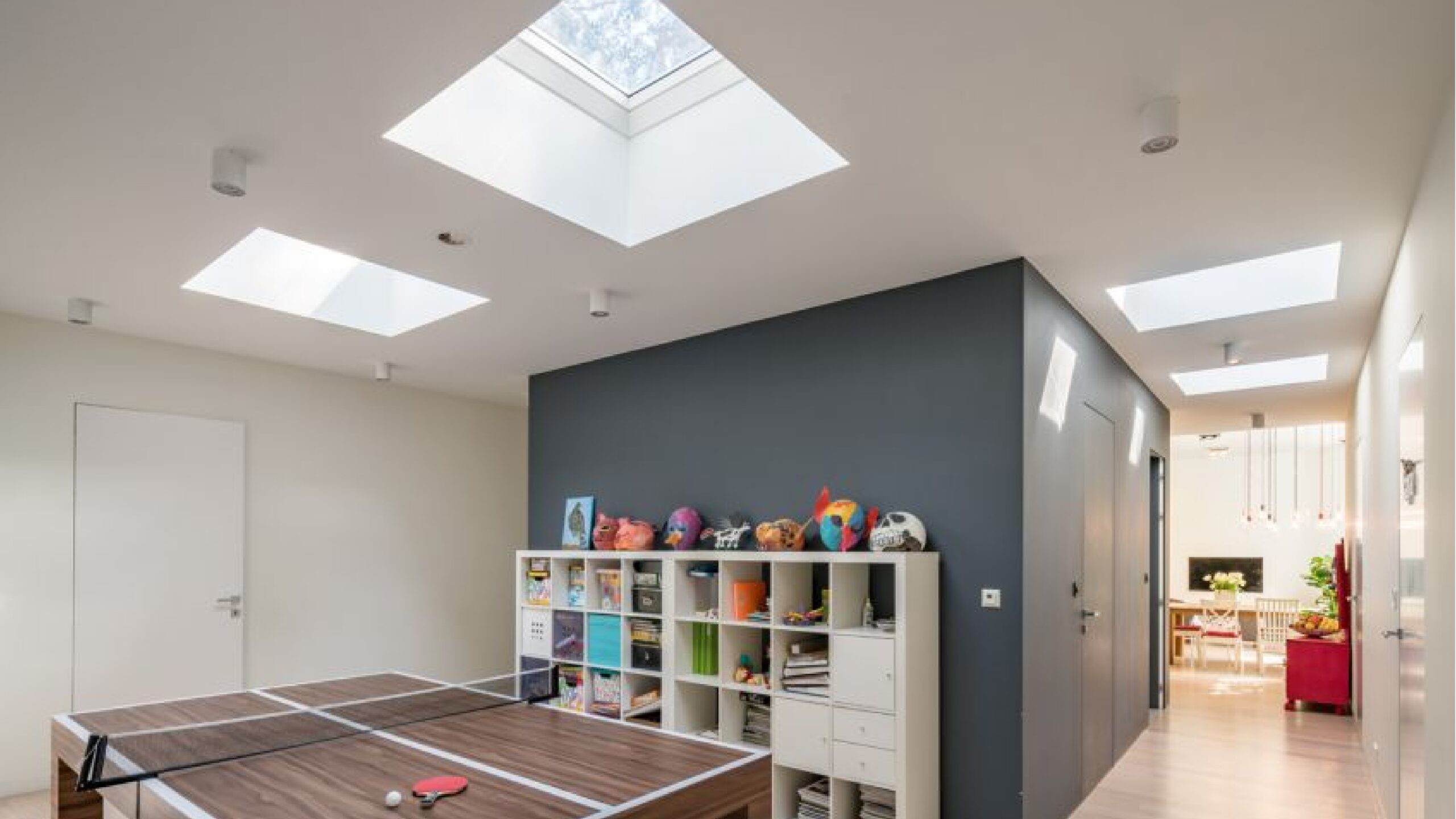

- The DMF is engineered to provide natural light, and its proven health benefits, to flat roof buildings where installing a standard vertical window is not always possible.
- This flat roof skylight is the ideal solution, providing natural light to every room, benefiting the comfort and long term health of the people living or working below, and improving environmental comfort.
- The DMF skylight provides fresh air room ventilation, and energy saving with the highest level of thermal insulation. Now every room under a flat roof can be flooded with warm natural light.
FEATURES
- An ideal solution for flat roof applications requiring fresh air ventilation.
- Infinity glass top surface, up to 16% greater glazing area compared to competitive offerings.
- Suitable for roofs with pitches between 2-15° degrees.
- Innovative glazing unit featuring leading edge design.
- Available with two glazing units: DU6 (triple-glazed) and DU8 (quadruple-glazed). Both are hermetically sealed units.
- Excellent thermal insulation parameters for the entire quadruple glazed (DU8) skylight with an R-Value of 8.9. Triple glazed (DU6) skylights has an R-Value of 8.1.
- Perfect solution for energy efficient passive buildings.
- Sound value: 38 dB for DU6 and 37 dB for DU8.

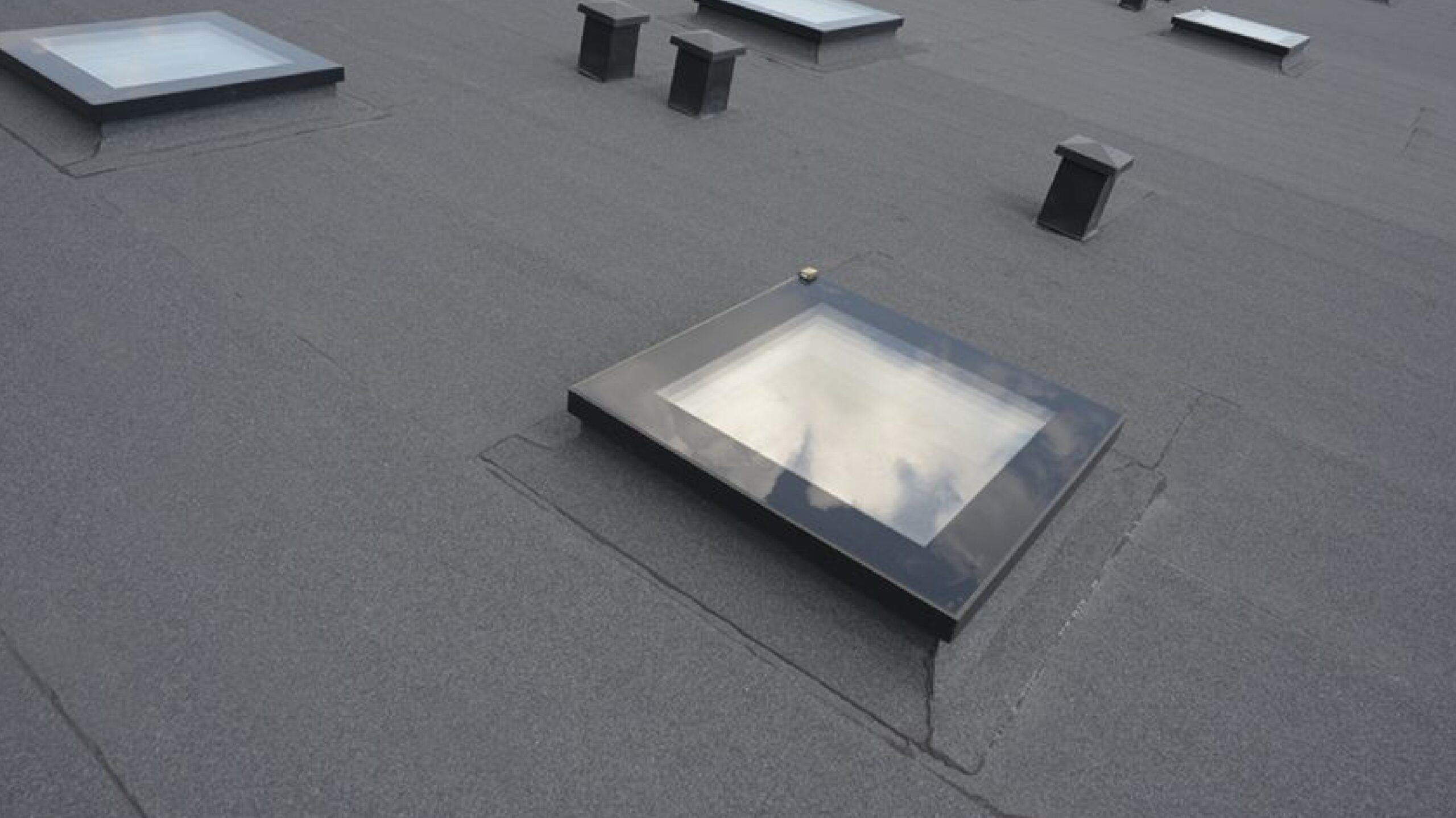

- Can be used with roofing products such as TPO, PVC, EPDM single ply or torched down membranes.
- Blackout (ARF-D) blinds are available.
- Economical P2 (Temp/Lam) double glazing models are also available on special orders.
Highlights of the DMF – Manual Venting Flat Roof Skylight
Infinity Edge Glass Skylight
- The elegant design of seamless, edge to edge Infinity glass. Up to 16% greater glazing area compared to competitive offerings. Create a striking architectural feature, ideal when the skylight can be seen from above.
- Buildings with flat roofs often exclude natural light skylights and miss out on the benefits, but the DRF has been specifically designed for flat roofs.
Sleek Architectural Design
- FAKRO’s flat roof skylights are designed to be a dramatic, sleek and modern architectural feature. Utilizing the latest technology and material to advance their design.
- Create an architectural ‘wow’ factor that will get noticed. The design compliments the aesthetic style of modern architects and designers.
- The FAKRO flat roof skylight series (triple and double glazed) can be installed individually, in a row, or in a group. Discuss the necessary structural requirements with your architect and engineer.
Energy Efficient
- The DMF delivers excellent thermal insulation with the state of the art DU8 quadruple gazed unit. The DU8 skylight’s R-value is 8.9. The triple glazed (DU6) option has an R-value of 8.1.
- DEF, DMF & DXF skylights are manufactured with outstanding thermal frame insulation.
- More economical DEG, DMG, DXG-P2 (Temp/Laminated) double glazed version is available by special order.
Superior Sound Insulation
- A quiet calm home environment is essential to modern families. The DMF provides outstanding sound insulation from its state of the art glazing.
- A quiet working environment is critical to many modern businesses, dramatically improving productivity, allowing employees a quiet place to concentrate, talk and think.
- The DMF flat roof window featuring a double chamber DU6 glazing has been tested for sound insulation during heavy rain. The result, LIA= 36 [dB]*, confirms the high level of resistance against sound penetration making the skylight ideal for sound reduction.
Green Roof Installation with Additional XRD/W Base
- Flat roof glass skylights can also be mounted on an additional XRD/W base with a height of 5⅞” for installation on green or living roofs.
- 2 XRD bases can be installed on top of each other for applications requiring additional height, such as a ‘green’ roof.
See installation instructions.
Accessories
- Supplied with a ZSD telescopic pole (4-10ft) which works with DMF/DMG/DMZ flat roof manual venting skylights and ARF/D and ARP/D manual blinds designed for them.
- An optional flexible tipped SZS (5-10ft) and SZS Mini (20”) aluminum control rods are also available for easier alignment with angled installations. The same control rods will operate on all deck mount manual venting skylights (FV), flat roof manual venting skylights (DMF, DMG and DMZ) and all FAKRO manual blinds.
FAKRO’s Premium DU6 & DU8 Glazing Unit
More economical D_G-P2 (Temp/Laminated) version also available by special order.
The Features of FAKRO’s Laminated Glass
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.
Sizes For DMF Manual Venting Flat Roof Skylight
| Rough Opening | 21⅞ | 29⅞ | 34¾ | 46⅝ |
|---|---|---|---|---|
| 29⅞ |
Model: 30/30
Rough Opening (WxH)
29⅞” x 29⅞” Outside Frame (WxH)
39¼” x 39¼” Daylight Area (Glass)
4.52 sq.ft. Model: 30/30
Rough Opening (WxH)
759mm x 759mm Outside Frame (WxH)
995mm x 995mm Daylight Area (Glass)
0.42 m2 |
|||
| 34¾ |
Model: 30/36
Rough Opening (WxH)
29⅞” x 34¾” Outside Frame (WxH)
39¼” x 44⅛” Daylight Area (Glass)
5.43 sq.ft. Model: 30/36
Rough Opening (WxH)
759mm x 886mm Outside Frame (WxH)
995mm x 1120mm Daylight Area (Glass)
0.5 m2 |
Model: 36/36
Rough Opening (WxH)
34¾” x 34¾” Outside Frame (WxH)
44⅛” x 44⅛” Daylight Area (Glass)
6.46 sq.ft. Model: 36/36
Rough Opening (WxH)
886mm x 886mm Outside Frame (WxH)
1120mm x 1120mm Daylight Area (Glass)
0.6 m2 |
||
| 45⅞ |
Model: 22/46
Rough Opening (WxH)
21⅞” x 45⅞” Outside Frame (WxH)
31⅛” x 55⅛” Daylight Area (Glass)
5.06 sq.ft. Model: 22/46
Rough Opening (WxH)
556mm x 1165mm Outside Frame (WxH)
792mm x 1401mm Daylight Area (Glass)
0.47 m2 |
|||
| 46⅝ |
Model: 36/48
Rough Opening (WxH)
34¾” x 46⅝” Outside Frame (WxH)
44⅛” x 55⅞” Daylight Area (Glass)
8.93 sq.ft. Model: 36/48
Rough Opening (WxH)
886mm x 1186mm Outside Frame (WxH)
1120mm x 1420mm Daylight Area (Glass)
0.83 m2 |
Model: 48/48
Rough Opening (WxH)
46⅝” x 46⅝” Outside Frame (WxH)
55⅞” x 55⅞” Daylight Area (Glass)
12.49 sq.ft. Model: 48/48
Rough Opening (WxH)
1186mm x 1186mm Outside Frame (WxH)
1420mm x 1420mm Daylight Area (Glass)
1.16 m2 |

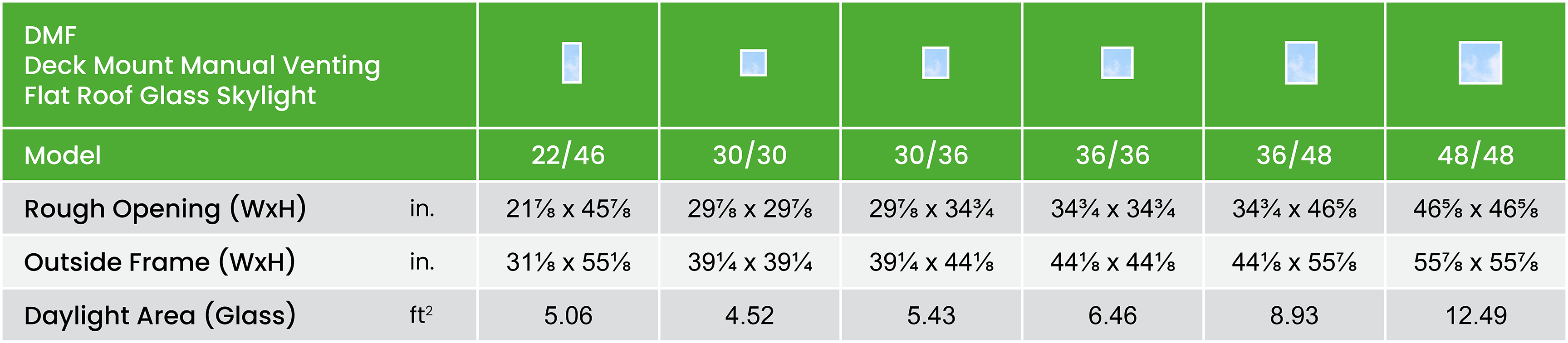

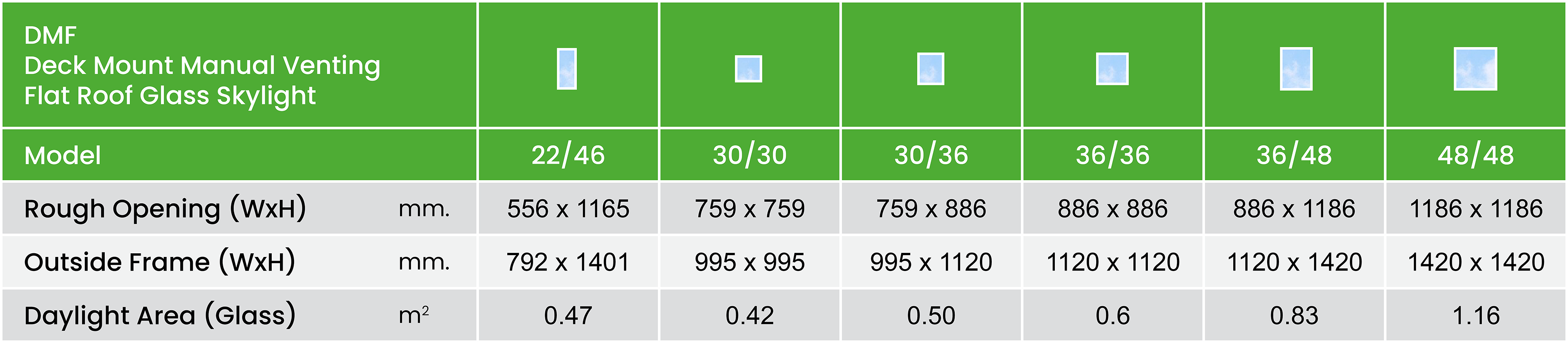

Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Blackout Blinds
Designed to complement any interior designer’s vision.
