GL OSF – Vinyl Self Flashing Manual Venting Glass Skylight
- Brighten your home with natural light and refresh it with a cooling ventilation. Columbia’s Canadian made self flashing manually operated venting glass skylight provides the combined benefits of natural light and fresh air ventilation. Ideal for high humidity or high heat areas, such as bathrooms and bedrooms. Cool your home by releasing trapped hot air, and expelling airborne odours and contaminates such as dust particles.
- The skylight is operated using the supplied Crank Handle if your skylight is within reach, or a Telescopic Pole (purchased separately) for harder to reach locations.
- Self flashing skylights mount directly to the roof deck and are used in Eastern markets only. The most popular skylight for both East and West markets remains the curb mounted skylight.
- Available with ENERGY STAR® Certified double or triple glazing LoE3 options (including laminated glass). Additional LoE3 glass options include tinted or reflective glass (bronze or grey) that reduce the glare of intense sunlight and solar heat gain. Columbia also supplies the innovative LoE3 366 Neat low maintenance glass. You may add NEAT coating to any glazing choices.
- Our venting skylights come in standard or custom sizes (this model up to 4’ x 4’), and unlimited frame colour options – seven standard colours or custom matching.
FEATURES
- Suitable for sloped asphalt shingle and wood shake roof only, minimum 3:12 pitch. We recommend using Columbia’s underlayment for watertight installation.
- The easiest skylight model to install – no flashing kit or wood curb required.
- Includes built in vinyl curb and wide self flashing flange for optimum seal. Features slotted fastening holes around the perimeter flange, allowing for expansion & contraction caused by temperature changes.
- Maintenance free white thermally broken extruded fusion welded vinyl (PVC) base frame. Features double wall frame for optimal strength and insulation.
- Integrated four sided gutter (our Condensation Control Technology) to collect any condensation caused by Canada’s extreme climate.
- White vinyl base frame matches the interior lightwell.
- Durable, weather resistant, extruded aluminum exterior frame with baked enamel paint finish.
- Seven standard frame colours (including black), unlimited custom colour options.
- Comes standard with a Crank Handle for skylights within reach. Telescopic Pole for harder to reach applications, 4 – 6 ft and 6 – 10 ft lengths available. Hex ball adapter included.
- Custom sizes available up to 4’ x 4’.
- Pre installed removable insect screen with a white aluminum frame to match vinyl frame and lightwell.
- Spring loaded pins allow for easy removal & installation.
- Manufactured in Canada with 100% North American sourced raw materials.
- Industry leading warranty.
ENERGY STAR® certified glazing options
- Triple Glazed LoE3 366 Temp/Temp/Temp
- Triple Glazed LoE3 366 Temp/Temp
/Laminated
3:12 Minimum
Roof Pitch
Suitable for low profile asphalt shingle or shake roof only. Recommend using Columbia underlayment for watertight installation.
Recommended
Locations
- Kitchens
- Bathrooms
- Stairwells
- Foyers
- Dining Room
- Living Room
The Benefits of GL OSF – Vinyl Self Flashing Manual Venting Glass Skylight
Fresh Air Ventilation
- Improve the health of your home’s interior environment with the clarity and brightness of natural light and fresh air ventilation. Breathe in, and feel the revitalizing power of fresh air.
- Natural ventilation allows you to release toxic pollutants and odors, and moderate the temperature of your home by expelling hot air that may have accumulated.
- Open and close with the crank handle supplied for skylights that can be easily accessed. Optional telescopic pole for hard to reach skylights.

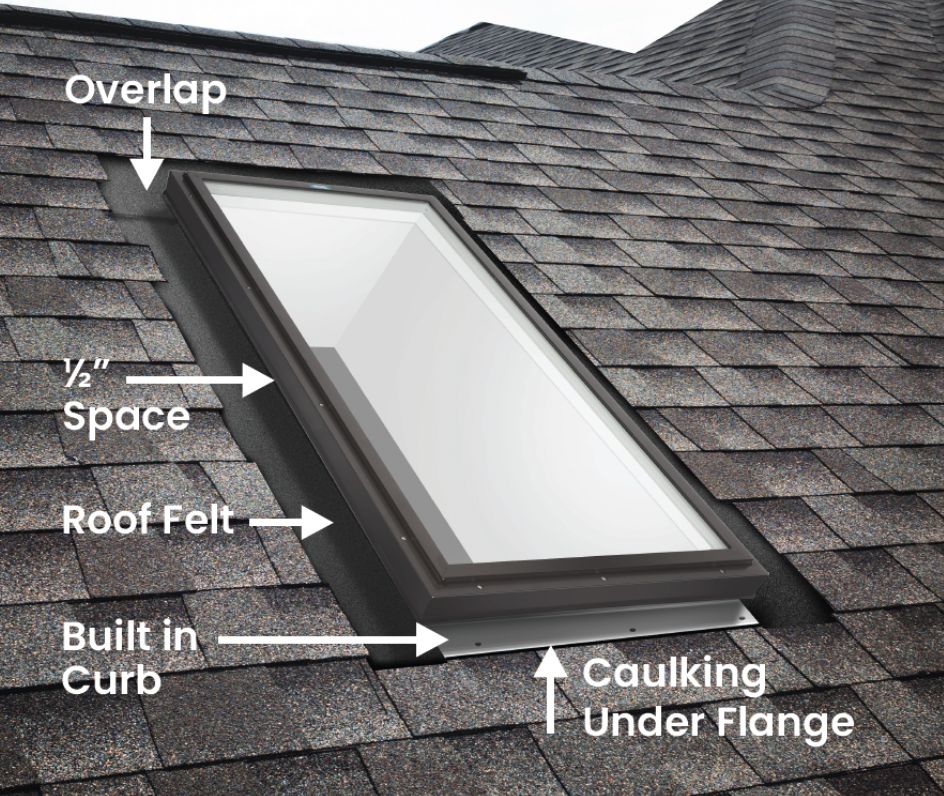

Watertight Self Flashing Design
- Aluminum Cap
- Durable extruded exterior aluminum frame with baked enamel paint finish.
- Seven standard colours and unlimited custom colour matching. Bring in a paint chip and we will match it.
- Base Frame
- Maintenance free, white heavy duty PVC, thermally broken vinyl base frame with co-extruded draft seal.
- Columbia Condensation Control System
- All Columbia skylights utilize our unique rigid (PVC or Aluminum), four sided, extra wide gutter – wicking away moisture, protecting your lightwell from damage and unsightly staining.
- Curb
- Built in PVC curb and flashing – No wood curb or metal flashing required. All fixed self flashing skylights can be installed on side, i.e. 3652 can be 5236.

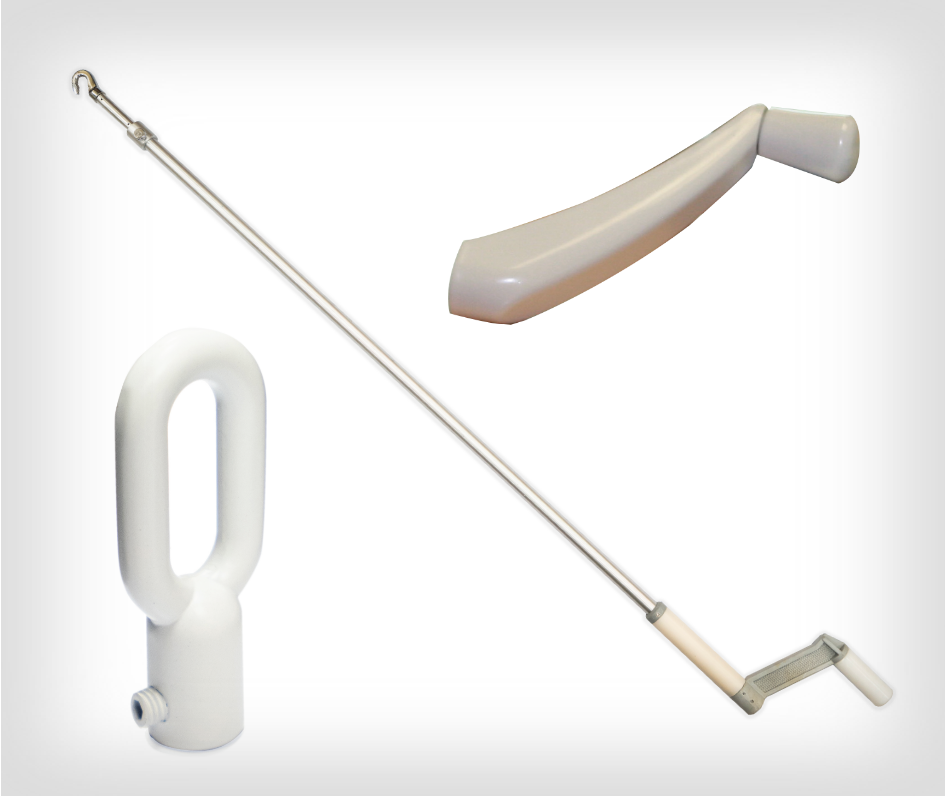

Manual Operation
- Your venting skylight comes standard with a crank handle, ideal for skylights that are within easy reach.
- You can choose to purchase a telescopic pole to operate your skylight if it is just out of reach. Available in 4ft to 6ft and 6ft to 10ft lengths. Compatible with venting curb mount and self flashing models. Hex ball adapter included.
The Benefit of Natural Light
- Living in the north we all need more natural daylight in our homes, particularly during the winter months when days are shorter, there are fewer hours of sunlight, and the sun is at a lower angle than during the summer.
- Natural light has been proven to increase happiness and productivity.
- Increasing the amount of natural light in your home offsets the impact of Seasonal Affective Disorder, which affects many people in the winter when they do not receive enough sunlight.
- Natural light has been shown to lower the risk of nearsightedness in children and young adults by helping the eye produce dopamine, which aids in healthy eye development.
Self Flashing: the Easiest Skylight Model to Install
- Attractive low profile appearance – compliments your roof line.
- Self Flashing skylights are easy to install on any composition shingle or shake roof.
- The Columbia self flashing skylight is the choice of installers and do it yourselfers across the country because of the ease of installation with its integrated PVC vinyl interior frame and flange.
- No need to build a wood curb or flash, saving time and money.
Efficient ENERGY STAR® LoE3 Double or Triple Glazing with Argon Gas
- For maximum energy efficiency select from Columbia’s wide range of ENERGY STAR® LoE3 366 with advanced triple LoE3 coated glazing options – double and triple glazed. All options are available with laminated inner lite.
- The space between the glass panes is filled with argon gas, a natural, non toxic, high performance insulator.
- Because argon is denser than air it is superior at insulating your home than a conventional double pane skylight. It reduces cold or hot temperatures from transmitting through the glazing unit.
Columbia offers a wide range of high performance glass options
- Columbia offers a wide range of double or triple glazing options, including ENERGY STAR® Canada certified glazing units.
- All glazing options available on all models, fixed and venting, including custom sizes.
Cardinal Glass Industries is Columbia’s glass supplier, a world leader in high performance glass technology. Cardinal maintains a clear vision – design and fabricate the most advanced residential glass products in the industry.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Blocks 95% of UV rays.
- Advanced condensation
resistance. - Industry standard, identical LoE3 coating from the same
supplier as the competition.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Reduces the effects of sound by up to 30%.
- Additional security:
The innermost interlayer holds the glass together in case of breakage. - Clear or translucent white laminated glass is available.
- Up to 99% UV protection, reduces fading of furnishings.
- 10 year hail warranty on cracking or breakage due to hail.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Neat coating breaks up organic material on the glass.
- Reduces water spotting and disperses water evenly.
- Blocks 95% of UV rays.
- Neat coating available as an add on to all glazing options.
- Dual pane with argon gas. Superior LoE3 triple coating is virtually invisible.
- LoE3 coatings applied on two surfaces for enhanced energy efficiency.
- Close to triple pane performance.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2011.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Glare reduction.
- Ideal for rooms requiring a softer light.
- Reduces solar heat gain.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Mirror finish reflects the sun.
- Lowest visible light transmittance skylight on the market today.
- Superior solar heat gain control.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
- Triple pane glass with two argon gas filled chambers.
- Industry leader with LoE3 triple coating on surface 2 & 5, or two of three panes of glass – unlike competition.
- Best energy efficiency and U-Value in the industry.
- Protects against fade causing UV rays.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
- Triple pane glass with two argon gas filled chambers.
- Exterior two panes are tempered glass.
- Additional security:
The innermost laminated lite holds the glass together in case of breakage. - Reduces the effects of sound by up to 30%.
- Up to 99% UV protection, reduces fading of furnishings.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
* Meets Vancouver building code.
Columbia is the only skylight manufacturer offering triple glazing on all skylight models, fixed & venting, standard and custom sizes.
The benefits of Columbia’s laminated glass
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic dome skylight.
Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is far harder to break and penetrate than traditional glass.
So, if you are concerned about security it is worth considering. The innermost interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
We offer triple glazing on all models
Columbia is the only skylight manufacturer offering triple glazing (including laminated options) on all skylight models, fixed & venting, standard and custom sizes.
Triple glazed skylights meet the current 2020 ENERGY STAR® certification requirements (Version 5). Providing industry leading energy efficiency.
Columbia offers the widest choice of skylight frame colours in North America
Sizes of GL OSF – Vinyl Self Flashing Manual Venting Glass Skylight
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
The yellow star indicates the most popular sizes.
| Roof Opening | 14½ | 22½ | 30½ | 34½ | 36½ | 46½ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14½ |
Model: 2020
Roof Opening (WxH)
14½” x 14½” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Roof Opening (WxH)
368mm x 368mm Daylight Area (Glass)
0.14 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22½ |
Model: 2028
Roof Opening (WxH)
14½” x 22½” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Roof Opening (WxH)
368mm x 572mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Roof Opening (WxH)
22½” x 22½” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Roof Opening (WxH)
572mm x 572mm Daylight Area (Glass)
0.33 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30½ |
Model: 2036
Roof Opening (WxH)
14½” x 30½” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Roof Opening (WxH)
368mm x 775mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Roof Opening (WxH)
22½” x 30½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Roof Opening (WxH)
572mm x 775mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Roof Opening (WxH)
30½” x 30½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Roof Opening (WxH)
775mm x 775mm Daylight Area (Glass)
0.60 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34½ |
Model: 2840
Roof Opening (WxH)
22½” x 34½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Roof Opening (WxH)
572mm x 876mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Roof Opening (WxH)
34½” x 34½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Roof Opening (WxH)
876mm x 876mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36½ |
Model: 4242
Roof Opening (WxH)
36½” x 36½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Roof Opening (WxH)
927mm x 927mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46½ |
Model: 2052
Roof Opening (WxH)
14½” x 46½” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Roof Opening (WxH)
368mm x 1181mm Daylight Area (Glass)
0.43 m2 |
Model: 2852
Roof Opening (WxH)
22½” x 46½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Roof Opening (WxH)
572mm x 1181mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Roof Opening (WxH)
30½” x 46½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Roof Opening (WxH)
775mm x 1181mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Roof Opening (WxH)
34½” x 46½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Roof Opening (WxH)
876mm x 1181mm Daylight Area (Glass)
1.03 m2 |
Model: 5252
Roof Opening (WxH)
46½” x 46½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Roof Opening (WxH)
1181mm x 1181mm Daylight Area (Glass)
1.40 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

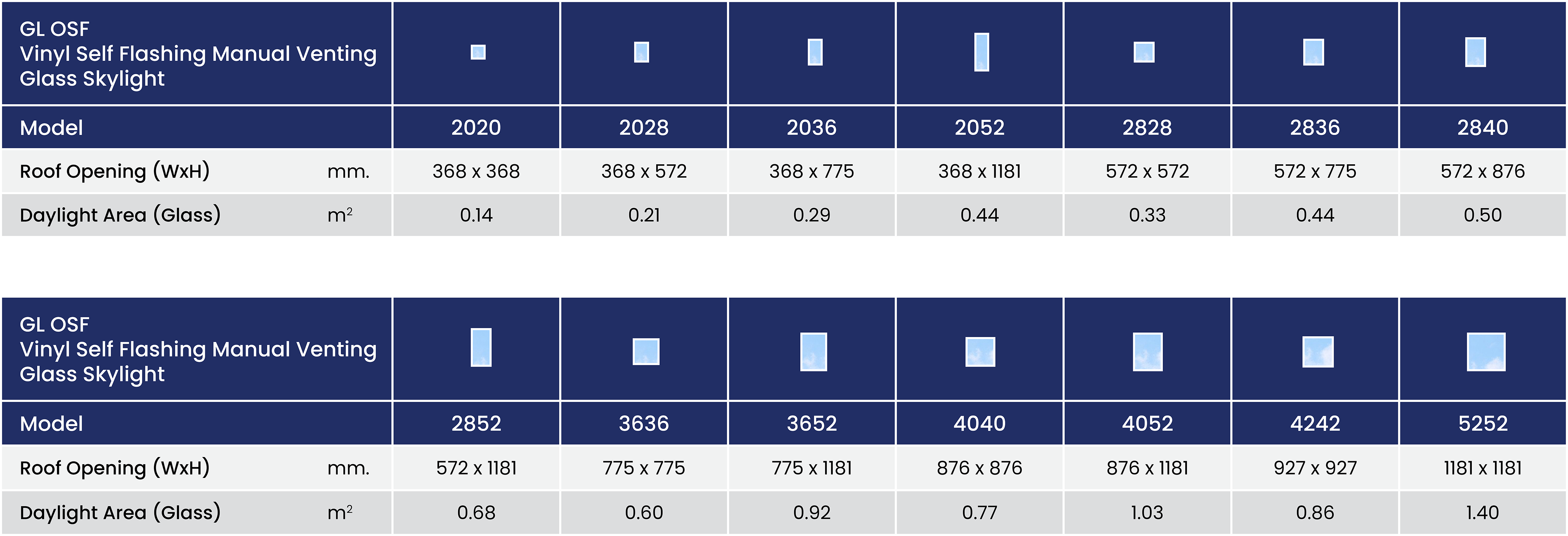

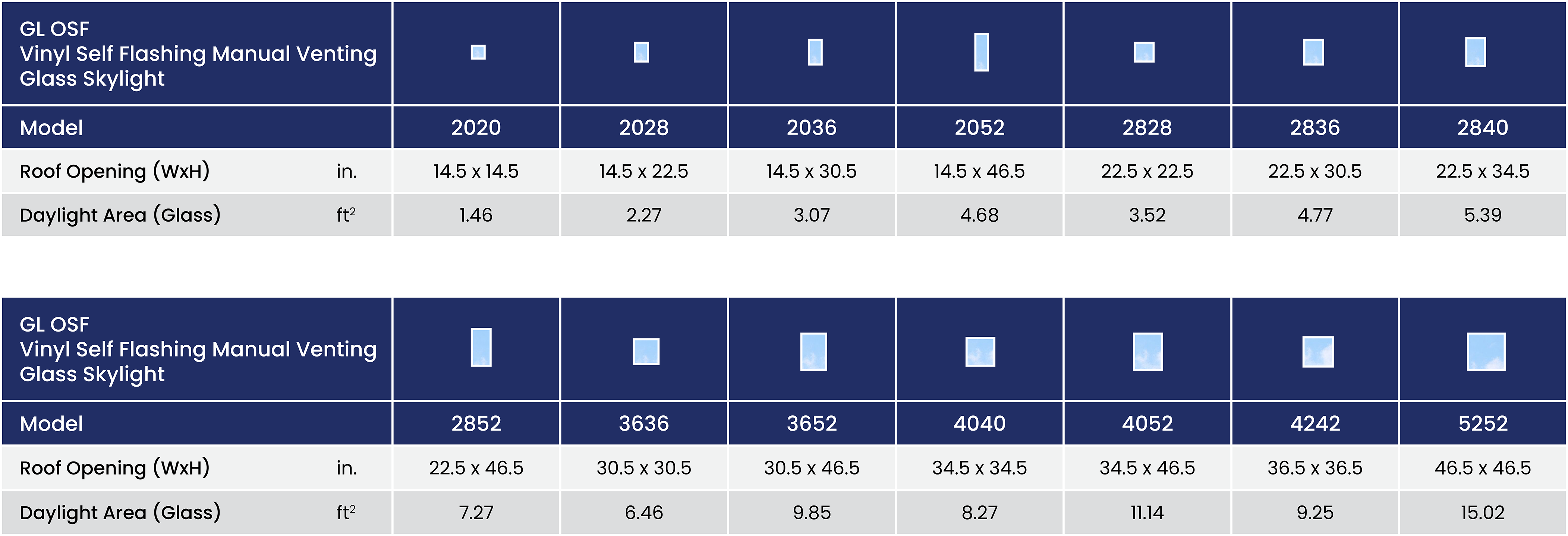

Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
For multiple models go to the Drawings & Specification Library page.
Why Columbia
Find Out Why Columbia Skylights Don’t Leak
Columbia’s Canadian made skylights are designed and manufactured with the finest quality materials, combined with over 5 decades of experience. We are proud to have supplied over 1 million skylights for North American roofs.
Our skylights don’t leak – the frame design is proven to repel the worst of Canadian weather, and we use high performance glazing from the leading North American glazing manufacturer Cardinal Glass Industries. Acrylic and polycarbonate are supplied by the highest quality North American producers. Our skylights combine a durable extruded aluminum exterior frame and a heavy duty PVC vinyl interior frame.
The Columbia 4 sided rigid condensation gutter has been designed with additional width to allow for maximum moisture control.
All our components are manufactured in North America by suppliers we have worked with for decades.
Canadian made skylights, designed for our harsh climate
Columbia skylights are specifically designed for life in our Canadian climate. Whether subjected to snow, ice, wind, hail, or intense heat, our products are engineered to outperform these demanding conditions.
Many imported skylights are designed for a more temperate climate and lack the performance and durability. Columbia has spent many decades manufacturing premium quality skylights that have stood up to the test of time in our Canadian climate.
Every aspect of the skylight has been studied, engineered, and tested.
Columbia utilizes the best materials available, including the latest glass technology.
Energy efficiency is a concern for Canadian homeowners because of our extreme climate. Columbia is the only Canadian manufacturer to offer Triple Glazing on all our skylight models, fixed and venting. We offer more ENERGY STAR® glass options than any other manufacturer.
You might also be interested in…
Columbia GL OSF E – Vinyl Self Flashing Electric Venting Glass Skylight
Self Flashing electrically operated venting skylight provides benefits of natural light and fresh air ventilation. Three motor and remote control options available, based on your requirements and budget.
Learn More
Columbia GL VSF – Vinyl Self Flashing Fixed Glass Skylight
Brighten your home with the clarity of natural light. The Self Flashing fixed skylight is the choice of professionals and the do-it-yourselfer with built in white vinyl curb and flashing.
Learn More
Columbia GL OCM – Curb Mount Manual Venting Glass Skylight
Cool your home with Columbia’s manually operated venting Curb Mount skylight. Enjoy the combined benefits of natural light and fresh air ventilation.
Learn More
FAKRO FVS – Deck Mounted Solar Venting Skylight
Solar powered deck mounted skylights are ideal solutions for out of reach applications, where besides the natural light, you can enjoy fresh air.
Learn More
