FVS – Deck Mounted Solar Venting Skylight.
FVS – Deck Mounted Solar Venting Skylights
- Solar powered deck mounted skylights are ideal solutions for out of reach applications, where besides the natural light, you can enjoy fresh air.
- FVS skylights are equipped with the industry standard Z-Wave radio control system, allowing for easy remote operation and Smart Home integration.
- FVS skylights are powered by the integrated solar panel, which efficiently recharges a concealed battery, powering the operating and control system, to open and close the skylight. As a result, being connected to a power source is not required and the skylight is not adding to your energy bill. An electrician is not required for installation.
The FAKRO premium deck mounted skylights carry a 20 year warranty on sealed glass failure. 10 years on parts, and 5 years on blinds and controls.
FEATURES
- ENERGY STAR® Certified with use of ELA-T Thermo Flashing.
- Suitable for roof pitches between 15-85° degrees.
- Triple coated advanced LoE with superior heat reflecting glazing.
- Warm spacer increases condensation resistance.
- Perimeter gasket underneath the frame.
- Double seals between the frame and the sash.
- Internal gasket system to collect and drain any condensation to the outside.
- Standard removable insect screen.
- Blackout (SRF-MV) or light filtering (SRP-MV) blinds are available.
- Dual integrated rain sensors to close skylight in inclement weather.
- Integrated solar panel, mounted on the top of the frame for maximum solar collection and out of the way of snow and ice build up.
- Allows for easy stand alone remote control operation.
- The Z-Wave radio control system included allowing for Smart Home system integration.
- Solid natural wood construction, providing superior thermal performance and aesthetic beauty.
- Low profile design complements your roof design.
- Easy ‘bracket free’ installation system.
- UV resistant polyester paint coated aluminum frame for long life.
- Note: For the warranty to be valid, FAKRO skylights must be installed with a FAKRO flashing kit.
Highlights of the FVS – Deck Mounted Solar Venting Skylights
The Industry’s Superior Solar Skylight
- Venting deck mount skylights are powered by an integrated solar panel with concealed wires.
- Positioned at the top of the skylight for optimal solar collection. The top mounted design improves the appearance of the skylight, and provides safe and secure operation.
- An important consideration in northern areas, it provides additional clearance from snow and ice build up.

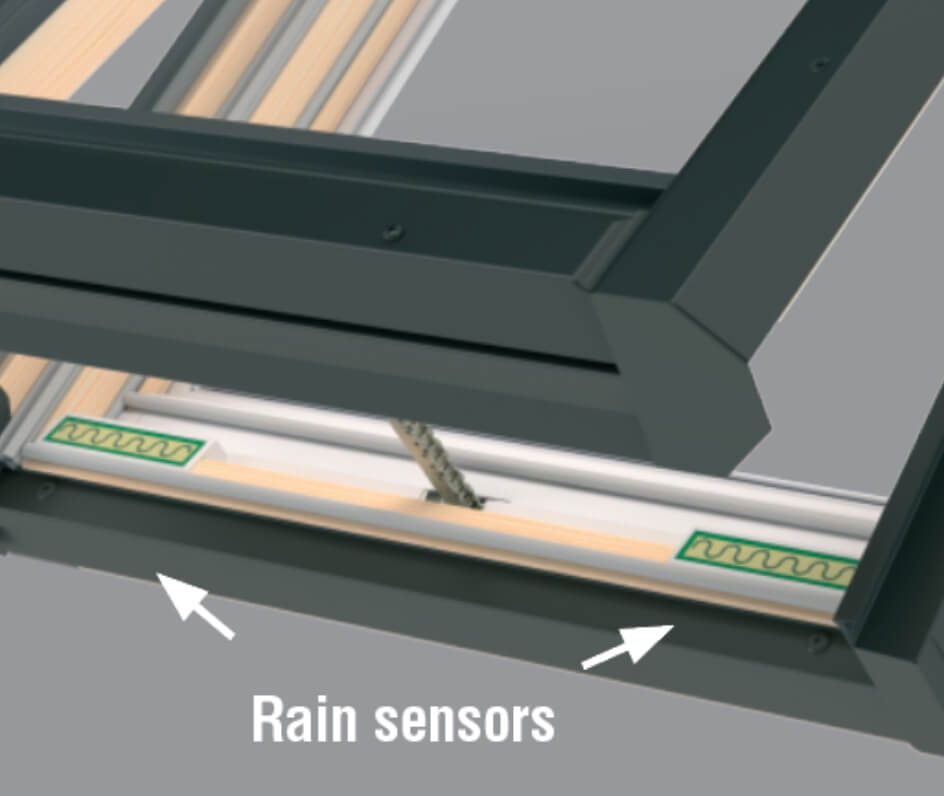

Responds to a Single Drop of Rain
- The FVS includes two integrated rain sensors that automatically close the skylight at the first sign of rain.
- Never worry about your home when you are away and it unexpectedly starts to rain.
Smart Home & Remote Control Operation

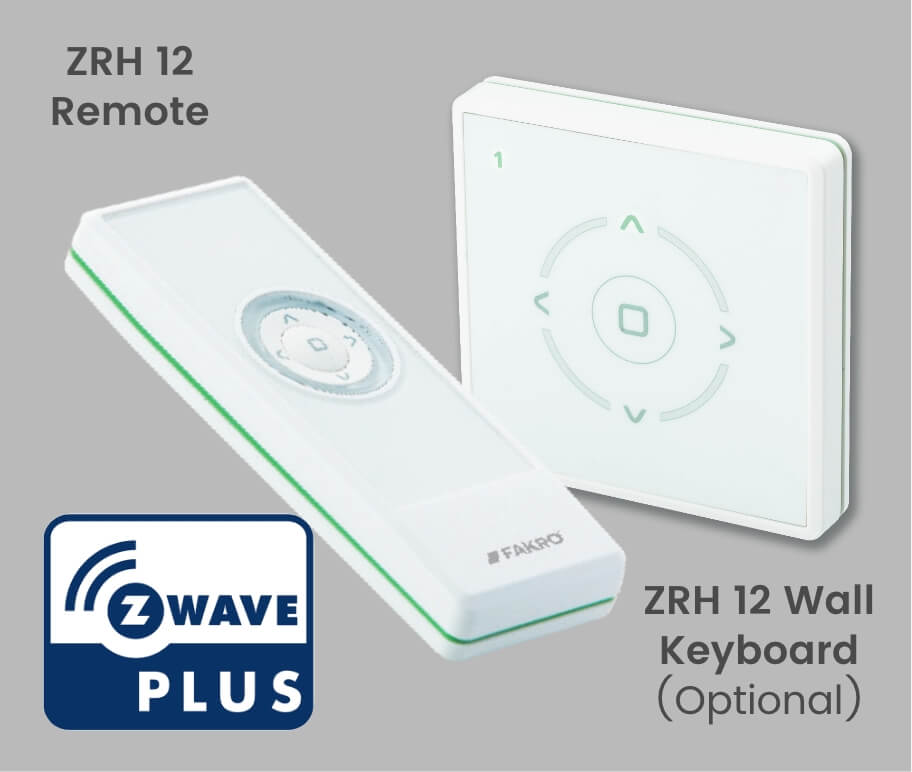

- Control your FVS skylights as a stand alone or multi unit system using the included ZRH12 remote control.
- The remote controls up to 12 separate groups with up to 12 skylights per group (144 total).
- A wall keypad, ZRW7, is also available, operating up to 7 separate groups with up to 12 skylights per group (84 total).
ENERGY STAR® with Insulated Thermo Flashing
- Installation with ELA-T Thermo insulated flashing achieves ENERGY STAR® Performance.
- FAKRO’s unique industry leading insulated flashing increases the R-value of the entire product by up to 10%.
Gasket System Prevents Air and Water Penetration
- Double seals between the frame and sash to prevent any air leakage.
- Perimeter gasket underneath the frame to ensure a water/air tight seal to roof deck.
One Person Installation Saves Your Roofer Time & You Money
- Metal pins hold the skylight in place during installation. The elimination of the skylight sliding allows for one person installation.
- 4 to 6 screws drilled through the frame to secure the skylight to the roof deck. Perfect for new builds and retrofits.
- A template is supplied that is specific to the skylight model, for fast and easy marking of the rough opening.

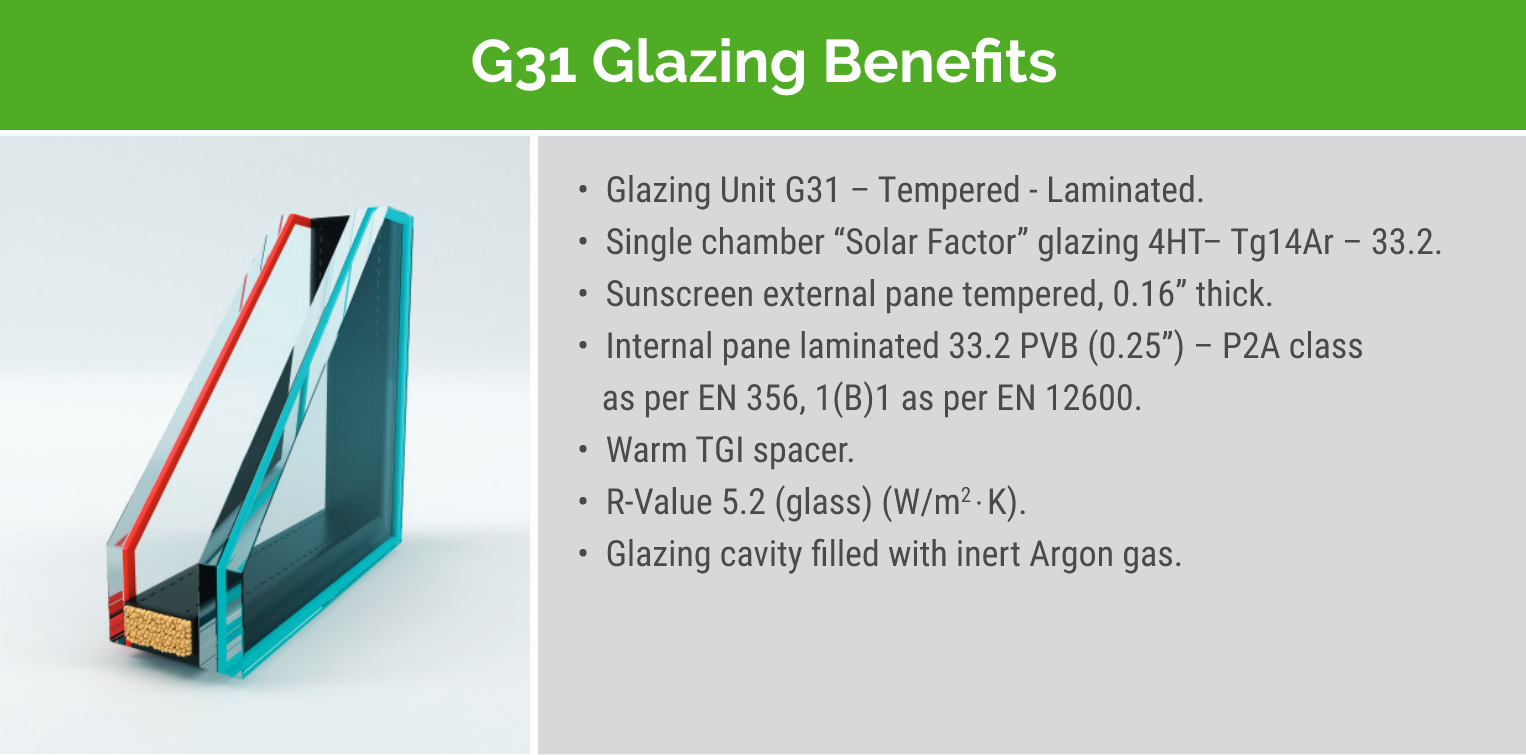

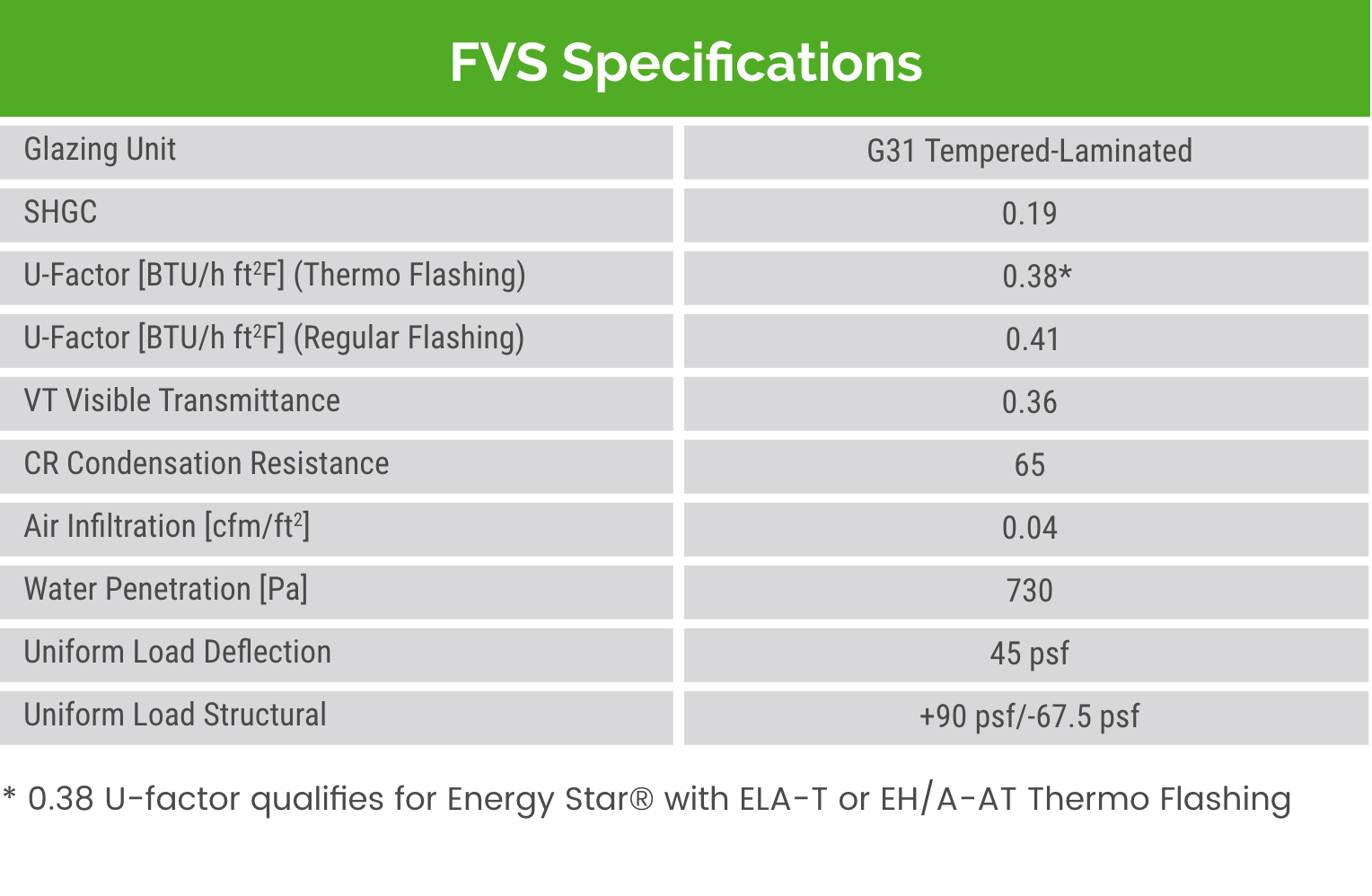

FAKRO’s Premium G31 Glazing Unit and Specifications
The Features of FAKRO’s Laminated Glass
FAKRO offers laminated glass on all its skylights and roof windows. FAKRO uses a number of different configurations of glazing based on the requirements of the skylight or roof window, this includes double, triple and now Canada’s first quadruple glass unit. Laminated glass has many benefits.
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.
FAKRO’s Premium Wood Frames
FAKRO skylights are made with extra thick pressure treated solid wood frames, up to:

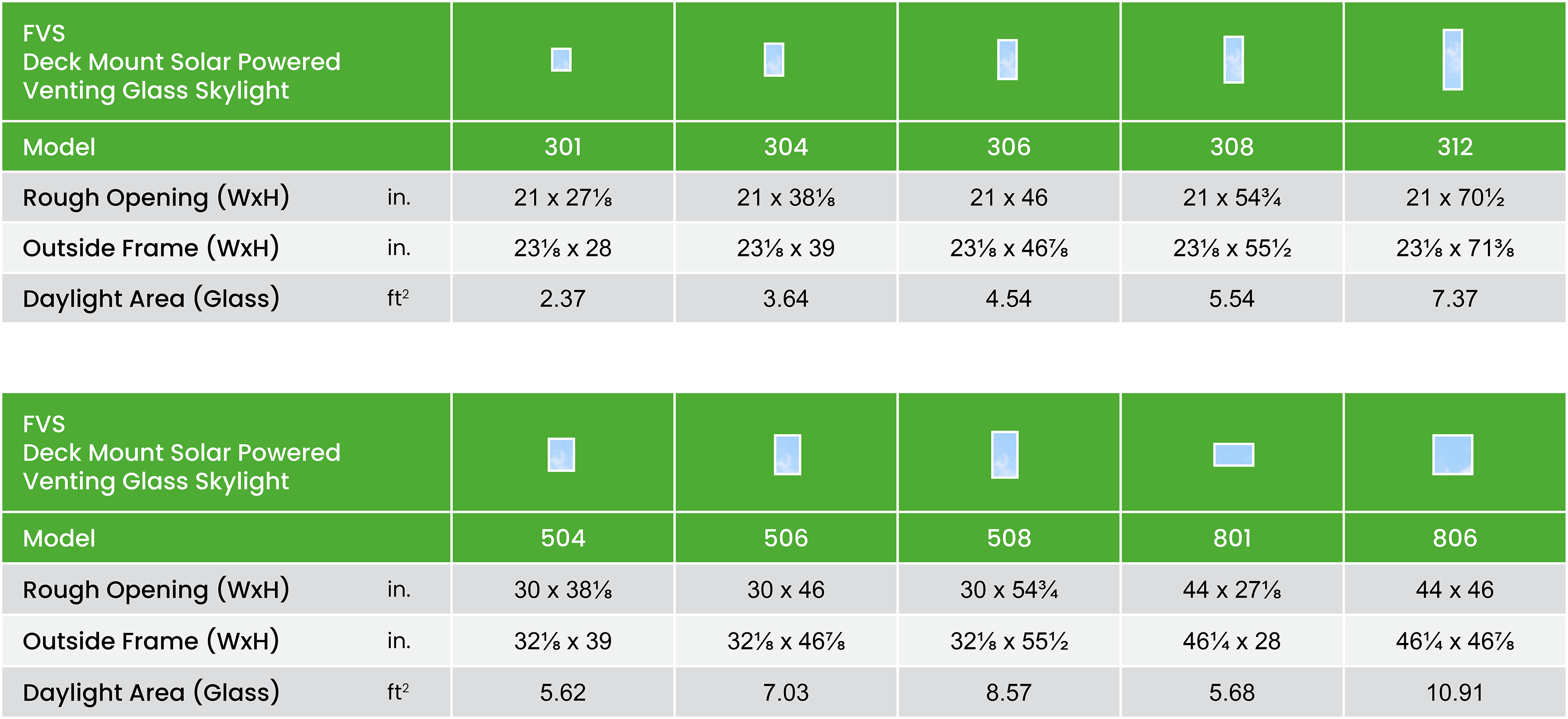

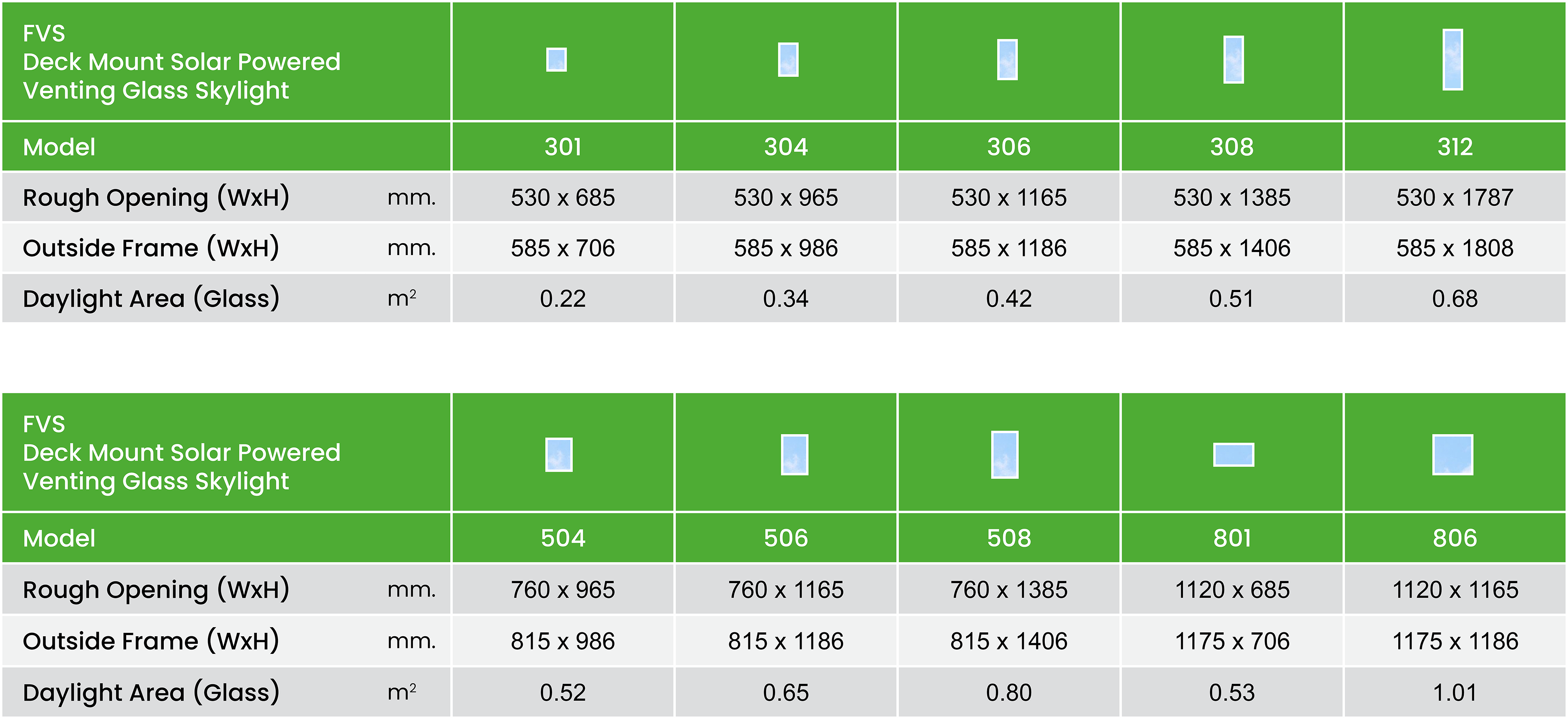

Sizes FOR FVS – Deck Mounted SOLAR
Venting Skylight
| Rough Opening | 21 | 30 | 44 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27⅛ |
Model: 301
Rough Opening (WxH)
21″ x 27⅛” Outside Frame (WxH)
23⅛” x 28” Daylight Area (Glass)
2.37 sq.ft. Model: 301
Rough Opening (WxH)
530mm x 685mm Outside Frame (WxH)
585mm x 706mm Daylight Area (Glass)
0.22 m2 |
Model: 801
Rough Opening (WxH)
44″ x 27⅛” Outside Frame (WxH)
46¼” x 28” Daylight Area (Glass)
5.68 sq.ft. Model: 801
Rough Opening (WxH)
1120mm x 685mm Outside Frame (WxH)
1175mm x 706mm Daylight Area (Glass)
0.53 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 38⅛ |
Model: 304
Rough Opening (WxH)
21″ x 38⅛” Outside Frame (WxH)
23⅛” x 39” Daylight Area (Glass)
3.64 sq.ft. Model: 304
Rough Opening (WxH)
530mm x 965mm Outside Frame (WxH)
585mm x 986mm Daylight Area (Glass)
0.34 m2 |
Model: 504
Rough Opening (WxH)
30″ x 38⅛” Outside Frame (WxH)
32⅛” x 39” Daylight Area (Glass)
5.62 sq.ft. Model: 504
Rough Opening (WxH)
760mm x 965mm Outside Frame (WxH)
815mm x 986mm Daylight Area (Glass)
0.52 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46 |
Model: 306
Rough Opening (WxH)
21″ x 46” Outside Frame (WxH)
23⅛” x 46⅞” Daylight Area (Glass)
4.54 sq.ft. Model: 306
Rough Opening (WxH)
530mm x 1165mm Outside Frame (WxH)
585mm x 1186mm Daylight Area (Glass)
0.42 m2 |
Model: 506
Rough Opening (WxH)
30″ x 46” Outside Frame (WxH)
32⅛” x 46⅞” Daylight Area (Glass)
7.03 sq.ft. Model: 506
Rough Opening (WxH)
760mm x 1165mm Outside Frame (WxH)
815mm x 1186mm Daylight Area (Glass)
0.65 m2 |
Model: 806
Rough Opening (WxH)
44″ x 46” Outside Frame (WxH)
46¼” x 46⅞” Daylight Area (Glass)
10.91 sq.ft. Model: 806
Rough Opening (WxH)
1120mm x 1165mm Outside Frame (WxH)
1175mm x 1186mm Daylight Area (Glass)
1.01 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 54¾ |
Model: 308
Rough Opening (WxH)
21″ x 54¾” Outside Frame (WxH)
23⅛” x 55½” Daylight Area (Glass)
5.54 sq.ft. Model: 308
Rough Opening (WxH)
530mm x 1385mm Outside Frame (WxH)
585mm x 1406mm Daylight Area (Glass)
0.51 m2 |
Model: 508
Rough Opening (WxH)
30″ x 54¾” Outside Frame (WxH)
32⅛” x 55½” Daylight Area (Glass)
8.57 sq.ft. Model: 508
Rough Opening (WxH)
760mm x 1385mm Outside Frame (WxH)
815mm x 1406mm Daylight Area (Glass)
0.8 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 70½ |
Model: 312
Rough Opening (WxH)
21″ x 70½” Outside Frame (WxH)
23⅛” x 71⅜” Daylight Area (Glass)
7.37 sq.ft. Model: 312
Rough Opening (WxH)
530mm x 1787mm Outside Frame (WxH)
585mm x 1808mm Daylight Area (Glass)
0.68 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use FAKRO’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download a 3D Drawing (.dwg CAD file), BIM Model (.rfa), and Cross Sections as .dwg and PDF.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
High Performance
Flashing Systems
Flashing Systems
FAKRO manufactures a series of exceptional flashing systems tailored to the needs of its products.
Including energy efficient thermo flashing.
Including energy efficient thermo flashing.
Light Filtering &
Blackout Blinds
Blackout Blinds
FAKRO produces an extensive range of high quality light filtering and blackout blinds in a range of designer fabrics and colours.
Designed to complement any interior designer’s vision.
Designed to complement any interior designer’s vision.
FAKRO Radio Control System (FVS)
- FAKRO FVS skylights are equipped with the industry standard Z-Wave Smart Home radio technology. Z-Wave is one of the most widely used wireless broadcasting systems, so our products easily integrate with your Smart Home systems.
- Z-Wave is well supported, being constantly improved and updated to adjust to changing technology, removing the risk of a proprietary system offered by competitive manufacturers that may lack the support necessary to keep it up to date.
- Alternatively, the skylight can be operated without being connected to a Smart Home Hub, with the included ZRH 12 Remote Control controlling the skylight directly.
- The Z-Wave technology links all compatible Smart Home Hubs and devices into a single network: skylights and blinds, lighting, thermostats, alarms, computers, telephones, and air conditioning. Integrating with popular Smart Home systems such as Samsung SmartThings, Wink, Nest, Alexa, and Apple HomeKit.
- Z-Wave is easy to install, expand, and manage, saving you time and money, while maximizing usability. Z-Wave eliminates unnecessary control units and wiring between electronic devices. Ideal for new builds, renovations or adding to an existing system.
Your Smart Home Solution – Control Your FAKRO Smart Skylight (FVS) Using Your Z-Wave Smart Home System
All FAKRO FVS (solar) skylights are equipped with a Z-Wave radio control system, allowing for easy Smart Home system integration.
An easy 3 step process:
- Purchase or use existing Smart Home Hub with Z-Wave compatibility.
- Install and connect FAKRO skylights to your Z-Wave network.
- Your skylights are now part of your Smart Home network. Control your FAKRO skylights through a variety of devices.
Control Your FAKRO Skylight (FVS) Using Our Remote Control or Keyboard
- Control your FVS skylights as a stand alone or multi unit system using the included ZRH12 remote control.
- The remote controls up to 12 separate groups with up to 12 skylights per group (144 total).
- A wall keyboard is available, ZRW7, operating up to 7 separate groups with up to 12 skylights per group (84 total).
