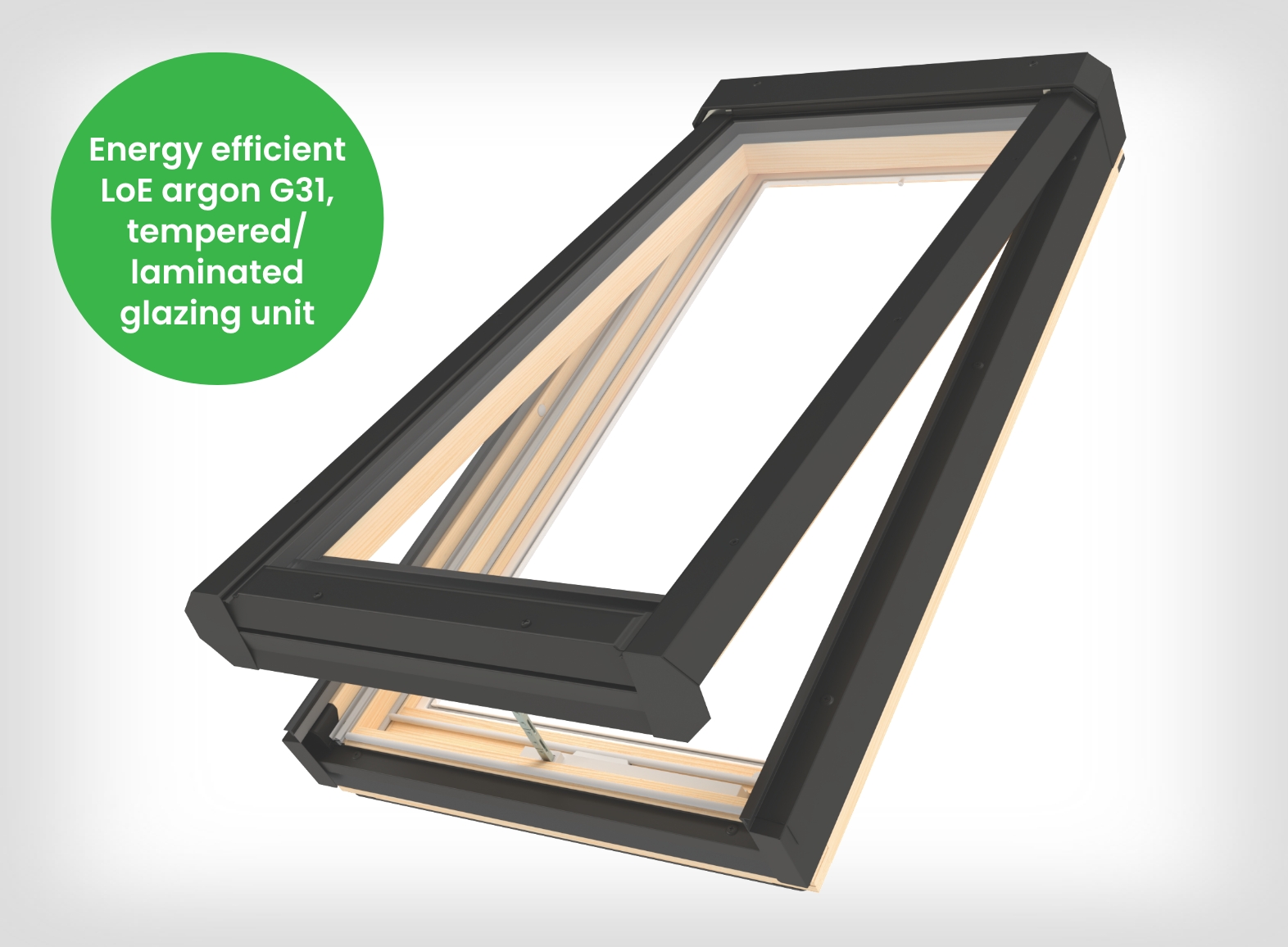

FV – Deck Mounted Manual Venting Skylight.
FV – Deck Mounted Manual Venting Skylight
- Beautifully transform any interior spacing, the FV deck mounted manual venting skylights provides the warmth of natural light and the health benefit of fresh air circulation.
- The FV is recommended for installation where the skylights will be fairly easy to reach and operate with a window crank handle or a control rod.
- The FV has been the benchmark of venting skylights for years, manufactured to the highest standard in Europe and providing the elegance of factory lacquered solid wood construction.
The FAKRO premium deck mounted skylights carry a 20 year warranty on sealed glass failure. 10 years on parts, and 5 years on blinds and controls.
FEATURES
- ENERGY STAR® Certified with use of Thermo Flashing.
- Suitable for roof pitches between 15-85° degrees.
- Triple coated advanced LoE with superior heat reflecting glazing.
- Warm spacer increases condensation resistance.
- Internal gasket system to collect and drain any possible condensation to the outside.
- Perimeter gasket underneath the frame.
- Double seals between the frame and the sash.
- Operated with a crank handle or a control rod. The crank handle is included with the skylight.
- Standard removable insect screen.
- Solid wood construction, providing superior thermal performance and aesthetic beauty.
- Blackout (SRF-MV) or light filtering (SRP-MV) blinds are available.
- Low profile design complements your roof design.
- Easy ‘bracket free’ installation system.
- UV resistant polyester paint coated aluminum frame for long life.
- Note: For the warranty to be valid, FAKRO skylights must be installed with a FAKRO flashing kit.
Highlights of the FV – Deck Mounted Manual Venting Skylight
Easy to Use Manual Operation
- For within reach operation, FV manual venting skylight is supplied with SZK crank handle.
- For out of reach applications, a metal hex ball tipped telescopic control rod is available in two sizes: 4-6ft and 6-10ft.
- An optional flexible tipped SZS (5-10ft) and SZS Mini (20”) aluminum control rods are also available for easier alignment with angled installations. The same control rods will operate on all deck mount manual venting skylights (FV), flat roof manual venting skylights (DMF, DMG and DMZ) and all FAKRO manual blinds.

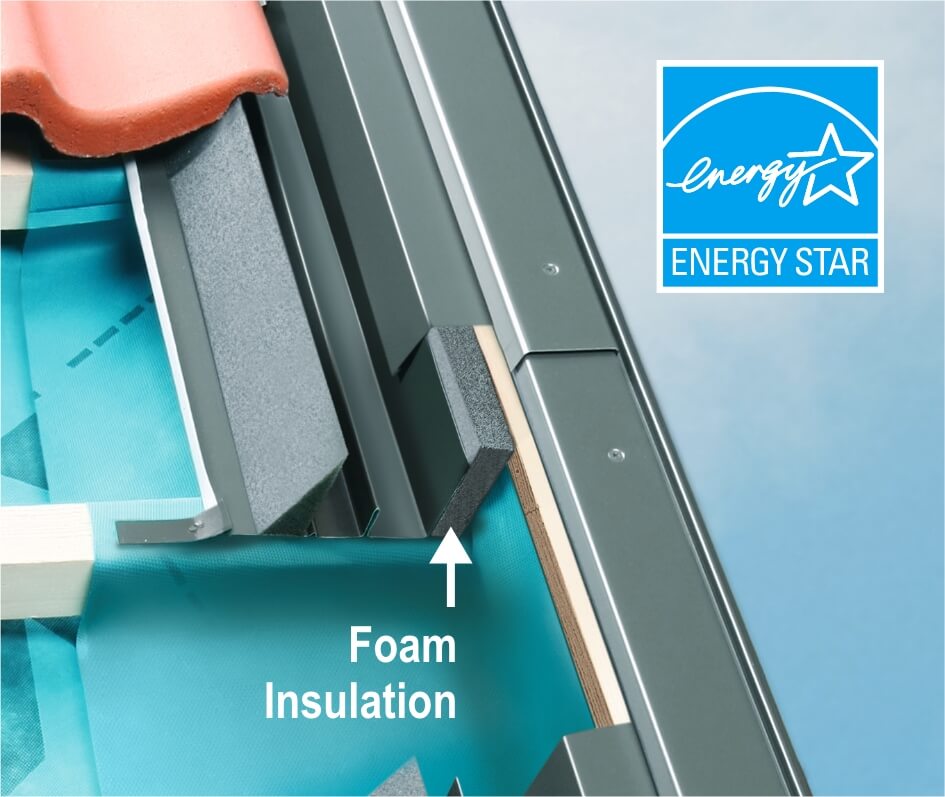

ENERGY STAR® Certified with Use of Thermo Flashing
- Skylights used in conjunction with the FAKRO Thermo Flashing system are ENERGY STAR® certified.
- Optional high performance thermal flashing increases the R-value of the skylight by up to 10%.
- EL-T Thermo and ELA-T Thermo Flashings are a new product in the FAKRO range that provides superior integration with an insulated roof. These flashings help eliminate “cool areas” that sometimes occur between the roof deck and skylight causing condensation on the interior drywall.
World Class European Quality
- FAKRO products are renowned the world over for their outstanding European design and manufacturing quality.
- FAKRO skylights and roof windows feature thick wooden frames made of select narrow grain pine, seasoned and vacuum pressure treated. Factory lacquered before final assembly.
- 20 year warranty against sealed unit failure.
Gasket System Prevents Air and Water Penetration
- Double seals between the frame and sash to prevent any air leakage.
- Perimeter gasket underneath the frame to ensure a water/air tight seal to roof deck.
One Person Installation Saves Your Roofer Time & You Money
- Metal pins hold the skylight in place during installation. The elimination of the skylight sliding allows for one person installation.
- 4 to 6 screws drilled through the frame to secure the skylight to the roof deck. Perfect for new builds and retrofits.
- A template is supplied that is specific to the skylight model, for fast and easy marking of the rough opening.
Upgrade Your Skylights with Blackout & Light Filtering Blinds
- Blackout blinds can block the sun completely.
- Light filtering lets in a reduced amount of light, softening the ambiance in your room
- Designed to complement any room – a wide range of fabrics to choose from.
- Available in manual, electric or solar versions.

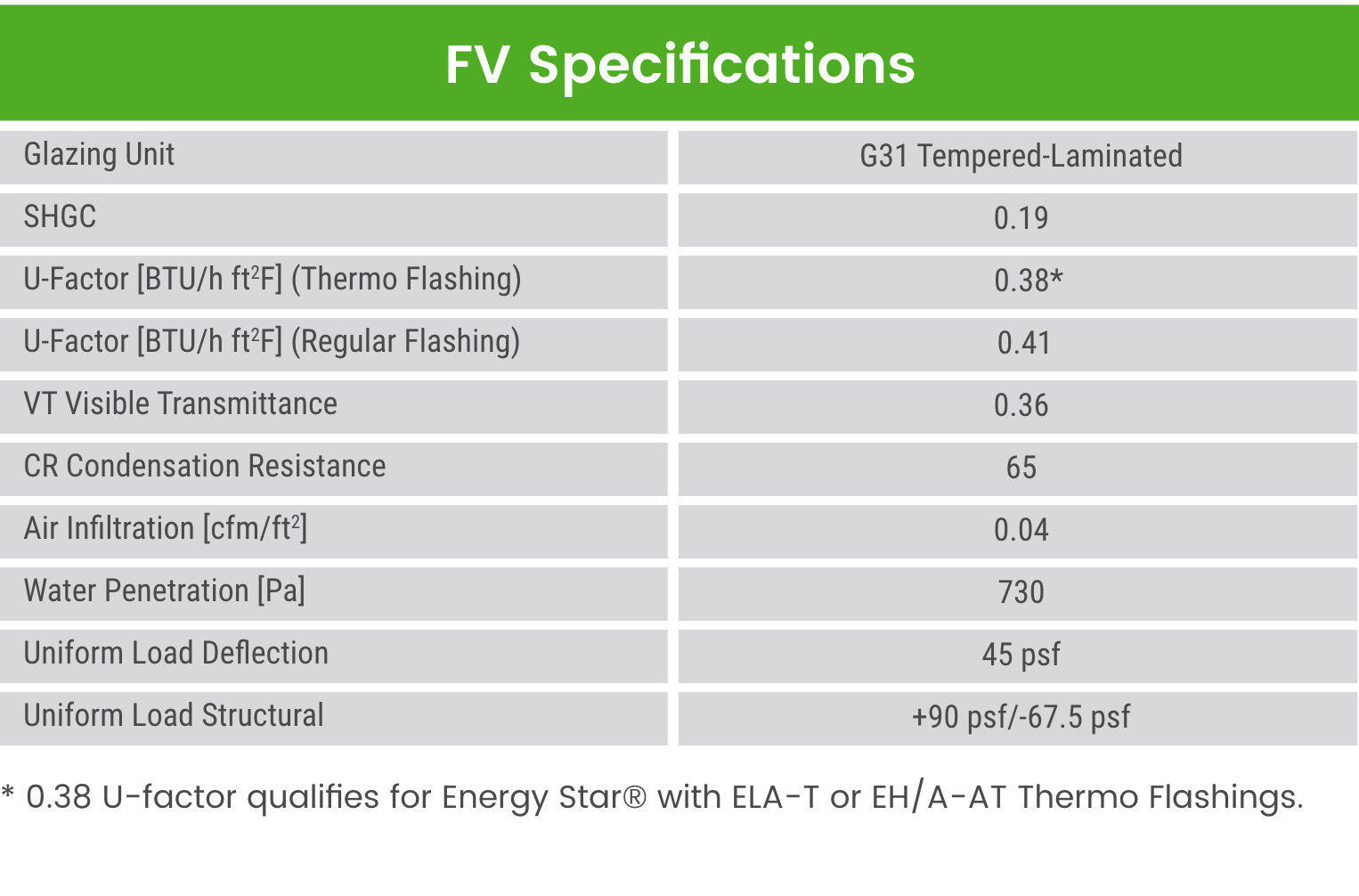

FAKRO’s Premium G31 Glazing Unit and Specifications
The Features of FAKRO’s Laminated Glass
FAKRO offers laminated glass on all its skylights and roof windows. FAKRO uses a number of different configurations of glazing based on the requirements of the skylight or roof window, this includes double, triple and now Canada’s first quadruple glass unit. Laminated glass has many benefits.
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.

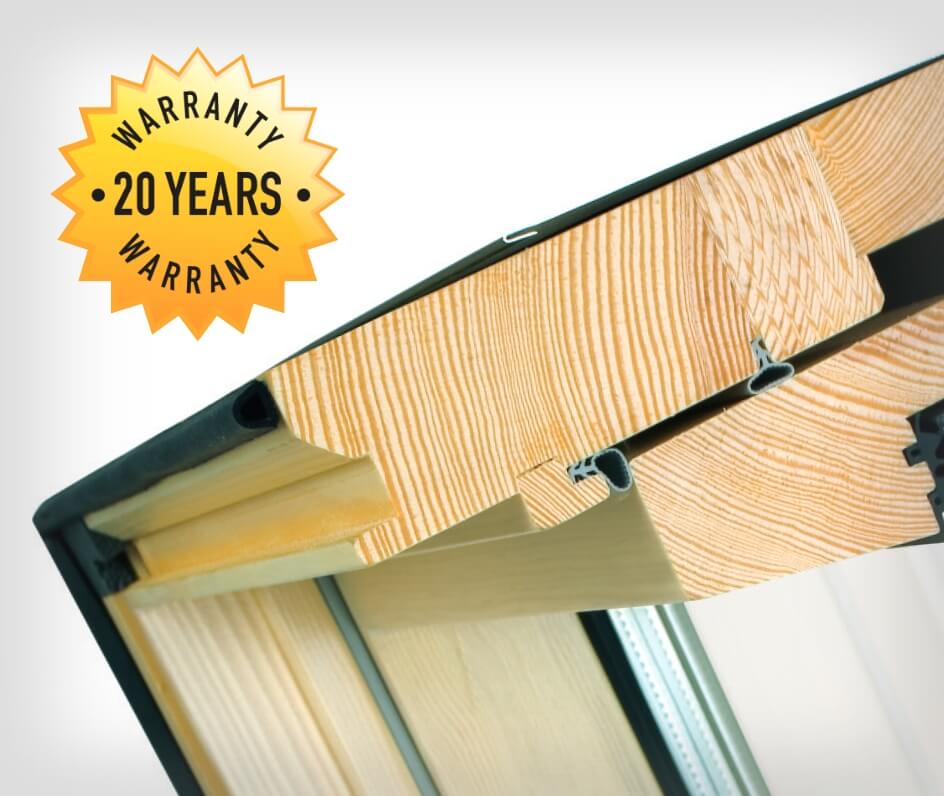

FAKRO’s Premium Wood Frames
FAKRO skylights are made with extra thick pressure treated solid wood frames, up to:
Sizes FOR FVS – Deck Mounted SOLAR
Venting Skylight
| Rough Opening | 21 | 30 | 44 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27⅛ |
Model: 301
Rough Opening (WxH)
21″ x 27⅛” Outside Frame (WxH)
23⅛” x 28” Daylight Area (Glass)
2.37 sq.ft. Model: 301
Rough Opening (WxH)
530mm x 685mm Outside Frame (WxH)
585mm x 706mm Daylight Area (Glass)
0.22 m2 |
Model: 801
Rough Opening (WxH)
44″ x 27⅛” Outside Frame (WxH)
46¼” x 28” Daylight Area (Glass)
5.68 sq.ft. Model: 801
Rough Opening (WxH)
1120mm x 685mm Outside Frame (WxH)
1175mm x 706mm Daylight Area (Glass)
0.53 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 38⅛ |
Model: 304
Rough Opening (WxH)
21″ x 38⅛” Outside Frame (WxH)
23⅛” x 39” Daylight Area (Glass)
3.64 sq.ft. Model: 304
Rough Opening (WxH)
530mm x 965mm Outside Frame (WxH)
585mm x 986mm Daylight Area (Glass)
0.34 m2 |
Model: 504
Rough Opening (WxH)
30″ x 38⅛” Outside Frame (WxH)
32⅛” x 39” Daylight Area (Glass)
5.62 sq.ft. Model: 504
Rough Opening (WxH)
760mm x 965mm Outside Frame (WxH)
815mm x 986mm Daylight Area (Glass)
0.52 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46 |
Model: 306
Rough Opening (WxH)
21″ x 46” Outside Frame (WxH)
23⅛” x 46⅞” Daylight Area (Glass)
4.54 sq.ft. Model: 306
Rough Opening (WxH)
530mm x 1165mm Outside Frame (WxH)
585mm x 1186mm Daylight Area (Glass)
0.42 m2 |
Model: 506
Rough Opening (WxH)
30″ x 46” Outside Frame (WxH)
32⅛” x 46⅞” Daylight Area (Glass)
7.03 sq.ft. Model: 506
Rough Opening (WxH)
760mm x 1165mm Outside Frame (WxH)
815mm x 1186mm Daylight Area (Glass)
0.65 m2 |
Model: 806
Rough Opening (WxH)
44″ x 46” Outside Frame (WxH)
46¼” x 46⅞” Daylight Area (Glass)
10.91 sq.ft. Model: 806
Rough Opening (WxH)
1120mm x 1165mm Outside Frame (WxH)
1175mm x 1186mm Daylight Area (Glass)
1.01 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 54¾ |
Model: 308
Rough Opening (WxH)
21″ x 54¾” Outside Frame (WxH)
23⅛” x 55½” Daylight Area (Glass)
5.54 sq.ft. Model: 308
Rough Opening (WxH)
530mm x 1385mm Outside Frame (WxH)
585mm x 1406mm Daylight Area (Glass)
0.51 m2 |
Model: 508
Rough Opening (WxH)
30″ x 54¾” Outside Frame (WxH)
32⅛” x 55½” Daylight Area (Glass)
8.57 sq.ft. Model: 508
Rough Opening (WxH)
760mm x 1385mm Outside Frame (WxH)
815mm x 1406mm Daylight Area (Glass)
0.8 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 70½ |
Model: 312
Rough Opening (WxH)
21″ x 70½” Outside Frame (WxH)
23⅛” x 71⅜” Daylight Area (Glass)
7.37 sq.ft. Model: 312
Rough Opening (WxH)
530mm x 1787mm Outside Frame (WxH)
585mm x 1808mm Daylight Area (Glass)
0.68 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use FAKRO’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download a 3D Drawing (.dwg CAD file), BIM Model (.rfa), and Cross Sections as .dwg and PDF.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
High Performance
Flashing Systems
Flashing Systems
FAKRO manufactures a series of exceptional flashing systems tailored to the needs of its products.
Including energy efficient thermo flashing.
Including energy efficient thermo flashing.
Light Filtering &
Blackout Blinds
Blackout Blinds
FAKRO produces an extensive range of high quality light filtering and blackout blinds in a range of designer fabrics and colours.
Designed to complement any interior designer’s vision.
Designed to complement any interior designer’s vision.
