FTP-V – Deck Mounted Pivot Window.
FTP-V – Deck Mounted Pivot Window
- The FTP-V center pivot window is the most popular FAKRO roof window sold in Europe.
- The innovative center pivot allows the sash to open in a range of positions, increasing the amount of fresh air which can be drawn into the room. The sash can also be rotated 180° and locked, allowing for easy and safe cleaning of the outer pane.
- Get the advantage of improved airflow circulation, even when the window is closed, through the automatic air inlet V40P located on the top of the window’s frame. When opened, the inlet will automatically adjust the size of the airflow channel to provide an optimum amount of air into the room, ensuring a healthy environment and energy savings.
The FAKRO premium deck mounted skylights carry a 20 year warranty on sealed glass failure. 10 years on parts, and 5 years on blinds and controls.
FEATURES
- The roof window is double glazed as a standard. By using a single chambered pane construction to save energy, each glazed unit achieves an U-Value of 0.19 BTU/hft2F.
- Manufactured using high quality edge grain European pine wood, impregnated and finished with two coats of acrylic lacquer.
- Handle positioned on the lower part of the sash for ease of use.
- Able to be fixed in two open positions, allowing for improved air circulation. Suitable for roofs with pitches between 15-85° degrees.
- Internal gasket system to collect and drain any possible condensation.
- Energy efficient, LoE argon filled P2 tempered/laminated glazing unit.
- Flashing and underlayment sold separately.
- Includes automatic air inlet V40P providing the ideal amount of air flow into the room.
- Z-Wave solar or hard wired electric versions are available by special order.
- Low profile design complements your roof design.
- UV resistant polyester paint coated aluminum frame for long life.
- Blackout (ARF) or light filtering (ARP) blinds are available. Mosquito screens (AMS) available, sold separately.
- Note: For the warranty to be valid, FAKRO skylights must be installed with a FAKRO flashing kit.
- P5 (Triple Glazing) is also available by special order.
Highlights of the FTP-V Deck Mounted Pivot Window
Pivot for Easy Cleaning
- As well as letting healthy fresh air into your home, the FTP-V allows you to pivot the window 180° for easy cleaning.
- The centre mounted hinges are pre installed and designed for a lifetime of worry free operation.
- Proven technology. With its versatility, FTP-V is the most popular FAKRO roof window sold in Europe.

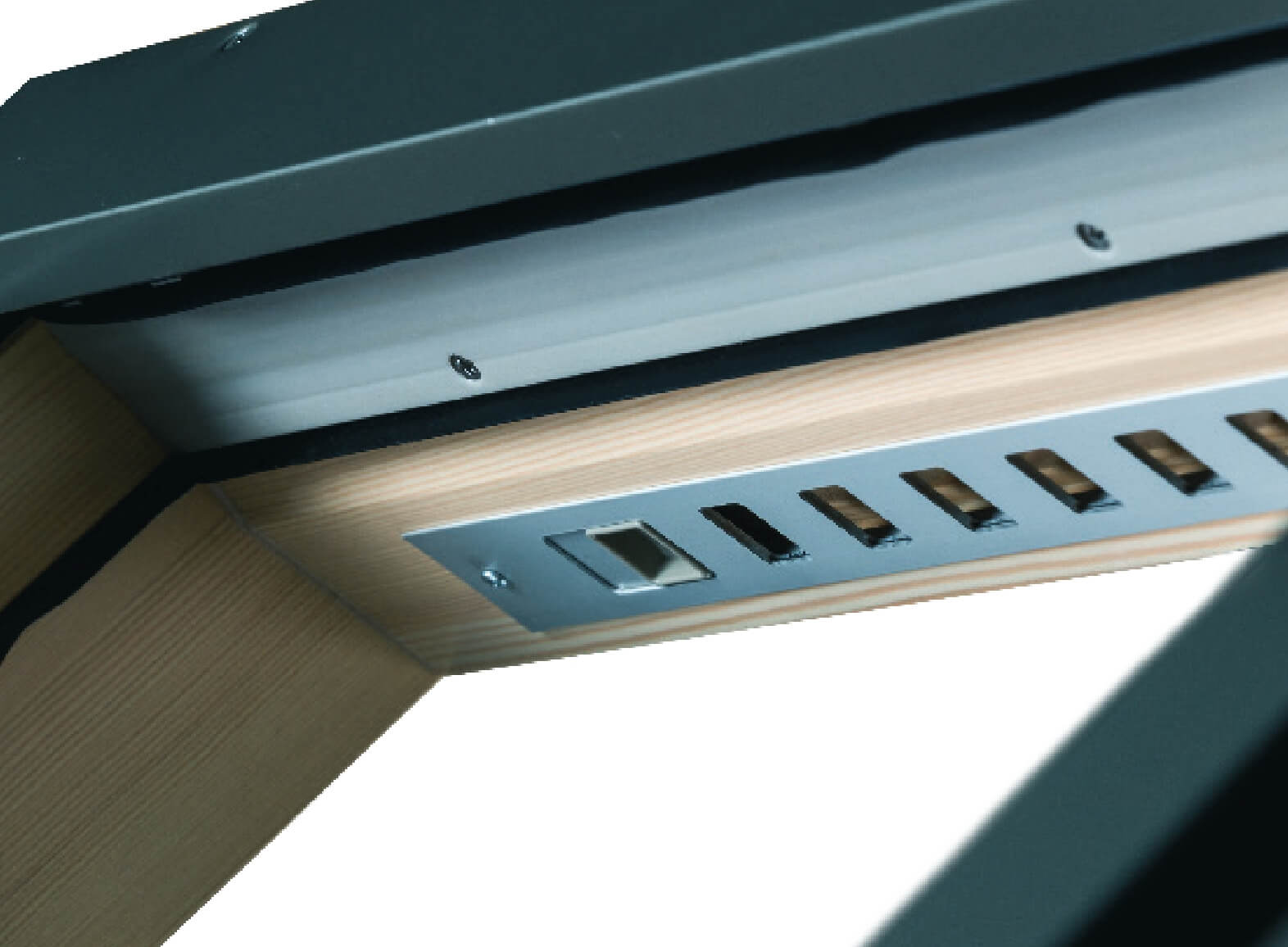

Automatic V40P Air Inlet
- Automatically create a healthier indoor climate. Our innovative V40P air inlet system uses a semi automatic vent activated by changes in wind pressure to continually adjust levels of fresh air flow.
- In winter, outside airflow is limited to protect the room from energy and heat loss.
- The air inlet design provides excellent thermal and sound insulation, as well as outstanding air filtration keeping dust out of the room.
World Class European Quality
- FAKRO products are renowned the world over for their outstanding European design and manufacturing quality.
- FAKRO skylights and roof windows feature thick wooden frames made of select narrow grain pine, seasoned and vacuum pressure treated. Factory lacquered before final assembly.
- 20 year warranty against sealed unit failure.
ThermoPro Technology
- This leading insulation technology significantly improves the energy efficiency of the roof window with the latest thermal insulation, by protecting the thick wood frame and reducing cold air transfer.
- The bottom corners of the frame are equipped with drainage channels to discharge water from any condensation that may have formed. The wooden profiles of the window are less exposed to any moisture, which adds to durability.
TopSafe System
- Rest assured, the proven topSafe anti burglary system improves security making the window extremely difficult to force open.
- The frame is screwed and locked in place in multiple locations, delivering enhanced safety, security, and burglary resistance.
Upgrade Your Skylights with Blackout & Light Filtering Blinds
- Blackout blinds can block the sun completely.
- Light filtering lets in a reduced amount of light, softening the ambiance in your room
- Designed to complement any room – a wide range of fabrics to choose from.
- Available in manual, electric or solar versions.

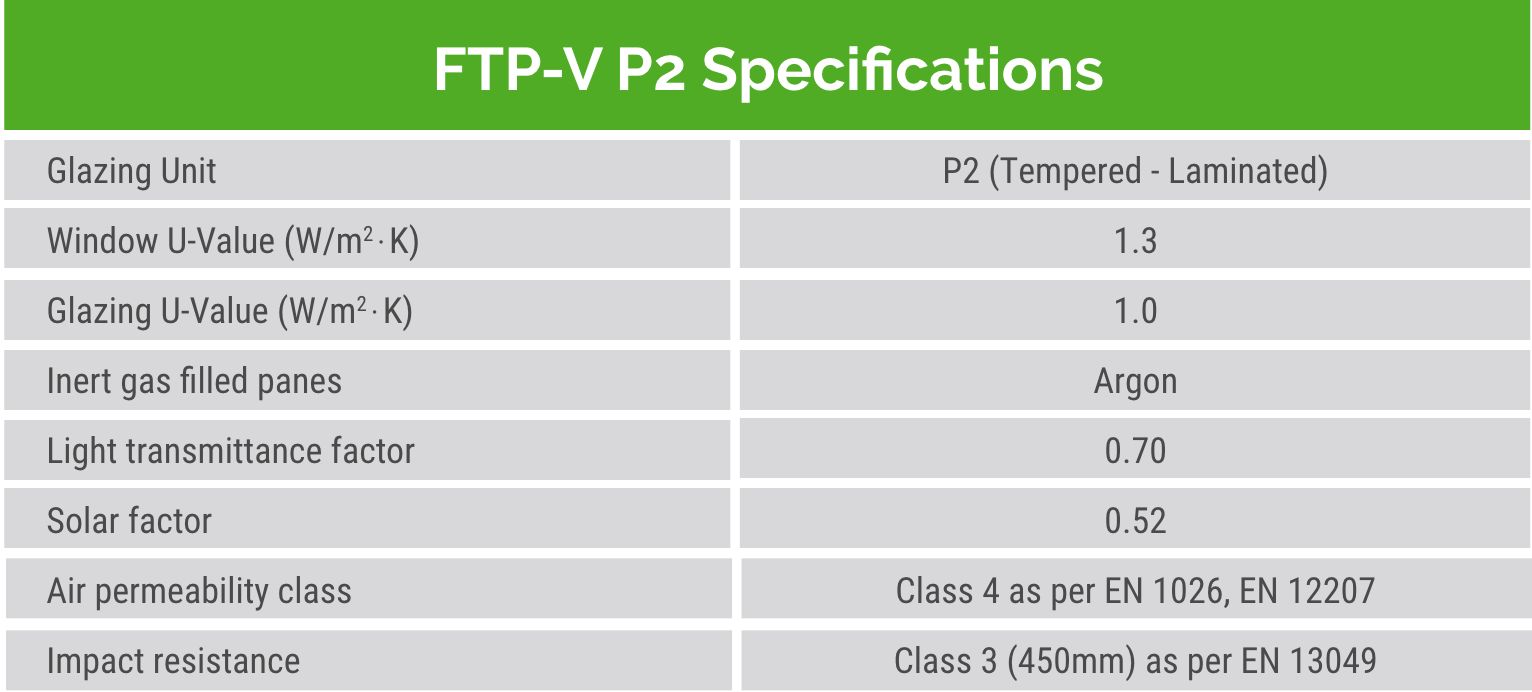

FAKRO’s Premium P2 Glazing Unit and Specifications
P5 (Triple Glazed) FTP-V also available by special order. Call for more information.
Tested in accordance with EN-14351. European standard for windows and doors.
The Features of FAKRO’s Laminated Glass
FAKRO offers laminated glass on all its skylights and roof windows. FAKRO uses a number of different configurations of glazing based on the requirements of the skylight or roof window, this includes double, triple and now Canada’s first quadruple glass unit. Laminated glass has many benefits.
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.
FAKRO’s Premium Wood Frames
FAKRO skylights are made with extra thick pressure treated solid wood frames, up to:
Sizes for FTP-V Deck Mounted Pivot Window
| Rough Opening | 22 | 26¼ | 31 | 37¼ | 45¼ | 53 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39 |
Model: 02
Rough Opening (WxH)
22″ x 39” Outside Frame (WxH)
21½” x 38⅝” Daylight Area (Glass)
4.41 sq.ft. Model: 02
Rough Opening (WxH)
559mm x 991mm Outside Frame (WxH)
547mm x 980mm Daylight Area (Glass)
0.41 m2 |
Model: 03
Rough Opening (WxH)
26¼” x 39” Outside Frame (WxH)
25⅞” x 38⅝” Daylight Area (Glass)
5.49 sq.ft. Model: 03
Rough Opening (WxH)
667mm x 991mm Outside Frame (WxH)
657mm x 980mm Daylight Area (Glass)
0.51 m2 |
Model: 05
Rough Opening (WxH)
31″ x 39” Outside Frame (WxH)
30¼” x 38⅝” Daylight Area (Glass)
6.67 sq.ft. Model: 05
Rough Opening (WxH)
787mm x 991mm Outside Frame (WxH)
777mm x 980mm Daylight Area (Glass)
0.62 m2 |
Model: 12
Rough Opening (WxH)
53″ x 39” Outside Frame (WxH)
52⅝” x 38⅝” Daylight Area (Glass)
12.06 sq.ft. Model: 12
Rough Opening (WxH)
1346mm x 991mm Outside Frame (WxH)
1337mm x 980mm Daylight Area (Glass)
1.12 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46⅞ |
Model: 16
Rough Opening (WxH)
22″ x 46⅞” Outside Frame (WxH)
21½” x 46½” Daylight Area (Glass)
5.38 sq.ft. Model: 16
Rough Opening (WxH)
559mm x 1191mm Outside Frame (WxH)
547mm x 1180mm Daylight Area (Glass)
0.50 m2 |
Model: 04
Rough Opening (WxH)
26¼” x 46⅞” Outside Frame (WxH)
25⅞” x 46½” Daylight Area (Glass)
6.67 sq.ft. Model: 04
Rough Opening (WxH)
667mm x 1191mm Outside Frame (WxH)
657mm x 1180mm Daylight Area (Glass)
0.62 m2 |
Model: 06
Rough Opening (WxH)
31″ x 46⅞” Outside Frame (WxH)
30¼” x 46½” Daylight Area (Glass)
8.07 sq.ft. Model: 06
Rough Opening (WxH)
787mm x 1191mm Outside Frame (WxH)
777mm x 1180mm Daylight Area (Glass)
0.75 m2 |
Model: 08
Rough Opening (WxH)
37¼” x 46⅞” Outside Frame (WxH)
36⅞” x 46½” Daylight Area (Glass)
8.07 sq.ft. Model: 08
Rough Opening (WxH)
946mm x 1191mm Outside Frame (WxH)
937mm x 1180mm Daylight Area (Glass)
0.75 m2 |
Model: 10
Rough Opening (WxH)
45¼” x 46⅞” Outside Frame (WxH)
44¾” x 46½” Daylight Area (Glass)
10.06 sq.ft. Model: 10
Rough Opening (WxH)
1149mm x 1191mm Outside Frame (WxH)
1137mm x 1180mm Daylight Area (Glass)
0.94 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 55⅛ |
Model: 09
Rough Opening (WxH)
37¼” x 55⅛” Outside Frame (WxH)
36⅞” x 54¾” Daylight Area (Glass)
9.90 sq.ft. Model: 09
Rough Opening (WxH)
946mm x 1400mm Outside Frame (WxH)
937mm x 1391mm Daylight Area (Glass)
0.92 m2 |
Model: 11
Rough Opening (WxH)
45¼” x 55⅛” Outside Frame (WxH)
44¾” x 54¾” Daylight Area (Glass)
12.34 sq.ft. Model: 11
Rough Opening (WxH)
1149mm x 1400mm Outside Frame (WxH)
1137mm x 1391mm Daylight Area (Glass)
1.15 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 55½ |
Model: 07
Rough Opening (WxH)
31″ x 55½” Outside Frame (WxH)
30¼” x 55” Daylight Area (Glass)
9.80 sq.ft. Model: 07
Rough Opening (WxH)
787mm x 1410mm Outside Frame (WxH)
777mm x 1401mm Daylight Area (Glass)
0.91 m2 |
Model: 17
Rough Opening (WxH)
53″ x 55½” Outside Frame (WxH)
52⅝” x 55⅛” Daylight Area (Glass)
17.65 sq.ft. Model: 17
Rough Opening (WxH)
1346mm x 1410mm Outside Frame (WxH)
1337mm x 1401mm Daylight Area (Glass)
1.64 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 63½ |
Model: 80
Rough Opening (WxH)
37¼” x 63½” Outside Frame (WxH)
36⅞” x 63” Daylight Area (Glass)
13.89 sq.ft. Model: 80
Rough Opening (WxH)
946mm x 1613mm Outside Frame (WxH)
937mm x 1601mm Daylight Area (Glass)
1.29 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use FAKRO’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download a 3D Drawing (.dwg CAD file), BIM Model (.rfa), and Cross Sections as .dwg and PDF.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
High Performance
Flashing Systems
Flashing Systems
FAKRO manufactures a series of exceptional flashing systems tailored to the needs of its products.
Including energy efficient thermo flashing.
Including energy efficient thermo flashing.
Light Filtering &
Blackout Blinds
Blackout Blinds
FAKRO produces an extensive range of high quality light filtering and blackout blinds in a range of designer fabrics and colours.
Designed to complement any interior designer’s vision.
Designed to complement any interior designer’s vision.
