AC RAS – Roof Access Door – Acrylic
- Ideal for turning a rooftop into a patio deck or any other application where egress is required while letting in an abundance of natural light.
- The RAS Roof Access Door is essential for any commercial or residential roof that may be difficult to access via an exterior ladder or if you want to utilize the roof top as a deck. Using high grade materials produced in North America these skylights are designed to withstand the harshest climates.
- The RAS provide ease of access with its 85° opening capability. Can be installed on a flat or sloped roof that best suits the needs of your application (glass requires min 2:12 pitch).

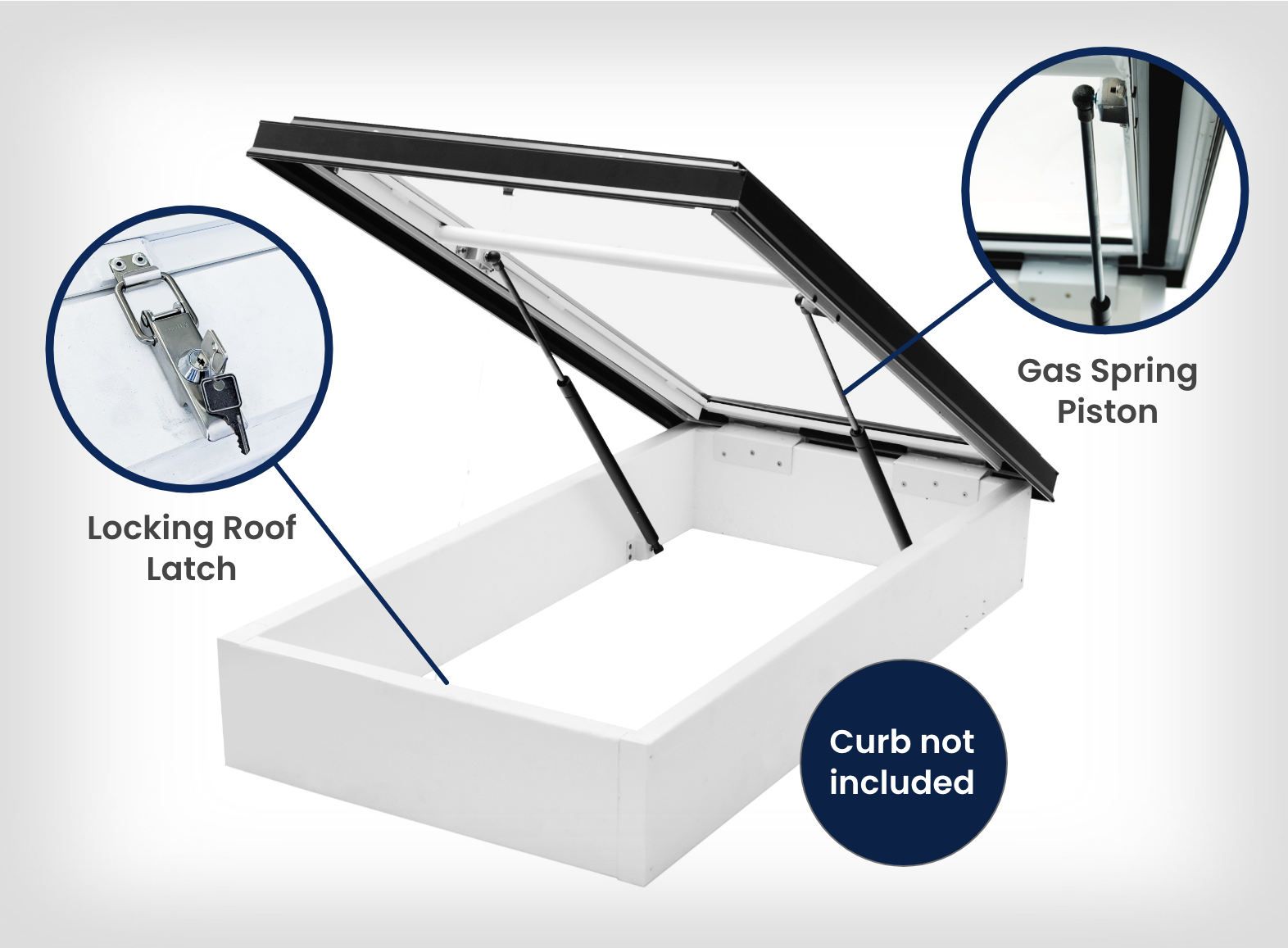

- Gas pistons and the ergonomically placed lifting bar make it smooth and effortless to open the door. Gas pistons hold the door securely when the door is open.
- Locking roof latch to provide security and secure seal.
- Curb supplied by others. RAS finished curb width cannot exceed 1.75” for proper installation.
*Note: the RAS skylight is not designed nor should it be used as a venting skylight. Please refer to our venting skylight product pages.
GL OCM, AC OCM, GL OCM E, AC OCM E and GL OSF, AC OSF, GL OSF E, AC OSF E
FEATURES
- Available in acrylic or polycarbonate dome.
- Acrylic dome suitable for flat or sloped roof applications. Glass requires min 2:12 pitch.
- Ideal solution to gain access to rooftop for services (i.e. HVAC) or outdoor living space.
- Acrylic roof access pyramids available for square dimensions only.
- Unique locking roof latch.
- For optimum thermal efficiency all roof access doors are made with aluminum thermally broken base frames. Internal heliarc welded one piece white aluminum frame.
- Brown standard exterior aluminum frame. Black, grey, white, sandalwood, or mill finish aluminum frame also available.
- 15 standard sizes in acrylic dome and 10 in glass. Custom sizes also available.
- Note: RAS finished curb width cannot exceed 1.75”.
Custom Sizes
Available in standard & custom sizes. Acrylic & polycarbonate from 22 ½ x 30 ½ to 46 ½ x 46 ½ (or 36 ½” x 78 ½”)
Recommended Roof
Type
Sloped or Flat with Sloped Curb
Recommended
Location
- Commercial building, rooftop access
- Condominium or townhouse
- Top-floor lofts
- Rooftop patios
- Roof maintenance requirements
Acrylic is the right choice for many applications
- Columbia manufactures skylights in acrylic and polycarbonate.
- These versatile glazing materials are able to be produced in double and triple glazing options.
- Acrylic and polycarbonate come in three tints – clear, bronze, and translucent white.
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Clear acrylic gives bright natural light.
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Bronze acrylic delivers the maximum protection from extreme sunlight, reducing glare and solar heat gain.
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Additional comfort in your interior space.
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, reducing glare and solar heat gain.
- Additional comfort in your interior space.
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Additional comfort in your interior space.
Columbia offers the widest choice of skylight frame colours in North America
Sizes FOR AC RAS – Roof Access Door – Acrylic
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
The yellow star indicates the most popular sizes.
| Inside Curb | 22½ | 30½ | 32½ | 34½ | 36½ | 46½ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30½ |
Model: 2836
Inside Curb (WxH)
22½” x 30½” Outside Curb (WxH)
25½” x 33½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Inside Curb (WxH)
572mm x 775mm Outside Curb (WxH)
648mm x 851mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Inside Curb (WxH)
30½” x 30½” Outside Curb (WxH)
33½” x 33½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Inside Curb (WxH)
775mm x 775mm Outside Curb (WxH)
851mm x 851mm Daylight Area (Glass)
0.60 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34½ |
Model: 2840
Inside Curb (WxH)
22½” x 34½” Outside Curb (WxH)
25½” x 37½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Inside Curb (WxH)
572mm x 876mm Outside Curb (WxH)
648mm x 953mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Inside Curb (WxH)
34½” x 34½” Outside Curb (WxH)
37½” x 37½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Inside Curb (WxH)
876mm x 876mm Outside Curb (WxH)
953mm x 953mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36½ |
Model: 4242
Inside Curb (WxH)
36½” x 36½” Outside Curb (WxH)
39½” x 39½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Inside Curb (WxH)
927mm x 927mm Outside Curb (WxH)
1003mm x 1003mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46½ |
Model: 2852
Inside Curb (WxH)
22½” x 46½” Outside Curb (WxH)
25½” x 49½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Inside Curb (WxH)
572mm x 1181mm Outside Curb (WxH)
648mm x 1257mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Inside Curb (WxH)
30½” x 46½” Outside Curb (WxH)
33½” x 49½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Inside Curb (WxH)
775mm x 1181mm Outside Curb (WxH)
851mm x 1257mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Inside Curb (WxH)
34½” x 46½” Outside Curb (WxH)
37½” x 49½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Inside Curb (WxH)
876mm x 1181mm Outside Curb (WxH)
953mm x 1257mm Daylight Area (Glass)
1.03 m2 |
Model: 5252
Inside Curb (WxH)
46½” x 46½” Outside Curb (WxH)
49½” x 49½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Inside Curb (WxH)
1181mm x 1181mm Outside Curb (WxH)
1257mm x 1257mm Daylight Area (Glass)
1.40 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 62½ |
Model: 2868
Inside Curb (WxH)
22½” x 62½” Outside Curb (WxH)
25½” x 65½” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Inside Curb (WxH)
572mm x 1588mm Outside Curb (WxH)
648mm x 1664mm Daylight Area (Glass)
0.91 m2 |
Model: 3668
Inside Curb (WxH)
30½” x 62½” Outside Curb (WxH)
33½” x 65½” Daylight Area (Glass)
13.24 sq.ft. Model: 3668
Inside Curb (WxH)
775mm x 1588mm Outside Curb (WxH)
851mm x 1664mm Daylight Area (Glass)
1.23 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 70½ |
Model: 2876
Inside Curb (WxH)
22½” x 70½” Outside Curb (WxH)
25½” x 73½” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Inside Curb (WxH)
572mm x 1791mm Outside Curb (WxH)
648mm x 1867mm Daylight Area (Glass)
1.02 m2 |
Model: 3676
Inside Curb (WxH)
30½” x 70½” Outside Curb (WxH)
33½” x 73½” Daylight Area (Glass)
14.93 sq.ft. Model: 3676
Inside Curb (WxH)
775mm x 1791mm Outside Curb (WxH)
851mm x 1867mm Daylight Area (Glass)
1.39 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 74½ |
Model: 3880
Inside Curb (WxH)
32½” x 74½” Outside Curb (WxH)
35½” x 77½” Daylight Area (Glass)
16.81 sq.ft. Model: 3880
Inside Curb (WxH)
826mm x 1892mm Outside Curb (WxH)
902mm x 1969mm Daylight Area (Glass)
1.56 m2 |
Model: 4280
Inside Curb (WxH)
36½” x 74½” Outside Curb (WxH)
39½” x 77½” Daylight Area (Glass)
18.88 sq.ft. Model: 4280
Inside Curb (WxH)
927mm x 1892mm Outside Curb (WxH)
1003mm x 1969mm Daylight Area (Glass)
1.75 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

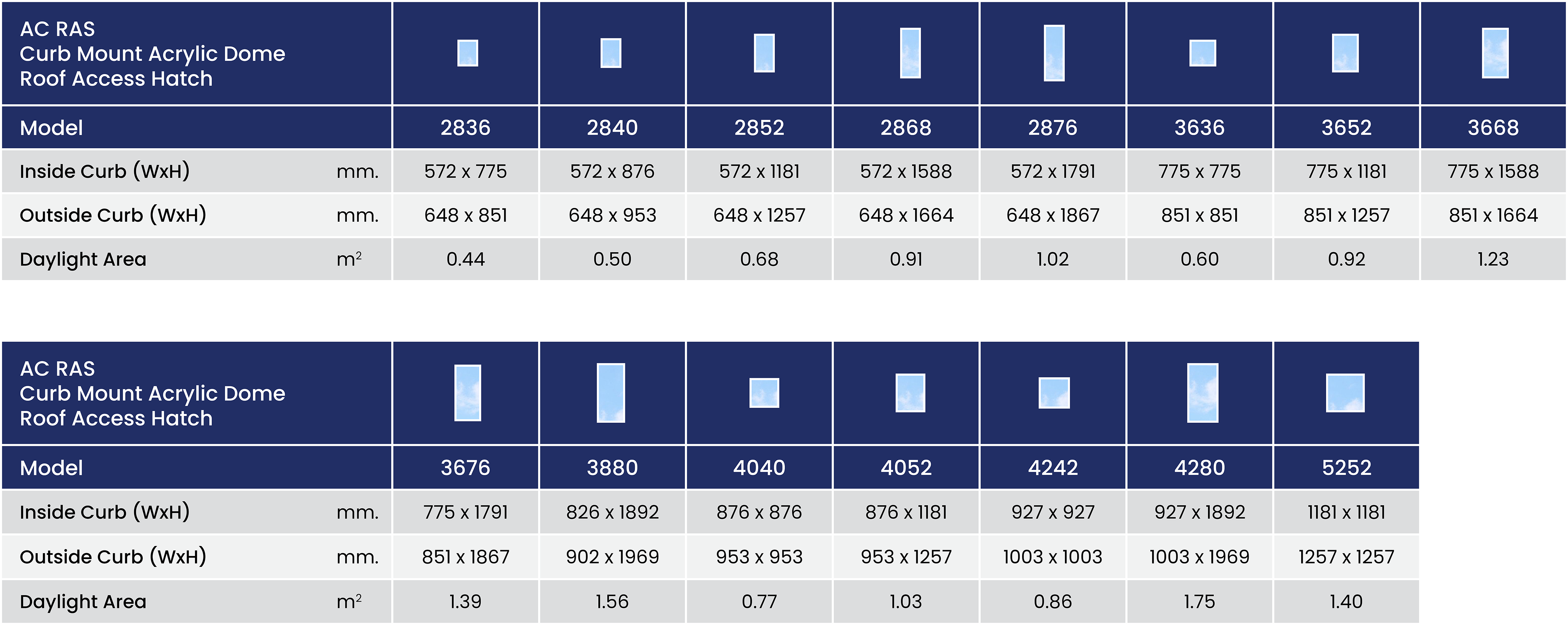

Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
For multiple models go to the Drawings & Specification Library page.
Accessories
