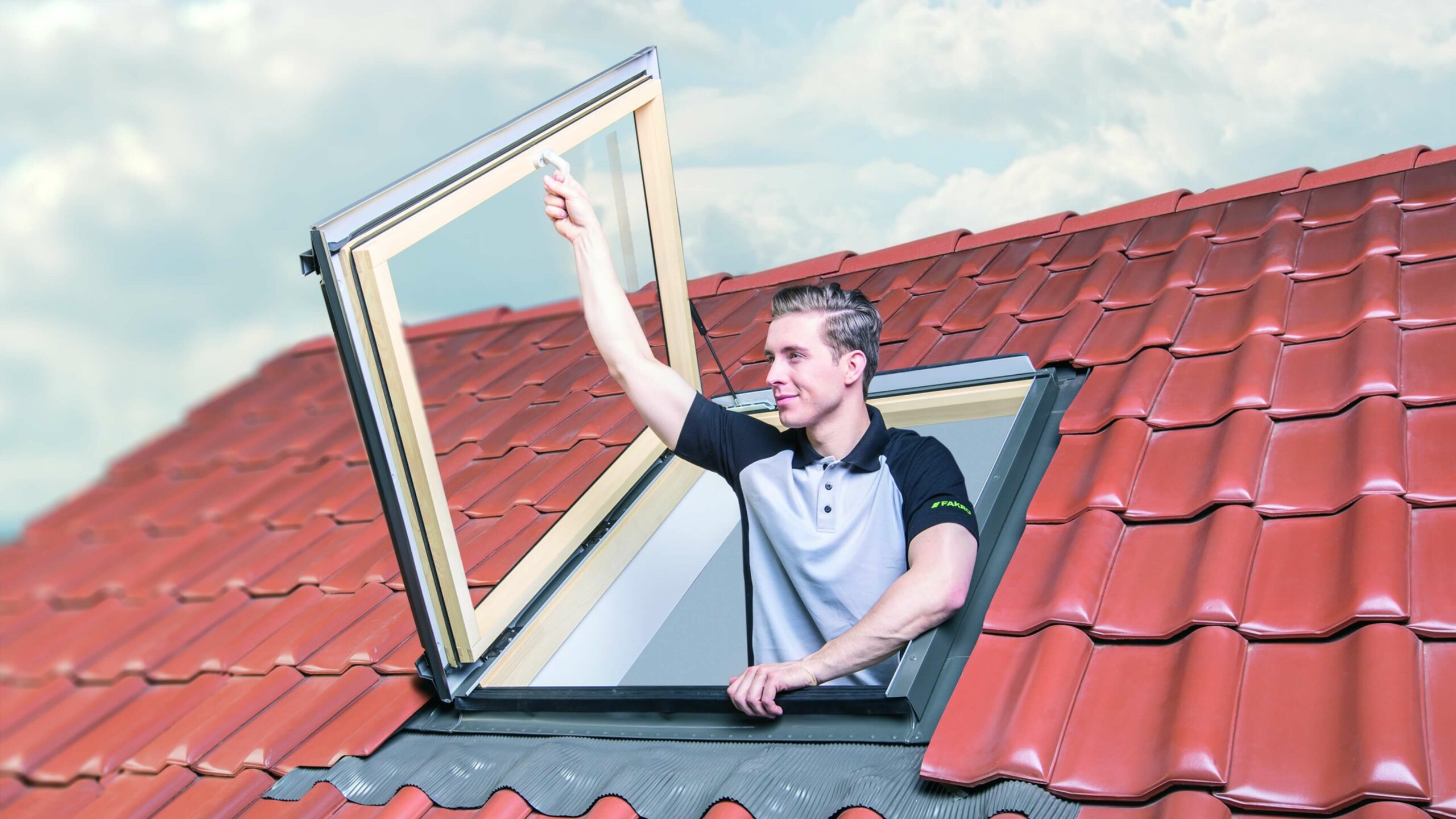

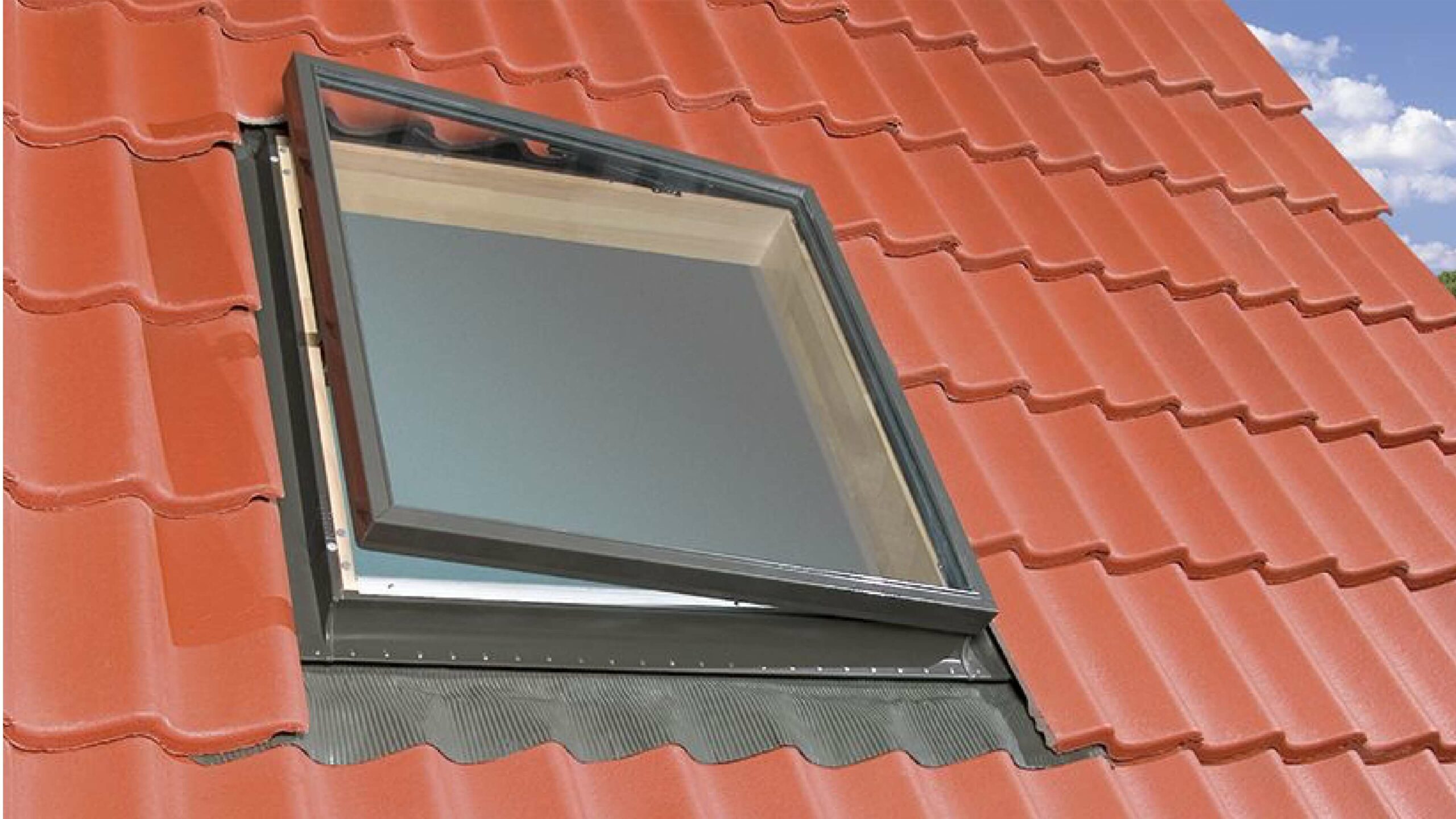

FWU – Deck Mounted Roof Access Window
FWU – Deck Mounted Roof Access Window

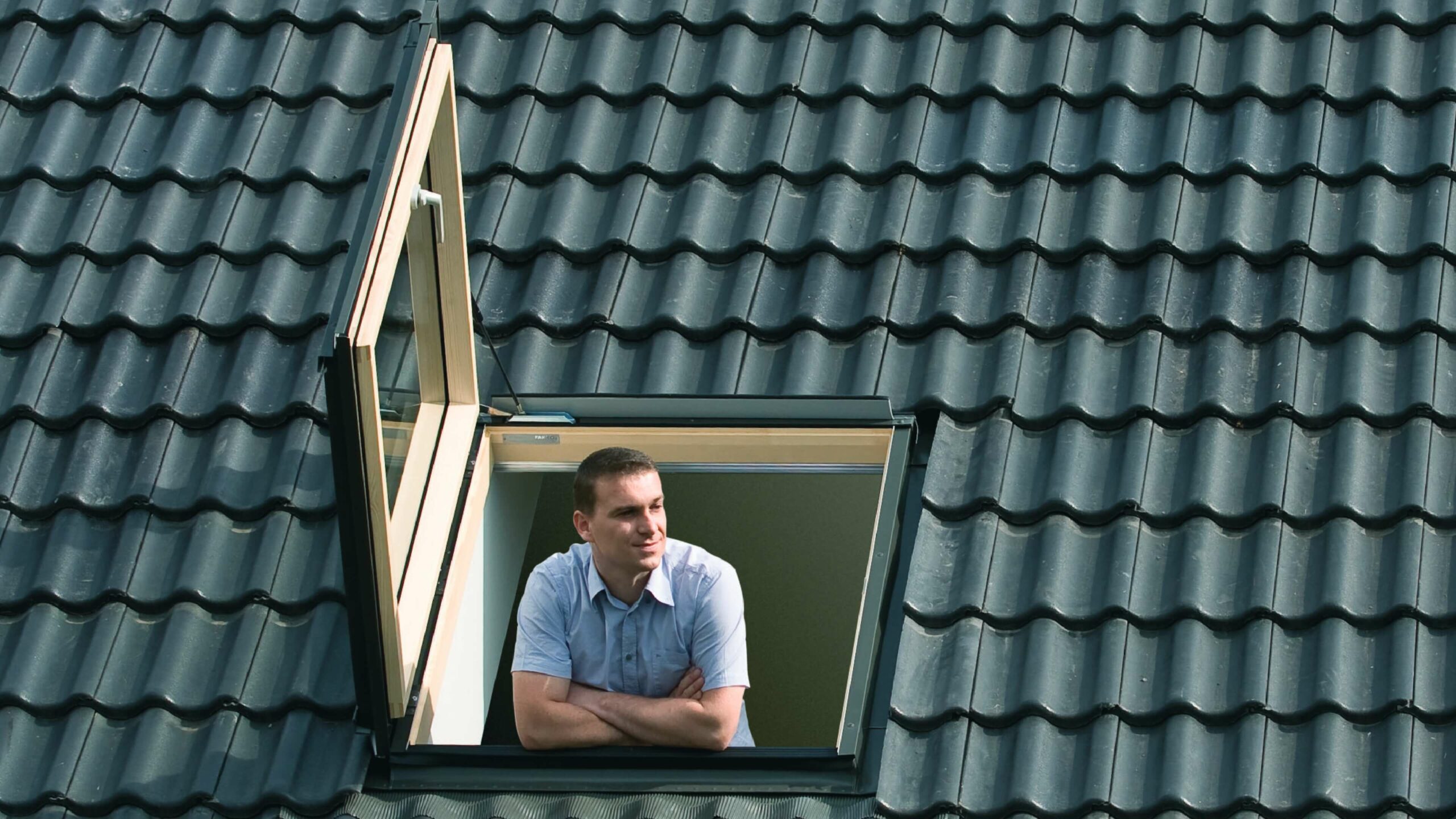

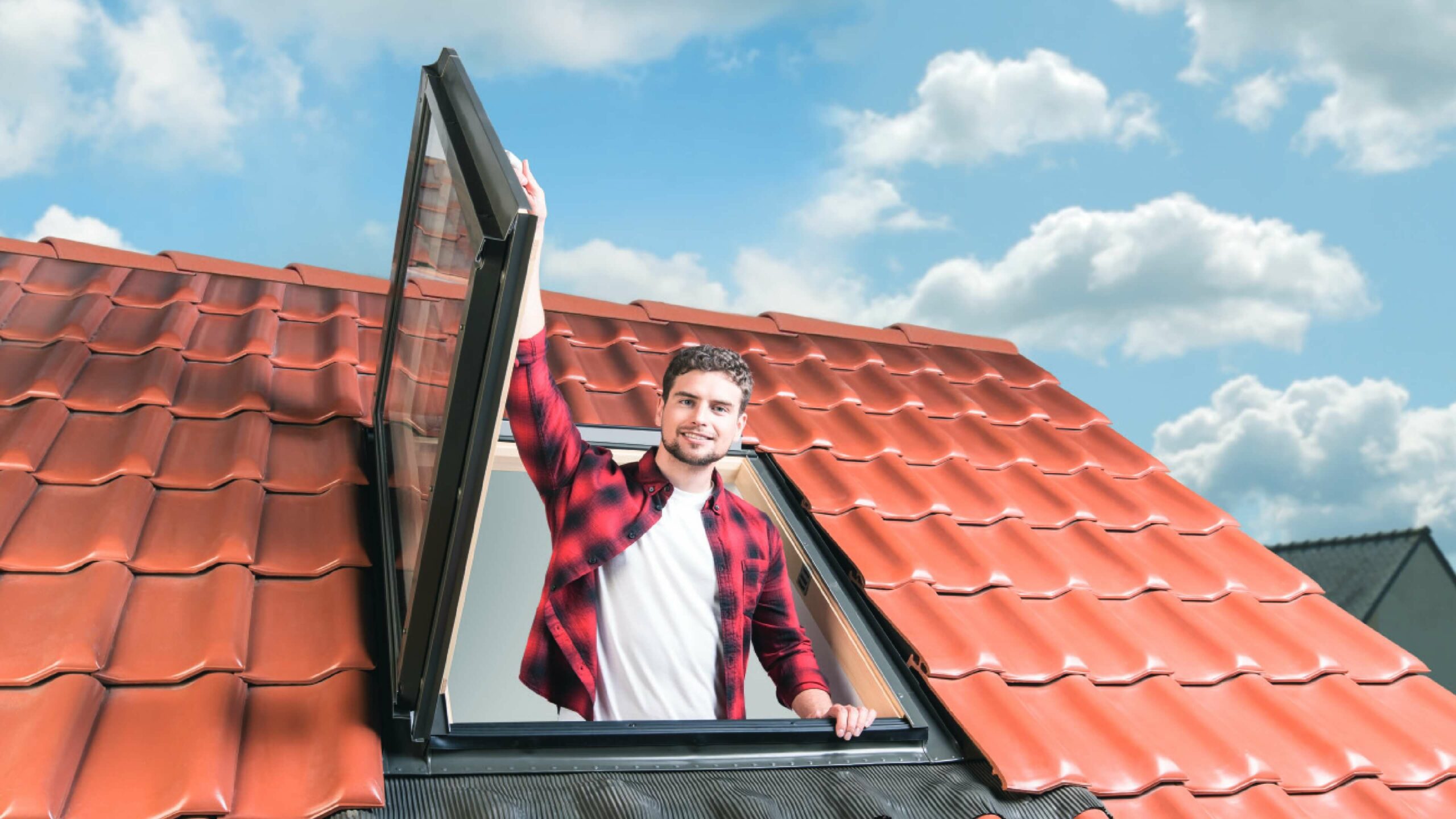

- Our FWU Egress windows will not only light up a room, but they provide easy access to the roof, or a way of escape in case of emergency. FWU roof access windows are designed for rooms where building codes require multiple methods of escape in case of emergency.
- We recommend that you install the FWU roof access windows as an egress roof window for safety and building code approval.
- The roof access window is available in two versions: right opening FWU-R or left opening FWU-L. FWU size 24/46 windows are officially recognized as a certified Fire Exit roof window (Egress window*) and can help save lives in case of emergencies such as a fire or flood.
* Model FWU 24/46 tested in accordance with IRC section R 310.1.1, R 310.1.2,R 310.1.3, R 310.1.4
FEATURES
- Suitable for roof pitches between 15-55° degrees.
- Low emission and heat reflecting double glazed glass.
- Opening handle positioned halfway up the sash for ease of use.
- Internal gasket system to drain any possible condensation to the outside.
- Requires special flashing ELW or EHW.
- UV resistant polyester paint coated aluminum frame for long life.
- Manufactured using high quality edge grain natural European pine, impregnated and finished with tow coats of acrylic lacquer.
- Low profile design complements your roof design.
- Retractable insect screen available.
- Bracket free installation – no metal connections on the exterior.
- Note: For the warranty to be valid, FAKRO skylights must be installed with a FAKRO flashing kit.
Highlights of the FWU – Egress Deck Mounted Roof Access Window

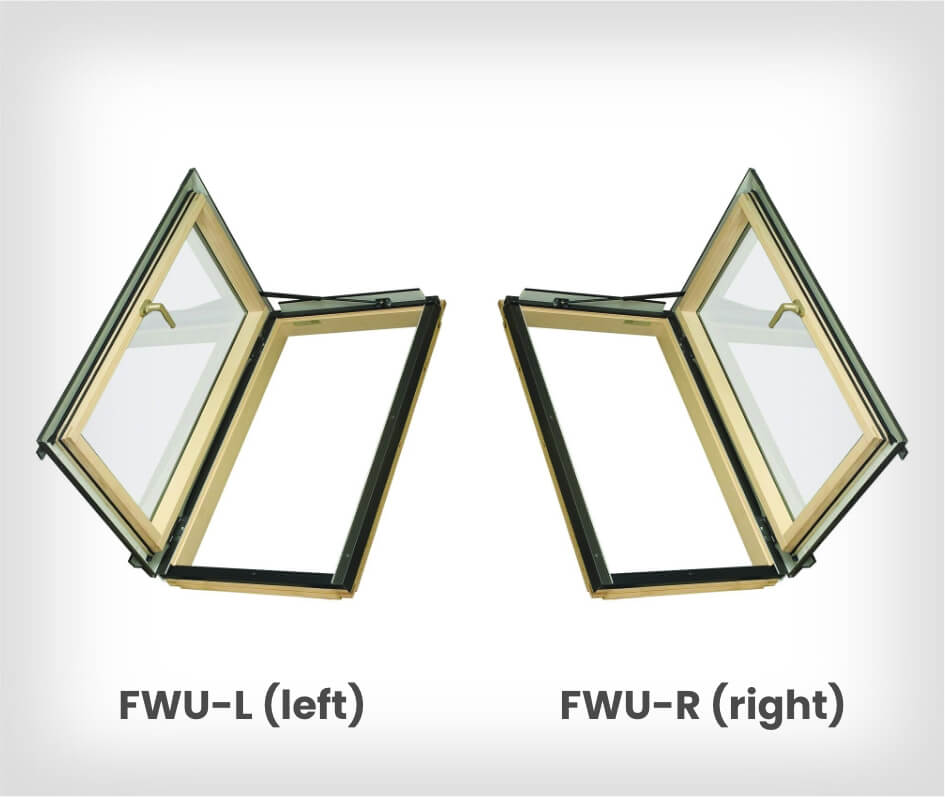

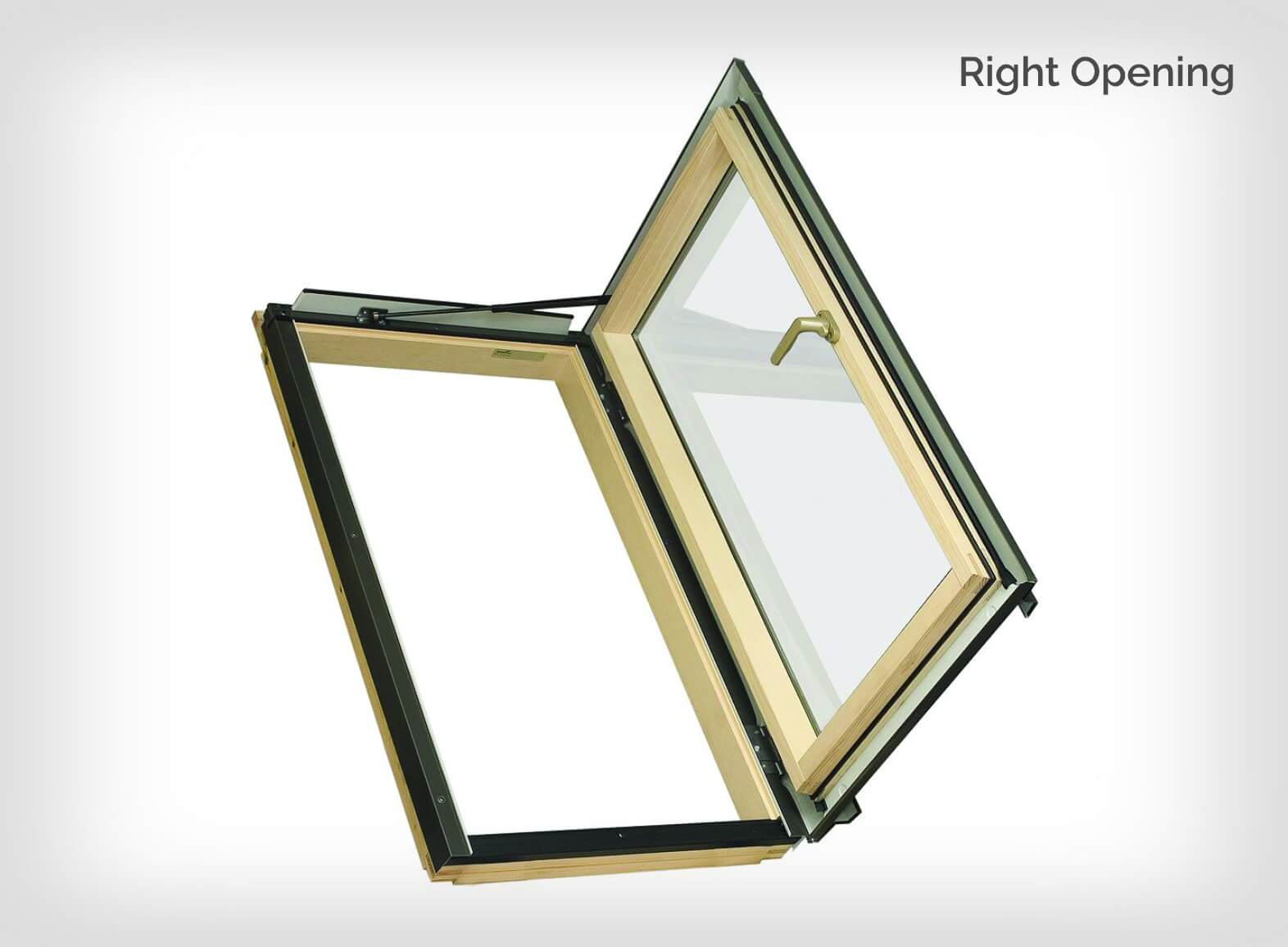

Your Choice of Right and Left Opening
- When specifying your project, it is important to note that the FWU is available in both left and right opening.
- We understand that you need the flexibility of choice of opening direction when planning your next project.

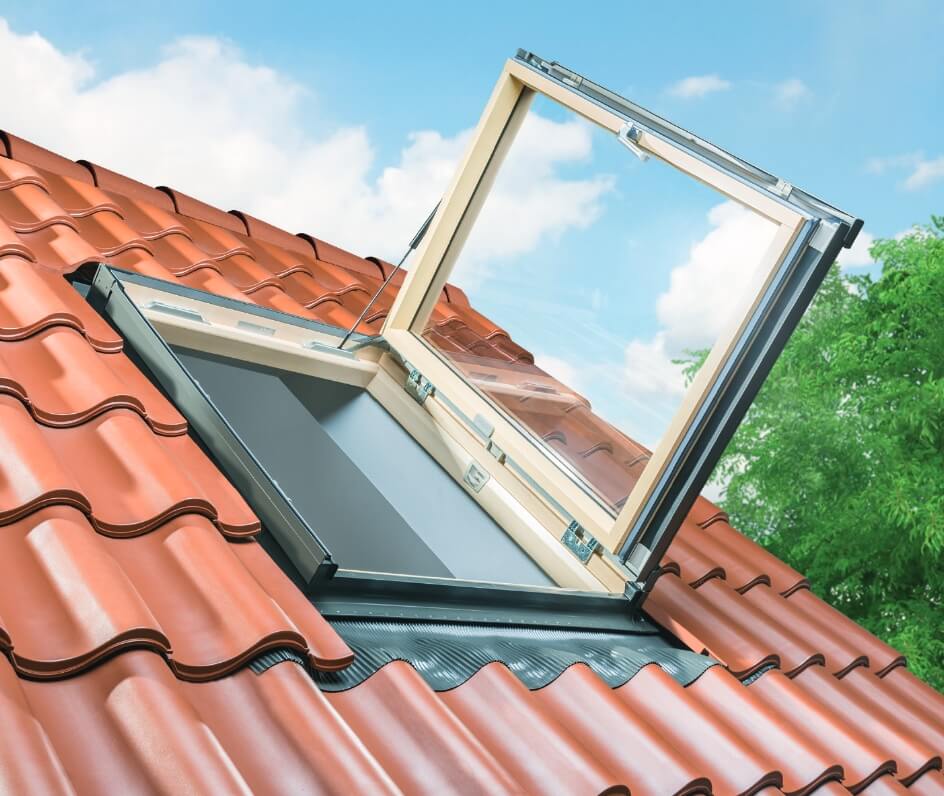

Easy Opening
- Opening handle positioned halfway up the sash for ease of use. Ergonomically positioned for maximum accessibility and comfort.
- The internal mechanism makes opening effortless. You will feel the quality and engineering when you open the window.
World Class European Quality
- FAKRO products are renowned the world over for their outstanding European design and manufacturing quality.
- FAKRO skylights and roof windows feature thick wooden frames made of select narrow grain pine, seasoned and vacuum pressure treated. Factory lacquered before final assembly.
- 20 year warranty against sealed unit failure.

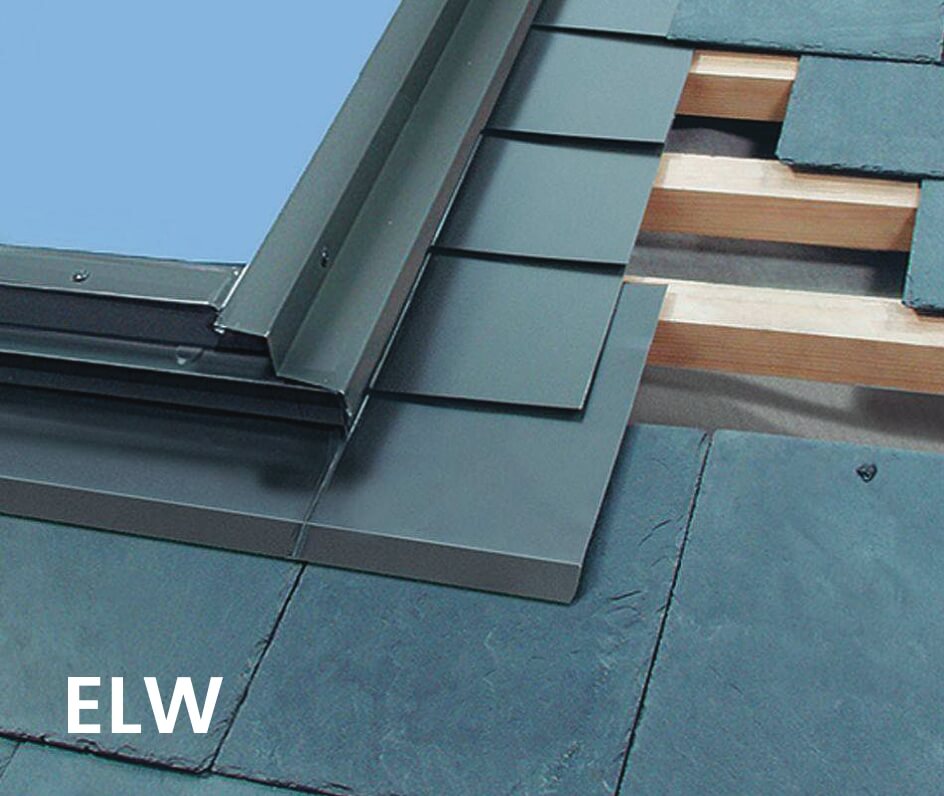

Flashing for Asphalt Shingles
- These special flashings are intended for roof access window FWU. The ELW is engineered for low profile roofing materials like: shingles, flat tiles, slates.
- Roof access windows FWU can be combined horizontally. They can also be combined with centre pivot FTP-V window or with top hung FPP-V window, matching windows of the same height.

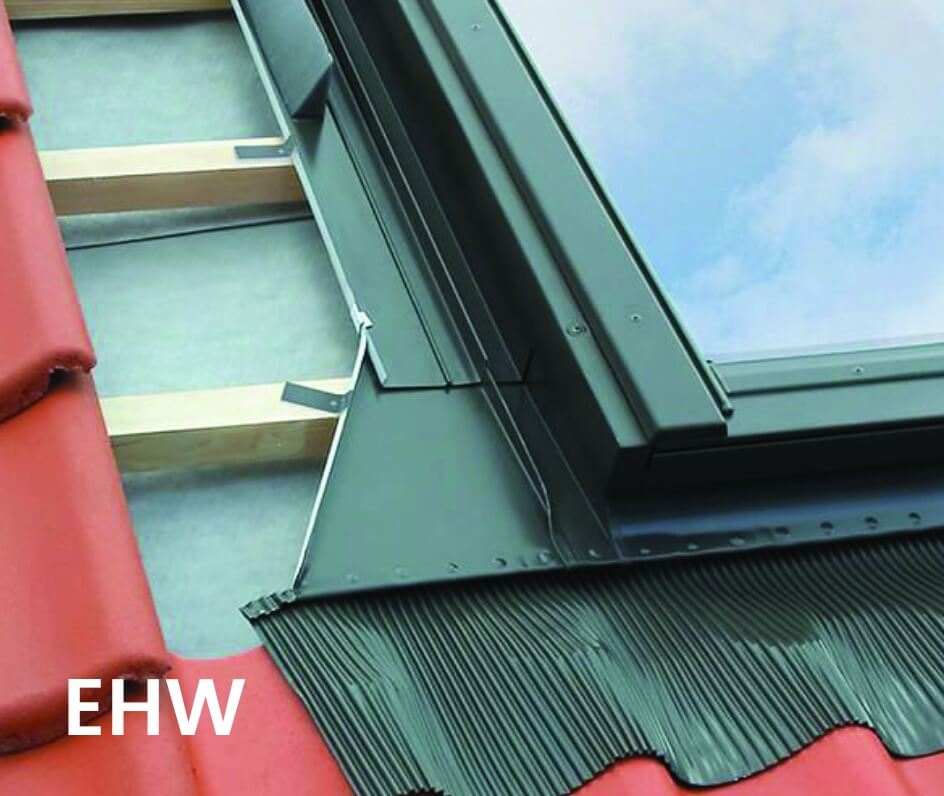

Flashing for High Profiles
- These special flashings are intended for roof access window FWU. The EHW is designed for high profiled roofing materials, such as metal roofs or ceramic tiles.
- Roof access windows FWU can be combined horizontally. They can also be combined with centre pivot FTP-V window or with top hung FPP-V window, matching windows of the same height.

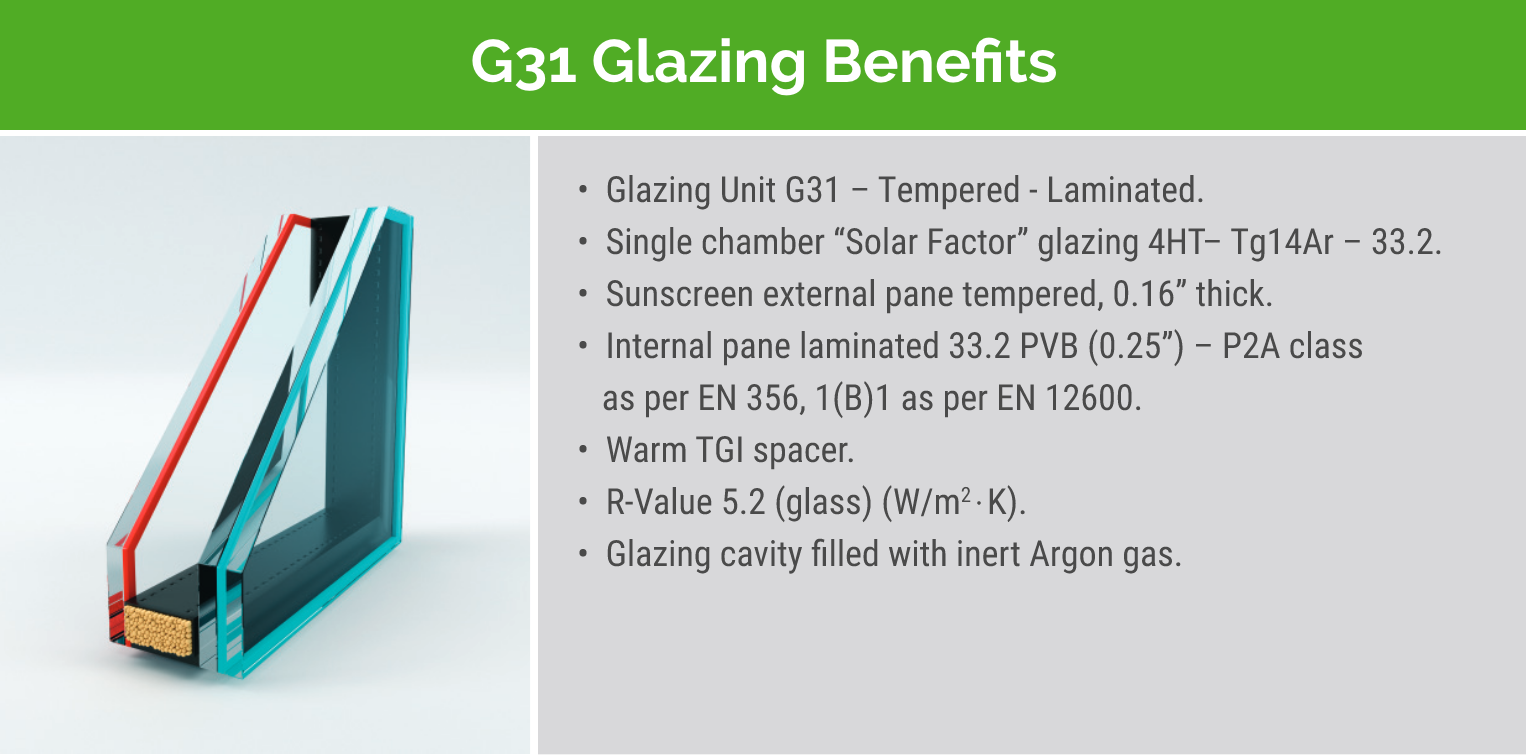

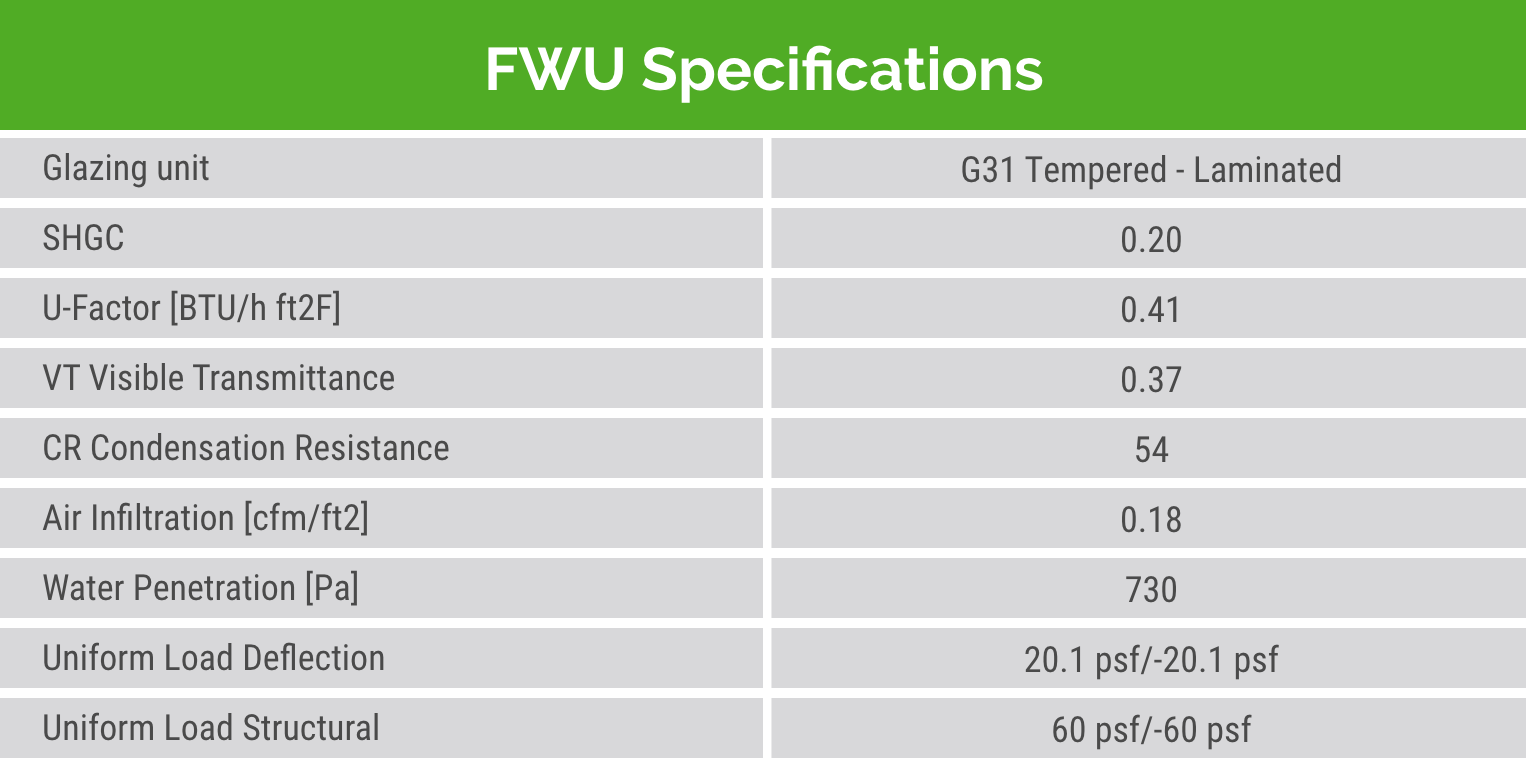

FAKRO’s Premium G31 Glazing Unit and Specifications
The Features of FAKRO’s Laminated Glass
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.

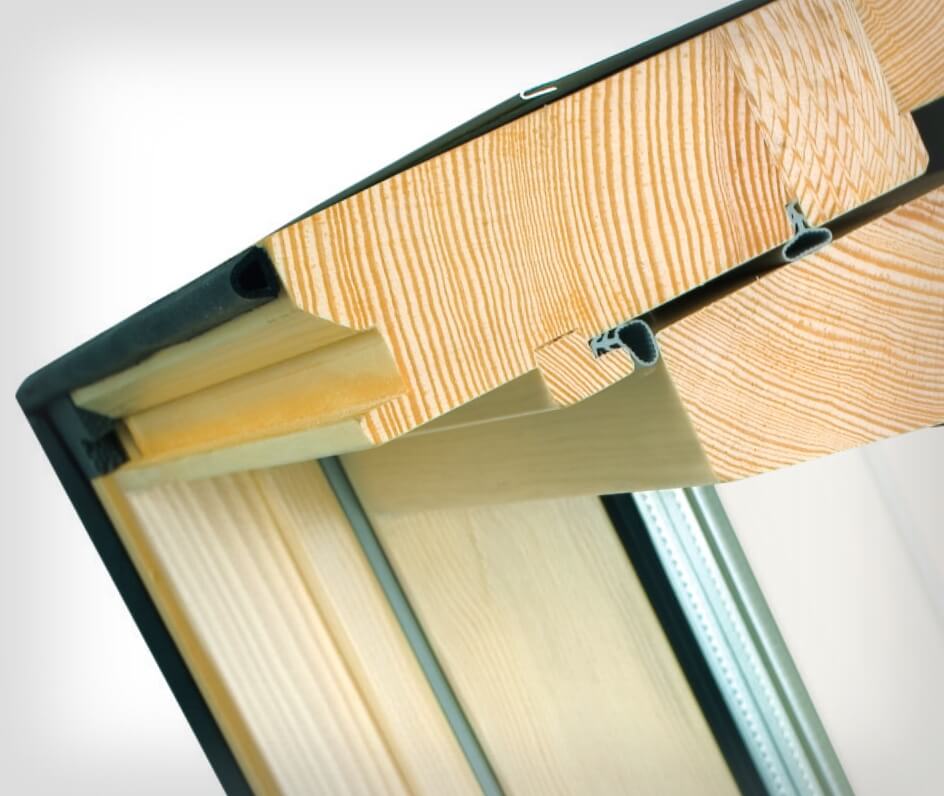

FAKRO’s Premium Wood Frames
FAKRO skylights are made with extra thick pressure treated solid wood frames, up to:

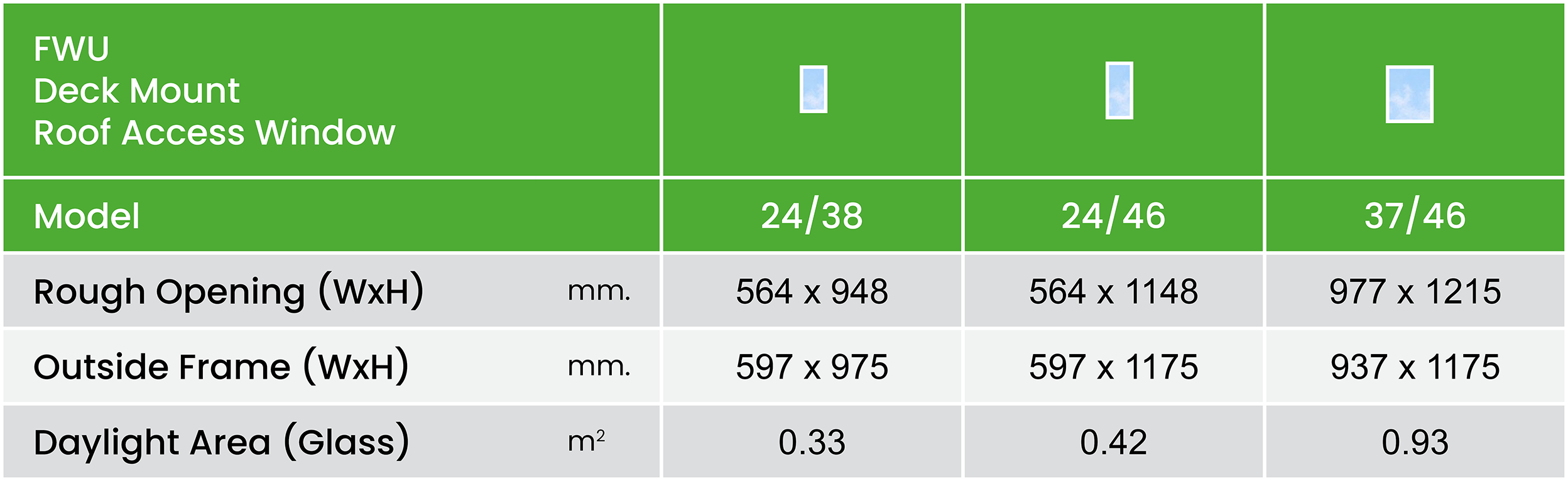

Sizes for FWU Egress Deck Mounted Roof Access Window
| Rough Opening | 22¼ | 38½ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37⅜ |
Model: 24/38
Rough Opening (WxH)
22¼” x 37⅜” Outside Frame (WxH)
23½” x 38⅛” Daylight Area (Glass)
3.55 sq.ft. Model: 24/38
Rough Opening (WxH)
564mm x 948mm Outside Frame (WxH)
597mm x 975mm Daylight Area (Glass)
0.33 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 45¼ |
Model: 24/46
Rough Opening (WxH)
22¼” x 45¼” Outside Frame (WxH)
23½” x 46¼” Daylight Area (Glass)
4.52 sq.ft. Model: 24/46
Rough Opening (WxH)
564mm x 1148mm Outside Frame (WxH)
597mm x 1175mm Daylight Area (Glass)
0.42 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 47¾ |
Model: 37/46
Rough Opening (WxH)
38½” x 47¾” Outside Frame (WxH)
36⅞” x 46¼” Daylight Area (Glass)
10 sq.ft. Model: 37/46
Rough Opening (WxH)
977mm x 1215mm Outside Frame (WxH)
937mm x 1175mm Daylight Area (Glass)
0.93 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Flashing Systems
Including energy efficient thermo flashing.
Blackout Blinds
Designed to complement any interior designer’s vision.
You might also be interested in…
FAKRO FTP-V – Deck Mounted Pivot Window
The FTP-V center pivot window is the most popular FAKRO roof window sold in Europe.
Learn More
FAKRO FV – Deck Mounted Manual Venting Skylight
Beautifully transform any upper level room, the FV deck mounted manual venting skylights provide the warmth of natural light and the health benefit of fresh air circulation.
Learn More
Columbia GL RAS – Roof Access Door – Glass
Ideal for turning a rooftop into a patio deck or any other application where egress is required while letting in an abundance of natural light.
Learn More

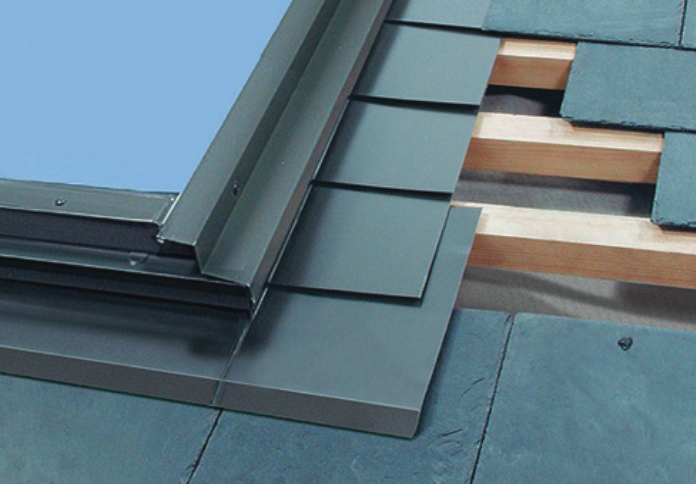

FAKRO ELW/EHW Flashing
