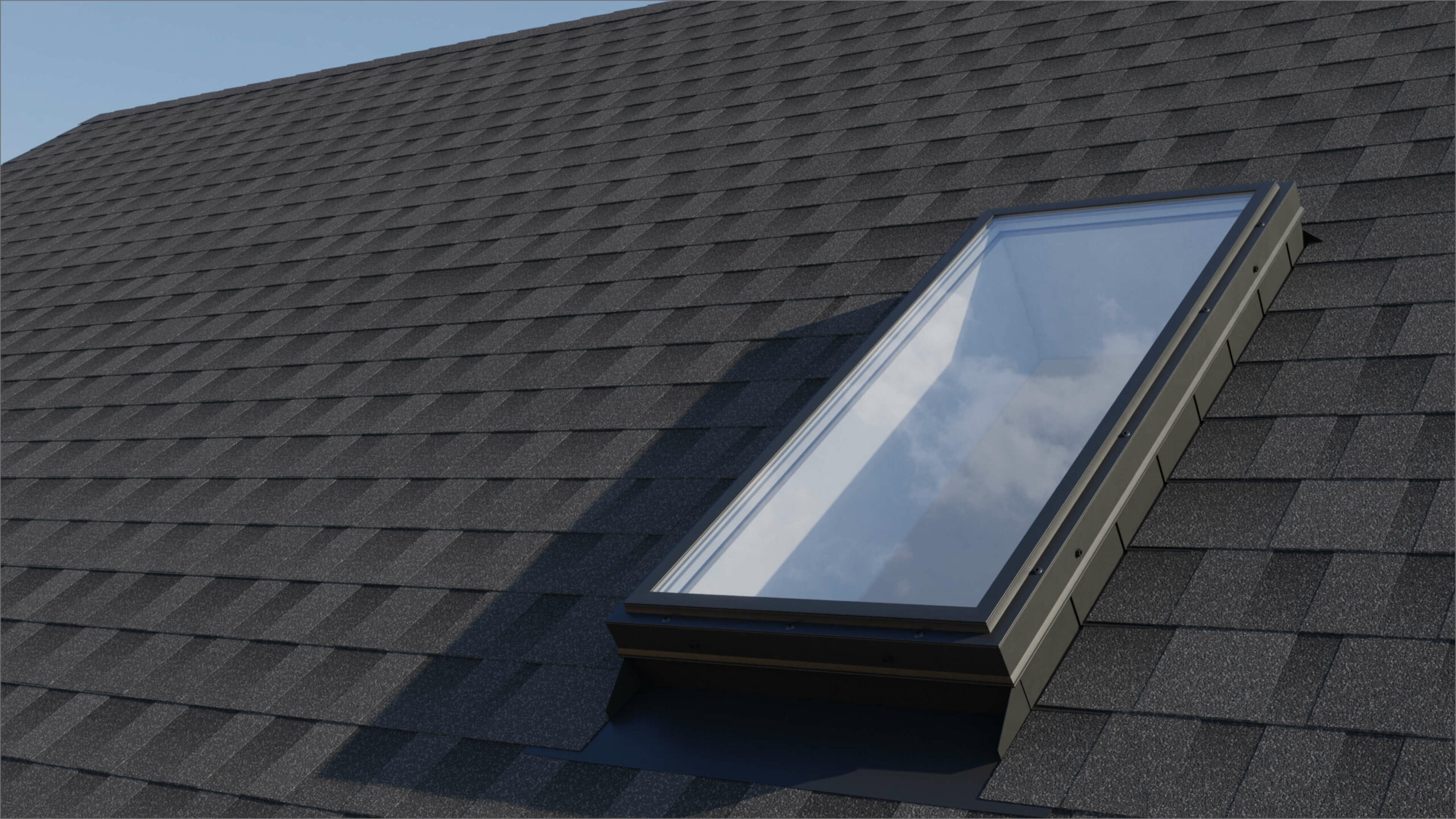

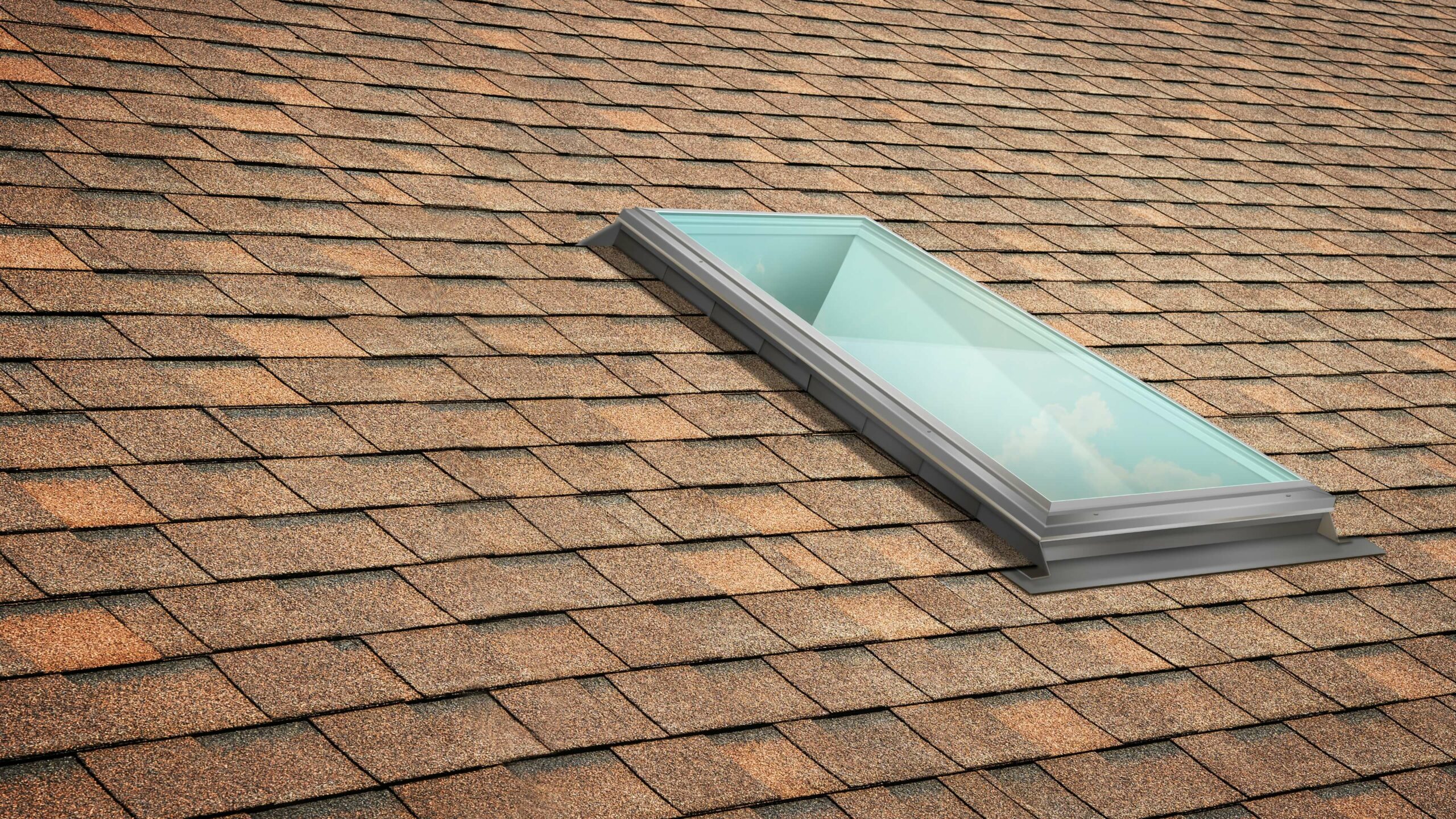

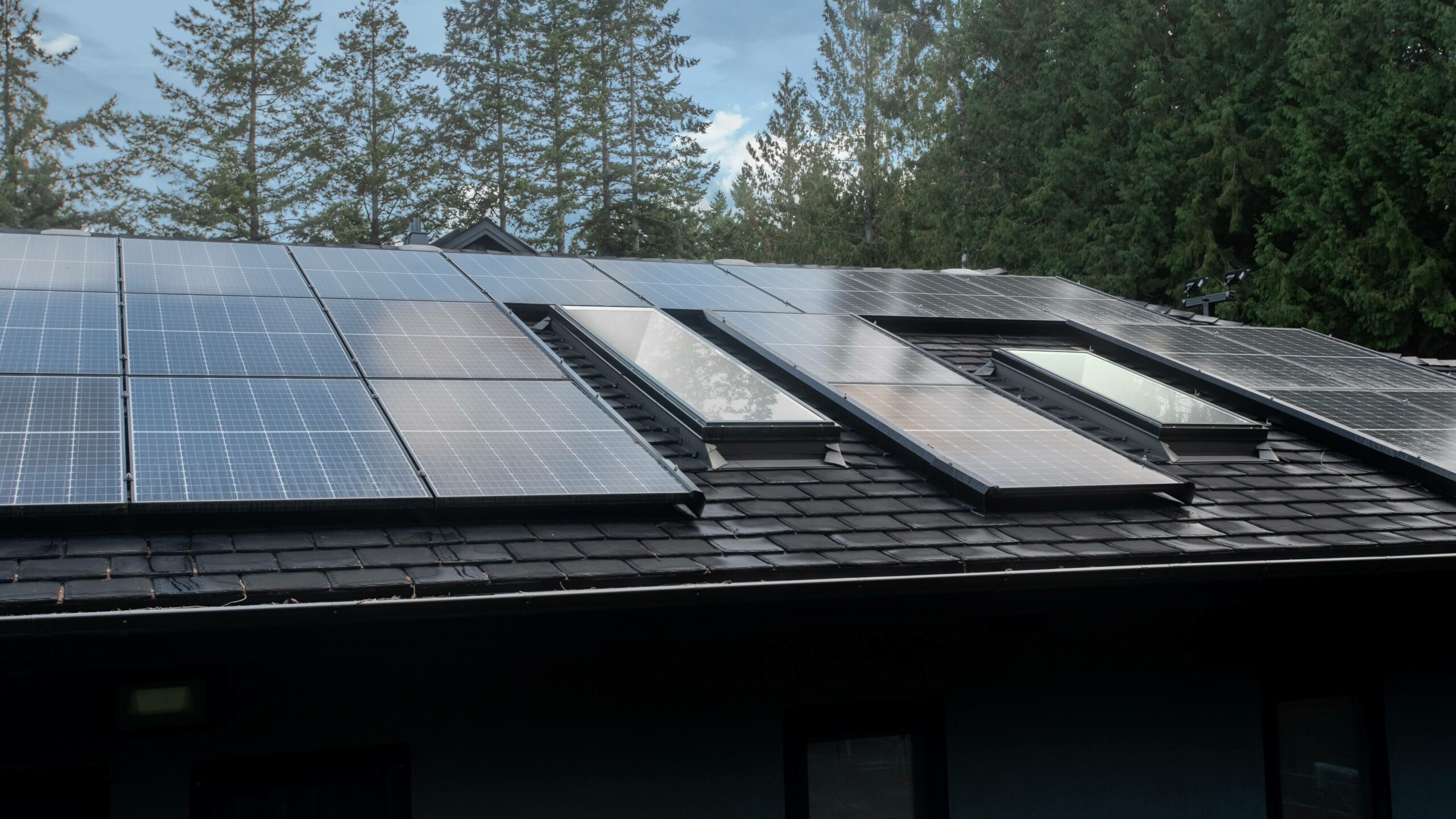

GL VCM – Curb Mount Fixed Glass Skylight
- Bring the beauty and clarity of natural light into your home. This high quality Canadian made Curb Mounted fixed skylight is the right choice for most applications where you want to brighten your living space. Providing natural light in your kitchen, bathroom, or hallway. Highlighting your interior design.
- Tough extruded aluminum exterior frame with baked enamel paint finish and a durable welded vinyl PVC interior frame.
- Available with ENERGY STAR® Certified double or triple glazing LoE3 options (including laminated glass). Additional LoE3 glass options include tinted or reflective glass (bronze or grey) that reduce the glare of intense sunlight and solar heat gain. Columbia also supplies the innovative LoE3 366 Neat low maintenance glass. You may add NEAT coating to any glazing choices.
- Skylights come in standard or custom sizes, and unlimited frame colour options – seven standard colours or custom matching.
- Built Canadian Tough: made in Canada for the Canadian climate.
The sealed glass unit is guaranteed not to fail for a period of twenty years from the date of purchase (condensation between glass).
FEATURES
- Suitable for minimum 2:12 sloped roof, or sloped curb on a flat roof. Site built curb required for installation.
- Columbia fixed curb mounted skylights are available in a choice of inside or outside fastening (VCM – IF / VCM – OF).
- All Columbia LoE³ units feature LoE3 366 glass for optimum energy efficiency.
- Durable, weather resistant, extruded aluminum exterior frame with baked enamel paint finish.
- Low Maintenance white extruded fusion welded vinyl (PVC) base frame to match your interior lightwell.
- Integrated four sided gutter to collect any condensation caused by Canada’s extreme climate, preventing water staining in your interior lightwell.
- Triple glazed skylights, with two panes of LoE3 366, provide the most thermally efficient skylight available on the market, exceeding ENERGY STAR® Canada requirements.
- Seven standard frame colours (including black), unlimited custom colour matching.
- Manufactured in Canada with 100% North American sourced raw materials.
- Minimum 2:12 (10º) Roof Pitch Required for Glass Skylights.
Columbia’s energy efficient glazing options
- Double Glazed LoE3 i89
- Triple Glazed LoE3 366 Temp/Temp/Temp
- Triple Glazed LoE3 366 Temp/Temp/Laminated
Recommended
Location
- Kitchens
- Bathrooms
- Stairwells
- Foyers
- Dining Room
- Living Room
Columbia offers two curb mount fastening systems
- Columbia manufactures outside and inside fastening skylights (the method by which the skylight is fixed to the curb).
- We recommend the outside fastening as it allows for a cleaner application of drywall in the lightwell, with the PVC frame of the skylight hardly visible.
- For GL VCM OF skylights. Measurements are always taken from the outside finished (flashed) curb dimensions.
- All skylights are reversible, and should be specified when ordered.
- Aluminum Cap
Durable extruded exterior aluminum frame with baked enamel paint finish. 7 standard colours and unlimited custom colour matching – bring in a paint chip to your dealer and we will match it. - Base Frame
Maintenance free, white heavy duty PVC, thermally broken vinyl base frame with co-extruded draft seal. - Columbia Condensation Control System
All Columbia skylights utilize our unique rigid (PVC or Aluminum), 4 sided, extra wide gutter – wicking away moisture, protecting your lightwell from damage and unsightly staining. - Curb
Outside Fastening.
GL VCM OF: Any curb width. Can be installed on a 2×4, 2×6, or 2×8 site built curb.

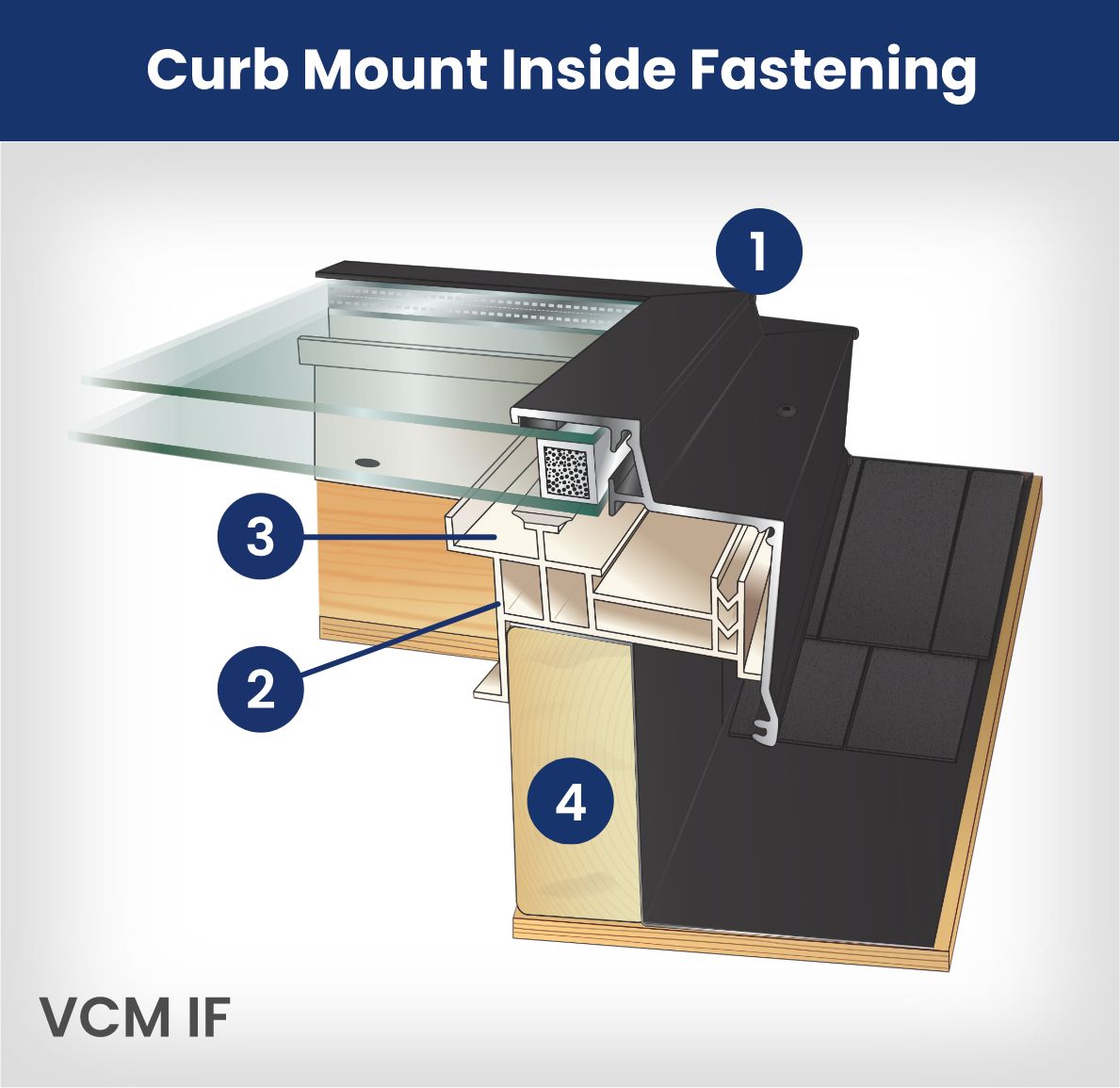

- Columbia manufactures outside and inside fastening skylights (the method by which the skylight is fixed to the curb).
- For GL VCM IF skylights, measurements always taken from inside curb rough opening.
- Inside fastening is a previous Columbia design, and if you are replacing skylights with this type of fastening flange, it may be preferable to replace them with the same, to avoid interior finishing work.
- All skylights are reversible, and should be specified when ordered.
- Aluminum CapDurable extruded exterior aluminum frame with baked enamel paint finish. 7 standard colours and unlimited custom colour matching – bring in a paint chip to your dealer and we will match it.
- Base FrameMaintenance free, white heavy duty PVC, thermally broken vinyl base frame with co-extruded draft seal.
- Columbia Condensation Control SystemAll Columbia skylights utilize our unique rigid (PVC or Aluminum), 4 sided, extra wide gutter – wicking away moisture, protecting your lightwell from damage and unsightly staining.
- CurbInside Fastening.
GL VCM IF: Max 2” curb width. Can be installed on a 2×4, 2×6, or 2×8 site built curb.
The benefits of GL VCM – Curb Mount Fixed Glass Skylight
If you are wanting to bring natural daylight into your home, then the fixed glass skylight is the right choice for you. With a proven frame design and the latest glass technology your skylight can achieve outstanding clarity and energy performance.

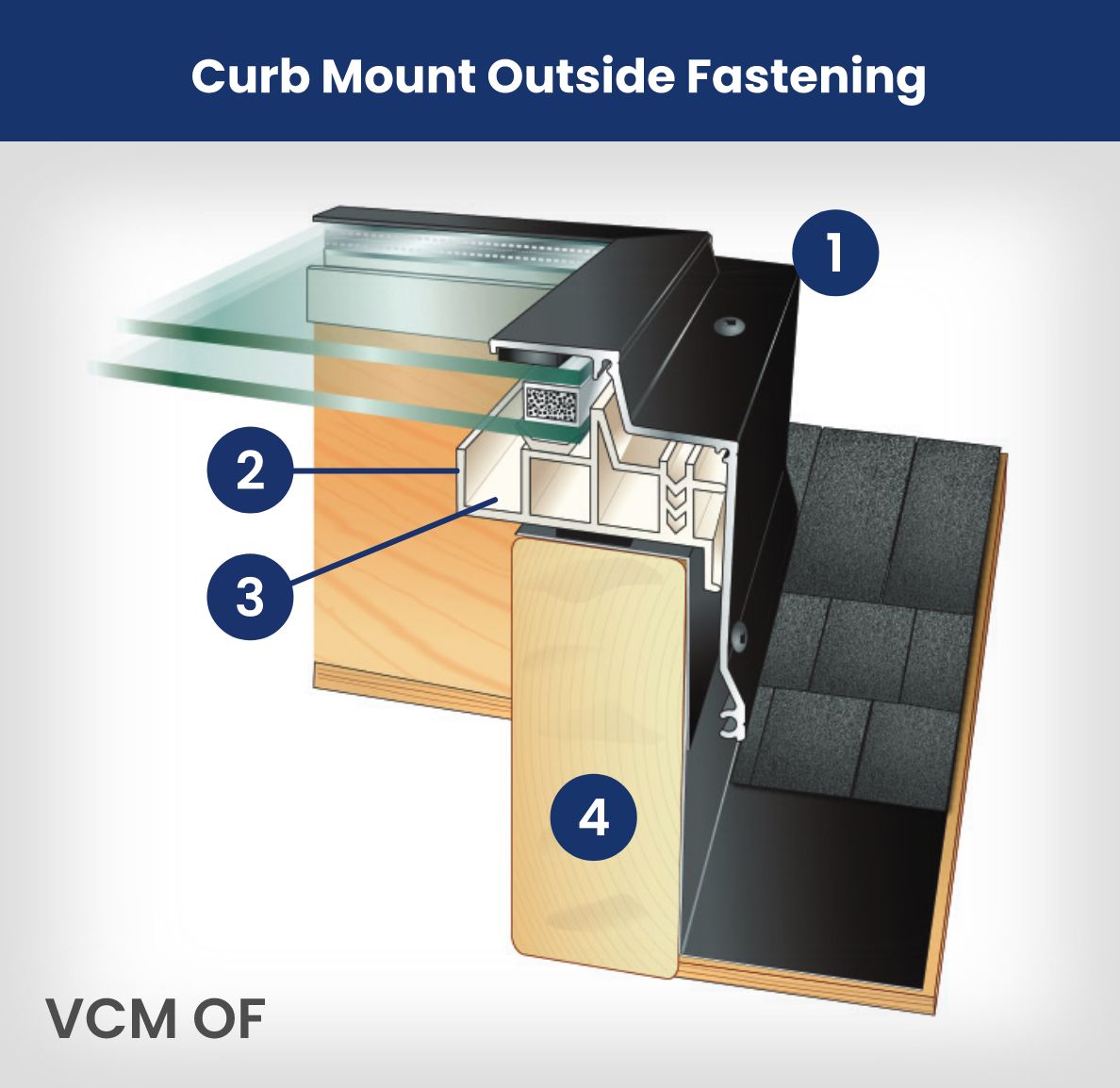

Watertight Curb Mount Design
- Aluminum Cap
Durable extruded exterior aluminum frame with baked enamel paint finish – seven standard colours and unlimited custom colour matching. Bring in a paint chip to your dealer, and we will match it. - Base Frame
Maintenance free, white heavy duty PVC, thermally broken vinyl base frame with co-extruded draft seal. - Columbia Condensation Control System
All Columbia skylights utilize our unique rigid (PVC or Aluminum), four sided, extra wide gutter – wicking away moisture, protecting your lightwell from damage and unsightly staining. - Curb
VCM OF: Any curb width.
VCM IF: Max 2” curb width.
Can be installed on a 2×4, 2×6, or 2×8 curb.
Use Cant Strip for flat roof.

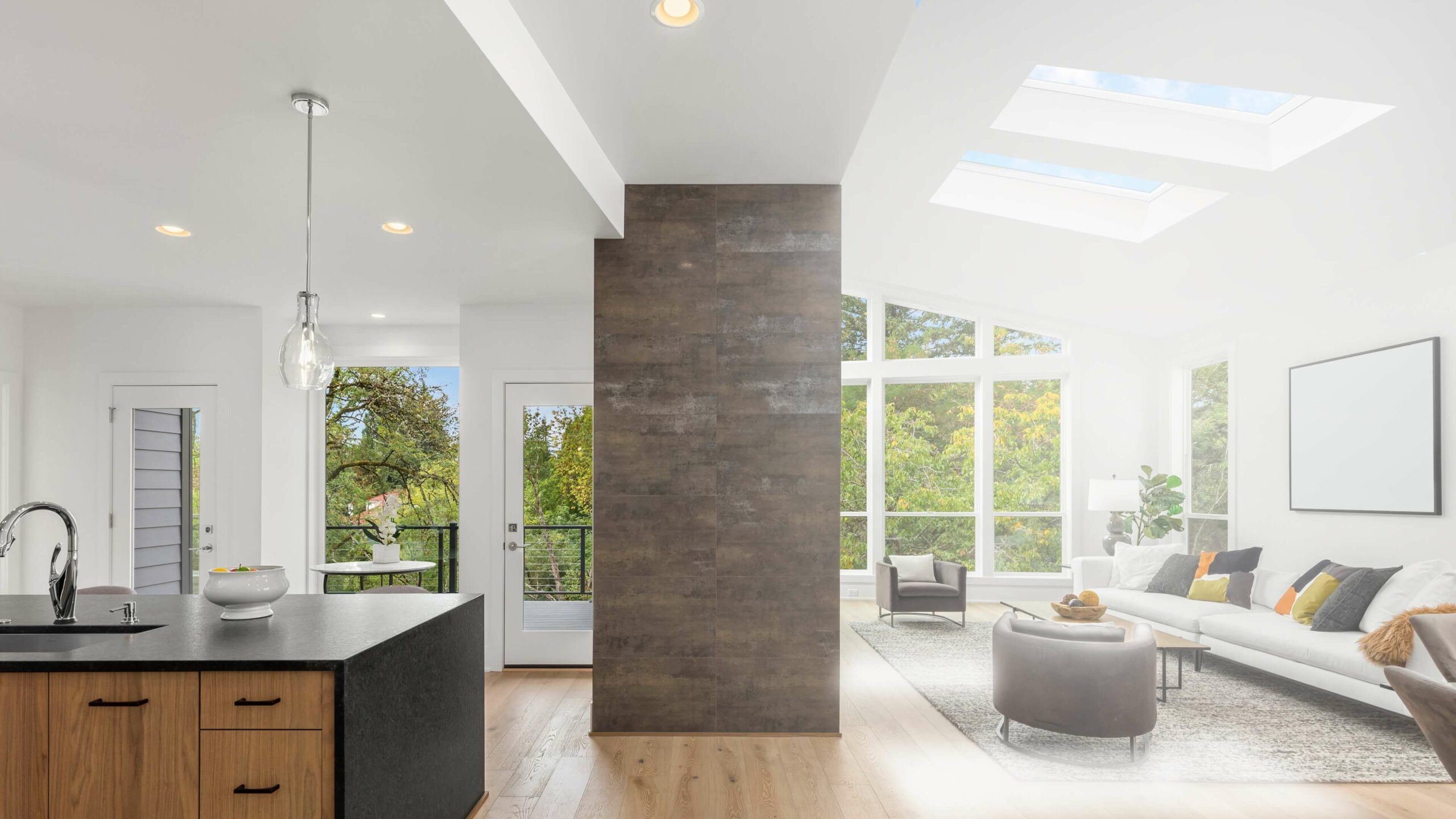

The Benefit of Natural Light
- Living in the north we all need more natural daylight in our homes, particularly during the winter months when days are shorter, there are fewer hours of sunlight, and the sun is at a lower angle than during the summer.
- Natural light has been proven to increase happiness and productivity.
- Increasing the amount of natural light in your home offsets the impact of Seasonal Affective Disorder, which affects many people in the winter when they do not receive enough sunlight.
- Natural light has been shown to lower the risk of nearsightedness in children and young adults by helping the eye produce dopamine, which aids in healthy eye development.

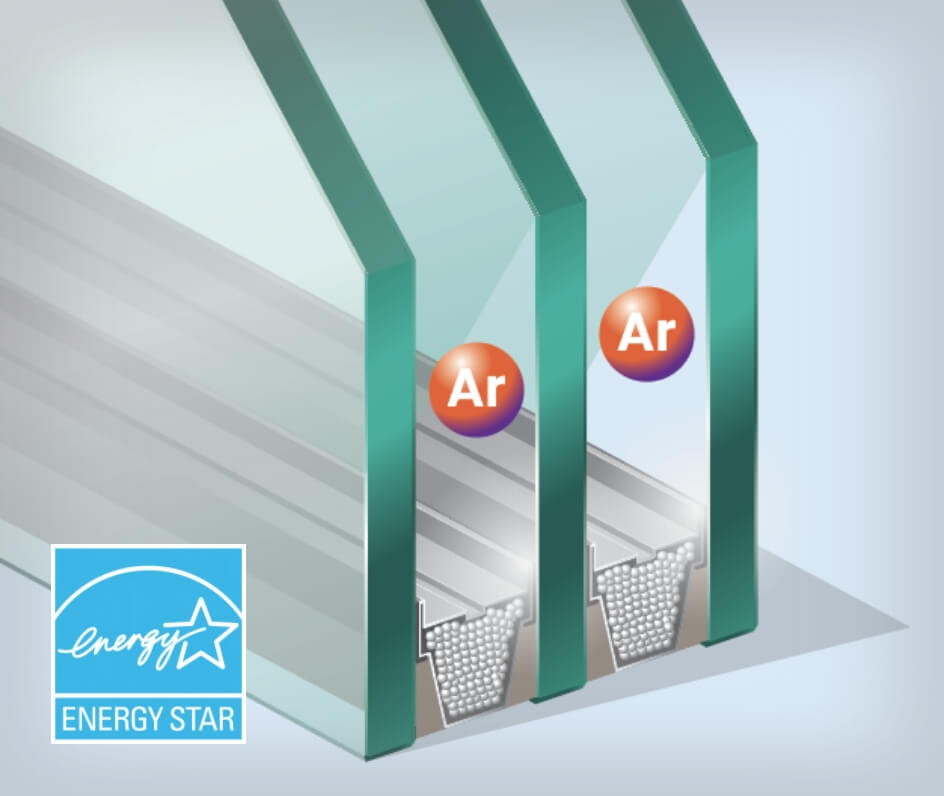

Efficient ENERGY STAR® Low E Double or Triple Glazing With Argon Gas
- For maximum energy efficiency select from Columbia’s wide range of ENERGY STAR® LoE3 366 with advanced triple LoE coated glazing options – double and triple glazed. All options are available with laminated inner lite.
- The space between the glass panes is filled with argon gas, a natural, non toxic, high performance insulator.
- Because argon is denser than air it is superior at insulating your home than a conventional double pane skylight. It reduces cold or hot temperatures from transmitting through the glazing unit.
Economical and Adds Value
- Columbia curb mounted skylights are manufactured in Canada using North American materials, making them more economical compared to foreign products.
- Skylights add to the value of your home investment as it is highly desirable to bring natural light and fresh air into your home.
- Today’s ENERGY STAR® certified skylights save you money compared to older models of skylights with inferior design, and provide more comfort.

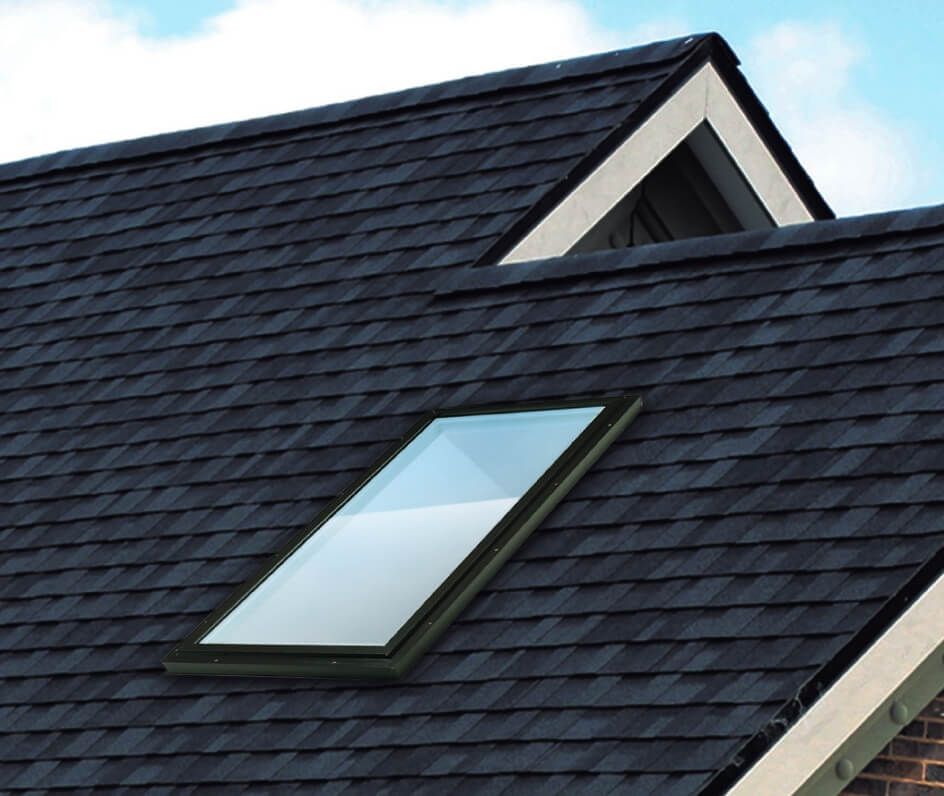

Frame Colours To Match Every Roof
- Seven standard frame colours are available on all models, fixed and venting, including custom sizes.
- Architects design natural light into the interior of the home; however, they want the skylight to blend with your roof covering to highlight their roof design. Contrasting the skylight frame with your roof colour can be unattractive and an eyesore.
- Bring in a paint chip to your dealer, and we will match it. Ideal for large colour selection of steel and other roofing materials.

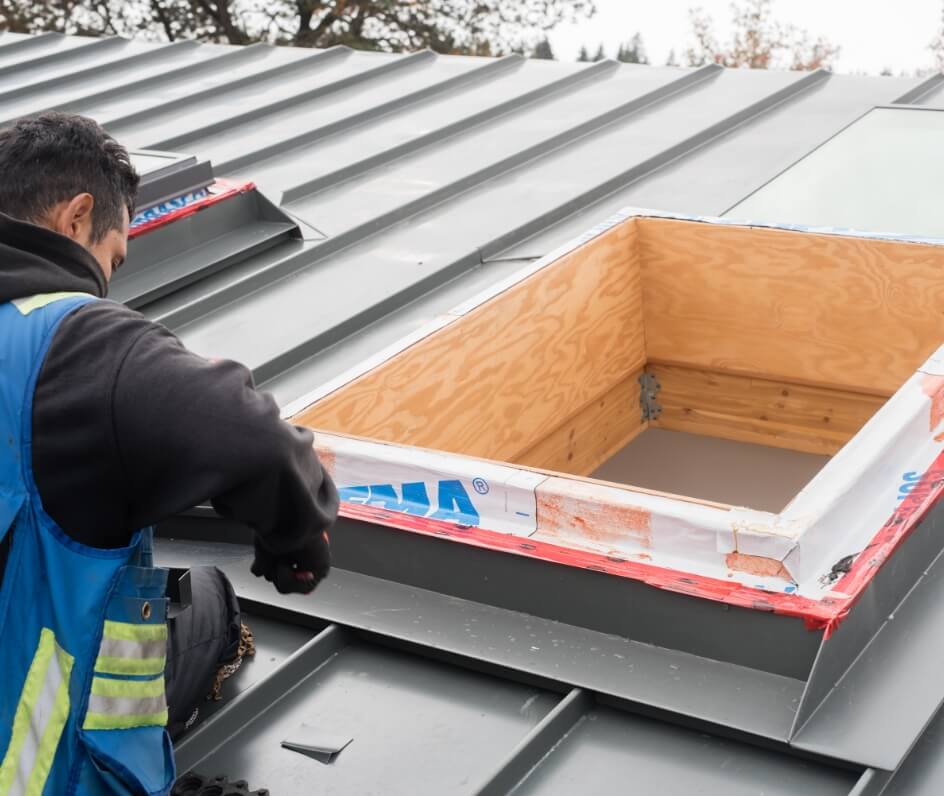

Curb Mounted Skylights, the Professional’s Choice
- The preferred skylight mount for any type of roof, primarily for use on tile, shingle or wood shakes. Recommended by roofing professionals as the optimum choice for a long lasting, trouble free installation.
- Curb Mount is the top installation choice across North America. It allows the roofer to adapt to the specific need of the situation, ensuring the perfect watertight bond between the roof, the curb, and the skylight.
- Installed on all types of site built curbs, whether pre-existing or new. For additional weather tightness, ensure you use roofing membrane in addition to recommended flashing on the curb.
Columbia offers a wide range of high performance glass options
- Columbia offers a wide range of double or triple glazing options, including ENERGY STAR® Canada certified glazing units.
- All glazing options available on all models, fixed and venting, including custom sizes.
Cardinal Glass Industries is Columbia’s glass supplier, a world leader in high performance glass technology. Cardinal maintains a clear vision – design and fabricate the most advanced residential glass products in the industry.
Double Glazed LoE3 366 Clear Temp/Temp
Industry benchmark
Double Glazed LoE3 366 Clear Temp/Temp
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Blocks 95% of UV rays.
- Advanced condensation
resistance. - Industry standard, identical LoE3 coating from the same
supplier as the competition.
Double Glazed LoE3 366 Tempered/Laminated
Strong laminated glass
Double Glazed LoE3 366 Tempered/Laminated
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Reduces the effects of sound by up to 30%.
- Additional security:
The innermost interlayer holds the glass together in case of breakage. - Clear or translucent white laminated glass is available.
- Up to 99% UV protection, reduces fading of furnishings.
- 10 year hail warranty on cracking or breakage due to hail.
Double Glazed LoE3 366 Neat
Low Maintenance
Double Glazed LoE3 366 Neat
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Neat coating breaks up organic material on the glass.
- Reduces water spotting and disperses water evenly.
- Blocks 95% of UV rays.
- Neat coating available as an add on to all glazing options.
Double Glazed LoE3 i89
Close to triple pane protection
Double Glazed LoE3 i89
- Dual pane with argon gas. Superior LoE3 triple coating is virtually invisible.
- LoE3 coatings applied on two surfaces for enhanced energy efficiency.
- Close to triple pane performance.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2011.
Double Glazed LoE3 366 Tinted Bronze or Grey
For a softer light
Double Glazed LoE3 366 Tinted Bronze or Grey
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Glare reduction.
- Ideal for rooms requiring a softer light.
- Reduces solar heat gain.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
Double Glazed LoE3 366 Reflective Bronze/Grey
Lowest solar heat gain
Double Glazed LoE3 366 Reflective Bronze/Grey
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Mirror finish reflects the sun.
- Lowest visible light transmittance skylight on the market today.
- Superior solar heat gain control.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
Triple Glazed LoE3 366 – Temp/Temp/Temp
Best thermal rating
Triple Glazed LoE3 366 – Temp/Temp/Temp
- Triple pane glass with two argon gas filled chambers.
- Industry leader with LoE3 triple coating on surface 2 & 5, or two of three panes of glass – unlike competition.
- Best energy efficiency and U-Value in the industry.
- Protects against fade causing UV rays.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
Triple Glazed LoE3 366 – Temp/Temp/Laminated*
Energy saving & strength
Triple Glazed LoE3 366 – Temp/Temp/Laminated*
- Triple pane glass with two argon gas filled chambers.
- Exterior two panes are tempered glass.
- Additional security:
The innermost laminated lite holds the glass together in case of breakage. - Reduces the effects of sound by up to 30%.
- Up to 99% UV protection, reduces fading of furnishings.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
* Meets Vancouver building code.
Columbia is the only skylight manufacturer offering triple glazing on all skylight models, fixed & venting, standard and custom sizes.
The benefits of Columbia’s laminated glass
Offering the extra strength and protection of laminated glass on all Columbia glazing options. Consider our most popular choices – double glazed LoE3 366 Tempered/Laminated and triple glazed LoE3 366 Tempered/Tempered/Laminated.
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic dome skylight.
Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is far harder to break and penetrate than traditional glass.
So, if you are concerned about security it is worth considering. The innermost interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
We offer triple glazing on all models
Columbia is the only skylight manufacturer offering triple glazing (including laminated options) on all skylight models, fixed & venting, standard and custom sizes.
Triple glazed skylights meet the current 2020 ENERGY STAR® certification requirements (Version 5). Providing industry leading energy efficiency.
Columbia offers the widest choice of skylight frame colours in North America
With the growing selection of asphalt shingle and steel metal roof colour options, Columbia allows you to match your skylight frame colour to the colour of your roofing material or window package. Columbia offers seven standard colours and unlimited custom colour matching. Save time and money by choosing a standard colour, or provide your dealer with a colour chip and we will match it.

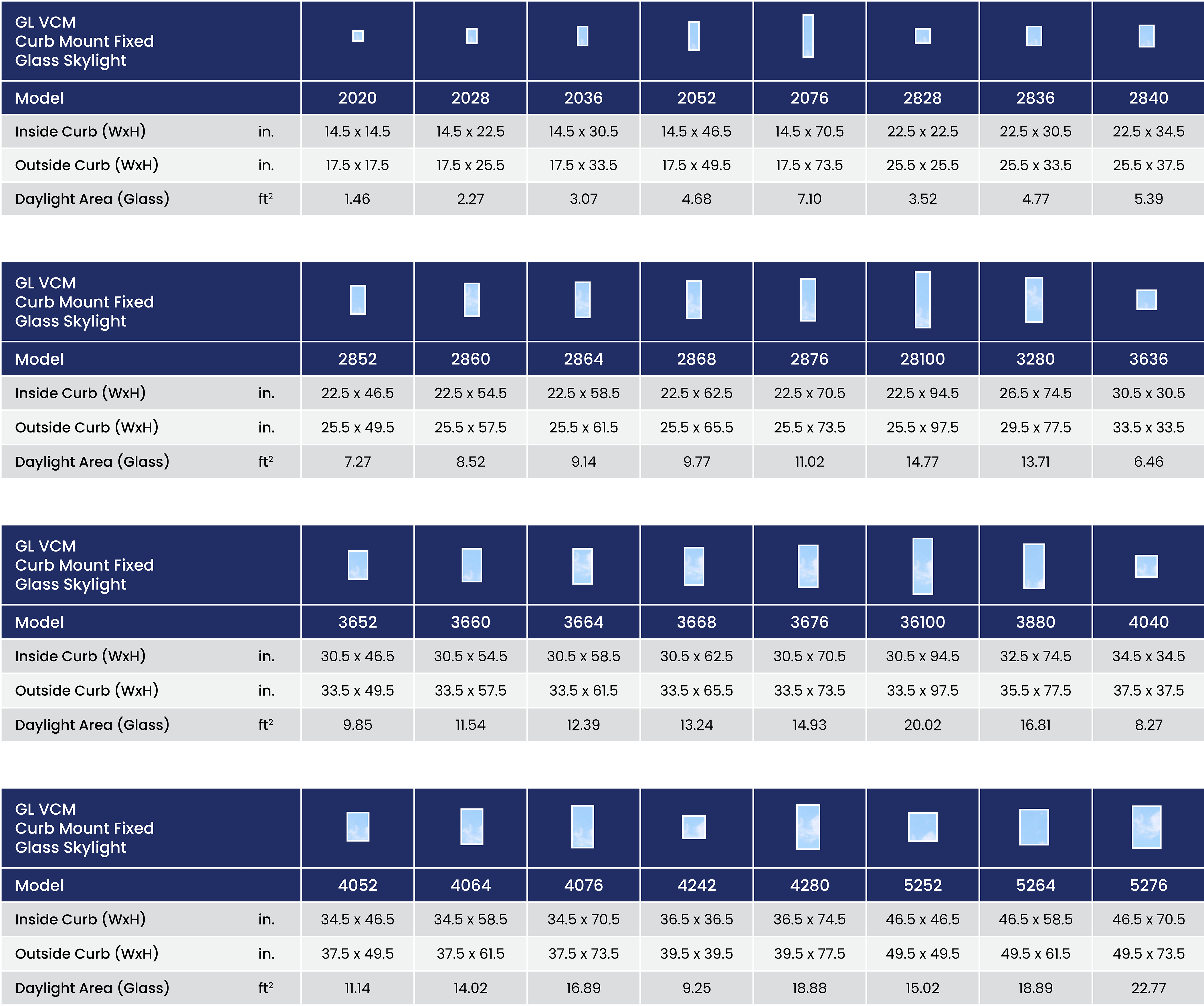

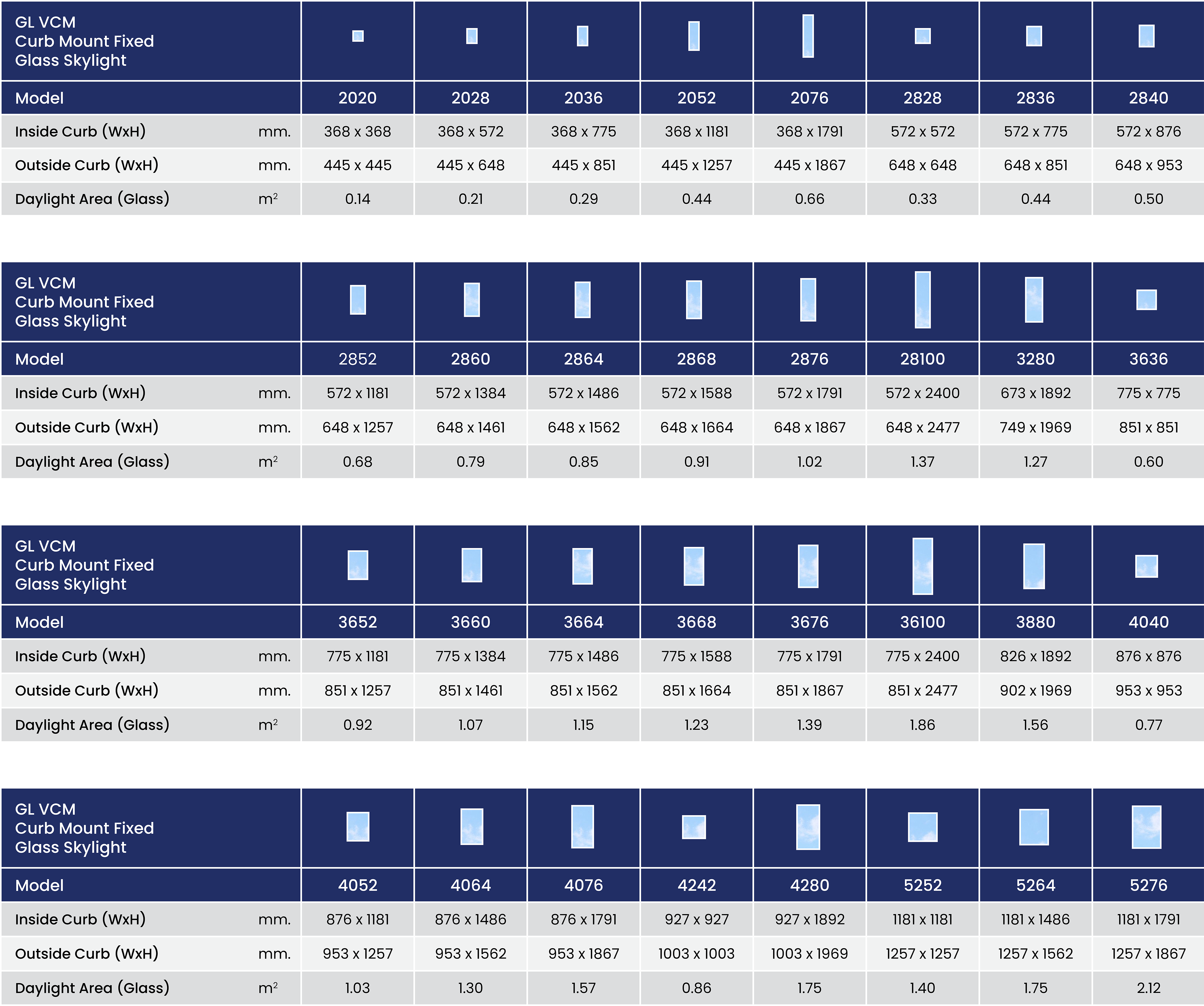

Sizes FOR GL VCM Vinyl Curb Mount Fixed GLASS Skylight
Available in the sizes shown in the chart below (Imperial and Metric). You can also review the most popular sizes. If you don’t see the size you need below, then please visit our Custom Sizes page. You can also download a printable PDF of the chart.
GO TO CUSTOM SIZES
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
Popular Sizes
The yellow star indicates the most popular sizes.
| Inside Curb | 14½ | 22½ | 26½ | 30½ | 32½ | 34½ | 36½ | 46½ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14½ |
Model: 2020
Inside Curb (WxH)
14½” x 14½” Outside Curb (WxH)
17½” x 17½” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Inside Curb (WxH)
368mm x 368mm Outside Curb (WxH)
445mm x 445mm Daylight Area (Glass)
0.14 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22½ |
Model: 2028
Inside Curb (WxH)
14½” x 22½” Outside Curb (WxH)
17½” x 25½” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Inside Curb (WxH)
368mm x 572mm Outside Curb (WxH)
445mm x 648mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Inside Curb (WxH)
22½” x 22½” Outside Curb (WxH)
25½” x 25½” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Inside Curb (WxH)
572mm x 572mm Outside Curb (WxH)
648mm x 648mm Daylight Area (Glass)
0.33 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30½ |
Model: 2036
Inside Curb (WxH)
14½” x 30½” Outside Curb (WxH)
17½” x 33½” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Inside Curb (WxH)
368mm x 775mm Outside Curb (WxH)
445mm x 851mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Inside Curb (WxH)
22½” x 30½” Outside Curb (WxH)
25½” x 33½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Inside Curb (WxH)
572mm x 775mm Outside Curb (WxH)
648mm x 851mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Inside Curb (WxH)
30½” x 30½” Outside Curb (WxH)
33½” x 33½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Inside Curb (WxH)
775mm x 775mm Outside Curb (WxH)
851mm x 851mm Daylight Area (Glass)
0.60 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34½ |
Model: 2840
Inside Curb (WxH)
22½” x 34½” Outside Curb (WxH)
25½” x 37½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Inside Curb (WxH)
572mm x 876mm Outside Curb (WxH)
648mm x 953mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Inside Curb (WxH)
34½” x 34½” Outside Curb (WxH)
37½” x 37½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Inside Curb (WxH)
876mm x 876mm Outside Curb (WxH)
953mm x 953mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36½ |
Model: 4242
Inside Curb (WxH)
36½” x 36½” Outside Curb (WxH)
39½” x 39½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Inside Curb (WxH)
927mm x 927mm Outside Curb (WxH)
1003mm x 1003mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46½ |
Model: 2052
Inside Curb (WxH)
14½” x 46½” Outside Curb (WxH)
17½” x 49½” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Inside Curb (WxH)
368mm x 1181mm Outside Curb (WxH)
445mm x 1257mm Daylight Area (Glass)
0.44 m2 |
Model: 2852
Inside Curb (WxH)
22½” x 46½” Outside Curb (WxH)
25½” x 49½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Inside Curb (WxH)
572mm x 1181mm Outside Curb (WxH)
648mm x 1257mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Inside Curb (WxH)
30½” x 46½” Outside Curb (WxH)
33½” x 49½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Inside Curb (WxH)
775mm x 1181mm Outside Curb (WxH)
851mm x 1257mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Inside Curb (WxH)
34½” x 46½” Outside Curb (WxH)
37½” x 49½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Inside Curb (WxH)
876mm x 1181mm Outside Curb (WxH)
953mm x 1257mm Daylight Area (Glass)
1.03 m2 |
Model: 5252
Inside Curb (WxH)
46½” x 46½” Outside Curb (WxH)
49½” x 49½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Inside Curb (WxH)
1181mm x 1181mm Outside Curb (WxH)
1257mm x 1257mm Daylight Area (Glass)
1.40 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 54½ |
Model: 2860
Inside Curb (WxH)
22½” x 54½” Outside Curb (WxH)
25½” x 57½” Daylight Area (Glass)
8.52 sq.ft. Model: 2860
Inside Curb (WxH)
572mm x 1384mm Outside Curb (WxH)
648mm x 1461mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Inside Curb (WxH)
30½” x 54½” Outside Curb (WxH)
33½” x 57½” Daylight Area (Glass)
11.54 sq.ft. Model: 3660
Inside Curb (WxH)
775mm x 1384mm Outside Curb (WxH)
851mm x 1461mm Daylight Area (Glass)
1.07 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 58½ |
Model: 2864
Inside Curb (WxH)
22½” x 58½” Outside Curb (WxH)
25½” x 61½” Daylight Area (Glass)
9.14 sq.ft. Model: 2864
Inside Curb (WxH)
572mm x 1486mm Outside Curb (WxH)
648mm x 1562mm Daylight Area (Glass)
0.85 m2 |
Model: 3664
Inside Curb (WxH)
30½” x 58½” Outside Curb (WxH)
33½” x 61½” Daylight Area (Glass)
12.39 sq.ft. Model: 3664
Inside Curb (WxH)
775mm x 1486mm Outside Curb (WxH)
851mm x 1562mm Daylight Area (Glass)
1.15 m2 |
Model: 4064
Inside Curb (WxH)
34½” x 58½” Outside Curb (WxH)
37½” x 61½” Daylight Area (Glass)
14.02 sq.ft. Model: 4064
Inside Curb (WxH)
876mm x 1486mm Outside Curb (WxH)
953mm x 1562mm Daylight Area (Glass)
1.30 m2 |
Model: 5264
Inside Curb (WxH)
46½” x 58½” Outside Curb (WxH)
49½” x 61½” Daylight Area (Glass)
18.89 sq.ft. Model: 5264
Inside Curb (WxH)
1181mm x 1486mm Outside Curb (WxH)
1257mm x 1562mm Daylight Area (Glass)
1.75 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 62½ |
Model: 2868
Inside Curb (WxH)
22½” x 62½” Outside Curb (WxH)
25½” x 65½” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Inside Curb (WxH)
572mm x 1588mm Outside Curb (WxH)
648mm x 1664mm Daylight Area (Glass)
0.91 m2 |
Model: 3668
Inside Curb (WxH)
30½” x 62½” Outside Curb (WxH)
33½” x 65½” Daylight Area (Glass)
13.24 sq.ft. Model: 3668
Inside Curb (WxH)
775mm x 1588mm Outside Curb (WxH)
851mm x 1664mm Daylight Area (Glass)
1.23 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 70½ |
Model: 2076
Inside Curb (WxH)
14½” x 70½” Outside Curb (WxH)
17½” x 73½” Daylight Area (Glass)
7.10 sq.ft. Model: 2076
Inside Curb (WxH)
368mm x 1791mm Outside Curb (WxH)
445mm x 1867mm Daylight Area (Glass)
0.66 m2 |
Model: 2876
Inside Curb (WxH)
22½” x 70½” Outside Curb (WxH)
25½” x 73½” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Inside Curb (WxH)
572mm x 1791mm Outside Curb (WxH)
648mm x 1867mm Daylight Area (Glass)
1.02 m2 |
Model: 3676
Inside Curb (WxH)
30½” x 70½” Outside Curb (WxH)
33½” x 73½” Daylight Area (Glass)
14.93 sq.ft. Model: 3676
Inside Curb (WxH)
775mm x 1791mm Outside Curb (WxH)
851mm x 1867mm Daylight Area (Glass)
1.39 m2 |
Model: 4076
Inside Curb (WxH)
34½” x 70½” Outside Curb (WxH)
37½” x 73½” Daylight Area (Glass)
16.89 sq.ft. Model: 4076
Inside Curb (WxH)
876mm x 1791mm Outside Curb (WxH)
953mm x 1867mm Daylight Area (Glass)
1.57 m2 |
Model: 5276
Inside Curb (WxH)
46½” x 70½” Outside Curb (WxH)
49½” x 73½” Daylight Area (Glass)
22.77 sq.ft. Model: 5276
Inside Curb (WxH)
1181mm x 1791mm Outside Curb (WxH)
1257mm x 1867mm Daylight Area (Glass)
2.12 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 74½ |
Model: 3280
Inside Curb (WxH)
26½” x 74½” Outside Curb (WxH)
29½” x 77½” Daylight Area (Glass)
13.71 sq.ft. Model: 3280
Inside Curb (WxH)
673mm x 1892mm Outside Curb (WxH)
749mm x 1969mm Daylight Area (Glass)
1.27 m2 |
Model: 3880
Inside Curb (WxH)
32½” x 74½” Outside Curb (WxH)
35½” x 77½” Daylight Area (Glass)
16.81 sq.ft. Model: 3880
Inside Curb (WxH)
826mm x 1892mm Outside Curb (WxH)
902mm x 1969mm Daylight Area (Glass)
1.56 m2 |
Model: 4280
Inside Curb (WxH)
36½” x 74½” Outside Curb (WxH)
39½” x 77½” Daylight Area (Glass)
18.88 sq.ft. Model: 4280
Inside Curb (WxH)
927mm x 1892mm Outside Curb (WxH)
1003mm x 1969mm Daylight Area (Glass)
1.75 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 94½ |
Model: 28100
Inside Curb (WxH)
22½” x 94½” Outside Curb (WxH)
25½” x 97½” Daylight Area (Glass)
14.77 sq.ft. Model: 28100
Inside Curb (WxH)
572mm x 2400mm Outside Curb (WxH)
648mm x 2477mm Daylight Area (Glass)
1.37 m2 |
Model: 36100
Inside Curb (WxH)
30½” x 94½” Outside Curb (WxH)
33½” x 97½” Daylight Area (Glass)
20.02 sq.ft. Model: 36100
Inside Curb (WxH)
775mm x 2400mm Outside Curb (WxH)
851mm x 2477mm Daylight Area (Glass)
1.86 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size Chart – Summary
Pinch to enlarge.
NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use Columbia’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download two formats of this model’s technical drawings – (1) Detail or (2) Product Data. Also available, .dwg (CAD file) and Product Specifications as a Word Doc, PDF, or Text file.
For multiple models go to the Drawings & Specification Library page.
For multiple models go to the Drawings & Specification Library page.
Accessories
FKCM – Curb Mount Flashing Kit
(Sloped asphalt or wood shake roof only)
IWS – Roofing Underlayment
Why Columbia
Canadian made skylights, designed for our harsh climate
Columbia skylights are specifically designed for life in our Canadian climate. Whether subjected to snow, ice, wind, hail, or intense heat, our products are engineered to outperform these demanding conditions.
Many imported skylights are designed for a more temperate climate and lack the performance and durability. Columbia has spent many decades manufacturing premium quality skylights that have stood up to the test of time in our Canadian climate.
Every aspect of the skylight has been studied, engineered, and tested.
Columbia utilizes the best materials available, including the latest glass technology.
Energy efficiency is a concern for Canadian homeowners because of our extreme climate. Columbia is the only Canadian manufacturer to offer Triple Glazing on all our skylight models, fixed and venting. We offer more ENERGY STAR® glass options than any other manufacturer.
New Mississauga distribution warehouse to better serve Ontario, Quebec & the Maritimes
We have relocated our eastern distribution warehouse to a newly constructed facility in Mississauga, Ontario. Columbia’s new distribution warehouse is larger and able to store a full range of ready to deliver Columbia, Slimlite, and FAKRO products.
The warehouse allows us to serve Eastern Canada with greater efficiency, and improved delivery times.
You might also be interested in…
Columbia GL OCM – Curb Mount Manual Venting Glass Skylight
Cool your home with Columbia’s manually operated venting Curb Mount skylight. Enjoy the combined benefits of natural light and fresh air ventilation.
Learn More
Columbia GL OCM E – Curb Mount Electric Venting Glass Skylight
Cool your home with Columbia’s electrically operated venting Curb Mount skylight. Enjoy the combined benefits of natural light and fresh air ventilation at the touch of a button.
Learn More
FAKRO FVC-S Curb Mount Solar Venting Skylight
The ultimate Curb Mount solar venting skylight. Make an architectural statement with a beautifully designed premium European skylight – the sophistication of infinity glass with a black bezel edge. Solar…
Learn More
Columbia AC VCM – Vinyl Curb Mount Fixed Acrylic Dome Skylight
Columbia’s Curb Mount acrylic dome & pyramid skylights are designed to perform flawlessly for decades, available in 2 frame configurations, AC VCM or AC AOF.
Learn More
