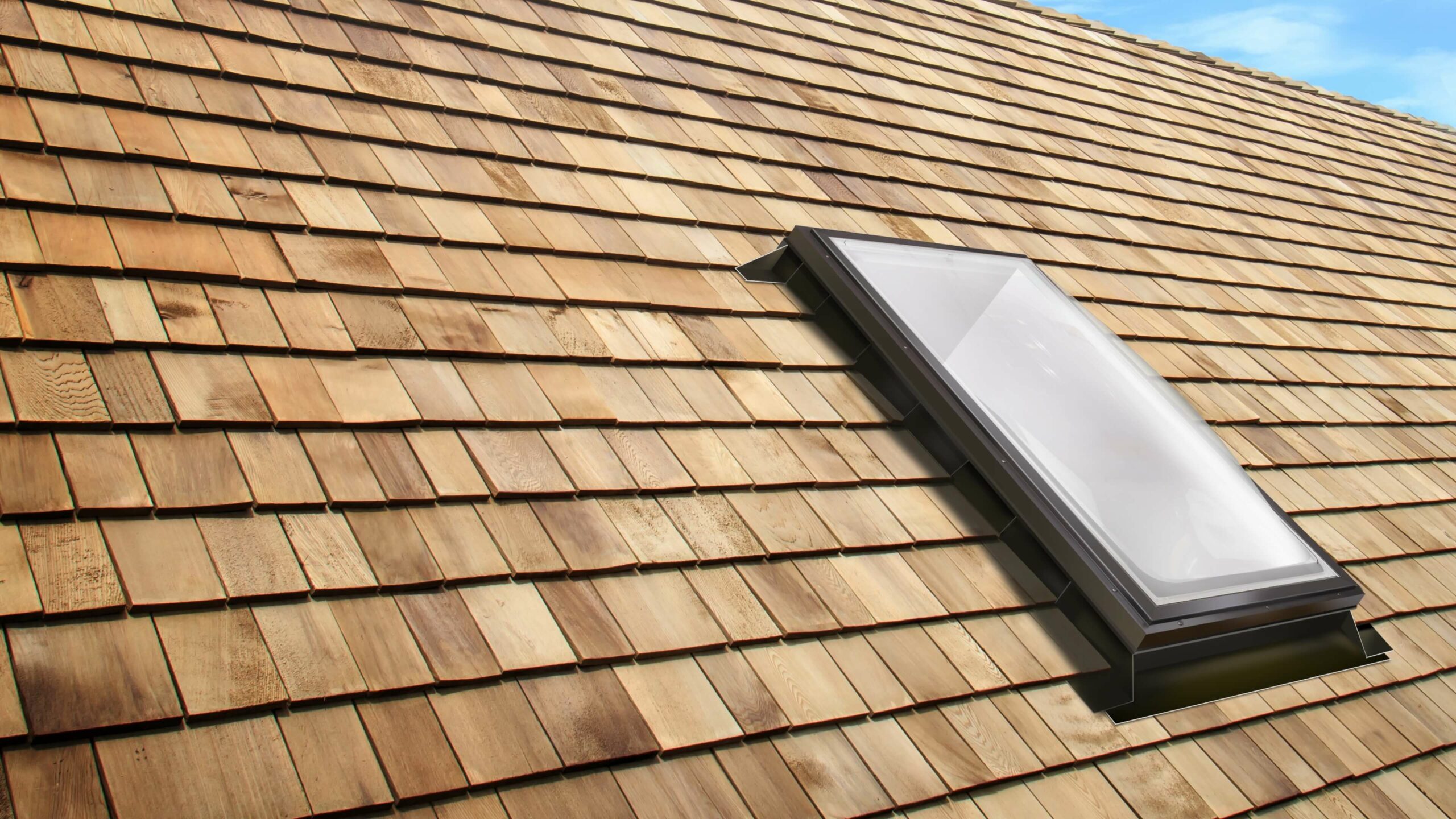

AC VCM – Vinyl Curb Mount Fixed Acrylic Dome Skylight
- Columbia’s high performance acrylic or polycarbonate fixed skylight delivers the brightness of natural light. The right choice for many residential applications that require a larger size skylight than is possible with glass. The AC VCM can be used on a sloped or flat roof because the dome shape provides rain or melting snow runoff.
- Available in double or triple energy efficient clear acrylic glazing. To reduce solar heat gain and glare, choose tinted white or bronze glazing.
- Tough extruded aluminum exterior frame with baked enamel paint finish and a durable welded vinyl PVC interior frame.
- Skylights come in standard or custom sizes, and unlimited frame colour options – seven standard colours or custom matching.
- Larger sizes feature an aluminum interior base frame for additional strength and stability. See the size chart for details.
- Built Canadian Tough: made in Canada for the Canadian climate.
FEATURES
- The ideal installation for larger sizes or flat roofs. Site built curb required.
- Designed not to leak. Minimal maintenance after installation other than washing. Outstanding clarity and durability.
- Durable, weather resistant, extruded aluminum exterior frame with baked enamel paint finish.
- Seven standard frame colours (including black), unlimited custom options.
- Columbia fixed curb mounted acrylic or polycarbonate skylights come standard as inside fastening.
- The AC VCM can be installed vertically or horizontally.
- Available in clear, white and tinted bronze double or triple glazed acrylic or polycarbonate.
- Low Maintenance white extruded fusion welded vinyl (PVC) base frame. The thermally broken vinyl base frame features strong tubular design for optimal strength and insulation.
- Columbia’s superior rigid extra wide four sided gutter Condensation Control System – designed to wick away moisture, protecting the lightwell from damage and staining.
- Manufactured in Canada with 100% North American sourced raw materials.
- Performance tested in Canada’s harsh climate for over thirty five years!
- Industry leading warranty.
Custom Sizes
Available in standard & custom sizes. Acrylic & polycarbonate from 14 ½” x 14 ½” to 94 ½” x 94 ½”
Recommended
Location
- Kitchens
- Bathrooms
- Stairwells
- Foyers
- Dining Room
- Living Room
- Garage

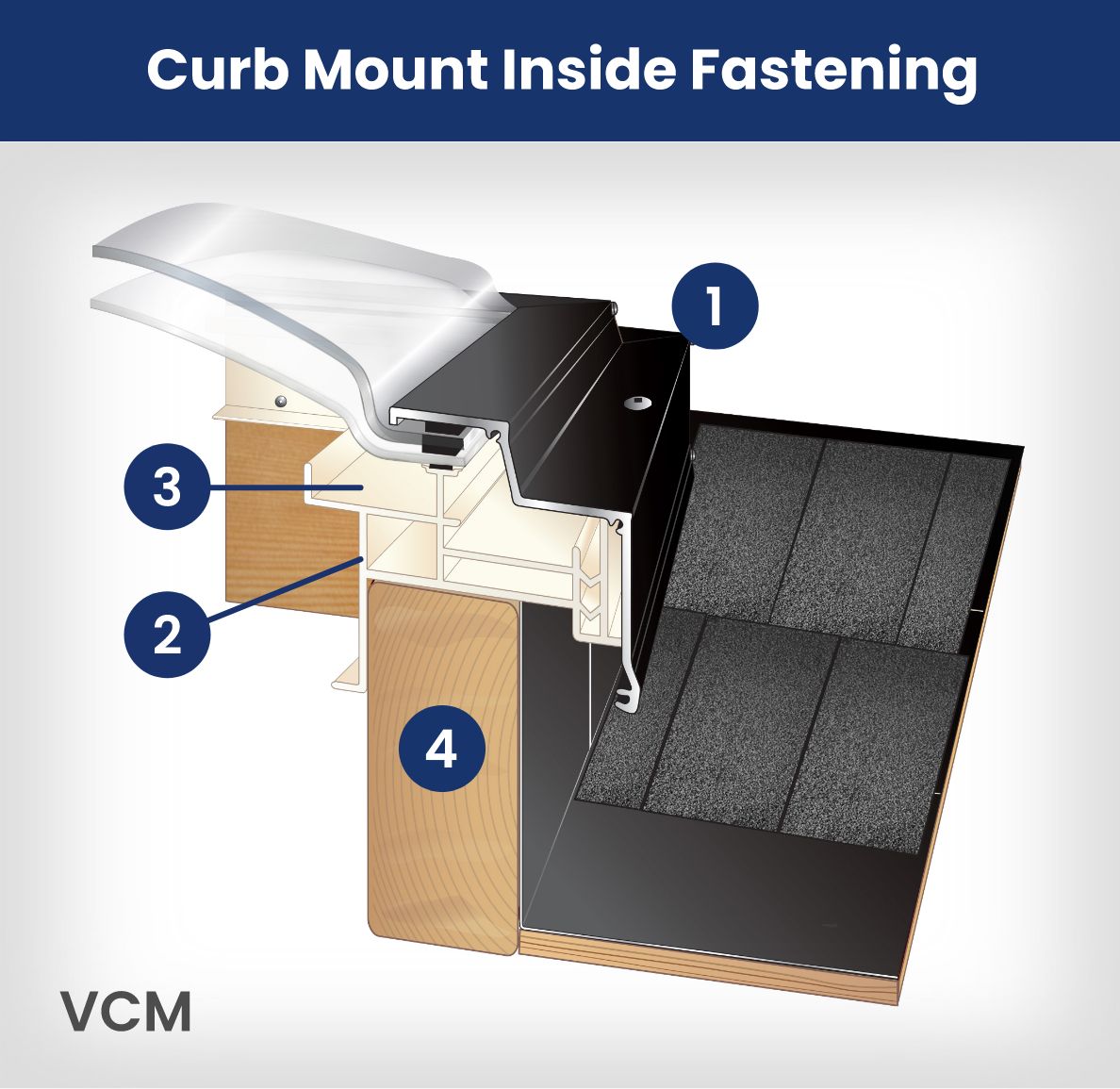

Columbia offers two curb mount fastening systems
- Columbia manufactures outside and inside fastening skylights (the method by which the skylight is fixed to the curb).
- For AC VCM IF skylights, measurements always taken from inside curb rough opening.
- We recommend the inside fastening as it allows for a cleaner finish of drywall in the lightwell, with the PVC frame.
- The PVC Base Frame is used for sizes up to 5’ x 5’. Measurements are always inside curb. Larger skylights require an aluminum outside fastening base frame for strength and rigidity.
- All skylights are reversible, and should be specified when ordered.
- Aluminum CapDurable extruded exterior aluminum frame with baked enamel paint finish. 7 standard colours and unlimited custom colour matching – bring in a paint chip to your dealer and we will match it.
- Base FrameMaintenance free, white heavy duty PVC, thermally broken vinyl base frame with co-extruded draft seal.
- Columbia Condensation Control SystemAll Columbia skylights utilize our unique rigid (PVC or Aluminum), 4 sided, extra wide gutter – wicking away moisture, protecting your lightwell from damage and unsightly staining.
- CurbInside Fastening.
Maximum 2” curb width. Can be installed on a 2×4, 2×6, or 2×8 site built curb.

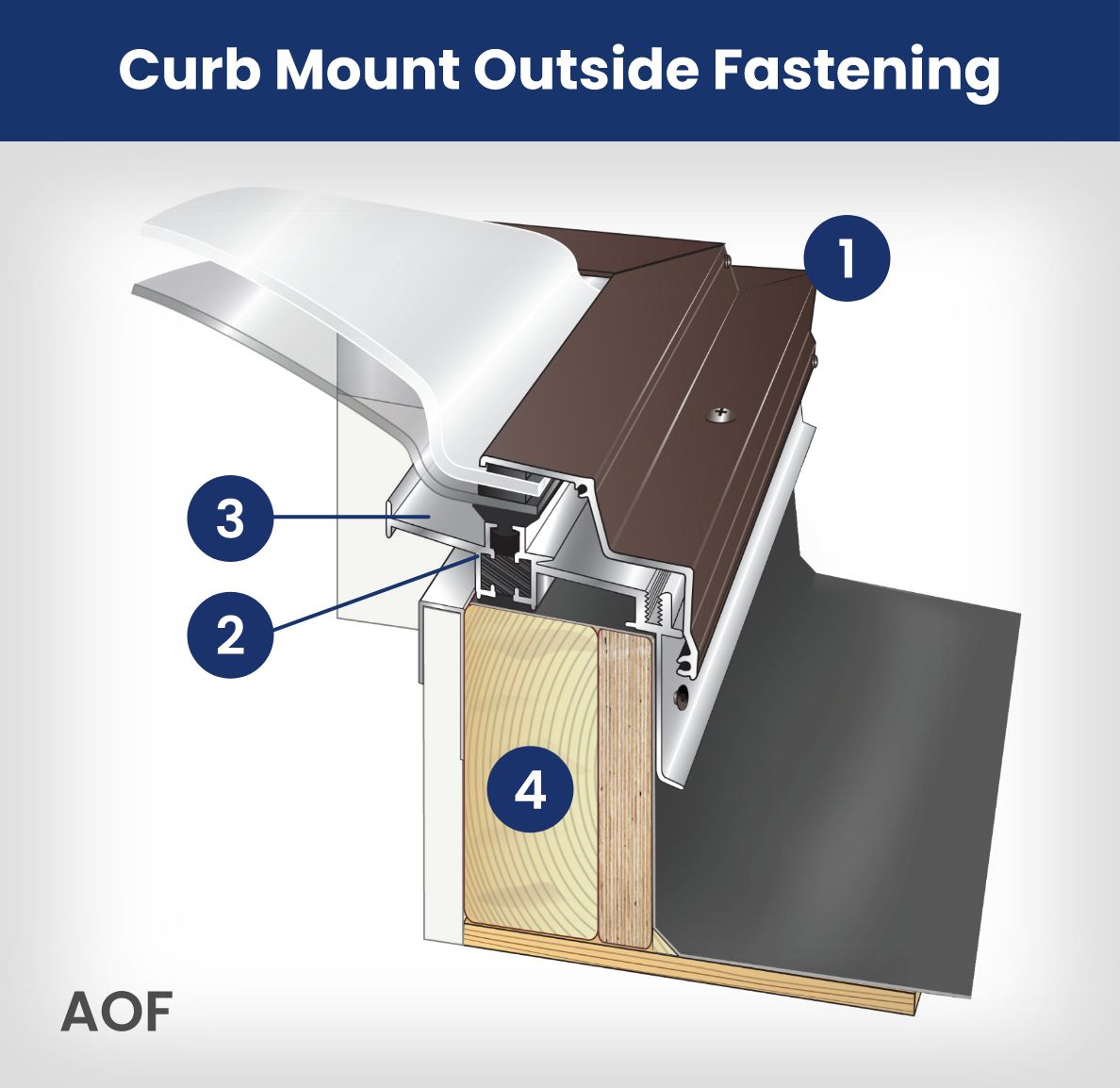

The aluminum exterior outside fastening frame is recommended for larger skylights.
- Columbia manufactures outside and inside fastening skylights (the method by which the skylight is fixed to the curb).
- For AC AOF skylights, measurements are always taken from the outside finished (flashed) curb dimensions.
- Recommended for larger skylight sizes, from 5’ x 5’ to 8’ x 8’.
- Featuring thermally broken aluminum base frame with unique positive drainage sloped condensation channel.
- All skylights are reversible, and should be specified when ordered.
- Aluminum CapDurable extruded exterior aluminum frame with baked enamel paint finish. 7 standard colours and unlimited custom colour matching – bring in a paint chip to your dealer and we will match it.
- Base FrameMaintenance free, heavy duty aluminum, thermally broken base frame with co-extruded draft seal.
- Columbia Condensation Control SystemAll Columbia skylights utilize our unique rigid (PVC or Aluminum), 4 sided, extra wide gutter – wicking away moisture, protecting your lightwell from damage and unsightly staining.
- CurbOutside Fastening.
Note: Curb must be a minimum of a full 2” wide.
Can be installed on a 2×4, 2×6, or 2×8. Site built curb.
The benefits of AC VCM – Vinyl Curb Mount Fixed Acrylic Dome Skylight
Acrylic is long lasting and durable, it is lighter than glass, and can be manufactured in larger sizes. If you choose an acrylic skylight, you have the option of energy efficient double or triple glazing. Choose between acrylic and the incredibly strong polycarbonate.
Review all the features of an acrylic dome skylight.
Review all the features of an acrylic dome skylight.

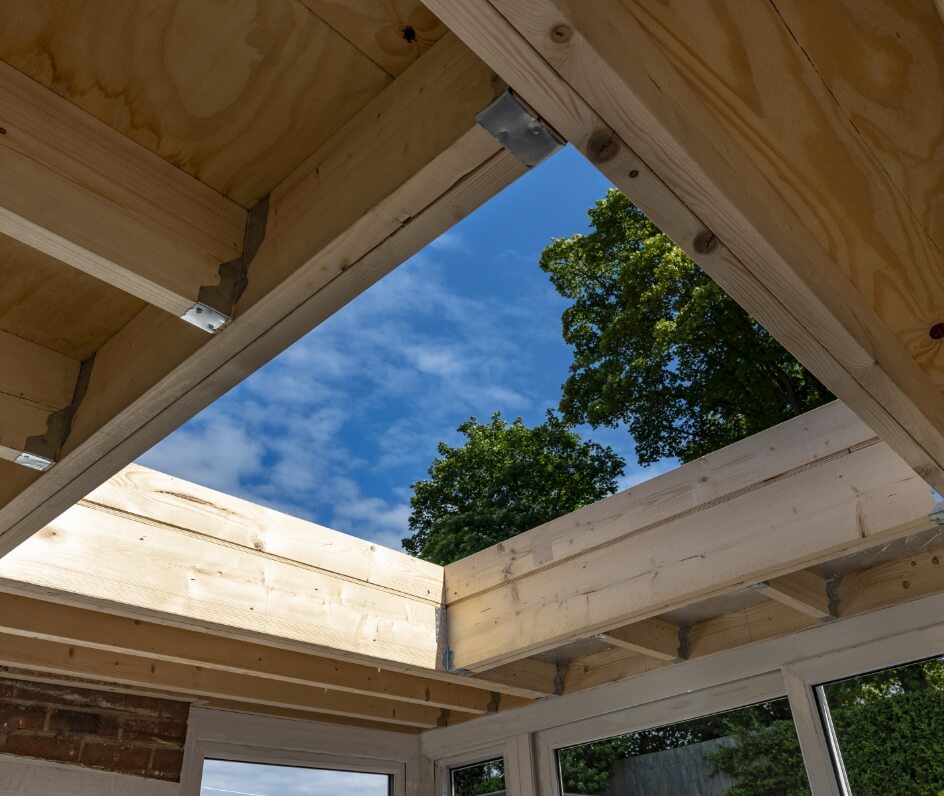

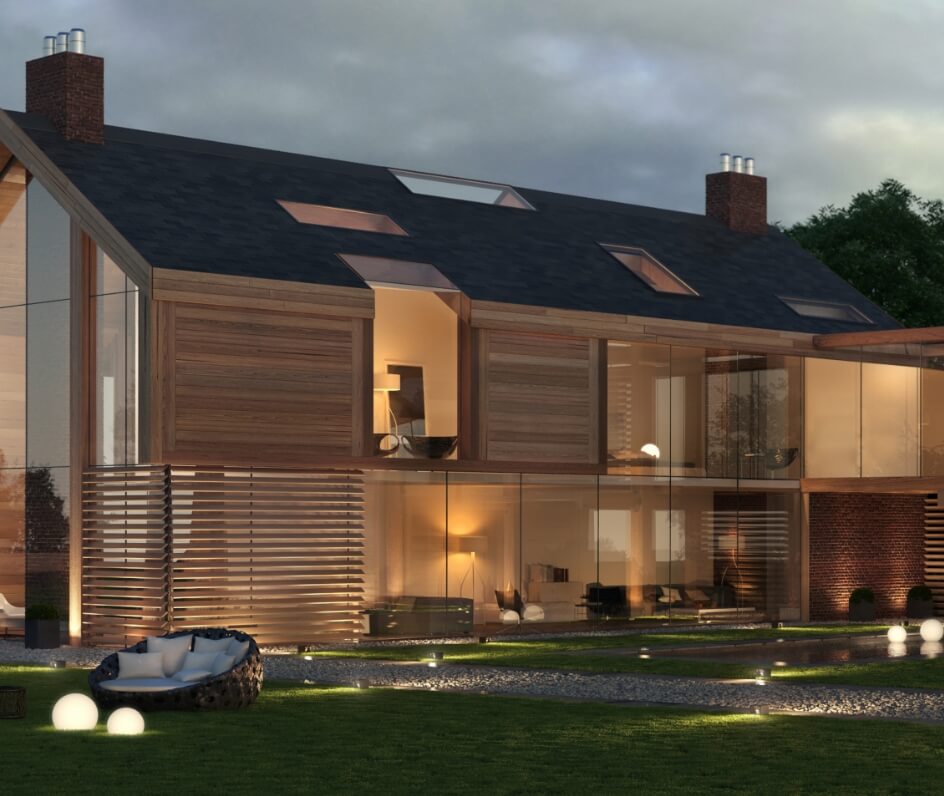

Larger Sizes Than Glass
- One of the major benefits of acrylic is its ability to be used in larger skylights than are possible with glass.
- If you’re designing a dramatic architectural skylight feature above a kitchen, living room or over an indoor pool acrylic is a great option.
- For the larger sizes we provide an aluminum interior base frame for additional strength and stability.

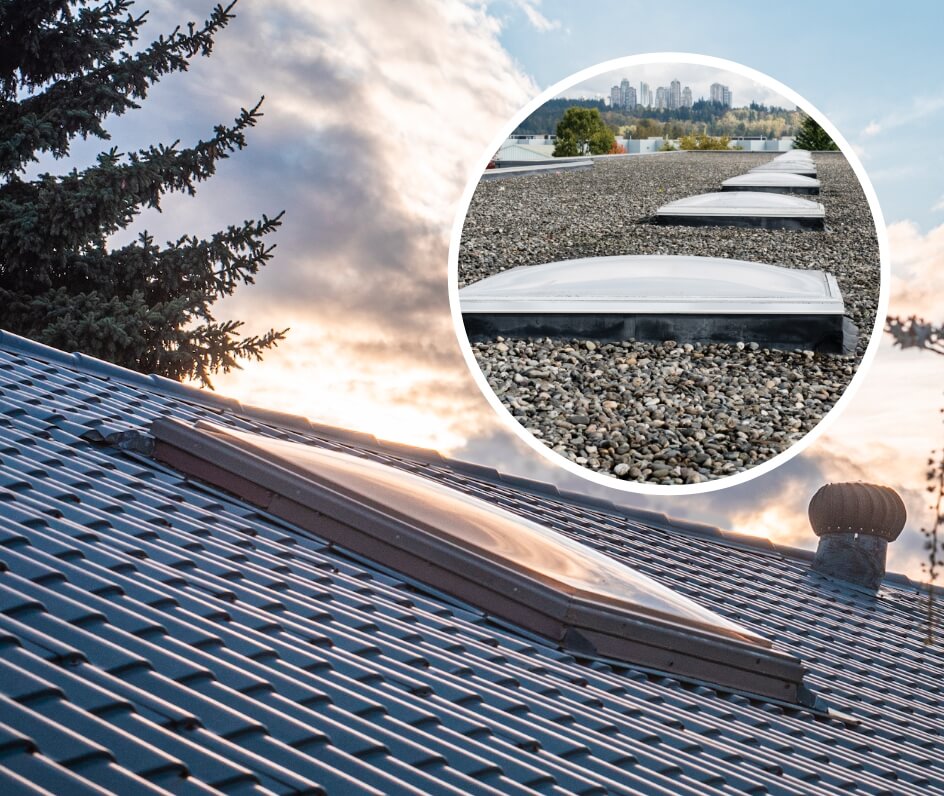

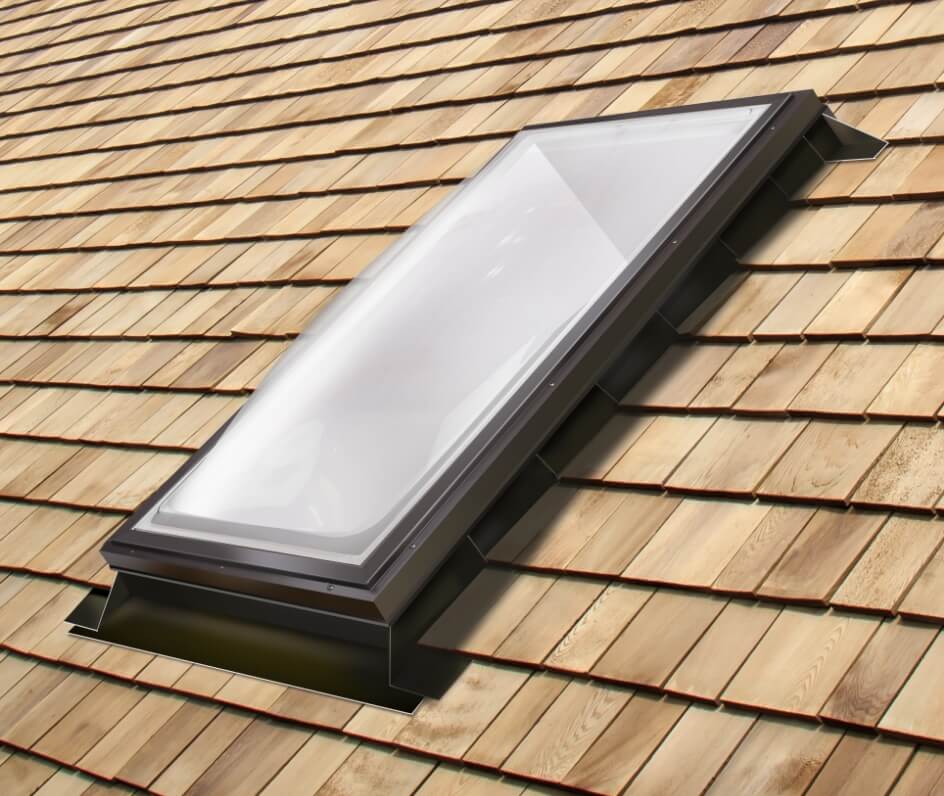

Can Be Used on Sloped and Flat Roofs
- Acrylic skylights are highly versatile, being able to be installed on a sloped or flat roof.
- The dome or pyramid skylight washes away rain or snow, and stops the pooling of water. Ideal for areas of heavy snow fall.

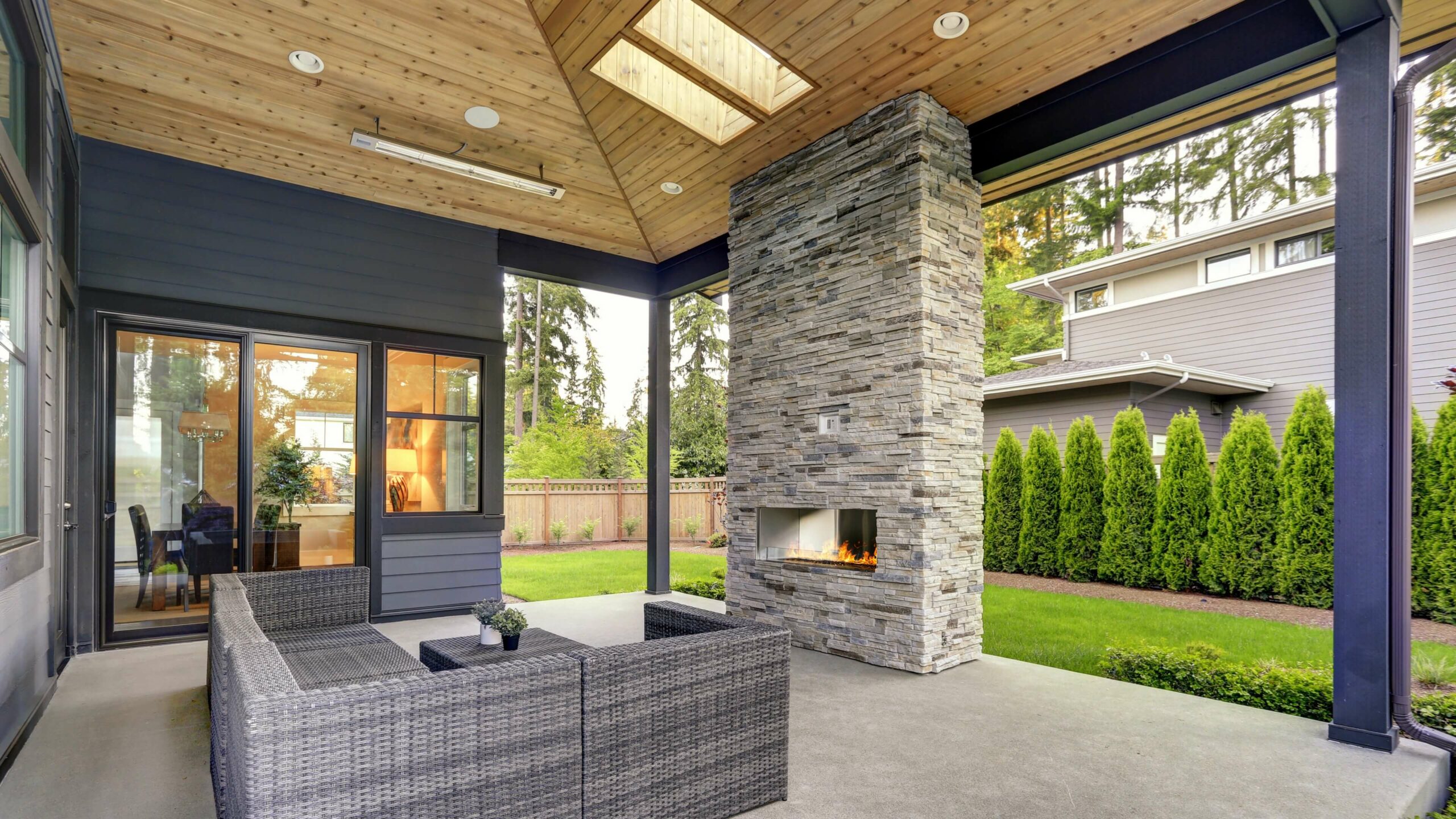

Vertical or Horizontal Installation
- Architects look for the flexibility to express their ideas, as such Columbia acrylic skylights can be installed horizontally or vertically.
- A horizontal installation gives you a unique and dramatic orientation of a view or the sky.
- Remember to include this in your specification.
Acrylic, a Better Solution for Many Applications
- Acrylic dome skylights can be produced in larger sizes than glass.
- Acrylic dome skylights are lightweight, and easier to install. The dome shape adds structural strength.
- Available in both acrylic and polycarbonate. Polycarbonate has exceptional impact resistance and is ideal for applications where added security is needed.
- Are available in clear, white or bronze tint for reducing the sun’s glare and solar heat gain.

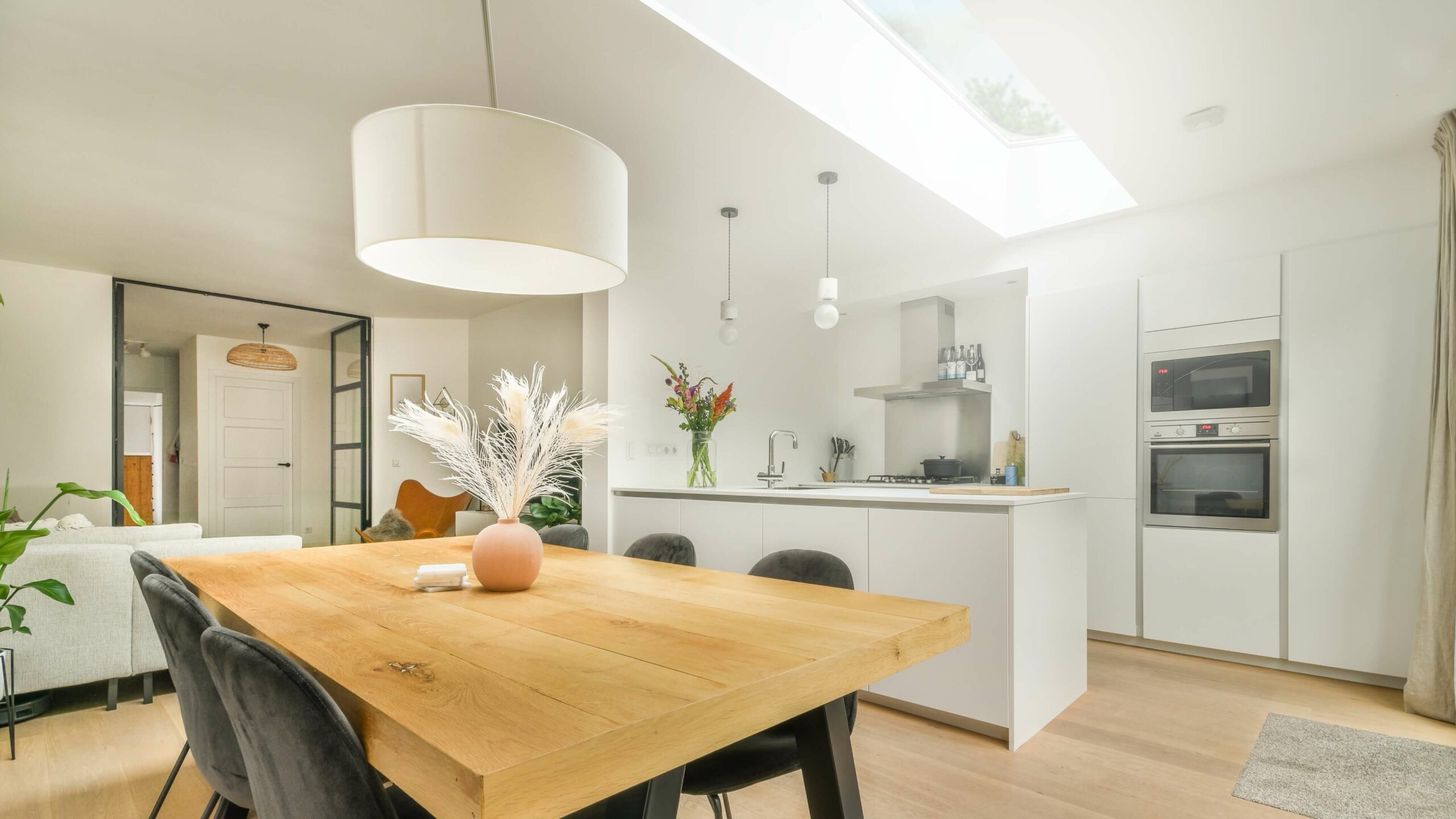

The Benefit of Natural Light
- Living in the north we all need more natural daylight in our homes, particularly during the winter months when days are shorter, there are fewer hours of sunlight, and the sun is at a lower angle than during the summer.
- Natural light has been proven to increase happiness and productivity.
- Increasing the amount of natural light in your home offsets the impact of Seasonal Affective Disorder, which affects many people in the winter when they do not receive enough sunlight.
- Natural light has been shown to lower the risk of nearsightedness in children and young adults by helping the eye produce dopamine, which aids in healthy eye development.

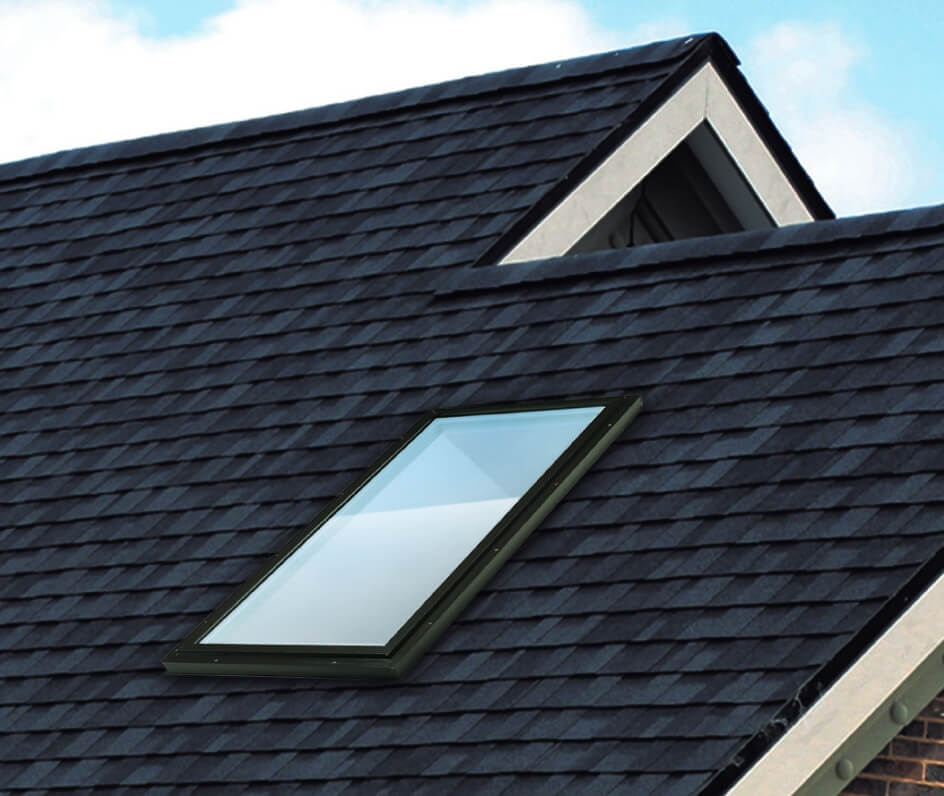

Frame Colours to Match Every Roof
- Seven standard frame colours are available on all models, fixed and venting, including custom sizes.
- Architects design natural light into the interior of the home; however, they want the skylight to blend with your roof covering to highlight their roof design. Contrasting the skylight frame with your roof colour can be unattractive and an eyesore.
- Bring in a paint chip to your dealer, and we will match it. Ideal for large colour selection of steel and other roofing materials.
Acrylic is the right choice for many applications
- Columbia manufactures skylights in acrylic and polycarbonate.
- These versatile glazing materials are able to be produced in double and triple glazing options.
- Acrylic and polycarbonate come in three tints – clear, bronze, and translucent white.
Double Glazed Clear
Double Glazed Clear
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Clear acrylic gives bright natural light.
Double Glazed Bronze
Double Glazed Bronze
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Bronze acrylic delivers the maximum protection from extreme sunlight, reducing glare and solar heat gain.
Double Glazed White
Double Glazed White
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
Triple Glazed Clear
Triple Glazed Clear
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Additional comfort in your interior space.
Triple Glazed Bronze
Triple Glazed Bronze
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, reducing glare and solar heat gain.
- Additional comfort in your interior space.
Triple Glazed White
Triple Glazed White
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Additional comfort in your interior space.
Columbia offers the widest choice of skylight frame colours in North America
With the growing selection of asphalt shingle and steel metal roof colour options, Columbia allows you to match your skylight frame colour to the colour of your roofing material or window package. Columbia offers seven standard colours and unlimited custom colour matching. Save time and money by choosing a standard colour, or provide your dealer with a colour chip and we will match it.

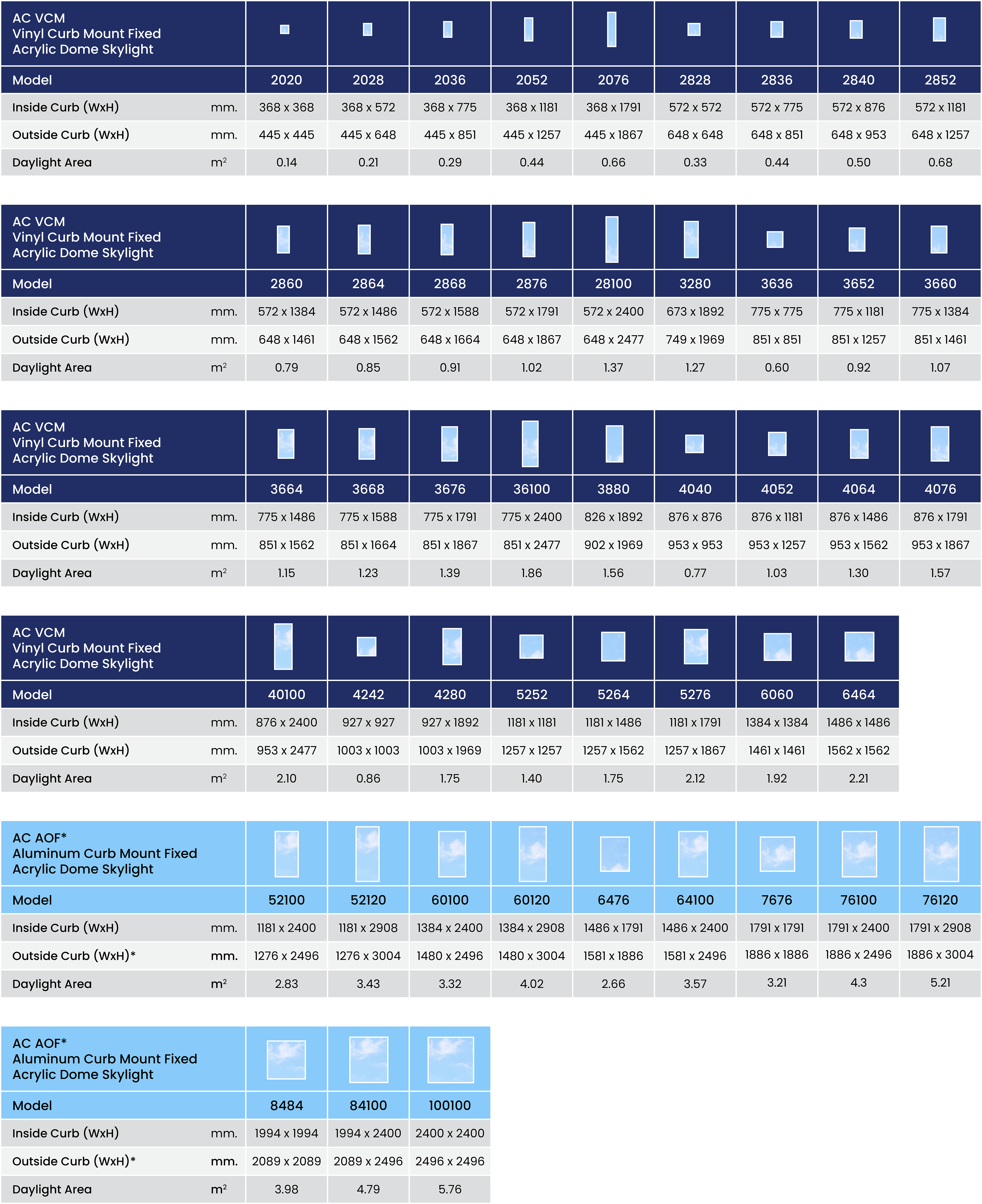

Sizes of AC VCM – Vinyl Curb Mount Fixed Acrylic Dome Skylight
Columbia’s AC VCM – Vinyl Curb Mount Fixed Acrylic Dome Skylight is available in the sizes shown in the chart below (Imperial and Metric). You can also review the most popular sizes. If you don’t see the size you need below, then please visit our Custom Sizes section. A printable PDF of the chart is available for download.
GO TO CUSTOM SIZES
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
Popular Sizes
The yellow star indicates the most popular sizes.
NOTE: For standard AC VCM sizes, PVC interior frame.
NOTE: For larger sizes use AOF. Model AOF (Aluminum) base frame. Please specify flat or sloped roof applications.
| Inside Curb | 14½ | 22½ | 26½ | 30½ | 32½ | 34½ | 36½ | 46½ | 54½ | 58½ | 70½ | 78½ | 94½ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14½ |
Model: 2020
Inside Curb (WxH)
14½” x 14½” Outside Curb (WxH)
17½” x 17½” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Inside Curb (WxH)
368mm x 368mm Outside Curb (WxH)
445mm x 445mm Daylight Area (Glass)
0.14 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22½ |
Model: 2028
Inside Curb (WxH)
14½” x 22½” Outside Curb (WxH)
17½” x 25½” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Inside Curb (WxH)
368mm x 572mm Outside Curb (WxH)
445mm x 648mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Inside Curb (WxH)
22½” x 22½” Outside Curb (WxH)
25½” x 25½” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Inside Curb (WxH)
572mm x 572mm Outside Curb (WxH)
648mm x 648mm Daylight Area (Glass)
0.33 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30½ |
Model: 2036
Inside Curb (WxH)
14½” x 30½” Outside Curb (WxH)
17½” x 33½” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Inside Curb (WxH)
368mm x 775mm Outside Curb (WxH)
445mm x 851mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Inside Curb (WxH)
22½” x 30½” Outside Curb (WxH)
25½” x 33½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Inside Curb (WxH)
572mm x 775mm Outside Curb (WxH)
648mm x 851mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Inside Curb (WxH)
30½” x 30½” Outside Curb (WxH)
33½” x 33½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Inside Curb (WxH)
775mm x 775mm Outside Curb (WxH)
851mm x 851mm Daylight Area (Glass)
0.60 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34½ |
Model: 2840
Inside Curb (WxH)
22½” x 34½” Outside Curb (WxH)
25½” x 37½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Inside Curb (WxH)
572mm x 876mm Outside Curb (WxH)
648mm x 953mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Inside Curb (WxH)
34½” x 34½” Outside Curb (WxH)
37½” x 37½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Inside Curb (WxH)
876mm x 876mm Outside Curb (WxH)
953mm x 953mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36½ |
Model: 4242
Inside Curb (WxH)
36½” x 36½” Outside Curb (WxH)
39½” x 39½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Inside Curb (WxH)
927mm x 927mm Outside Curb (WxH)
1003mm x 1003mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46½ |
Model: 2052
Inside Curb (WxH)
14½” x 46½” Outside Curb (WxH)
17½” x 49½” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Inside Curb (WxH)
368mm x 1181mm Outside Curb (WxH)
445mm x 1257mm Daylight Area (Glass)
0.44 m2 |
Model: 2852
Inside Curb (WxH)
22½” x 46½” Outside Curb (WxH)
25½” x 49½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Inside Curb (WxH)
572mm x 1181mm Outside Curb (WxH)
648mm x 1257mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Inside Curb (WxH)
30½” x 46½” Outside Curb (WxH)
33½” x 49½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Inside Curb (WxH)
775mm x 1181mm Outside Curb (WxH)
851mm x 1257mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Inside Curb (WxH)
34½” x 46½” Outside Curb (WxH)
37½” x 49½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Inside Curb (WxH)
876mm x 1181mm Outside Curb (WxH)
953mm x 1257mm Daylight Area (Glass)
1.03 m2 |
Model: 5252
Inside Curb (WxH)
46½” x 46½” Outside Curb (WxH)
49½” x 49½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Inside Curb (WxH)
1181mm x 1181mm Outside Curb (WxH)
1257mm x 1257mm Daylight Area (Glass)
1.40 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 54½ |
Model: 2860
Inside Curb (WxH)
22½” x 54½” Outside Curb (WxH)
25½” x 57½” Daylight Area (Glass)
8.52 sq.ft. Model: 2860
Inside Curb (WxH)
572mm x 1384mm Outside Curb (WxH)
648mm x 1461mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Inside Curb (WxH)
30½” x 54½” Outside Curb (WxH)
33½” x 57½” Daylight Area (Glass)
11.54 sq.ft. Model: 3660
Inside Curb (WxH)
775mm x 1384mm Outside Curb (WxH)
851mm x 1461mm Daylight Area (Glass)
1.07 m2 |
Model: 6060
Inside Curb (WxH)
54½” x 54½” Outside Curb (WxH)
57½” x 57½” Daylight Area (Glass)
20.63 sq.ft. Model: 6060
Inside Curb (WxH)
1384mm x 1384mm Outside Curb (WxH)
1460mm x 1461mm Daylight Area (Glass)
1.92 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 58½ |
Model: 2864
Inside Curb (WxH)
22½” x 58½” Outside Curb (WxH)
25½” x 61½” Daylight Area (Glass)
9.14 sq.ft. Model: 2864
Inside Curb (WxH)
572mm x 1486mm Outside Curb (WxH)
648mm x 1562mm Daylight Area (Glass)
0.85 m2 |
Model: 3664
Inside Curb (WxH)
30½” x 58½” Outside Curb (WxH)
33½” x 61½” Daylight Area (Glass)
12.39 sq.ft. Model: 3664
Inside Curb (WxH)
775mm x 1486mm Outside Curb (WxH)
851mm x 1562mm Daylight Area (Glass)
1.15 m2 |
Model: 4064
Inside Curb (WxH)
34½” x 58½” Outside Curb (WxH)
37½” x 61½” Daylight Area (Glass)
14.02 sq.ft. Model: 4064
Inside Curb (WxH)
876mm x 1486mm Outside Curb (WxH)
953mm x 1562mm Daylight Area (Glass)
1.30 m2 |
Model: 5264
Inside Curb (WxH)
46½” x 58½” Outside Curb (WxH)
49½” x 61½” Daylight Area (Glass)
18.89 sq.ft. Model: 5264
Inside Curb (WxH)
1181mm x 1486mm Outside Curb (WxH)
1257mm x 1562mm Daylight Area (Glass)
1.75 m2 |
Model: 6464
Inside Curb (WxH)
58½” x 58½” Outside Curb (WxH)
61½” x 61½” Daylight Area (Glass)
23.77 sq.ft. Model: 6464
Inside Curb (WxH)
1486mm x 1486mm Outside Curb (WxH)
1562mm x 1562mm Daylight Area (Glass)
2.21 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 62½ |
Model: 2868
Inside Curb (WxH)
22½” x 62½” Outside Curb (WxH)
25½” x 65½” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Inside Curb (WxH)
572mm x 1588mm Outside Curb (WxH)
648mm x 1664mm Daylight Area (Glass)
0.91 m2 |
Model: 3668
Inside Curb (WxH)
30½” x 62½” Outside Curb (WxH)
33½” x 65½” Daylight Area (Glass)
13.24 sq.ft. Model: 3668
Inside Curb (WxH)
775mm x 1588mm Outside Curb (WxH)
851mm x 1664mm Daylight Area (Glass)
1.23 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 70½ |
Model: 2076
Inside Curb (WxH)
14½” x 70½” Outside Curb (WxH)
17½” x 73½” Daylight Area (Glass)
7.10 sq.ft. Model: 2076
Inside Curb (WxH)
368mm x 1791mm Outside Curb (WxH)
445mm x 1867mm Daylight Area (Glass)
0.66 m2 |
Model: 2876
Inside Curb (WxH)
22½” x 70½” Outside Curb (WxH)
25½” x 73½” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Inside Curb (WxH)
572mm x 1791mm Outside Curb (WxH)
648mm x 1867mm Daylight Area (Glass)
1.02 m2 |
Model: 3676
Inside Curb (WxH)
30½” x 70½” Outside Curb (WxH)
33½” x 73½” Daylight Area (Glass)
14.93 sq.ft. Model: 3676
Inside Curb (WxH)
775mm x 1791mm Outside Curb (WxH)
851mm x 1867mm Daylight Area (Glass)
1.39 m2 |
Model: 4076
Inside Curb (WxH)
34½” x 70½” Outside Curb (WxH)
37½” x 73½” Daylight Area (Glass)
16.89 sq.ft. Model: 4076
Inside Curb (WxH)
876mm x 1791mm Outside Curb (WxH)
953mm x 1867mm Daylight Area (Glass)
1.57 m2 |
Model: 5276
Inside Curb (WxH)
46½” x 70½” Outside Curb (WxH)
49½” x 73½” Daylight Area (Glass)
22.77 sq.ft. Model: 5276
Inside Curb (WxH)
1181mm x 1791mm Outside Curb (WxH)
1257mm x 1867mm Daylight Area (Glass)
2.12 m2 |
Model: 6476 AOF
Inside Curb (WxH)
58½” x 70½” Outside Curb (WxH)
62¼” x 74¼” Daylight Area (Glass)
28.64 sq.ft. Model: 6476 AOF
Inside Curb (WxH)
1486mm x 1791mm Outside Curb (WxH)
1581mm x 1886mm Daylight Area (Glass)
2.66 m2 |
Model: 7676 AOF
Inside Curb (WxH)
70½” x 70½” Outside Curb (WxH)
74¼” x 74¼” Daylight Area (Glass)
34.52 sq.ft. Model: 7676 AOF
Inside Curb (WxH)
1791mm x 1791mm Outside Curb (WxH)
1886mm x 1886mm Daylight Area (Glass)
3.21 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 74½ |
Model: 3280
Inside Curb (WxH)
26½” x 74½” Outside Curb (WxH)
29½” x 77½” Daylight Area (Glass)
13.71 sq.ft. Model: 3280
Inside Curb (WxH)
673mm x 1892mm Outside Curb (WxH)
749mm x 1969mm Daylight Area (Glass)
1.27 m2 |
Model: 3880
Inside Curb (WxH)
32½” x 74½” Outside Curb (WxH)
35½” x 77½” Daylight Area (Glass)
16.81 sq.ft. Model: 3880
Inside Curb (WxH)
826mm x 1892mm Outside Curb (WxH)
902mm x 1969mm Daylight Area (Glass)
1.56 m2 |
Model: 4280
Inside Curb (WxH)
36½” x 74½” Outside Curb (WxH)
39½” x 77½” Daylight Area (Glass)
18.88 sq.ft. Model: 4280
Inside Curb (WxH)
927mm x 1892mm Outside Curb (WxH)
1003mm x 1969mm Daylight Area (Glass)
1.75 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 78½ |
Model: 8484 AOF
Inside Curb (WxH)
78½” x 78½” Outside Curb (WxH)
82¼” x 82¼” Daylight Area (Glass)
42.79 sq.ft. Model: 8484 AOF
Inside Curb (WxH)
1994mm x 1994mm Outside Curb (WxH)
2089mm x 2089mm Daylight Area (Glass)
3.98 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 94½ |
Model: 28100
Inside Curb (WxH)
22½” x 94½” Outside Curb (WxH)
25½” x 97½” Daylight Area (Glass)
14.77 sq.ft. Model: 28100
Inside Curb (WxH)
572mm x 2400mm Outside Curb (WxH)
648mm x 2477mm Daylight Area (Glass)
1.37 m2 |
Model: 36100
Inside Curb (WxH)
30½” x 94½” Outside Curb (WxH)
33½” x 97½” Daylight Area (Glass)
20.02 sq.ft. Model: 36100
Inside Curb (WxH)
775mm x 2400mm Outside Curb (WxH)
851mm x 2477mm Daylight Area (Glass)
1.86 m2 |
Model: 40100
Inside Curb (WxH)
34½” x 94½” Outside Curb (WxH)
37½” x 97½” Daylight Area (Glass)
22.64 sq.ft. Model: 40100
Inside Curb (WxH)
876mm x 2400mm Outside Curb (WxH)
953mm x 2477mm Daylight Area (Glass)
2.10 m2 |
Model: 52100 AOF
Inside Curb (WxH)
46½” x 94½” Outside Curb (WxH)
50¼” x 98¼” Daylight Area (Glass)
30.52 sq.ft. Model: 52100 AOF
Inside Curb (WxH)
1181mm x 2401mm Outside Curb (WxH)
1276mm x 2496mm Daylight Area (Glass)
2.83 m2 |
Model: 60100 AOF
Inside Curb (WxH)
54½” x 94½” Outside Curb (WxH)
58¼” x 98¼” Daylight Area (Glass)
35.77 sq.ft. Model: 60100 AOF
Inside Curb (WxH)
1385mm x 2401mm Outside Curb (WxH)
1480mm x 2496mm Daylight Area (Glass)
3.32 m2 |
Model: 64100 AOF
Inside Curb (WxH)
58½” x 94½” Outside Curb (WxH)
62¼” x 98¼” Daylight Area (Glass)
38.39 sq.ft. Model: 64100 AOF
Inside Curb (WxH)
1486mm x 2401mm Outside Curb (WxH)
1581mm x 2496mm Daylight Area (Glass)
3.57 m2 |
Model: 76100 AOF
Inside Curb (WxH)
70½” x 94½” Outside Curb (WxH)
74¼” x 98¼” Daylight Area (Glass)
46.27 sq.ft. Model: 76100 AOF
Inside Curb (WxH)
1791mm x 2401mm Outside Curb (WxH)
1886mm x 2496mm Daylight Area (Glass)
4.3 m2 |
Model: 84100 AOF
Inside Curb (WxH)
78½” x 94½” Outside Curb (WxH)
82¼” x 98¼” Daylight Area (Glass)
51.52 sq.ft. Model: 84100 AOF
Inside Curb (WxH)
1994mm x 2401mm Outside Curb (WxH)
2089mm x 2496mm Daylight Area (Glass)
4.79 m2 |
Model: 100100 AOF
Inside Curb (WxH)
94½” x 94½” Outside Curb (WxH)
98¼” x 98¼” Daylight Area (Glass)
62.02 sq.ft. Model: 100100 AOF
Inside Curb (WxH)
2401mm x 2401mm Outside Curb (WxH)
2496mm x 2496mm Daylight Area (Glass)
5.76 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 114½ |
Model: 52120 AOF
Inside Curb (WxH)
46½” x 114½” Outside Curb (WxH)
50¼” x 118¼” Daylight Area (Glass)
36.97 sq.ft. Model: 52120 AOF
Inside Curb (WxH)
1181mm x 2909mm Outside Curb (WxH)
1276mm x 3004mm Daylight Area (Glass)
3.43 m2 |
Model: 60120 AOF
Inside Curb (WxH)
54½” x 114½” Outside Curb (WxH)
58¼” x 118¼” Daylight Area (Glass)
43.34 sq.ft. Model: 60120 AOF
Inside Curb (WxH)
1385mm x 2909mm Outside Curb (WxH)
1480mm x 3004mm Daylight Area (Glass)
4.03 m2 |
Model: 76120 AOF
Inside Curb (WxH)
70½” x 114½” Outside Curb (WxH)
74¼” x 118¼” Daylight Area (Glass)
56.06 sq.ft. Model: 76120 AOF
Inside Curb (WxH)
1791mm x 2909mm Outside Curb (WxH)
1886mm x 3004mm Daylight Area (Glass)
5.21 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size Chart – Summary
Pinch to enlarge.
NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636.
NOTE: For standard AC VCM sizes, PVC interior frame.
NOTE: For larger sizes use AOF. Model AOF (Aluminum) base frame. Please specify flat or sloped roof applications.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use Columbia’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download two formats of this model’s technical drawings – (1) Detail or (2) Product Data. Also available, .dwg (CAD file) and Product Specifications as a Word Doc, PDF, or Text file.
For multiple models go to the Drawings & Specification Library page.
For multiple models go to the Drawings & Specification Library page.
Accessories
FKCM – Curb Mount Flashing Kit
(Sloped asphalt or wood shake roof only)
IWS – Roofing Underlayment
Why Columbia
Find Out Why Columbia Skylights Don’t Leak
Columbia’s Canadian made skylights are designed and manufactured with the finest quality materials, combined with over 5 decades of experience. We are proud to have supplied over 1 million skylights for North American roofs.
Our skylights don’t leak – the frame design is proven to repel the worst of Canadian weather, and we use high performance glazing from the leading North American glazing manufacturer Cardinal Glass Industries. Acrylic and polycarbonate are supplied by the highest quality North American producers. Our skylights combine a durable extruded aluminum exterior frame and a heavy duty PVC vinyl interior frame.
The Columbia 4 sided rigid condensation gutter has been designed with additional width to allow for maximum moisture control.
All our components are manufactured in North America by suppliers we have worked with for decades.
Canadian made skylights, designed for our harsh climate
Columbia skylights are specifically designed for life in our Canadian climate. Whether subjected to snow, ice, wind, hail, or intense heat, our products are engineered to outperform these demanding conditions.
Many imported skylights are designed for a more temperate climate and lack the performance and durability. Columbia has spent many decades manufacturing premium quality skylights that have stood up to the test of time in our Canadian climate.
Every aspect of the skylight has been studied, engineered, and tested.
Columbia utilizes the best materials available, including the latest glass technology.
Energy efficiency is a concern for Canadian homeowners because of our extreme climate. Columbia is the only Canadian manufacturer to offer Triple Glazing on all our skylight models, fixed and venting. We offer more ENERGY STAR® glass options than any other manufacturer.
You might also be interested in…
Columbia AC OCM – Curb Mount Manual Venting Acrylic Dome Skylight
Cool your home with Columbia’s manually operated venting Curb Mounted skylight. Enjoy the combined benefits of natural light and fresh air ventilation.
Learn More

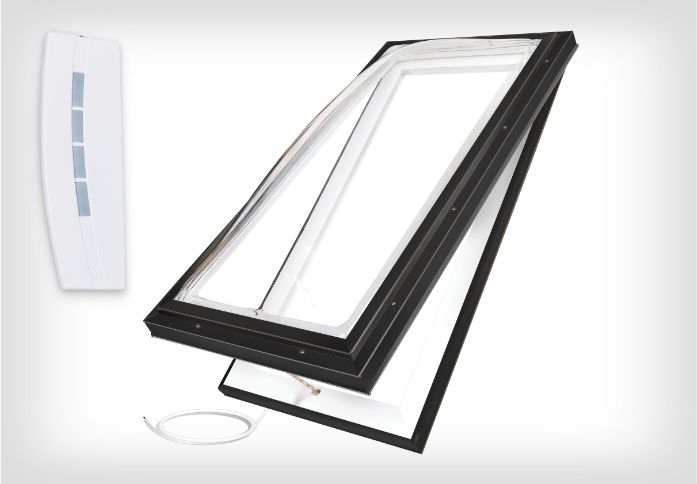

Columbia AC OCM E – Curb Mount Electric Venting Acrylic Dome Skylight
Columbia’s Canadian made Curb Mount electric venting acrylic dome skylight provides the combined benefits of natural light and fresh air ventilation.
Learn More
Columbia GL VCM – Curb Mount Fixed Glass Skylight
The beauty and clarity of natural light. This high quality Curb Mounted fixed skylight is the right choice for most sloped roof applications where you want to brighten your living…
Learn More
Columbia AC AOF – Commercial Skylight
Featuring a strong and rigid aluminum external and internal frame. Available in Columbia’s full range of acrylic options. Dome and pyramid.
Learn More
