AC AOF – Commercial Curb Mount ACRYLIC Dome Skylight
- This exceptionally strong commercial grade skylight is engineered to perform flawlessly for decades, providing the clarity of natural light for a showroom, retail floor or factory. Improve your customer experience and employee productivity with the benefits of natural light. Combining natural and electrical light gives you the perfect interior environment. The aluminum frame and curb provide additional strength and rigidity for larger sizes.
- Designed for installation on all standard commercial roof applications, such as 2 Ply SBS, single ply, tar and gravel, EPDM.
- Can be manufactured in acrylic and polycarbonate, depending on the building location and requirements. The AC AOF comes in clear, white and bronze tinting, so you can choose the quality of light.
- Available as acrylic dome and pyramid models.
FEATURES
- Available in dome and pyramid models.
- Ideal for larger skylights and commercial applications. Acrylic domes suitable for flat or sloped roof applications.
- Available in acrylic and ultra strong polycarbonate.
- Custom sizes also available.
- Can be ordered double or triple glazed.
- Featuring thermally broken aluminum base frame with unique positive drainage sloped condensation channel.
- When ordering, please specify for flat or sloped roof application. Curb must be minimum 2” wide.
Custom Sizes
Available in standard & custom sizes. Acrylic & polycarbonate from 14 ½” x 14 ½” to 94 ½” x 94 ½”
Recommended Roof
Type
Flat roof – commercial or residential building or Sloped roof – residential building
Recommended
Location
- Warehouses
- Factories
- Shopping Malls
- Government buildings
- Residential with larger openings
Available in two Acrylic glazing Options

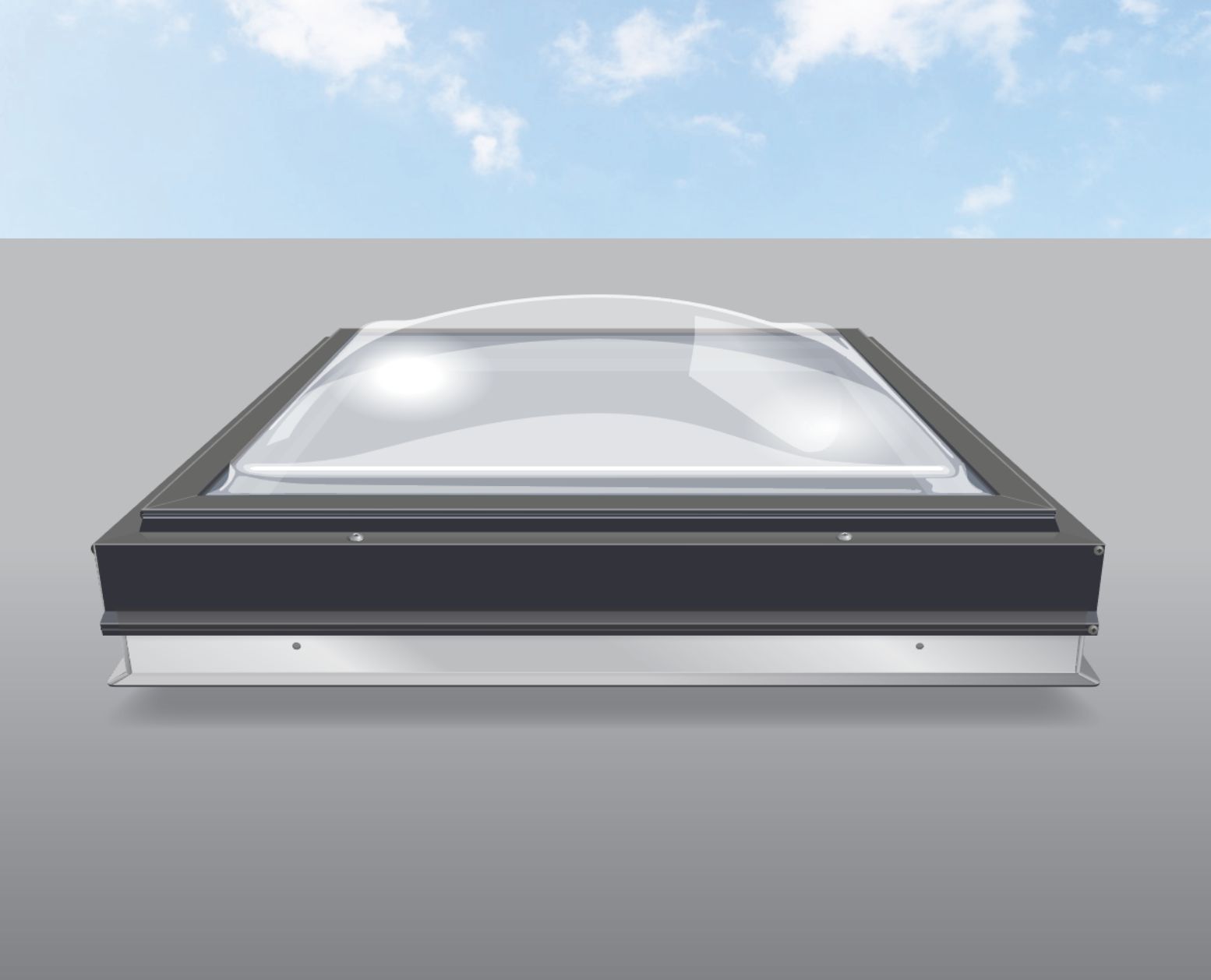

Acrylic Dome

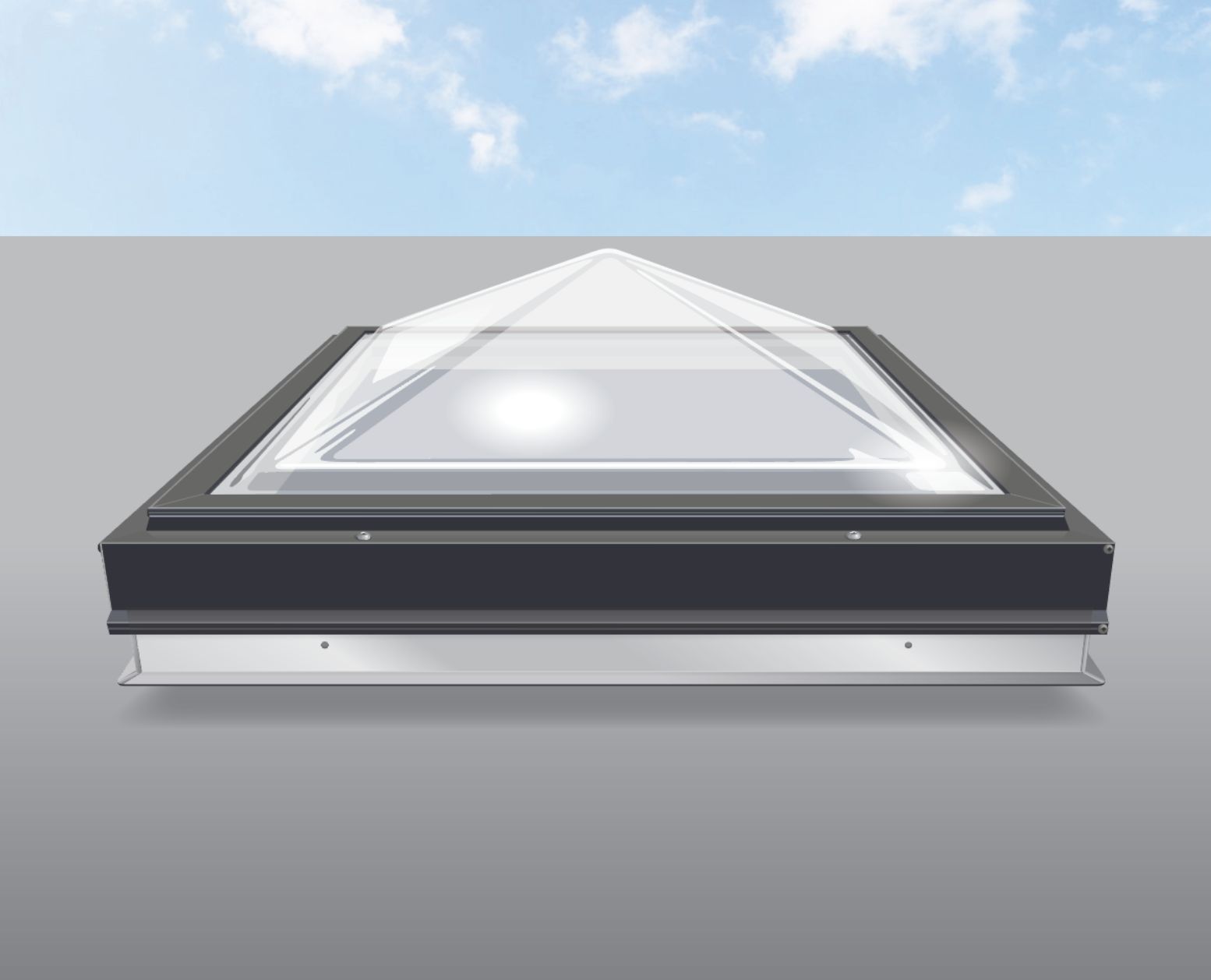

Acrylic Pyramid
Note: Pyramid skylights are only available in square sizes.
It’s your choice
Choosing a Dome versus a Pyramid is an aesthetic choice your architect will select based on which one suits the style of the building.
Both Domes and Pyramids are ideal for areas of heavy snow fall. The acrylic dome allows snow and rain to slide off, it also prevents water pooling.

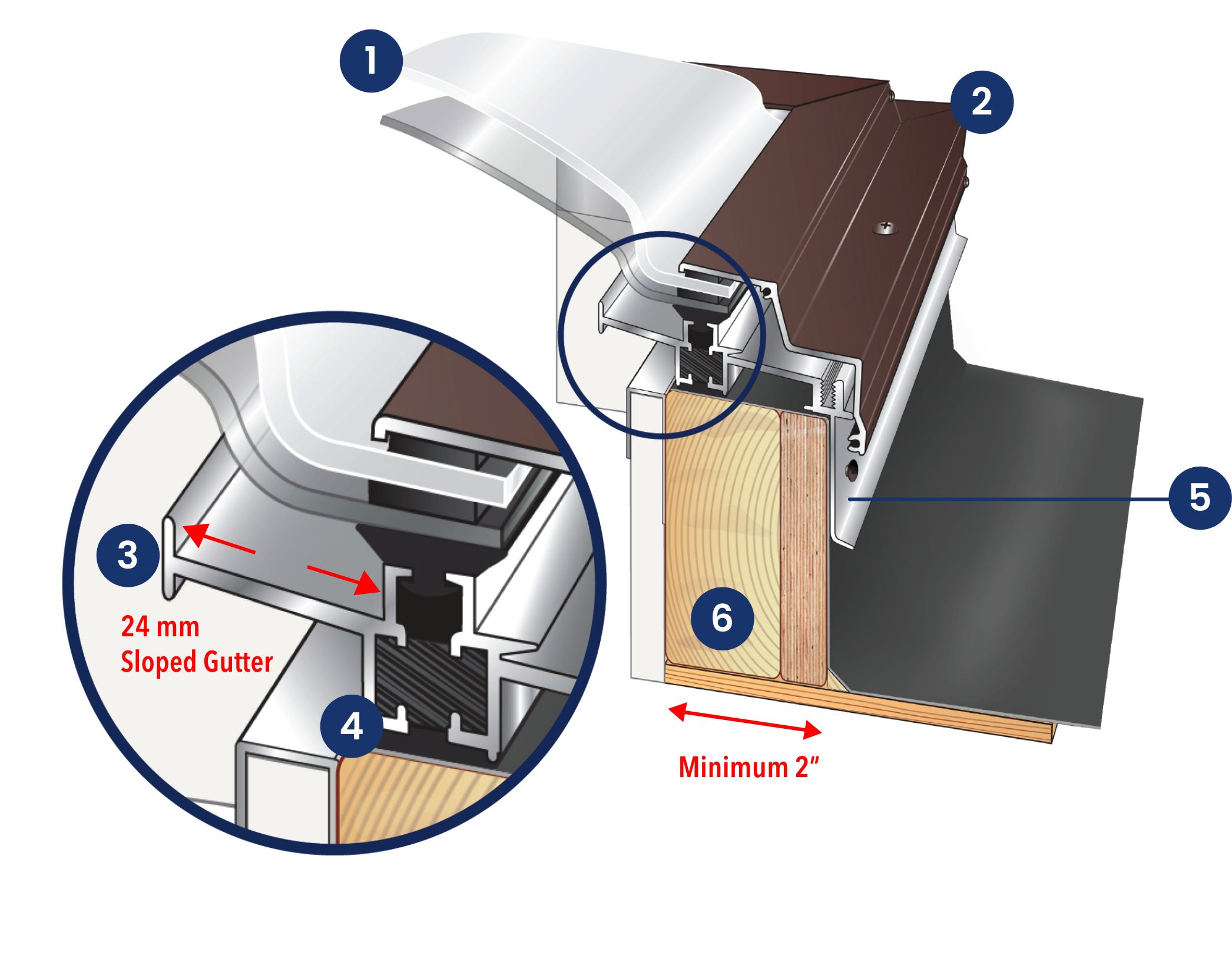

Industry Leading Commercial Skylight Design
- Glazing
Standard Double Glazed Clear. Also available in: Single, Double and Triple Glazed Clear, Bronze & White, as well as polycarbonate. - Aluminum Cap
Durable extruded exterior aluminum frame with baked enamel paint finish. 7 standard colours and unlimited custom colour matching – bring in a paint chip to your dealer and we will match it. - Sloped Condensation Gutter
Four sided sloped positive drainage wide condensation gutter. Condensation is dispersed to the outside roof along our unique gutter. - Base Frame
Maintenance free, thermally broken outside fastening aluminum base frame. - Aluminum Mounting Flange
Thermally broken aluminum base frame designed to fasten to the outside of the curb, creating an exceptionally strong and rigid installation. - Curb
Can be installed on 2” x 4”, 2” x 6” or 2” x 8” curb (not supplied). Must be minimum full 2” width.
Acrylic is the right choice for many applications
- Columbia manufactures skylights in acrylic and polycarbonate.
- These versatile glazing materials are able to be produced in double and triple glazing options.
- Acrylic and polycarbonate come in three tints – clear, bronze, and translucent white.
Double Glazed Clear
Double Glazed Clear
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Clear acrylic gives bright natural light.
Double Glazed Bronze
Double Glazed Bronze
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Bronze acrylic delivers the maximum protection from extreme sunlight, reducing glare and solar heat gain.
Double Glazed White
Double Glazed White
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
Triple Glazed Clear
Triple Glazed Clear
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Additional comfort in your interior space.
Triple Glazed Bronze
Triple Glazed Bronze
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, reducing glare and solar heat gain.
- Additional comfort in your interior space.
Triple Glazed White
Triple Glazed White
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Additional comfort in your interior space.
Columbia offers the widest choice of skylight frame colours in North America
With the growing selection of asphalt shingle and steel metal roof colour options, Columbia allows you to match your skylight frame colour to the colour of your roofing material or window package. Columbia offers seven standard colours and unlimited custom colour matching. Save time and money by choosing a standard colour, or provide your dealer with a colour chip and we will match it.
AC AOF – Flat Roof Curb Mount Dome
Available in the sizes shown in the chart below (Imperial and Metric). You can also review the most popular sizes. If you don’t see the size you need below, then please visit our Custom Sizes page. You can also download a printable PDF of the chart.
GO TO CUSTOM SIZES
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
Popular Sizes
The yellow star indicates the most popular sizes.
| Outside Curb | 18¼ | 26¼ | 30¼ | 34¼ | 36¼ | 38¼ | 40¼ | 50¼ | 58¼ | 62¼ | 74¼ | 82¼ | 98¼ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18¼ |
Model: 2020
Outside Curb (WxH)
18¼” x 18¼” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Outside Curb (WxH)
464mm x 464mm Daylight Area (Glass)
0.14 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 26¼ |
Model: 2028
Outside Curb (WxH)
18¼” x 26¼” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Outside Curb (WxH)
464mm x 667mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Outside Curb (WxH)
26¼” x 26¼” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Outside Curb (WxH)
667mm x 667mm Daylight Area (Glass)
0.33 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34¼ |
Model: 2036
Outside Curb (WxH)
18¼” x 34¼” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Outside Curb (WxH)
464mm x 870mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Outside Curb (WxH)
26¼” x 34¼” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Outside Curb (WxH)
667mm x 870mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Outside Curb (WxH)
34¼” x 34¼” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Outside Curb (WxH)
870mm x 870mm Daylight Area (Glass)
0.60 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 38¼ |
Model: 2840
Outside Curb (WxH)
26¼” x 38¼” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Outside Curb (WxH)
667mm x 972mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Outside Curb (WxH)
38¼” x 38¼” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Outside Curb (WxH)
972mm x 972mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40¼ |
Model: 4242
Outside Curb (WxH)
40¼” x 40¼” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Outside Curb (WxH)
1022mm x 1022mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 50¼ |
Model: 2052
Outside Curb (WxH)
18¼” x 50¼” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Outside Curb (WxH)
464mm x 1276mm Daylight Area (Glass)
0.44 m2 |
Model: 2852
Outside Curb (WxH)
26¼” x 50¼” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Outside Curb (WxH)
667mm x 1276mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Outside Curb (WxH)
34¼” x 50¼” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Outside Curb (WxH)
870mm x 1276mm Daylight Area (Glass)
0.91 m2 |
Model: 4052
Outside Curb (WxH)
38¼” x 50¼” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Outside Curb (WxH)
972mm x 1276mm Daylight Area (Glass)
1.04 m2 |
Model: 5252
Outside Curb (WxH)
50¼” x 50¼” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Outside Curb (WxH)
1276mm x 1276mm Daylight Area (Glass)
1.40 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 58¼ |
Model: 2860
Outside Curb (WxH)
26¼” x 58¼” Daylight Area (Glass)
8.52 sq.ft. Model: 2860
Outside Curb (WxH)
667mm x 1480mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Outside Curb (WxH)
34¼” x 58¼” Daylight Area (Glass)
11.54 sq.ft. Model: 3660
Outside Curb (WxH)
870mm x 1480mm Daylight Area (Glass)
1.07 m2 |
Model: 6060
Outside Curb (WxH)
58¼” x 58¼” Daylight Area (Glass)
20.63 sq.ft. Model: 6060
Outside Curb (WxH)
1480mm x 1480mm Daylight Area (Glass)
1.92 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 62¼ |
Model: 2864
Outside Curb (WxH)
26¼” x 62¼” Daylight Area (Glass)
9.14 sq.ft. Model: 2864
Outside Curb (WxH)
667mm x 1581mm Daylight Area (Glass)
0.85 m2 |
Model: 3664
Outside Curb (WxH)
34¼” x 62¼” Daylight Area (Glass)
12.39 sq.ft. Model: 3664
Outside Curb (WxH)
870mm x 1581mm Daylight Area (Glass)
1.15 m2 |
Model: 4064
Outside Curb (WxH)
38¼” x 62¼” Daylight Area (Glass)
14.02 sq.ft. Model: 4064
Outside Curb (WxH)
972mm x 1581mm Daylight Area (Glass)
1.30 m2 |
Model: 5264
Outside Curb (WxH)
50¼” x 62¼” Daylight Area (Glass)
18.89 sq.ft. Model: 5264
Outside Curb (WxH)
1276mm x 1581mm Daylight Area (Glass)
1.75 m2 |
Model: 6464
Outside Curb (WxH)
62¼” x 62¼” Daylight Area (Glass)
23.76 sq.ft. Model: 6464
Outside Curb (WxH)
1581mm x 1581mm Daylight Area (Glass)
2.21 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 66¼ |
Model: 2868
Outside Curb (WxH)
26¼” x 66¼” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Outside Curb (WxH)
667mm x 1683mm Daylight Area (Glass)
0.91 m2 |
Model: 3668
Outside Curb (WxH)
34¼” x 66¼” Daylight Area (Glass)
13.24 sq.ft. Model: 3668
Outside Curb (WxH)
870mm x 1683mm Daylight Area (Glass)
1.23 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 74¼ |
Model: 2076
Outside Curb (WxH)
18¼” x 74¼” Daylight Area (Glass)
7.10 sq.ft. Model: 2076
Outside Curb (WxH)
464mm x 1886mm Daylight Area (Glass)
0.66 m2 |
Model: 2876
Outside Curb (WxH)
26¼” x 74¼” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Outside Curb (WxH)
667mm x 1886mm Daylight Area (Glass)
1.02 m2 |
Model: 3676
Outside Curb (WxH)
34¼” x 74¼” Daylight Area (Glass)
14.93 sq.ft. Model: 3676
Outside Curb (WxH)
870mm x 1886mm Daylight Area (Glass)
1.39 m2 |
Model: 4076
Outside Curb (WxH)
38¼” x 74¼” Daylight Area (Glass)
16.89 sq.ft. Model: 4076
Outside Curb (WxH)
972mm x 1886mm Daylight Area (Glass)
1.57 m2 |
Model: 5276
Outside Curb (WxH)
50¼” x 74¼” Daylight Area (Glass)
22.77 sq.ft. Model: 5276
Outside Curb (WxH)
1276mm x 1886mm Daylight Area (Glass)
2.12 m2 |
Model: 6476
Outside Curb (WxH)
62¼” x 74¼” Daylight Area (Glass)
28.64 sq.ft. Model: 6476
Outside Curb (WxH)
1581mm x 1886mm Daylight Area (Glass)
2.66 m2 |
Model: 7676
Outside Curb (WxH)
74¼” x 74¼” Daylight Area (Glass)
34.52 sq.ft. Model: 7676
Outside Curb (WxH)
1886mm x 1886mm Daylight Area (Glass)
3.21 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 78¼ |
Model: 3280
Outside Curb (WxH)
30¼” x 78¼” Daylight Area (Glass)
13.71 sq.ft. Model: 3280
Outside Curb (WxH)
768mm x 1988mm Daylight Area (Glass)
1.27 m2 |
Model: 3880
Outside Curb (WxH)
36¼” x 78¼” Daylight Area (Glass)
16.81 sq.ft. Model: 3880
Outside Curb (WxH)
921mm x 1988mm Daylight Area (Glass)
1.56 m2 |
Model: 4280
Outside Curb (WxH)
40¼” x 78¼” Daylight Area (Glass)
18.88 sq.ft. Model: 4280
Outside Curb (WxH)
1022mm x 1988mm Daylight Area (Glass)
1.75 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 82¼ |
Model: 8484
Outside Curb (WxH)
82¼” x 82¼” Daylight Area (Glass)
42.79 sq.ft. Model: 8484
Outside Curb (WxH)
2089mm x 2089mm Daylight Area (Glass)
3.98 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 98¼ |
Model: 28100
Outside Curb (WxH)
26¼” x 98¼” Daylight Area (Glass)
14.77 sq.ft. Model: 28100
Outside Curb (WxH)
667mm x 2496mm Daylight Area (Glass)
1.37 m2 |
Model: 36100
Outside Curb (WxH)
34¼” x 98¼” Daylight Area (Glass)
20.02 sq.ft. Model: 36100
Outside Curb (WxH)
870mm x 2496mm Daylight Area (Glass)
1.86 m2 |
Model: 40100
Outside Curb (WxH)
38¼” x 98¼” Daylight Area (Glass)
22.64 sq.ft. Model: 40100
Outside Curb (WxH)
972mm x 2496mm Daylight Area (Glass)
2.10 m2 |
Model: 52100
Outside Curb (WxH)
50¼” x 98¼” Daylight Area (Glass)
30.52 sq.ft. Model: 52100
Outside Curb (WxH)
1276mm x 2496mm Daylight Area (Glass)
2.83 m2 |
Model: 60100
Outside Curb (WxH)
58¼” x 98¼” Daylight Area (Glass)
35.77 sq.ft. Model: 60100
Outside Curb (WxH)
1480mm x 2496mm Daylight Area (Glass)
3.32 m2 |
Model: 64100
Outside Curb (WxH)
62¼” x 98¼” Daylight Area (Glass)
38.39 sq.ft. Model: 64100
Outside Curb (WxH)
1581mm x 2496mm Daylight Area (Glass)
3.57 m2 |
Model: 76100
Outside Curb (WxH)
74¼” x 98¼” Daylight Area (Glass)
46.27 sq.ft. Model: 76100
Outside Curb (WxH)
1886mm x 2496mm Daylight Area (Glass)
4.30 m2 |
Model: 84100
Outside Curb (WxH)
82¼” x 98¼” Daylight Area (Glass)
51.52 sq.ft. Model: 84100
Outside Curb (WxH)
2089mm x 2496mm Daylight Area (Glass)
4.79 m2 |
Model: 100100
Outside Curb (WxH)
98¼” x 98¼” Daylight Area (Glass)
62.02 sq.ft. Model: 100100
Outside Curb (WxH)
2496mm x 2496mm Daylight Area (Glass)
5.76 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 118¼ |
Model: 52120
Outside Curb (WxH)
50¼” x 118¼” Daylight Area (Glass)
36.97 sq.ft. Model: 52120
Outside Curb (WxH)
1276mm x 3004mm Daylight Area (Glass)
3.43 m2 |
Model: 60120
Outside Curb (WxH)
58¼” x 118¼” Daylight Area (Glass)
43.34 sq.ft. Model: 60120
Outside Curb (WxH)
1480mm x 3004mm Daylight Area (Glass)
4.02 m2 |
Model: 76120
Outside Curb (WxH)
74¼” x 118¼” Daylight Area (Glass)
56.06 sq.ft. Model: 76120
Outside Curb (WxH)
1886mm x 3004mm Daylight Area (Glass)
5.21 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size Chart – Summary
Pinch to enlarge.
NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use Columbia’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download two formats of this model’s technical drawings – (1) Detail or (2) Product Data. Also available, .dwg (CAD file) and Product Specifications as a Word Doc, PDF, or Text file.
For multiple models go to the Drawings & Specification Library page.
For multiple models go to the Drawings & Specification Library page.
Why Columbia
New Mississauga distribution warehouse to better serve Ontario, Quebec and the Maritimes
We have relocated our eastern distribution warehouse to a newly constructed facility in Mississauga, Ontario. Columbia’s new distribution warehouse is larger and able to store a full range of ready to deliver Columbia and FAKRO products.
The warehouse is located on Meadowvale Boulevard near the 401 and Mississauga Road, providing easy highway access .
The warehouse allows us to serve Eastern Canada with greater efficiency, improved delivery times and allowing us to carry larger inventories.
Review our FAKRO Premium European skylights, roof windows & flat roof skylights
FAKRO produces the highest quality European designed & manufactured skylights in the world, delivering exceptional performance and energy efficicency. If you want the best for your home, FAKRO skylights & roof windows are what you are looking for, with outstanding craftsmanship and finish.
Columbia is proud to be the exclusive Canadian distributor of FAKRO skylights and roof windows. For over 30 years, the FAKRO group has produced beautifully designed, technically superior skylights. All of the FAKRO skylights are produced in their European plants.
As the second largest skylight manufacturer in the world, FAKRO supplies up to 15% of the global skylight market – with over 8 million skylights sold in more than 50 countries.
You might also be interested in…

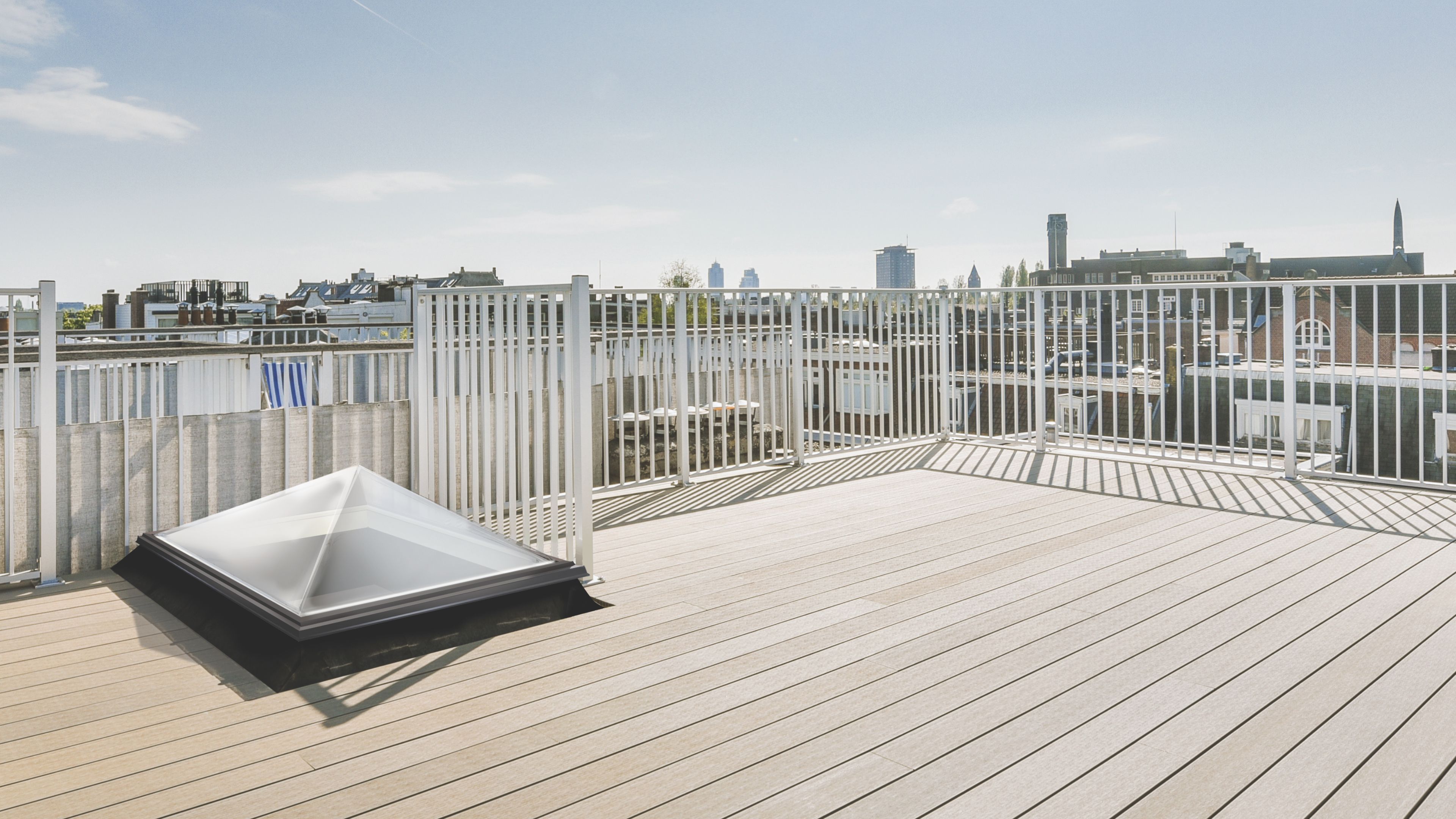

Columbia GL RAS – Roof Access Door – Glass
Ideal for turning a rooftop into a patio deck or any other application where egress is required while letting in an abundance of natural light.
Learn More

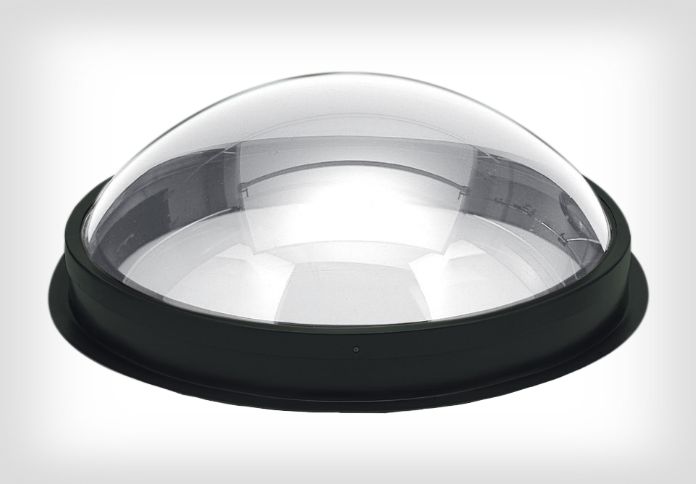

Columbia CRD – Circular Roof Dome
The Circular Roof Dome is not only highly effective in letting in a large amount of natural light, but they also make a dramatic architectural style statement.
Learn More

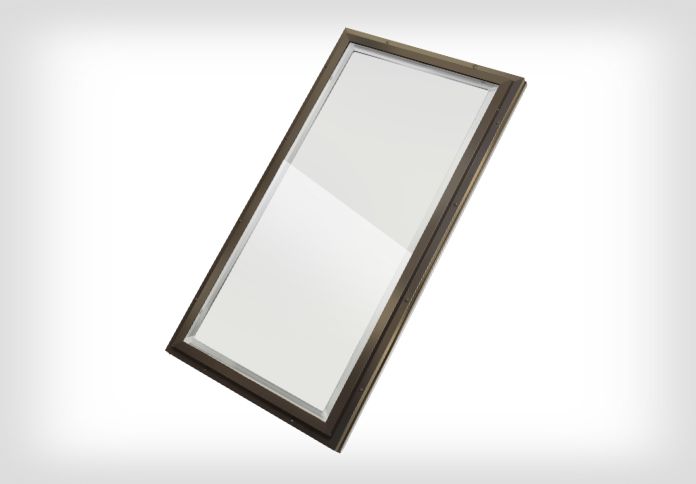

Columbia GL AOF – Commercial Aluminum Curb Mount – Fixed Glass Skylight
This exceptionally durable glass skylight with an aluminum external and internal frame. Providing strength and rigidity. Available in Columbia’s full range of glass options.
Learn More

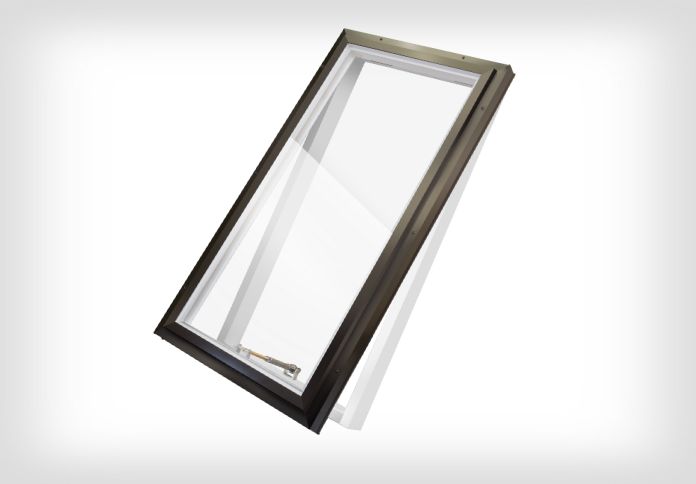

Glass VCM SPD (Vinyl) & ATCM SPD (Aluminum) Spindle Commercial Skylight
The Venting Spindle skylight is intended for larger skylight applications that require ventilation. Available in a full selection of glass or acrylic options.
Learn More
