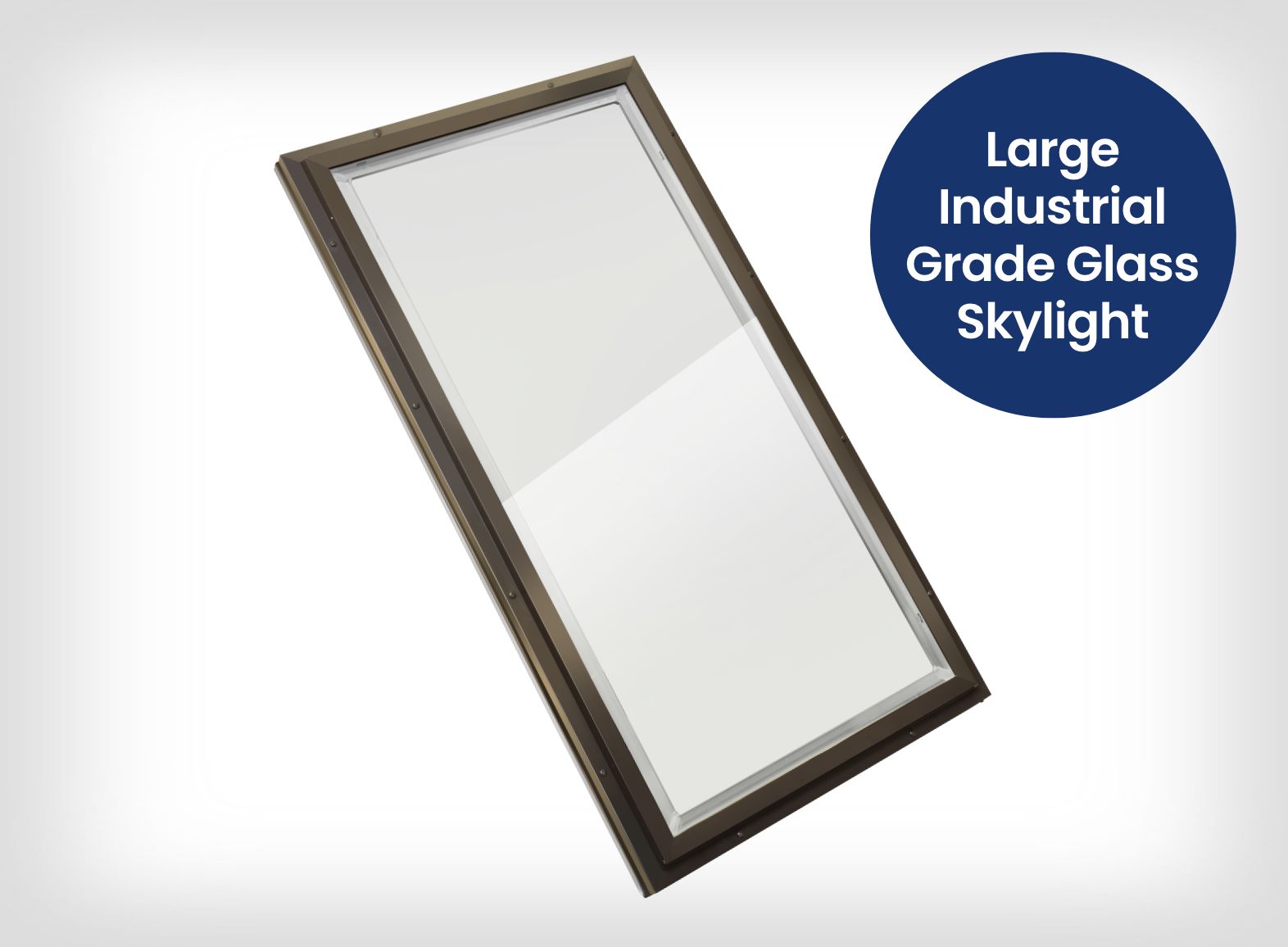

GL AOF – Commercial Aluminum Curb Mount – Fixed Glass Skylight
- The GL AOF is a commercial grade skylight made with an aluminum exterior and internal fame for unparalleled strength and rigidity. The impressive tensile strength of the aluminum frame makes it ideal for large commercial skylights, letting in the maximum amount of natural light. The glass provides natural light with exceptional clarity and brilliance.
- The GL AOF is the largest glass skylight Columbia produces and is designed for commercial applications requiring the maximum natural light possible.
- Available with ENERGY STAR® Certified double or triple glazing LoE3 options (including laminated glass). Additional LoE3 glass options include tinted or reflective glass (bronze or grey) that reduce the glare of intense sunlight and solar heat gain. Columbia also supplies the innovative LoE3 366 Neat low maintenance glass. You may add NEAT coating to any glazing choices.
- The thermally broken aluminum base frame, eliminates cold air transfer from the exterior to the interior of the skylight.
- Wide condensation gutter with positive drainage feature.
FEATURES
- Able to span large size applications, using a durable and rigid exterior and interior aluminum frame.
- Far more rigid than a skylight with a PVC interior frame.
- Offering the clarity and brilliance of natural light in a a large commercial skylight.
- Custom sizes available.
- A large commercial skylight with the benefit of energy efficient double or triple glass.
- Available in Columbia full range of frame colours. 7 standard and unlimited custom matched colours.
- Thermally broken aluminum base frame.
- Requires a curb that must be 2” wide.
Recommended
Location
- Warehouses
- Factories
- Shopping Malls
- Government buildings
Custom Sizes
Available in standard & custom sizes with all glazing options 18 ¼” x 18 ¼” to 50 ¼” x 74 ¼”.

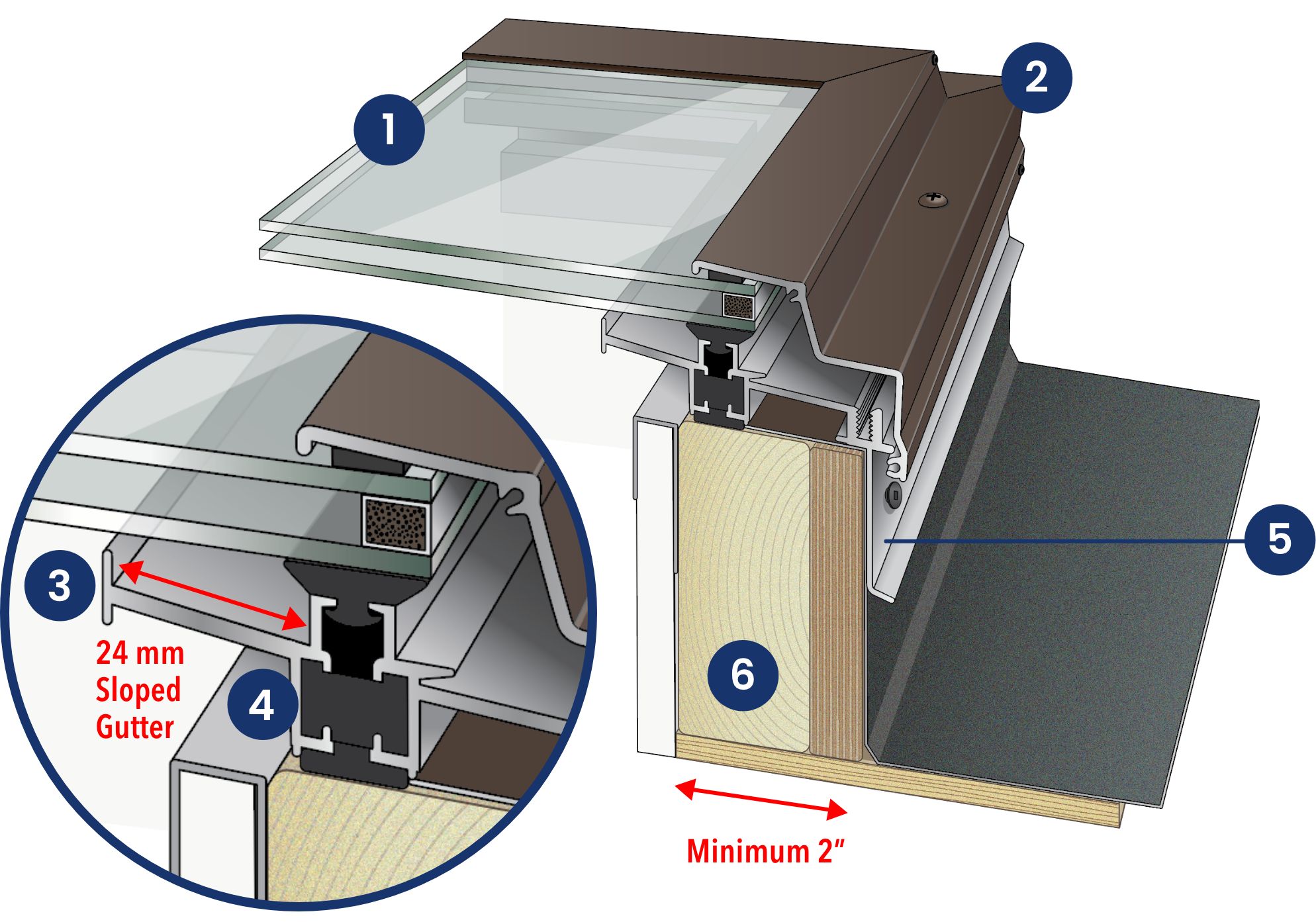

- Glazing
Skylight industry’s widest selection of glazing options:
• LoE3 366 Clear/Laminated
• LoE3 366 Neat
• LoE3 366 Tinted Bronze or Grey
• LoE3 366 Reflective Bronze or Grey
• LoE3 366 i89
• LoE3 366 Triple Glazed Clear
• LoE3 366 Triple Glazed Laminated - Aluminum Cap
Durable extruded exterior aluminum frame with baked enamel paint finish. 7 standard colours and unlimited custom colour matching – bring in a paint chip to your dealer and we will match it. - Sloped Condensation Gutter
Four sided 24 mm wide drainage condensation gutter. Condensation is dispersed to the outside roof along our unique gutter. - Base Frame
Maintenance free, thermally broken outside fastening aluminum base frame. - Aluminum Mounting Flange
Thermally broken aluminum base frame designed to fasten to the outside of the curb, creating an exceptionally strong and rigid installation. - Curb
Can be installed on 2” x 4”, 2” x 6” or 2” x 8” curb (not supplied). Must be minimum full 2” width.
Columbia offers a wide range of high performance glass options
- Columbia offers a wide range of double or triple glazing options, including ENERGY STAR® Canada certified glazing units.
- All glazing options available on all models, fixed and venting, including custom sizes.
Cardinal Glass Industries is Columbia’s glass supplier, a world leader in high performance glass technology. Cardinal maintains a clear vision – design and fabricate the most advanced residential glass products in the industry.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Blocks 95% of UV rays.
- Advanced condensation
resistance. - Industry standard, identical LoE3 coating from the same
supplier as the competition.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Reduces the effects of sound by up to 30%.
- Additional security:
The innermost interlayer holds the glass together in case of breakage. - Clear or translucent white laminated glass is available.
- Up to 99% UV protection, reduces fading of furnishings.
- 10 year hail warranty on cracking or breakage due to hail.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Neat coating breaks up organic material on the glass.
- Reduces water spotting and disperses water evenly.
- Blocks 95% of UV rays.
- Neat coating available as an add on to all glazing options.
- Dual pane with argon gas. Superior LoE3 triple coating is virtually invisible.
- LoE3 coatings applied on two surfaces for enhanced energy efficiency.
- Close to triple pane performance.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2011.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Glare reduction.
- Ideal for rooms requiring a softer light.
- Reduces solar heat gain.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Mirror finish reflects the sun.
- Lowest visible light transmittance skylight on the market today.
- Superior solar heat gain control.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
- Triple pane glass with two argon gas filled chambers.
- Industry leader with LoE3 triple coating on surface 2 & 5, or two of three panes of glass – unlike competition.
- Best energy efficiency and U-Value in the industry.
- Protects against fade causing UV rays.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
- Triple pane glass with two argon gas filled chambers.
- Exterior two panes are tempered glass.
- Additional security:
The innermost laminated lite holds the glass together in case of breakage. - Reduces the effects of sound by up to 30%.
- Up to 99% UV protection, reduces fading of furnishings.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
* Meets Vancouver building code.
The benefits of Columbia’s laminated glass
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic dome skylight.
Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is far harder to break and penetrate than traditional glass.
So, if you are concerned about security it is worth considering. The innermost interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
We offer triple glazing on all models
Columbia is the only skylight manufacturer offering triple glazing (including laminated options) on all skylight models, fixed & venting, standard and custom sizes.
Triple glazed skylights meet the current 2020 ENERGY STAR® certification requirements (Version 5). Providing industry leading energy efficiency.
Columbia offers the widest choice of skylight frame colours in North America
Sizes of GL AOF – Glass Commercial Aluminum Curb Mount – Fixed Skylight
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
The yellow star indicates the most popular sizes.
| Outside Curb | 18¼ | 26¼ | 30¼ | 34¼ | 36¼ | 38¼ | 40¼ | 50¼ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18¼ |
Model: 2020
Outside Curb (WxH)
18¼” x 18¼” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Outside Curb (WxH)
464mm x 464mm Daylight Area (Glass)
0.14 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 26¼ |
Model: 2028
Outside Curb (WxH)
18¼” x 26¼” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Outside Curb (WxH)
464mm x 667mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Outside Curb (WxH)
26¼” x 26¼” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Outside Curb (WxH)
667mm x 667mm Daylight Area (Glass)
0.33 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34¼ |
Model: 2036
Outside Curb (WxH)
18¼” x 34¼” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Outside Curb (WxH)
464mm x 870mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Outside Curb (WxH)
26¼” x 34¼” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Outside Curb (WxH)
667mm x 870mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Outside Curb (WxH)
34¼” x 34¼” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Outside Curb (WxH)
870mm x 870mm Daylight Area (Glass)
0.60 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 38¼ |
Model: 2840
Outside Curb (WxH)
26¼” x 38¼” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Outside Curb (WxH)
667mm x 972mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Outside Curb (WxH)
38¼” x 38¼” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Outside Curb (WxH)
972mm x 972mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40¼ |
Model: 4242
Outside Curb (WxH)
40¼” x 40¼” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Outside Curb (WxH)
1022mm x 1022mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 50¼ |
Model: 2052
Outside Curb (WxH)
18¼” x 50¼” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Outside Curb (WxH)
464mm x 1276mm Daylight Area (Glass)
0.44 m2 |
Model: 2852
Outside Curb (WxH)
26¼” x 50¼” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Outside Curb (WxH)
667mm x 1276mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Outside Curb (WxH)
34¼” x 50¼” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Outside Curb (WxH)
870mm x 1276mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Outside Curb (WxH)
38¼” x 50¼” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Outside Curb (WxH)
972mm x 1276mm Daylight Area (Glass)
1.03 m2 |
Model: 5252
Outside Curb (WxH)
50¼” x 50¼” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Outside Curb (WxH)
1276mm x 1276mm Daylight Area (Glass)
1.40 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 58¼ |
Model: 2860
Outside Curb (WxH)
26¼” x 58¼” Daylight Area (Glass)
8.52 sq.ft. Model: 2860
Outside Curb (WxH)
667mm x 1480mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Outside Curb (WxH)
34¼” x 58¼” Daylight Area (Glass)
11.54 sq.ft. Model: 3660
Outside Curb (WxH)
870mm x 1480mm Daylight Area (Glass)
1.07 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 62¼ |
Model: 2864
Outside Curb (WxH)
26¼” x 62¼” Daylight Area (Glass)
9.14 sq.ft. Model: 2864
Outside Curb (WxH)
667mm x 1581mm Daylight Area (Glass)
0.85 m2 |
Model: 3664
Outside Curb (WxH)
34¼” x 62¼” Daylight Area (Glass)
12.39 sq.ft. Model: 3664
Outside Curb (WxH)
870mm x 1581mm Daylight Area (Glass)
1.15 m2 |
Model: 4064
Outside Curb (WxH)
38¼” x 62¼” Daylight Area (Glass)
14.02 sq.ft. Model: 4064
Outside Curb (WxH)
972mm x 1581mm Daylight Area (Glass)
1.30 m2 |
Model: 5264
Outside Curb (WxH)
50¼” x 62¼” Daylight Area (Glass)
18.89 sq.ft. Model: 5264
Outside Curb (WxH)
1276mm x 1581mm Daylight Area (Glass)
1.75 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 66¼ |
Model: 2868
Outside Curb (WxH)
26¼” x 66¼” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Outside Curb (WxH)
667mm x 1683mm Daylight Area (Glass)
0.91 m2 |
Model: 3668
Outside Curb (WxH)
34¼” x 66¼” Daylight Area (Glass)
13.24 sq.ft. Model: 3668
Outside Curb (WxH)
870mm x 1683mm Daylight Area (Glass)
1.23 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 74¼ |
Model: 2076
Outside Curb (WxH)
18¼” x 74¼” Daylight Area (Glass)
7.10 sq.ft. Model: 2076
Outside Curb (WxH)
464mm x 1886mm Daylight Area (Glass)
0.66 m2 |
Model: 2876
Outside Curb (WxH)
26¼” x 74¼” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Outside Curb (WxH)
667mm x 1886mm Daylight Area (Glass)
1.02 m2 |
Model: 3676
Outside Curb (WxH)
34¼” x 74¼” Daylight Area (Glass)
14.93 sq.ft. Model: 3676
Outside Curb (WxH)
870mm x 1886mm Daylight Area (Glass)
1.39 m2 |
Model: 4076
Outside Curb (WxH)
38¼” x 74¼” Daylight Area (Glass)
16.89 sq.ft. Model: 4076
Outside Curb (WxH)
972mm x 1886mm Daylight Area (Glass)
1.57 m2 |
Model: 5276
Outside Curb (WxH)
50¼” x 74¼” Daylight Area (Glass)
22.77 sq.ft. Model: 5276
Outside Curb (WxH)
1276mm x 1886mm Daylight Area (Glass)
2.12 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 78¼ |
Model: 3280
Outside Curb (WxH)
30¼” x 78¼” Daylight Area (Glass)
13.71 sq.ft. Model: 3280
Outside Curb (WxH)
768mm x 1988mm Daylight Area (Glass)
1.27 m2 |
Model: 3880
Outside Curb (WxH)
36¼” x 78¼” Daylight Area (Glass)
16.81 sq.ft. Model: 3880
Outside Curb (WxH)
921mm x 1988mm Daylight Area (Glass)
1.56 m2 |
Model: 4280
Outside Curb (WxH)
40¼” x 78¼” Daylight Area (Glass)
18.88 sq.ft. Model: 4280
Outside Curb (WxH)
1022mm x 1988mm Daylight Area (Glass)
1.75 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 98¼ |
Model: 28100
Outside Curb (WxH)
26¼” x 98¼” Daylight Area (Glass)
14.77 sq.ft. Model: 28100
Outside Curb (WxH)
667mm x 2496mm Daylight Area (Glass)
1.37 m2 |
Model: 36100
Outside Curb (WxH)
34¼” x 98¼” Daylight Area (Glass)
20.02 sq.ft. Model: 36100
Outside Curb (WxH)
870mm x 2496mm Daylight Area (Glass)
1.86 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
For multiple models go to the Drawings & Specification Library page.
Why Columbia
Canadian made skylights, designed for our harsh climate
Columbia skylights are specifically designed for life in our Canadian climate. Whether subjected to snow, ice, wind, hail, or intense heat, our products are engineered to outperform these demanding conditions.
Many imported skylights are designed for a more temperate climate and lack the performance and durability. Columbia has spent many decades manufacturing premium quality skylights that have stood up to the test of time in our Canadian climate.
Every aspect of the skylight has been studied, engineered, and tested.
Columbia utilizes the best materials available, including the latest glass technology.
Energy efficiency is a concern for Canadian homeowners because of our extreme climate. Columbia is the only Canadian manufacturer to offer Triple Glazing on all our skylight models, fixed and venting. We offer more ENERGY STAR® glass options than any other manufacturer.
New Mississauga distribution warehouse to better serve Ontario, Quebec & the Maritimes
We have relocated our eastern distribution warehouse to a newly constructed facility in Mississauga, Ontario. Columbia’s new distribution warehouse is larger and able to store a full range of ready to deliver Columbia, Slimlite, and FAKRO products.
The warehouse allows us to serve Eastern Canada with greater efficiency, and improved delivery times.
You might also be interested in…
Columbia AC AOF – Commercial Skylight
Featuring a strong and rigid aluminum external and internal frame. Available in Columbia’s full range of acrylic options. Dome and pyramid.
Learn More
Columbia CIC – Commercial Integrated Curb Fixed
The Commercial Integrated Curb Skylight is designed for installation on flat roof commercial buildings, factories and warehouses.
Learn More
Columbia CRD – Circular Roof Dome
The Circular Roof Dome is not only highly effective in letting in a large amount of natural light, but they also make a dramatic architectural style statement.
Learn More
Columbia GL VCM – Curb Mount Fixed Glass Skylight
The beauty and clarity of natural light. This high quality Curb Mounted fixed skylight is the right choice for most sloped roof applications where you want to brighten your living…
Learn More
