CIC – Commercial Integrated Curb Fixed
- The Commercial Integrated Curb Skylight is designed for installation on flat roof commercial buildings, factories and warehouses.
- Manufactured using a high grade aluminum, insulated curb, the CIC is built to resist the impact of harsh Canadian weather. This skylight is virtually maintenance free over its lifespan.
- Standard curb height is 12”.
- Available with curb up to 24” to accommodate any height of roof insulation.
- Built with a strong durable weather resistant aluminum insulated curb that elevates the skylight above snow and ice build up.
- This product provides fast track skylight installation as it eliminates the need to construct the curb structures on site.
- Available on acrylic dome and pyramid models.
FEATURES
- Includes a 12” high insulated curb with 3” mounting flange.
- Also available in 14”/16”/18”/24” or custom height models.
- Curb includes rigid insulation for superior thermal performance.
- Mounts directly to the roof deck.
- Pyramids available for square shaped skylights.
- Choose from double or triple glazed models in a choice of clear, bronze, and translucent white tints in acrylic or polycarbonate.
- Features mill finished aluminum base and retaining frames.

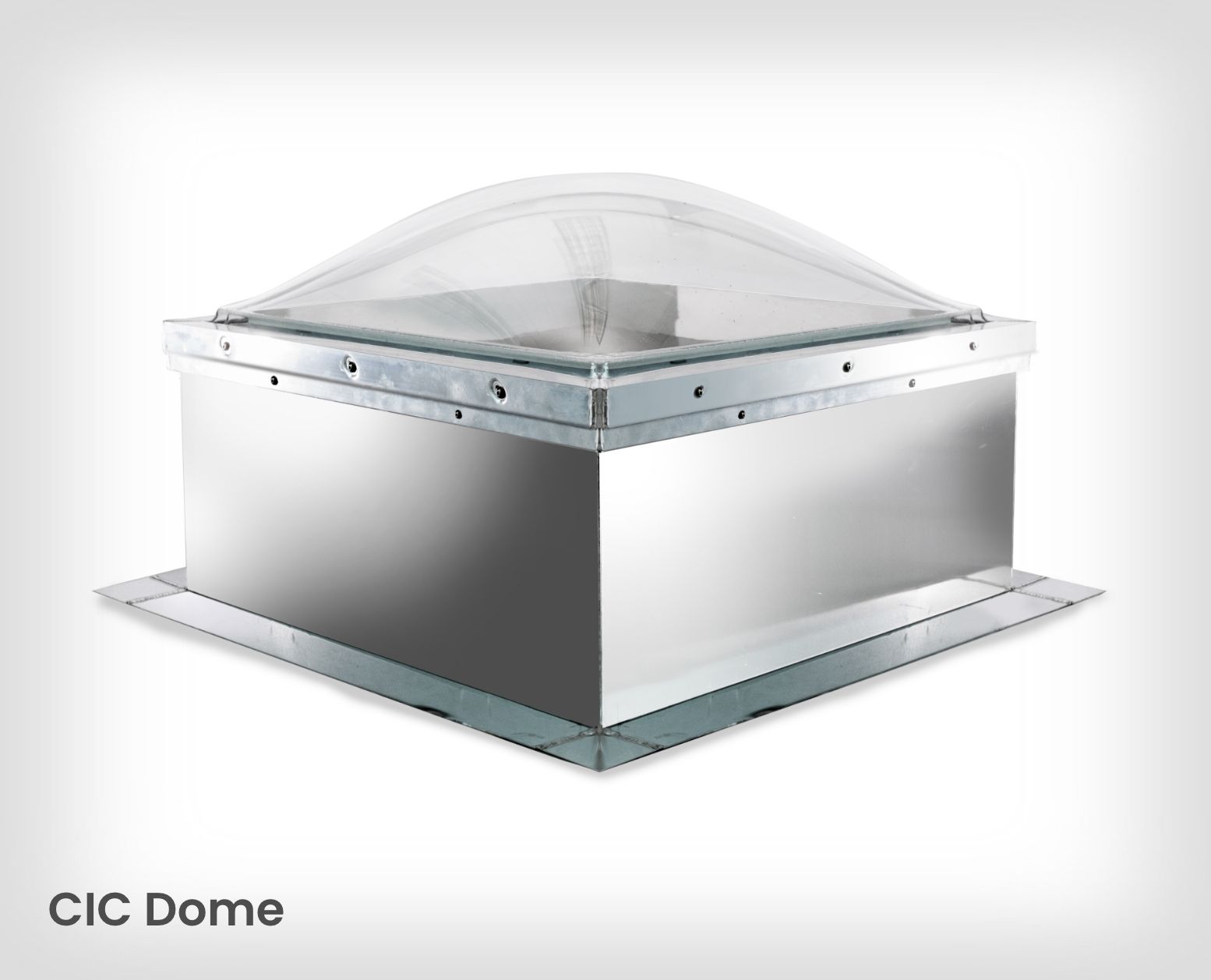

Integrated Curb – Dome Skylight

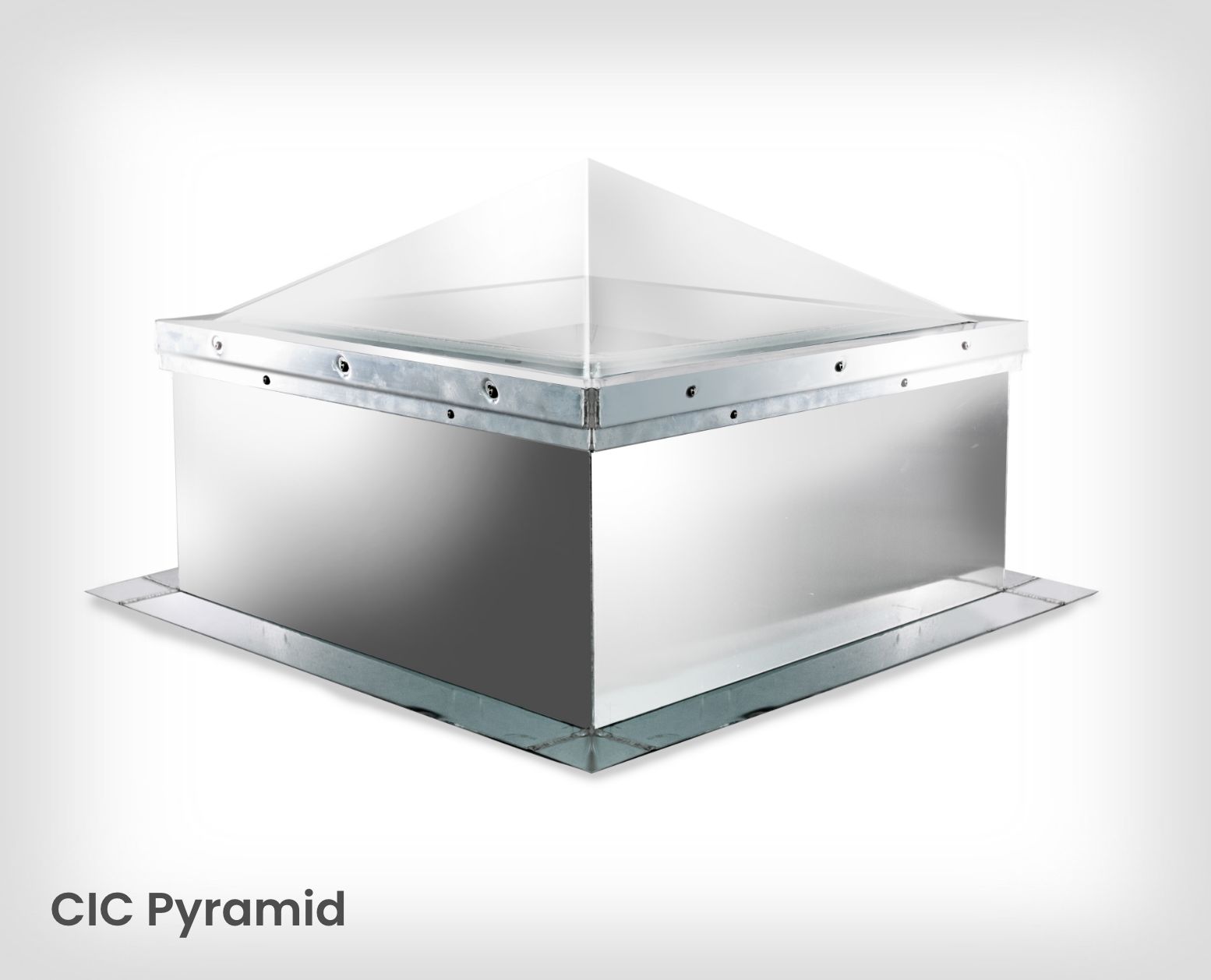

Integrated Curb – Pyramid Skylight
Available in ultra strong Polycarbonate
For applications that require additional security
Recommended
Location
- Commercial buildings
- Government buildings
- Factories
- Warehouses
- Recreational facilities
Frame Options

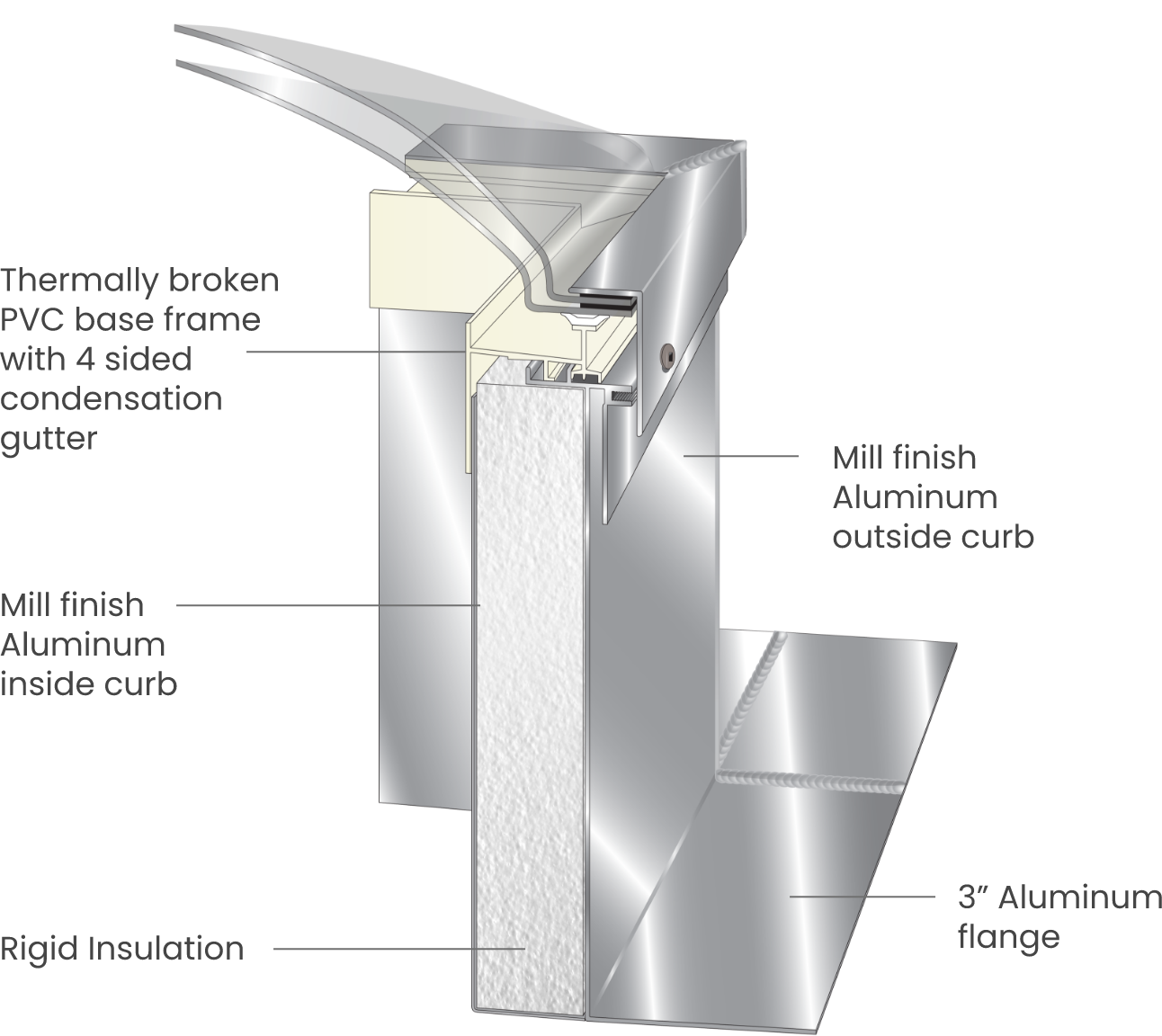

TLB IC – Thermally
Broken Frame
A vinyl (PVC) base frame provides a thermal break between the aluminum curb and frame.

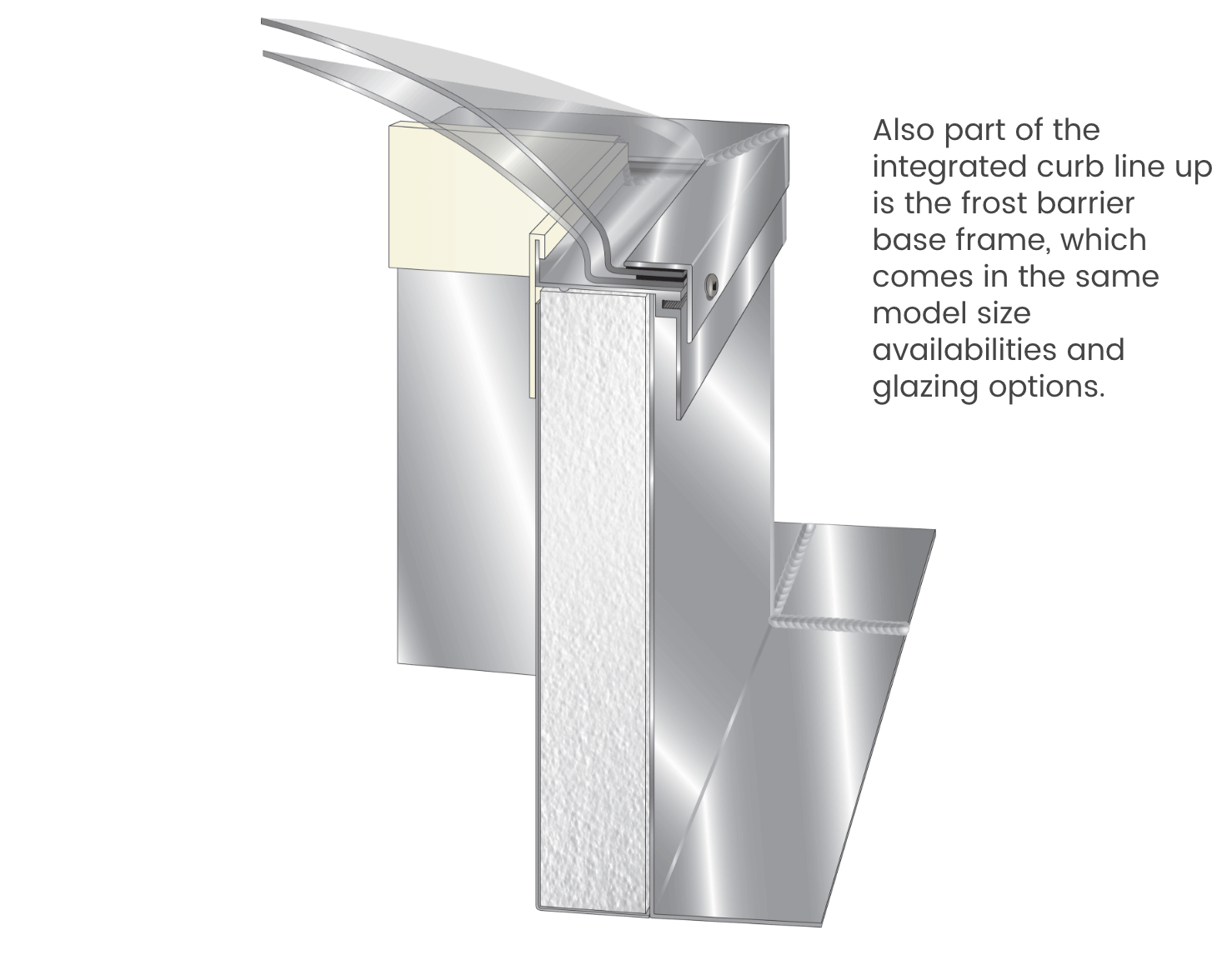

FBDD IC – PVC Frost Break
Aluminum Frame
A vinyl (PVC) frost break prevents cold transfer to the inside of the skylight.
Available in a range of curb heights. *
*Custom heights also available.
Acrylic is the right choice for many applications
- Columbia manufactures skylights in acrylic and polycarbonate.
- These versatile glazing materials are able to be produced in double and triple glazing options.
- Acrylic and polycarbonate come in three tints – clear, bronze, and translucent white.
Double Glazed Clear
Double Glazed Clear
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Clear acrylic gives bright natural light.
Double Glazed Bronze
Double Glazed Bronze
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Bronze acrylic delivers the maximum protection from extreme sunlight, reducing glare and solar heat gain.
Double Glazed White
Double Glazed White
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
Triple Glazed Clear
Triple Glazed Clear
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Additional comfort in your interior space.
Triple Glazed Bronze
Triple Glazed Bronze
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, reducing glare and solar heat gain.
- Additional comfort in your interior space.
Triple Glazed White
Triple Glazed White
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Additional comfort in your interior space.
Sizes of CIC – Commercial Integrated Curb Skylight – Fixed
Available in the sizes shown in the chart below (Imperial and Metric). You can also review the most popular sizes. If you don’t see the size you need below, then Custom sizes are available. You can also download a printable PDF of the chart.
GO TO CUSTOM SIZES
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
Popular Sizes
The yellow star indicates the most popular sizes.
Acrylic Dome Only
Acrylic Dome Or Pyramid
| Roof Opening | 14¼ | 22¼ | 30¼ | 34¼ | 37 | 42¼ | 46¼ | 55 | 59 | 67¼ | 69½ | 75 | 85½ | 89½ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14¼ |
Model: 2020
Roof Opening (WxH)
14¼” x 14¼” Daylight Area (Glass)
1.41 sq.ft. Model: 2020
Roof Opening (WxH)
362mm x 362mm Daylight Area (Glass)
0.13 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22¼ |
Model: 2028
Roof Opening (WxH)
14¼” x 22¼” Daylight Area (Glass)
2.20 sq.ft. Model: 2028
Roof Opening (WxH)
362mm x 565mm Daylight Area (Glass)
0.20 m2 |
Model: 2828
Roof Opening (WxH)
22¼” x 22¼” Daylight Area (Glass)
3.44 sq.ft. Model: 2828
Roof Opening (WxH)
565mm x 565mm Daylight Area (Glass)
0.32 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30¼ |
Model: 2036
Roof Opening (WxH)
14¼” x 30¼” Daylight Area (Glass)
2.99 sq.ft. Model: 2036
Roof Opening (WxH)
362mm x 768mm Daylight Area (Glass)
0.28 m2 |
Model: 2836
Roof Opening (WxH)
22¼” x 30¼” Daylight Area (Glass)
4.67 sq.ft. Model: 2836
Roof Opening (WxH)
565mm x 768mm Daylight Area (Glass)
0.43 m2 |
Model: 3636
Roof Opening (WxH)
30¼” x 30¼” Daylight Area (Glass)
6.35 sq.ft. Model: 3636
Roof Opening (WxH)
768mm x 768mm Daylight Area (Glass)
0.59 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34¼ |
Model: 4040
Roof Opening (WxH)
34¼” x 34¼” Daylight Area (Glass)
8.15 sq.ft. Model: 4040
Roof Opening (WxH)
870mm x 870mm Daylight Area (Glass)
0.76 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 37 |
Model: 4242
Roof Opening (WxH)
37″ x 37” Daylight Area (Glass)
9.51 sq.ft. Model: 4242
Roof Opening (WxH)
940mm x 940mm Daylight Area (Glass)
0.88 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46¼ |
Model: 2052
Roof Opening (WxH)
14¼” x 46¼” Daylight Area (Glass)
4.58 sq.ft. Model: 2052
Roof Opening (WxH)
362mm x 1175mm Daylight Area (Glass)
0.43 m2 |
Model: 2852
Roof Opening (WxH)
22¼” x 46¼” Daylight Area (Glass)
7.15 sq.ft. Model: 2852
Roof Opening (WxH)
565mm x 1175mm Daylight Area (Glass)
0.66 m2 |
Model: 3652
Roof Opening (WxH)
30¼” x 46¼” Daylight Area (Glass)
9.72 sq.ft. Model: 3652
Roof Opening (WxH)
768mm x 1175mm Daylight Area (Glass)
0.90 m2 |
Model: 4052
Roof Opening (WxH)
34¼” x 46¼” Daylight Area (Glass)
11.00 sq.ft. Model: 4052
Roof Opening (WxH)
870mm x 1175mm Daylight Area (Glass)
1.02 m2 |
Model: 5252
Roof Opening (WxH)
46¼” x 46¼” Daylight Area (Glass)
14.85 sq.ft. Model: 5252
Roof Opening (WxH)
1175mm x 1175mm Daylight Area (Glass)
1.38 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 55 |
Model: 2860
Roof Opening (WxH)
22¼” x 55” Daylight Area (Glass)
8.50 sq.ft. Model: 2860
Roof Opening (WxH)
565mm x 1397mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Roof Opening (WxH)
30¼” x 55” Daylight Area (Glass)
11.55 sq.ft. Model: 3660
Roof Opening (WxH)
768mm x 1397mm Daylight Area (Glass)
1.07 m2 |
Model: 5260
Roof Opening (WxH)
46¼” x 55” Daylight Area (Glass)
17.66 sq.ft. Model: 5260
Roof Opening (WxH)
1175mm x 1397mm Daylight Area (Glass)
1.64 m2 |
Model: 6060
Roof Opening (WxH)
55″ x 55” Daylight Area (Glass)
21.01 sq.ft. Model: 6060
Roof Opening (WxH)
1397mm x 1397mm Daylight Area (Glass)
1.95 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 59 |
Model: 6464
Roof Opening (WxH)
59″ x 59” Daylight Area (Glass)
24.17 sq.ft. Model: 6464
Roof Opening (WxH)
1499mm x 1499mm Daylight Area (Glass)
2.25 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 67¼ |
Model: 2072
Roof Opening (WxH)
14¼” x 67¼” Daylight Area (Glass)
6.65 sq.ft. Model: 2072
Roof Opening (WxH)
362mm x 1708mm Daylight Area (Glass)
0.62 m2 |
Model: 2872
Roof Opening (WxH)
22¼” x 67¼” Daylight Area (Glass)
10.39 sq.ft. Model: 2872
Roof Opening (WxH)
565mm x 1708mm Daylight Area (Glass)
0.97 m2 |
Model: 3672
Roof Opening (WxH)
30¼” x 67¼” Daylight Area (Glass)
14.13 sq.ft. Model: 3672
Roof Opening (WxH)
768mm x 1708mm Daylight Area (Glass)
1.31 m2 |
Model: 4872
Roof Opening (WxH)
42¼” x 67¼” Daylight Area (Glass)
19.73 sq.ft. Model: 4872
Roof Opening (WxH)
1073mm x 1708mm Daylight Area (Glass)
1.83 m2 |
Model: 5272
Roof Opening (WxH)
46¼” x 67¼” Daylight Area (Glass)
21.60 sq.ft. Model: 5272
Roof Opening (WxH)
1175mm x 1708mm Daylight Area (Glass)
2.01 m2 |
Model: 7272
Roof Opening (WxH)
67¼” x 67¼” Daylight Area (Glass)
31.41 sq.ft. Model: 7272
Roof Opening (WxH)
1708mm x 1708mm Daylight Area (Glass)
2.92 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 69½ |
Model: 2076
Roof Opening (WxH)
14¼” x 69½” Daylight Area (Glass)
6.88 sq.ft. Model: 2076
Roof Opening (WxH)
362mm x 1765mm Daylight Area (Glass)
0.64 m2 |
Model: 2876
Roof Opening (WxH)
22¼” x 69½” Daylight Area (Glass)
10.74 sq.ft. Model: 2876
Roof Opening (WxH)
565mm x 1765mm Daylight Area (Glass)
1.00 m2 |
Model: 3676
Roof Opening (WxH)
30¼” x 69½” Daylight Area (Glass)
14.60 sq.ft. Model: 3676
Roof Opening (WxH)
768mm x 1765mm Daylight Area (Glass)
1.36 m2 |
Model: 5276
Roof Opening (WxH)
46¼” x 69½” Daylight Area (Glass)
22.32 sq.ft. Model: 5276
Roof Opening (WxH)
1175mm x 1765mm Daylight Area (Glass)
2.07 m2 |
Model: 6076
Roof Opening (WxH)
55″ x 69½” Daylight Area (Glass)
26.55 sq.ft. Model: 6076
Roof Opening (WxH)
1397mm x 1765mm Daylight Area (Glass)
2.47 m2 |
Model: 7676
Roof Opening (WxH)
69½” x 69½” Daylight Area (Glass)
33.54 sq.ft. Model: 7676
Roof Opening (WxH)
1765mm x 1765mm Daylight Area (Glass)
3.12 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 75 |
Model: 4280
Roof Opening (WxH)
37″ x 75” Daylight Area (Glass)
19.27 sq.ft. Model: 4280
Roof Opening (WxH)
940mm x 1905mm Daylight Area (Glass)
1.79 m2 |
Model: 8080
Roof Opening (WxH)
75″ x 75” Daylight Area (Glass)
39.06 sq.ft. Model: 8080
Roof Opening (WxH)
1905mm x 1905mm Daylight Area (Glass)
3.63 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 85½ |
Model: 9292
Roof Opening (WxH)
85½” x 85½” Daylight Area (Glass)
50.77 sq.ft. Model: 9292
Roof Opening (WxH)
2172mm x 2172mm Daylight Area (Glass)
4.72 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 89½ |
Model: 2896
Roof Opening (WxH)
22¼” x 89½” Daylight Area (Glass)
13.83 sq.ft. Model: 2896
Roof Opening (WxH)
565mm x 2273mm Daylight Area (Glass)
1.28 m2 |
Model: 3696
Roof Opening (WxH)
30¼” x 89½” Daylight Area (Glass)
18.80 sq.ft. Model: 3696
Roof Opening (WxH)
768mm x 2273mm Daylight Area (Glass)
1.75 m2 |
Model: 5296
Roof Opening (WxH)
46¼” x 89½” Daylight Area (Glass)
28.75 sq.ft. Model: 5296
Roof Opening (WxH)
1175mm x 2273mm Daylight Area (Glass)
2.67 m2 |
Model: 6096
Roof Opening (WxH)
55″ x 89½” Daylight Area (Glass)
34.18 sq.ft. Model: 6096
Roof Opening (WxH)
1397mm x 2273mm Daylight Area (Glass)
3.18 m2 |
Model: 6496
Roof Opening (WxH)
59″ x 89½” Daylight Area (Glass)
36.67 sq.ft. Model: 6496
Roof Opening (WxH)
1499mm x 2273mm Daylight Area (Glass)
3.41 m2 |
Model: 7296
Roof Opening (WxH)
67¼” x 89½” Daylight Area (Glass)
41.80 sq.ft. Model: 7296
Roof Opening (WxH)
1708mm x 2273mm Daylight Area (Glass)
3.88 m2 |
Model: 9696
Roof Opening (WxH)
89½” x 89½” Daylight Area (Glass)
55.63 sq.ft. Model: 9696
Roof Opening (WxH)
2273mm x 2273mm Daylight Area (Glass)
5.17 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 115 |
Model: 52120
Roof Opening (WxH)
46¼” x 115” Daylight Area (Glass)
36.94 sq.ft. Model: 52120
Roof Opening (WxH)
1175mm x 2921mm Daylight Area (Glass)
3.43 m2 |
Model: 76120
Roof Opening (WxH)
69½” x 115” Daylight Area (Glass)
55.50 sq.ft. Model: 76120
Roof Opening (WxH)
1765mm x 2921mm Daylight Area (Glass)
5.16 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
All integrated curb (CIC) skylight availalble in choice of thermally broken (TLB) or with an all aluminum frame & frost barrier (FBDD). |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size Chart – Summary
Pinch to enlarge.
All integrated curb (CIC) skylight availalble in choice of thermally broken (TLB) or with an all aluminum frame & frost barrier (FBDD).
Acrylic Dome Only
Acrylic Dome Or Pyramid
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Drawings &
Specifications
Specifications
Download two formats of this model’s technical drawings – (1) Detail or (2) Product Data. Also available, .dwg (CAD file) and Product Specifications as a Word Doc, PDF, or Text file.
For multiple models go to the Drawings & Specification Library page.
For multiple models go to the Drawings & Specification Library page.
Why Columbia
New Mississauga distribution warehouse to better serve Ontario, Quebec and the Maritimes
We have relocated our eastern distribution warehouse to a newly constructed facility in Mississauga, Ontario. Columbia’s new distribution warehouse is larger and able to store a full range of ready to deliver Columbia and FAKRO products.
The warehouse is located on Meadowvale Boulevard near the 401 and Mississauga Road, providing easy highway access .
The warehouse allows us to serve Eastern Canada with greater efficiency, improved delivery times and allowing us to carry larger inventories.
Review our FAKRO Premium European skylights, roof windows & flat roof skylights
FAKRO produces the highest quality European designed & manufactured skylights in the world, delivering exceptional performance and energy efficicency. If you want the best for your home, FAKRO skylights & roof windows are what you are looking for, with outstanding craftsmanship and finish.
Columbia is proud to be the exclusive Canadian distributor of FAKRO skylights and roof windows. For over 30 years, the FAKRO group has produced beautifully designed, technically superior skylights. All of the FAKRO skylights are produced in their European plants.
As the second largest skylight manufacturer in the world, FAKRO supplies up to 15% of the global skylight market – with over 8 million skylights sold in more than 50 countries.
You might also be interested in…
Columbia AC AOF – Commercial Skylight
Featuring a strong and rigid aluminum external and internal frame. Available in Columbia’s full range of acrylic options. Dome and pyramid.
Learn More
Glass VCM SPD (Vinyl) & ATCM SPD (Aluminum) Spindle Commercial Skylight
The Venting Spindle skylight is intended for larger skylight applications that require ventilation. Available in a full selection of glass or acrylic options.
Learn More
Columbia GL RAS – Roof Access Door – Glass
Ideal for turning a rooftop into a patio deck or any other application where egress is required while letting in an abundance of natural light.
Learn More
FAKRO DRF – Flat Roof Access Skylight
An innovative new product, the DRF insulated roof access skylight joins our existing range of FAKRO flat roof solutions. In addition to acting as a skylight, it has the extra…
Learn More
