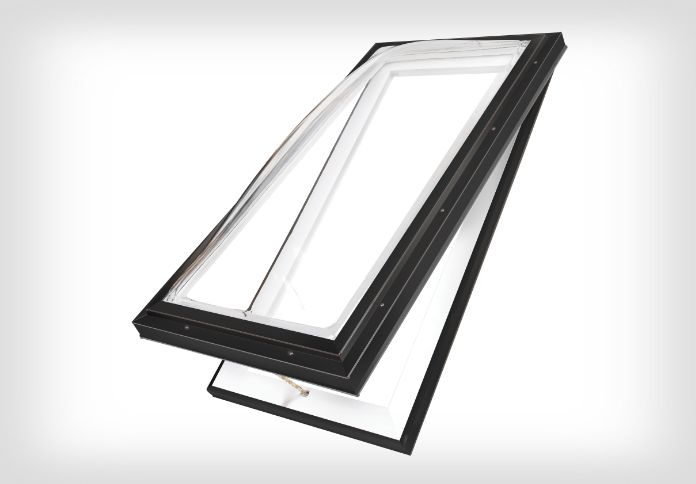

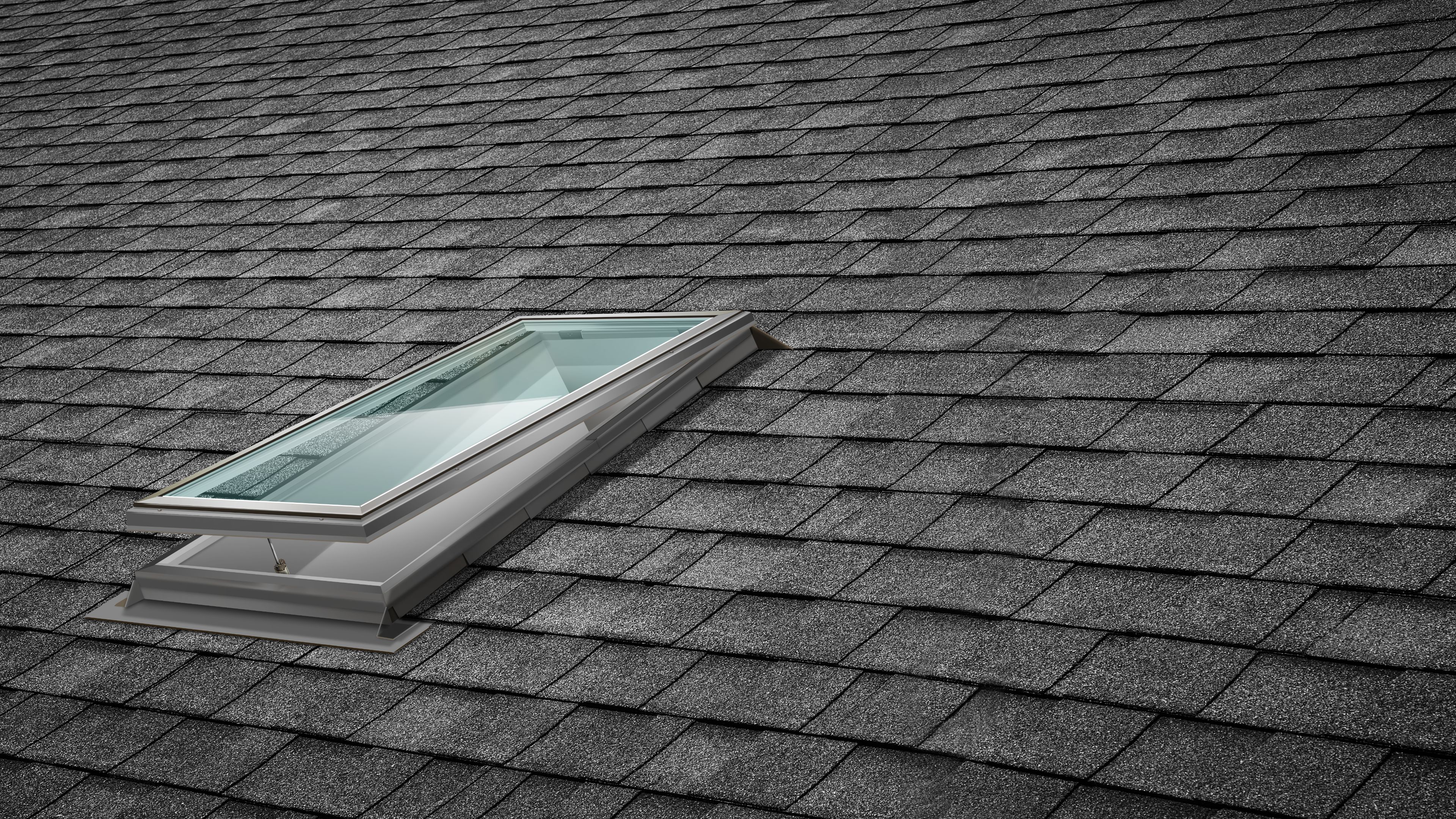

GLASS VCM SPD (VINYL) & ATCM SPD (Aluminum) Spindle Commercial Skylight
- The SPD Spindle skylight is intended for larger skylight applications that require ventilation.
- Available in a wide selection of glass options.
- Smaller sizes have a PVC internal frame and for larger sizes an aluminum internal frame is used for additional rigidity. (See size chart)
- Spindle skylight mounts to a site built curb, by others.
- The SPD Spindle skylight comes in a manual (SPD) and electric opening version (SPD-E). The venting skylight operates using a heavy duty screw spindle that can be opened or closed with a control rod or electric wall switch.
- The SPD Spindle skylight is a one piece base frame that seals to the curb with pre installed heavy duty foam tape.
- This skylight does not include a bug screen.
FEATURES
- Recommended for larger openings, where a 2 piece (OVCM) skylight is not suitable.
- Curb mounted installation. Site built by others. Heavy duty corrosion resistant opening hardware.
- Manual or electric opening options.
- Suitable for flat or sloped roof applications.
- The exceptional clarity and brightness of glass, plus the option of double or triple glazed for additional energy efficiency, with the choice of laminate for additional security.
- Larger sizes utilize an aluminum thermally broken internal frame for additional rigidity.
- For certain sizes a double spindle may be required for stability in the open position.
Double or triple glazing, tempered or laminated
Argon gas filled for superior energy efficiency
Recommended
Roof Type
Flat with sloped curb or Sloped roof
For larger openings or commercial applications
Columbia offers a wide range of high performance glass options
- Columbia offers a wide range of double or triple glazing options.
- Choose triple glazing for improved energy efficiency, and Temp/Temp/Laminated for additional security.
Cardinal Glass Industries is Columbia’s glass supplier, a world leader in high performance glass technology. Cardinal maintains a clear vision – design and fabricate the most advanced residential glass products in the industry.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Blocks 95% of UV rays.
- Advanced condensation
resistance. - Industry standard, identical LoE3 coating from the same
supplier as the competition.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Reduces the effects of sound by up to 30%.
- Additional security:
The innermost interlayer holds the glass together in case of breakage. - Clear or translucent white laminated glass is available.
- Up to 99% UV protection, reduces fading of furnishings.
- 10 year hail warranty on cracking or breakage due to hail.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Neat coating breaks up organic material on the glass.
- Reduces water spotting and disperses water evenly.
- Blocks 95% of UV rays.
- Neat coating available as an add on to all glazing options.
- Dual pane with argon gas. Superior LoE3 triple coating is virtually invisible.
- LoE3 coatings applied on two surfaces for enhanced energy efficiency.
- Close to triple pane performance.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2011.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Glare reduction.
- Ideal for rooms requiring a softer light.
- Reduces solar heat gain.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
- Dual pane with argon gas.
- Superior LoE3 triple coating is virtually invisible.
- Mirror finish reflects the sun.
- Lowest visible light transmittance skylight on the market today.
- Superior solar heat gain control.
- Blocks 95% of UV rays.
- Available in bronze and grey tints.
- Triple pane glass with two argon gas filled chambers.
- Industry leader with LoE3 triple coating on surface 2 & 5, or two of three panes of glass – unlike competition.
- Best energy efficiency and U-Value in the industry.
- Protects against fade causing UV rays.
- Blocks 95% of UV rays.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
- Triple pane glass with two argon gas filled chambers.
- Exterior two panes are tempered glass.
- Additional security:
The innermost laminated lite holds the glass together in case of breakage. - Reduces the effects of sound by up to 30%.
- Up to 99% UV protection, reduces fading of furnishings.
- Offered in all standard and custom sized models since 2010.
- 10 Year hail warranty.
* Meets Vancouver building code.
The benefits of Columbia’s laminated glass
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic dome skylight.
Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is far harder to break and penetrate than traditional glass.
So, if you are concerned about security it is worth considering. The innermost interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
We offer triple glazing on all models
Columbia is the only skylight manufacturer offering triple glazing (including laminated options) on all skylight models, fixed & venting, standard and custom sizes.
Triple glazed skylights meet the current 2020 ENERGY STAR® certification requirements (Version 5). Providing industry leading energy efficiency.
MANUAL OR ELECTRIC OPENING OPTIONS

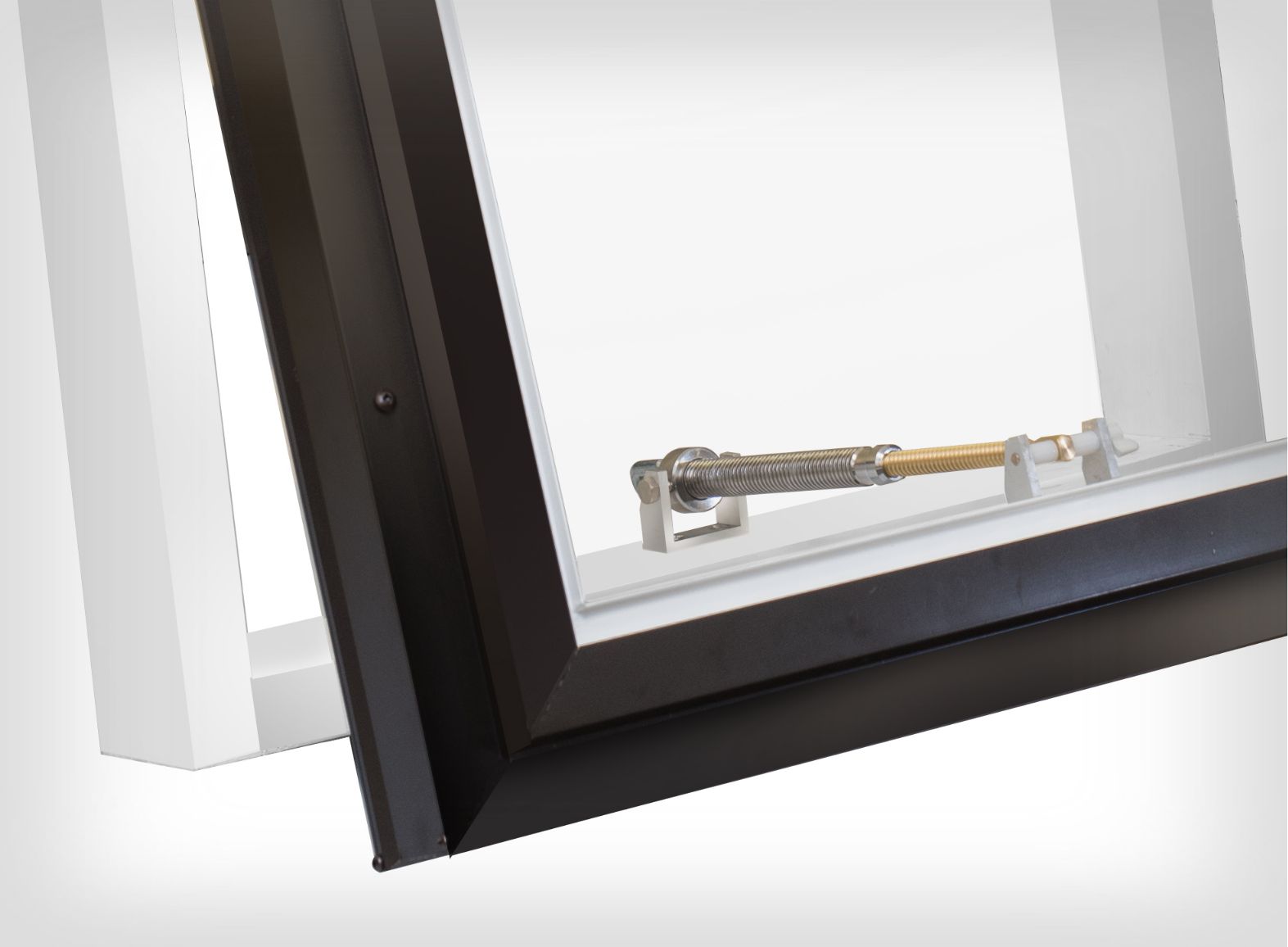

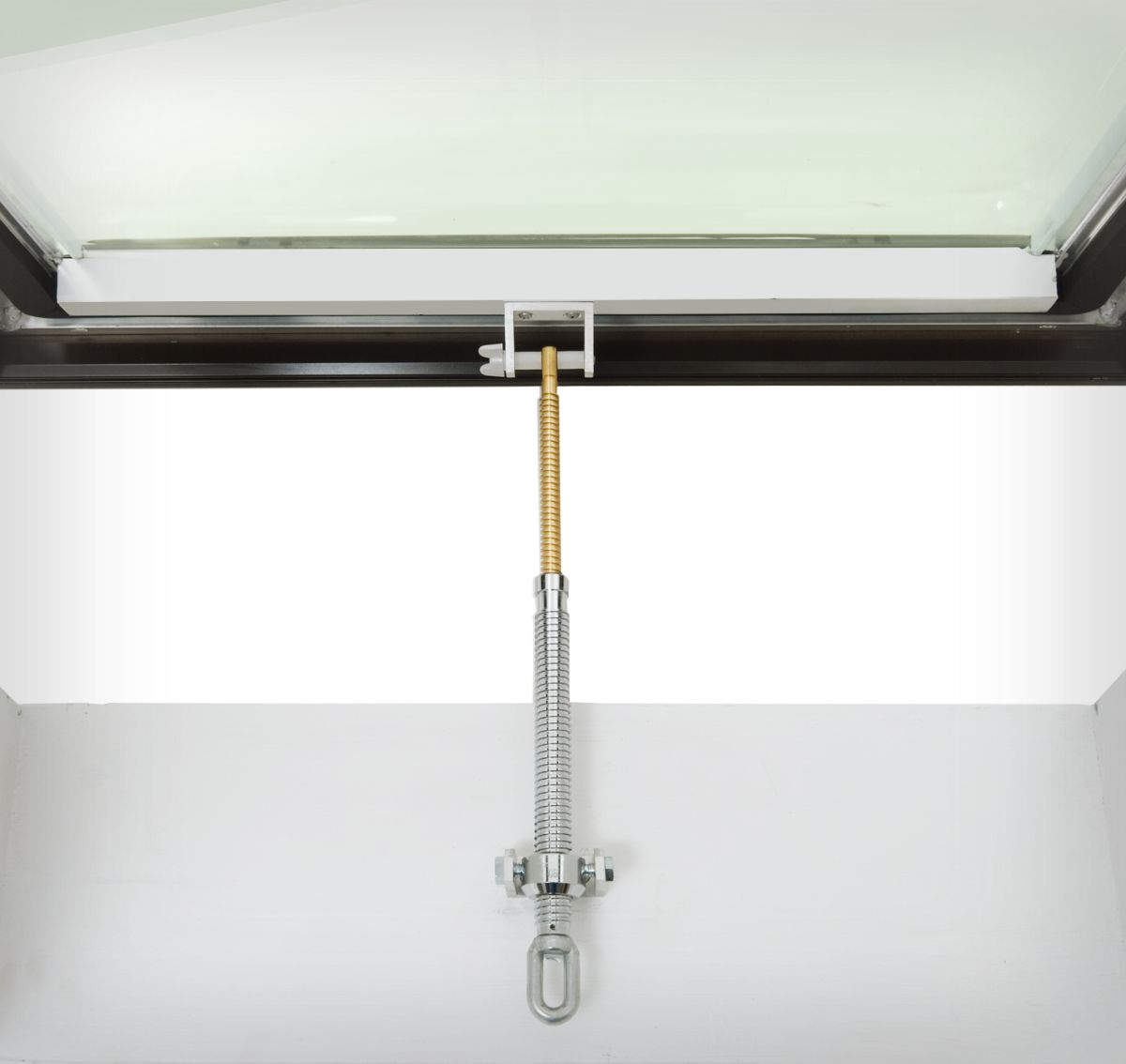

High quality steel and brass manual operating mechanism. Operated using a Columbia Telescopic Pole (4ft – 6ft and 6ft – 10ft. available)

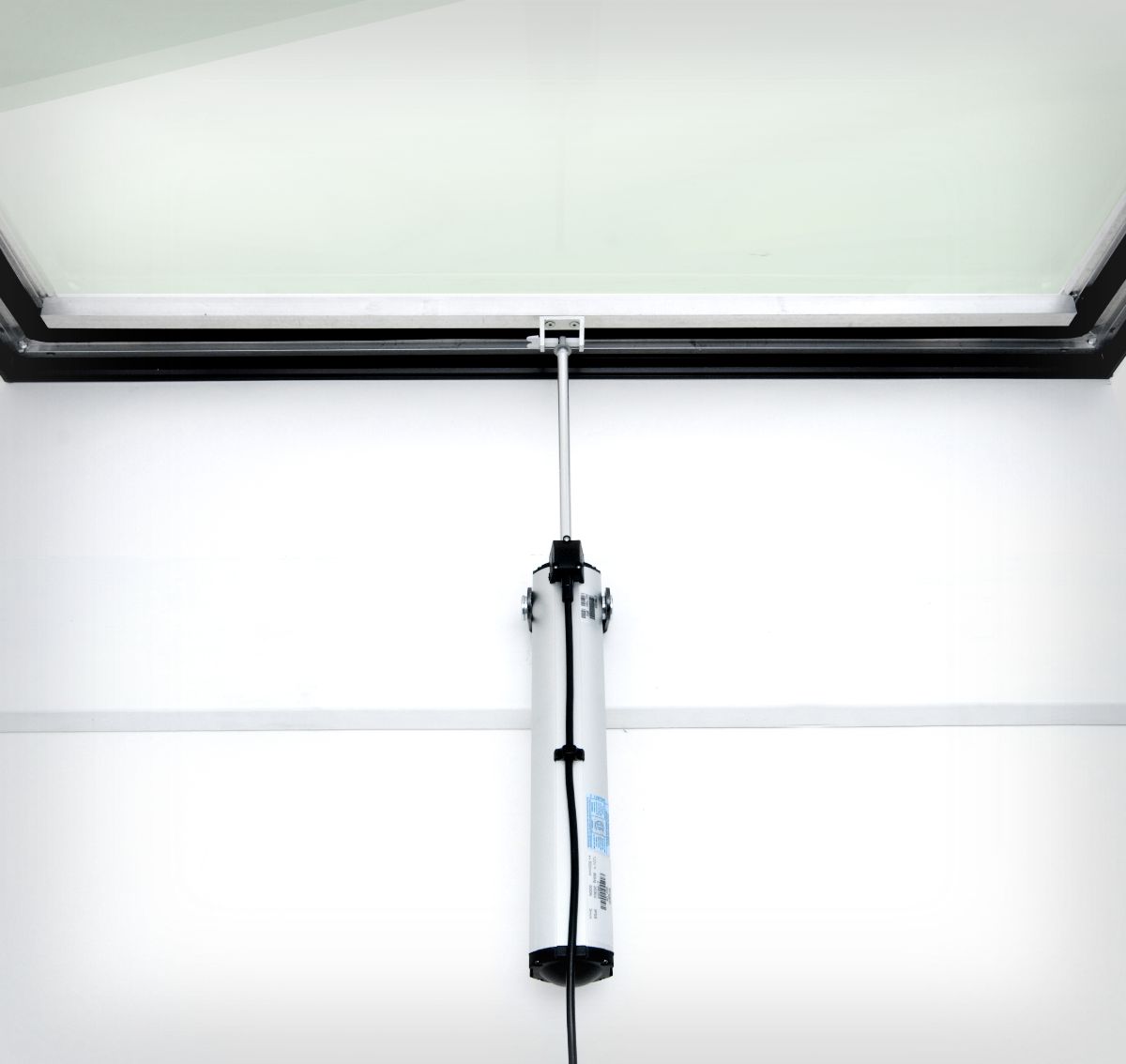

The convenience of an electric opening motor wired into the building electrical system, operated using a wall switch. NOTE: 220V power required.
Columbia offers the widest choice of skylight frame colours in North America
SIZES FOR GLASS VCM SPD (VINYL) & ATCM SPD (Aluminum)
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
The yellow star indicates the most popular sizes.
| Inside Curb | 14½ | 22½ | 30½ | 34½ | 36½ | 46½ |
|---|---|---|---|---|---|---|
| 14½ |
Model: 2020
Inside Curb (WxH)
14½” x 14½” Outside Curb (WxH)
17½” x 17½” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Inside Curb (WxH)
368mm x 368mm Outside Curb (WxH)
445mm x 445mm Daylight Area (Glass)
0.14 m2 |
|||||
| 22½ |
Model: 2028
Inside Curb (WxH)
14½” x 22½” Outside Curb (WxH)
17½” x 25½” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Inside Curb (WxH)
368mm x 572mm Outside Curb (WxH)
445mm x 648mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Inside Curb (WxH)
22½” x 22½” Outside Curb (WxH)
25½” x 25½” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Inside Curb (WxH)
572mm x 572mm Outside Curb (WxH)
648mm x 648mm Daylight Area (Glass)
0.33 m2 |
||||
| 30½ |
Model: 2036
Inside Curb (WxH)
14½” x 30½” Outside Curb (WxH)
17½” x 33½” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Inside Curb (WxH)
368mm x 775mm Outside Curb (WxH)
445mm x 851mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Inside Curb (WxH)
22½” x 30½” Outside Curb (WxH)
25½” x 33½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Inside Curb (WxH)
572mm x 775mm Outside Curb (WxH)
648mm x 851mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Inside Curb (WxH)
30½” x 30½” Outside Curb (WxH)
33½” x 33½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Inside Curb (WxH)
775mm x 775mm Outside Curb (WxH)
851mm x 851mm Daylight Area (Glass)
0.60 m2 |
|||
| 34½ |
Model: 2840
Inside Curb (WxH)
22½” x 34½” Outside Curb (WxH)
25½” x 37½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Inside Curb (WxH)
572mm x 876mm Outside Curb (WxH)
648mm x 953mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Inside Curb (WxH)
34½” x 34½” Outside Curb (WxH)
37½” x 37½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Inside Curb (WxH)
876mm x 876mm Outside Curb (WxH)
953mm x 953mm Daylight Area (Glass)
0.77 m2 |
||||
| 36½ |
Model: 4242
Inside Curb (WxH)
36½” x 36½” Outside Curb (WxH)
39½” x 39½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Inside Curb (WxH)
927mm x 927mm Outside Curb (WxH)
1003mm x 1003mm Daylight Area (Glass)
0.86 m2 |
|||||
| 46½ |
Model: 2052
Inside Curb (WxH)
14½” x 46½” Outside Curb (WxH)
17½” x 49½” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Inside Curb (WxH)
368mm x 1181mm Outside Curb (WxH)
445mm x 1257mm Daylight Area (Glass)
0.44 m2 |
Model: 2852
Inside Curb (WxH)
22½” x 46½” Outside Curb (WxH)
25½” x 49½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Inside Curb (WxH)
572mm x 1181mm Outside Curb (WxH)
648mm x 1257mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Inside Curb (WxH)
30½” x 46½” Outside Curb (WxH)
33½” x 49½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Inside Curb (WxH)
775mm x 1181mm Outside Curb (WxH)
851mm x 1257mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Inside Curb (WxH)
34½” x 46½” Outside Curb (WxH)
37½” x 49½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Inside Curb (WxH)
876mm x 1181mm Outside Curb (WxH)
953mm x 1257mm Daylight Area (Glass)
1.03 m2 |
Model: 5252 GL ATCM SPD
Inside Curb (WxH)
46½” x 46½” Outside Curb (WxH)
49½” x 49½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252 GL ATCM SPD
Inside Curb (WxH)
1181mm x 1181mm Outside Curb (WxH)
1257mm x 1257mm Daylight Area (Glass)
1.40 m2 |
|
| 54½ |
Model: 2860
Inside Curb (WxH)
22½” x 54½” Outside Curb (WxH)
25½” x 57½” Daylight Area (Glass)
8.52 sq.ft. Model: 2860
Inside Curb (WxH)
572mm x 1384mm Outside Curb (WxH)
648mm x 1461mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Inside Curb (WxH)
30½” x 54½” Outside Curb (WxH)
33½” x 57½” Daylight Area (Glass)
11.54 sq.ft. Model: 3660
Inside Curb (WxH)
775mm x 1384mm Outside Curb (WxH)
851mm x 1461mm Daylight Area (Glass)
1.07 m2 |
||||
| 58½ |
Model: 2864
Inside Curb (WxH)
22½” x 58½” Outside Curb (WxH)
25½” x 61½” Daylight Area (Glass)
9.14 sq.ft. Model: 2864
Inside Curb (WxH)
572mm x 1486mm Outside Curb (WxH)
648mm x 1562mm Daylight Area (Glass)
0.85 m2 |
Model: 3664
Inside Curb (WxH)
30½” x 58½” Outside Curb (WxH)
33½” x 61½” Daylight Area (Glass)
12.39 sq.ft. Model: 3664
Inside Curb (WxH)
775mm x 1486mm Outside Curb (WxH)
851mm x 1562mm Daylight Area (Glass)
1.15 m2 |
Model: 4064 GL ATCM SPD
Inside Curb (WxH)
34½” x 58½” Outside Curb (WxH)
37½” x 61½” Daylight Area (Glass)
14.02 sq.ft. Model: 4064 GL ATCM SPD
Inside Curb (WxH)
876mm x 1486mm Outside Curb (WxH)
953mm x 1562mm Daylight Area (Glass)
1.30 m2 |
|||
| 62½ |
Model: 2868
Inside Curb (WxH)
22½” x 62½” Outside Curb (WxH)
25½” x 65½” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Inside Curb (WxH)
572mm x 1588mm Outside Curb (WxH)
648mm x 1664mm Daylight Area (Glass)
0.91 m2 |
Model: 3668 GL ATCM SPD
Inside Curb (WxH)
30½” x 62½” Outside Curb (WxH)
33½” x 65½” Daylight Area (Glass)
13.24 sq.ft. Model: 3668 GL ATCM SPD
Inside Curb (WxH)
775mm x 1588mm Outside Curb (WxH)
851mm x 1664mm Daylight Area (Glass)
1.23 m2 |
||||
| 70½ |
Model: 2076
Inside Curb (WxH)
14½” x 70½” Outside Curb (WxH)
17½” x 73½” Daylight Area (Glass)
7.10 sq.ft. Model: 2076
Inside Curb (WxH)
368mm x 1791mm Outside Curb (WxH)
445mm x 1867mm Daylight Area (Glass)
0.66 m2 |
Model: 2876
Inside Curb (WxH)
22½” x 70½” Outside Curb (WxH)
25½” x 73½” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Inside Curb (WxH)
572mm x 1791mm Outside Curb (WxH)
648mm x 1867mm Daylight Area (Glass)
1.02 m2 |
Model: 3676 GL ATCM SPD
Inside Curb (WxH)
30½” x 70½” Outside Curb (WxH)
33½” x 73½” Daylight Area (Glass)
14.93 sq.ft. Model: 3676 GL ATCM SPD
Inside Curb (WxH)
775mm x 1791mm Outside Curb (WxH)
851mm x 1867mm Daylight Area (Glass)
1.39 m2 |
Model: 4076 GL ATCM SPD
Inside Curb (WxH)
34½” x 70½” Outside Curb (WxH)
37½” x 73½” Daylight Area (Glass)
16.89 sq.ft. Model: 4076 GL ATCM SPD
Inside Curb (WxH)
876mm x 1791mm Outside Curb (WxH)
953mm x 1867mm Daylight Area (Glass)
1.57 m2 |
||
| 74½ |
Model: 4280 GL ATCM SPD
Inside Curb (WxH)
36½” x 74½” Outside Curb (WxH)
39½” x 77½” Daylight Area (Glass)
18.88 sq.ft. Model: 4280 GL ATCM SPD
Inside Curb (WxH)
927mm x 1892mm Outside Curb (WxH)
1003mm x 1969mm Daylight Area (Glass)
1.75 m2 |
|||||
| 94½ |
Model: 28100 GL ATCM SPD
Inside Curb (WxH)
22½” x 94½” Outside Curb (WxH)
25½” x 97½” Daylight Area (Glass)
14.77 sq.ft. Model: 28100 GL ATCM SPD
Inside Curb (WxH)
572mm x 2400mm Outside Curb (WxH)
648mm x 2477mm Daylight Area (Glass)
1.37 m2 |
Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Specifications
For multiple models go to the Drawings & Specification Library page.
Why Columbia
Canadian made skylights, designed for our harsh climate
Columbia skylights are specifically designed for life in our Canadian climate. Whether subjected to snow, ice, wind, hail, or intense heat, our products are engineered to outperform these demanding conditions.
Many imported skylights are designed for a more temperate climate and lack the performance and durability. Columbia has spent many decades manufacturing premium quality skylights that have stood up to the test of time in our Canadian climate.
Every aspect of the skylight has been studied, engineered, and tested.
Columbia utilizes the best materials available, including the latest glass technology.
Energy efficiency is a concern for Canadian homeowners because of our extreme climate. Columbia is the only Canadian manufacturer to offer Triple Glazing on all our skylight models, fixed and venting. We offer more ENERGY STAR® glass options than any other manufacturer.
New Mississauga distribution warehouse to better serve Ontario, Quebec & the Maritimes
We have relocated our eastern distribution warehouse to a newly constructed facility in Mississauga, Ontario. Columbia’s new distribution warehouse is larger and able to store a full range of ready to deliver Columbia, Slimlite, and FAKRO products.
The warehouse allows us to serve Eastern Canada with greater efficiency, and improved delivery times.
You might also be interested in…
Columbia GL OCM – Curb Mount Manual Venting Glass Skylight
Cool your home with Columbia’s manually operated venting Curb Mount skylight. Enjoy the combined benefits of natural light and fresh air ventilation.
Learn More
Columbia GL OCM E – Curb Mount Electric Venting Glass Skylight
Cool your home with Columbia’s electrically operated venting Curb Mount skylight. Enjoy the combined benefits of natural light and fresh air ventilation at the touch of a button.
Learn More
Columbia AC OCM – Curb Mount Manual Venting Acrylic Dome Skylight
Cool your home with Columbia’s manually operated venting Curb Mounted skylight. Enjoy the combined benefits of natural light and fresh air ventilation.
Learn More
FAKRO DMF – Manual Venting Skylight
The exceptional DMF flat roof skylight provides natural light and fresh air ventilation. Designed for easy to reach locations – manually operated.
Learn More
