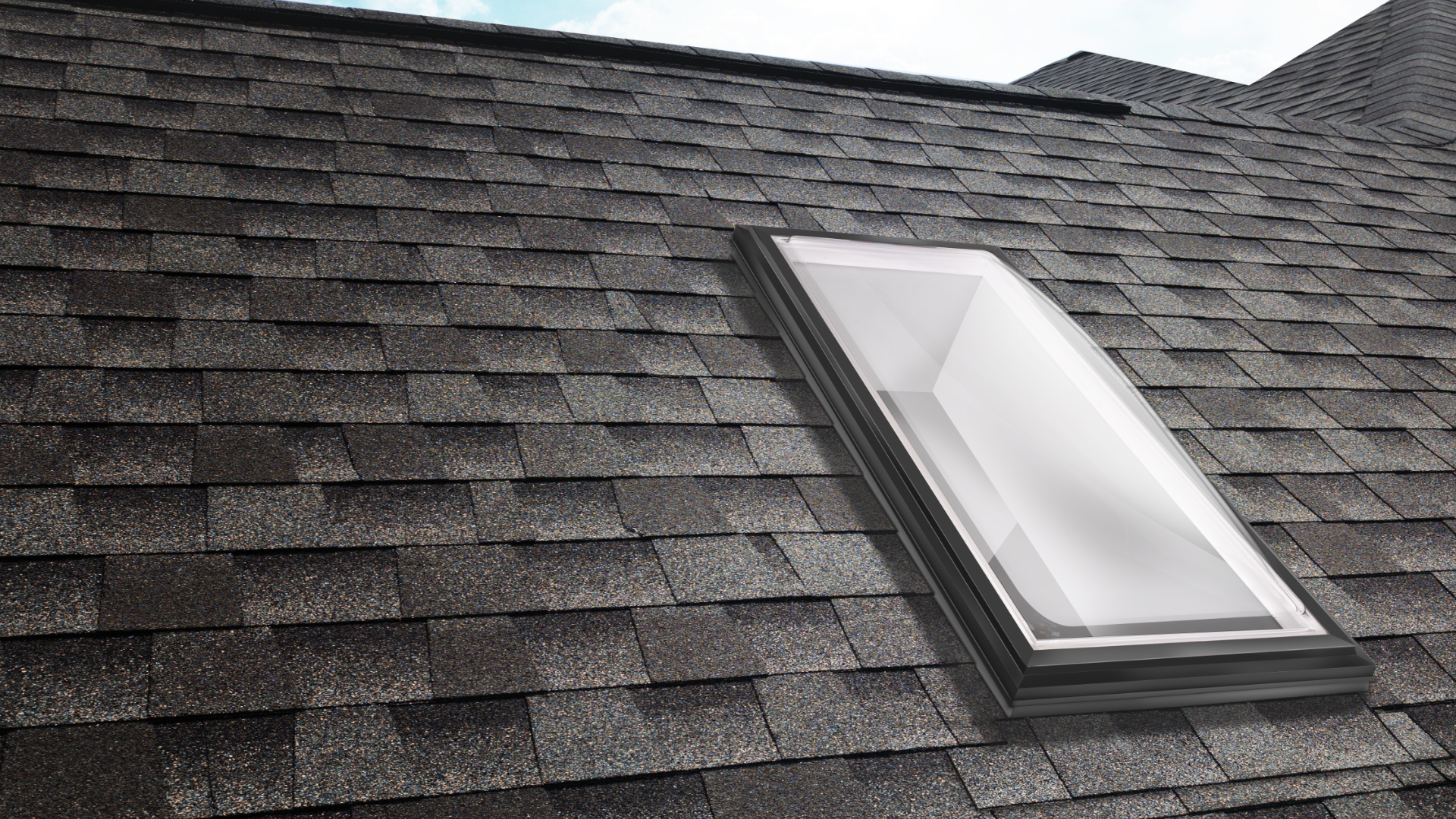

AC VSF – Vinyl Self Flashing Fixed Acrylic Dome Skylight
- Columbia’s Canadian made Fixed Self Flashing acrylic dome skylight is the choice for both the professional roofing contractor and the do-it-yourselfer with built in white vinyl curb and flashing, saving you time and money. Acrylic dome allows for larger sizes than glass and its shape naturally repels water and snow.
- Self flashing skylights must be installed on a minimum 3:12 slope. The acrylic dome is available in double or triple glazed clear, bronze, and white tints.
- Self flashing skylights mount directly to the roof deck and are used in Eastern markets only. The most popular skylight for both East and West markets remains the curb mounted skylight.
- Tough extruded aluminum exterior frame with baked enamel paint finish and a durable welded vinyl PVC interior frame.
- Skylights come in standard or custom sizes, and unlimited colour options – seven standard frame colours or custom matching.
- Built Canadian Tough: made in Canada for the Canadian climate.
FEATURES
- Suitable for sloped asphalt shingle roof only, minimum 3:12 pitch. We recommend using Columbia’s underlayment for watertight installation.

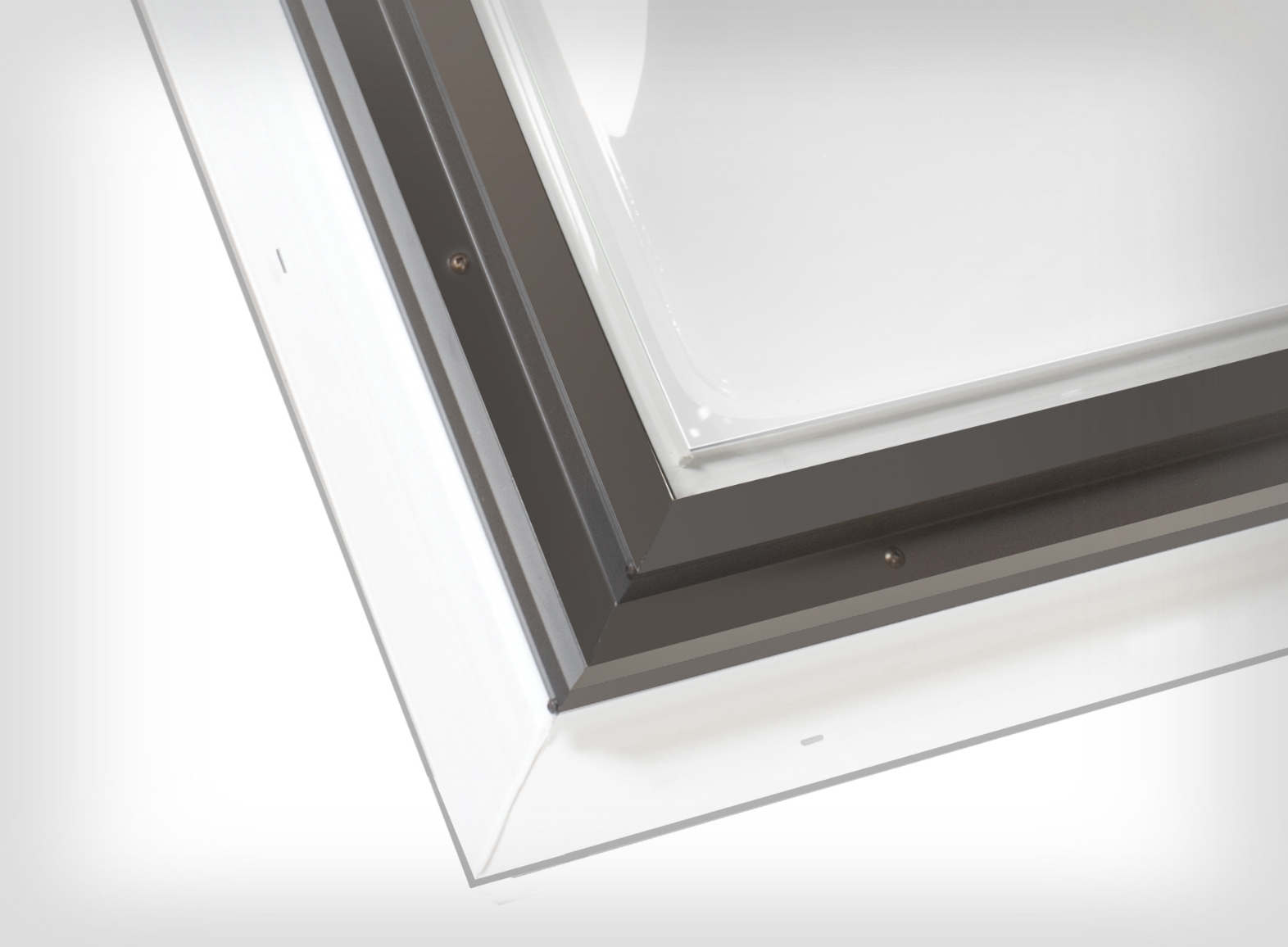

- Includes built in vinyl curb and wide self flashing flange for optimum seal. Features slotted fastening holes around the perimeter flange, allowing for expansion & contraction caused by temperature change.
- The easiest skylight model to install – no flashing kit or wood curb required.
- Durable, weather resistant, extruded aluminum exterior frame with baked enamel paint finish.
- Seven standard frame colours (including black), unlimited custom colour matching.
- Low Maintenance white extruded fusion welded vinyl (PVC) base frame. The thermally broken vinyl base frame features double wall frame for optimal strength and insulation.
- Columbia’s superior rigid wide four sided gutter condensation control system – designed to wick away moisture, protecting your lightwell from damage and staining.
- Manufactured in Canada with 100% North American sourced raw materials.
- Performance tested in Canada’s harsh climate for over thirty five years!
- Industry leading warranty.
Custom Sizes
Available in standard & custom sizes. Acrylic & polycarbonate from 14 ½” x 14 ½” to 46 ½” x 46 ½”
3:12 Minimum
Roof Pitch
Suitable for low profile asphalt shingle or shake roof only. Recommend using Columbia underlayment for watertight installation.
Recommended
Locations
- Kitchens
- Bathrooms
- Stairwells
- Foyers
- Dining Room
- Living Room
The Benefits of AC VSF – Vinyl Self Flashing Fixed Acrylic Dome Skylight
The AC VSF is one of Columbia’s popular skylights bringing natural light to thousands of homes across Canada. Renowned for its durability and ease of installation – not requiring the building of a curb or flashing. This versatile skylight has many features and benefits.

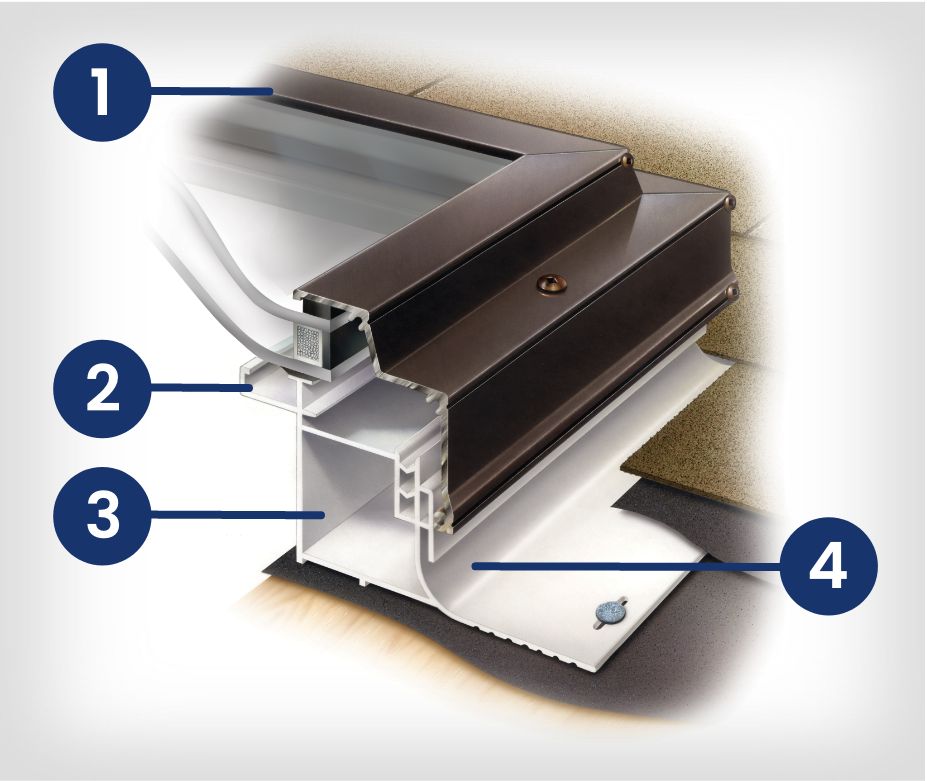

Watertight Self Flashing Design
- Aluminum Cap
- Durable extruded exterior aluminum frame with baked enamel paint finish.
- Seven standard colours and unlimited custom colour matching. Bring in a paint chip and we will match it.
- Columbia Condensation Control System
- All Columbia skylights utilize our unique rigid (PVC or Aluminum), four sided, extra wide gutter – wicking away moisture, protecting your lightwell from damage and unsightly staining.
- Base Frame
- Maintenance free, white heavy duty PVC, thermally broken vinyl base frame with co-extruded draft seal.
- Curb
- Built in PVC curb and flashing – No wood curb or metal flashing required. All fixed self flashing skylights can be installed on side, i.e. 3652 can be 5236.

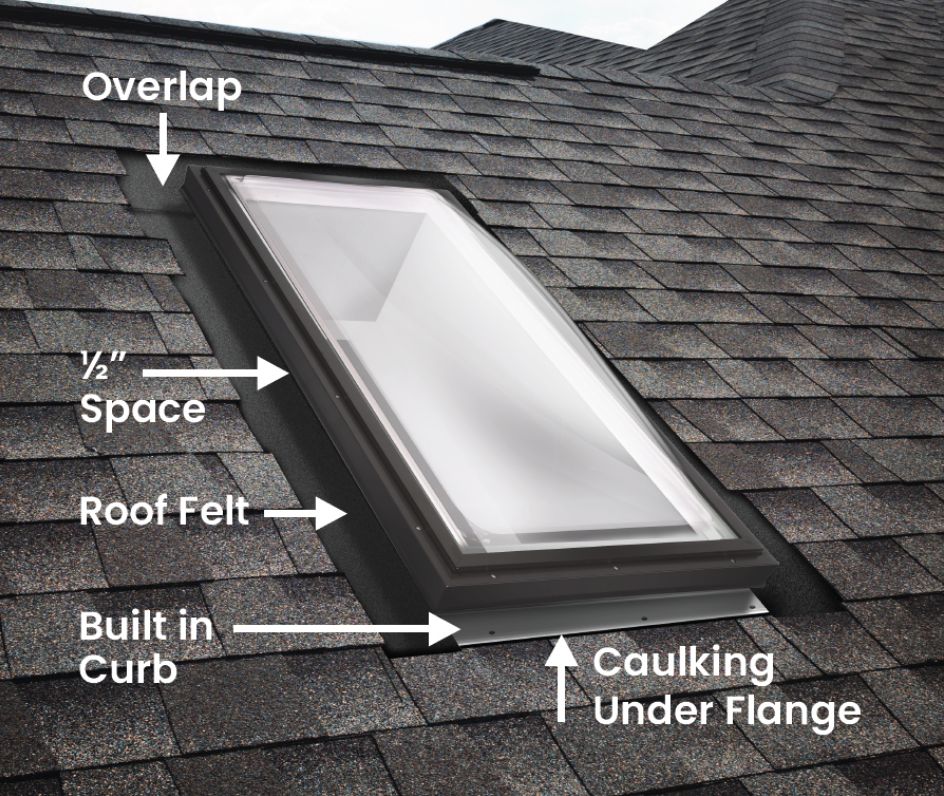

Self Flashing: the Easiest Skylight Model to Install
- Attractive low profile appearance – compliments your roof line.
- Self Flashing skylights are easy to install on any composite shingle or shake roof.
- The Columbia self flashing skylight is the choice of installers and do it yourselfers across the country because of the ease of installation with its integrated PVC vinyl interior frame and flange.
- No need to build a wood curb or flash, saving time and money.

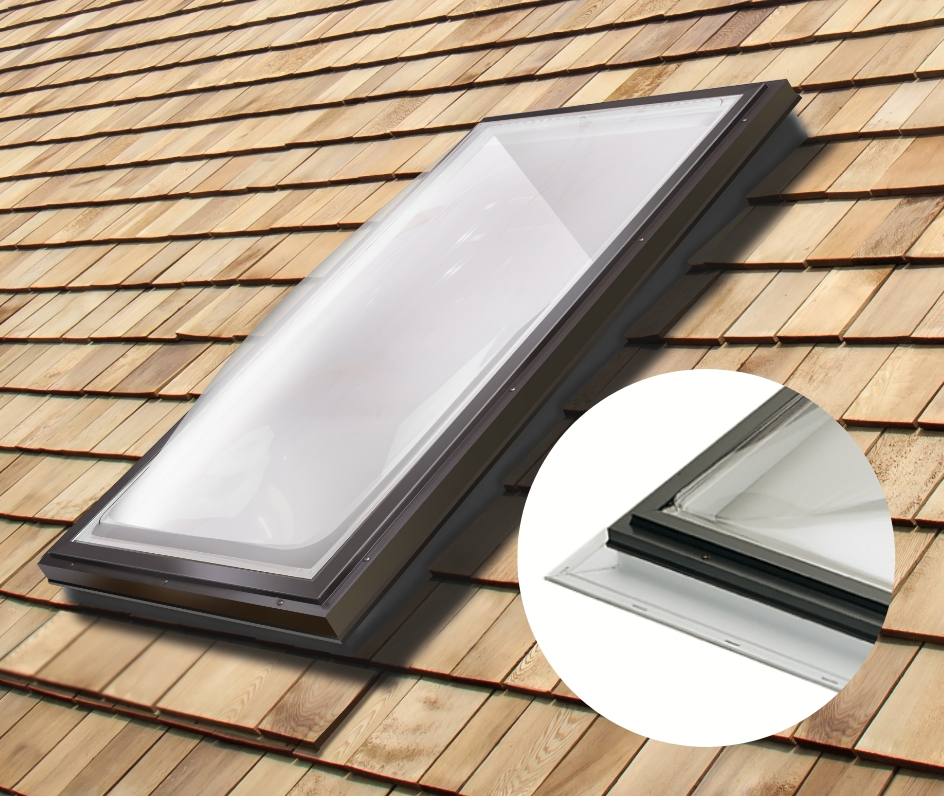

Acrylic, a Better Solution for Many Applications
- Acrylic dome skylights can be produced in larger sizes than glass.
- Acrylic dome skylights are lightweight, and easier to install. The dome shape adds structural strength.
- Available in both acrylic and polycarbonate. Polycarbonate has exceptional impact resistance and is ideal for applications where added security is needed.
- Are available in clear, white or bronze tint for reducing the sun’s glare and solar heat gain.
The Benefit of Natural Light
- Living in the north we all need more natural daylight in our homes, particularly during the winter months when days are shorter, there are fewer hours of sunlight, and the sun is at a lower angle than during the summer.
- Natural light has been proven to increase happiness and productivity.
- Increasing the amount of natural light in your home offsets the impact of Seasonal Affective Disorder, which affects many people in the winter when they do not receive enough sunlight.
- Natural light has been shown to lower the risk of nearsightedness in children and young adults by helping the eye produce dopamine, which aids in healthy eye development.
Economical and Adds Value
- Columbia self flashing skylights are manufactured in Canada using materials from across North America, making them less costly compared to foreign products.
- Skylights add to the value of your home as it is highly desirable to bring natural light into your home.

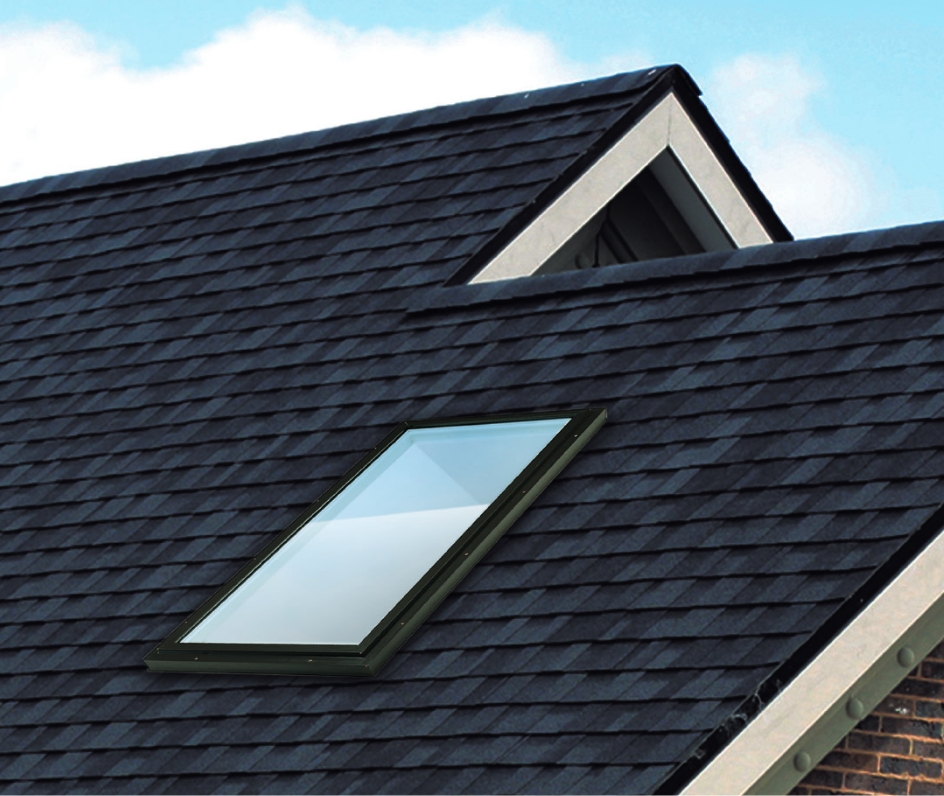

Frame Colours to Match Every Roof
- Seven standard frame colours are available on all models, fixed and venting, including custom sizes.
- Architects design natural light into the interior of the home; however, they want the skylight to blend with your roof covering to highlight their roof design.
- Contrasting the skylight frame with your roof colour can be unattractive and an eyesore.
- Bring in a paint chip to your dealer, and we will match it. For colourful steel and other roofing materials
Acrylic is the right choice for many applications
- Columbia manufactures skylights in acrylic and polycarbonate.
- These versatile glazing materials are able to be produced in double and triple glazing options.
- Acrylic and polycarbonate come in three tints – clear, bronze, and translucent white.
Double Glazed Clear
Double Glazed Clear
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Clear acrylic gives bright natural light.
Double Glazed Bronze
Double Glazed Bronze
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Bronze acrylic delivers the maximum protection from extreme sunlight, reducing glare and solar heat gain.
Double Glazed White
Double Glazed White
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
Triple Glazed Clear
Triple Glazed Clear
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Additional comfort in your interior space.
Triple Glazed Bronze
Triple Glazed Bronze
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, reducing glare and solar heat gain.
- Additional comfort in your interior space.
Triple Glazed White
Triple Glazed White
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Additional comfort in your interior space.
Columbia offers the widest choice of skylight frame colours in North America
With the growing selection of asphalt shingle and steel metal roof colour options, Columbia allows you to match your skylight frame colour to the colour of your roofing material or window package. Columbia offers seven standard colours and unlimited custom colour matching. Save time and money by choosing a standard colour, or provide your dealer with a colour chip and we will match it.
Sizes FOR AC VSF Vinyl Self Flashing Fixed GLASS Skylight
Available in the sizes shown in the chart below (Imperial and Metric). You can also review the most popular sizes. If you don’t see the size you need below, then please visit our Custom Sizes page. You can also download a printable PDF of the chart.
GO TO CUSTOM SIZES
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
Popular Sizes
The yellow star indicates the most popular sizes.
| Roof Opening | 14½ | 22½ | 26½ | 30½ | 34½ | 36½ | 46½ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14½ |
Model: 2020
Roof Opening (WxH)
14½” x 14½” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Roof Opening (WxH)
368mm x 368mm Daylight Area (Glass)
0.14 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22½ |
Model: 2028
Roof Opening (WxH)
14½” x 22½” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Roof Opening (WxH)
368mm x 572mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Roof Opening (WxH)
22½” x 22½” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Roof Opening (WxH)
572mm x 572mm Daylight Area (Glass)
0.33 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30½ |
Model: 2036
Roof Opening (WxH)
14½” x 30½” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Roof Opening (WxH)
368mm x 775mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Roof Opening (WxH)
22½” x 30½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Roof Opening (WxH)
572mm x 775mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Roof Opening (WxH)
30½” x 30½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Roof Opening (WxH)
775mm x 775mm Daylight Area (Glass)
0.60 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34½ |
Model: 2840
Roof Opening (WxH)
22½” x 34½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Roof Opening (WxH)
572mm x 876mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Roof Opening (WxH)
34½” x 34½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Roof Opening (WxH)
876mm x 876mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36½ |
Model: 4242
Roof Opening (WxH)
36½” x 36½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Roof Opening (WxH)
927mm x 927mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46½ |
Model: 2052
Roof Opening (WxH)
14½” x 46½” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Roof Opening (WxH)
368mm x 1181mm Daylight Area (Glass)
0.44 m2 |
Model: 2852
Roof Opening (WxH)
22½” x 46½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Roof Opening (WxH)
572mm x 1181mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Roof Opening (WxH)
30½” x 46½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Roof Opening (WxH)
775mm x 1181mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Roof Opening (WxH)
34½” x 46½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Roof Opening (WxH)
876mm x 1181mm Daylight Area (Glass)
1.03 m2 |
Model: 5252
Roof Opening (WxH)
46½” x 46½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Roof Opening (WxH)
1181mm x 1181mm Daylight Area (Glass)
1.40 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 54½ |
Model: 2860
Roof Opening (WxH)
22½” x 54½” Daylight Area (Glass)
8.52 sq.ft. Model: 2860
Roof Opening (WxH)
572mm x 1384mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Roof Opening (WxH)
30½” x 54½” Daylight Area (Glass)
11.54 sq.ft. Model: 3660
Roof Opening (WxH)
775mm x 1384mm Daylight Area (Glass)
1.07 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 58½ |
Model: 2864
Roof Opening (WxH)
22½” x 58½” Daylight Area (Glass)
9.14 sq.ft. Model: 2864
Roof Opening (WxH)
572mm x 1486mm Daylight Area (Glass)
0.85 m2 |
Model: 3664
Roof Opening (WxH)
30½” x 58½” Daylight Area (Glass)
12.39 sq.ft. Model: 3664
Roof Opening (WxH)
775mm x 1486mm Daylight Area (Glass)
1.15 m2 |
Model: 4064
Roof Opening (WxH)
34½” x 58½” Daylight Area (Glass)
14.02 sq.ft. Model: 4064
Roof Opening (WxH)
876mm x 1486mm Daylight Area (Glass)
1.30 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 62½ |
Model: 2868
Roof Opening (WxH)
22½” x 62½” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Roof Opening (WxH)
572mm x 1588mm Daylight Area (Glass)
0.91 m2 |
Model: 3668
Roof Opening (WxH)
30½” x 62½” Daylight Area (Glass)
13.24 sq.ft. Model: 3668
Roof Opening (WxH)
775mm x 1588mm Daylight Area (Glass)
1.23 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 70½ |
Model: 2076
Roof Opening (WxH)
14½” x 70½” Daylight Area (Glass)
7.10 sq.ft. Model: 2076
Roof Opening (WxH)
368mm x 1791mm Daylight Area (Glass)
0.66 m2 |
Model: 2876
Roof Opening (WxH)
22½” x 70½” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Roof Opening (WxH)
572mm x 1791mm Daylight Area (Glass)
1.02 m2 |
Model: 3676
Roof Opening (WxH)
30½” x 70½” Daylight Area (Glass)
14.93 sq.ft. Model: 3676
Roof Opening (WxH)
775mm x 1791mm Daylight Area (Glass)
1.39 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 74½ |
Model: 3280
Roof Opening (WxH)
26½” x 74½” Daylight Area (Glass)
13.71 sq.ft. Model: 3280
Roof Opening (WxH)
673mm x 1892mm Daylight Area (Glass)
1.27 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

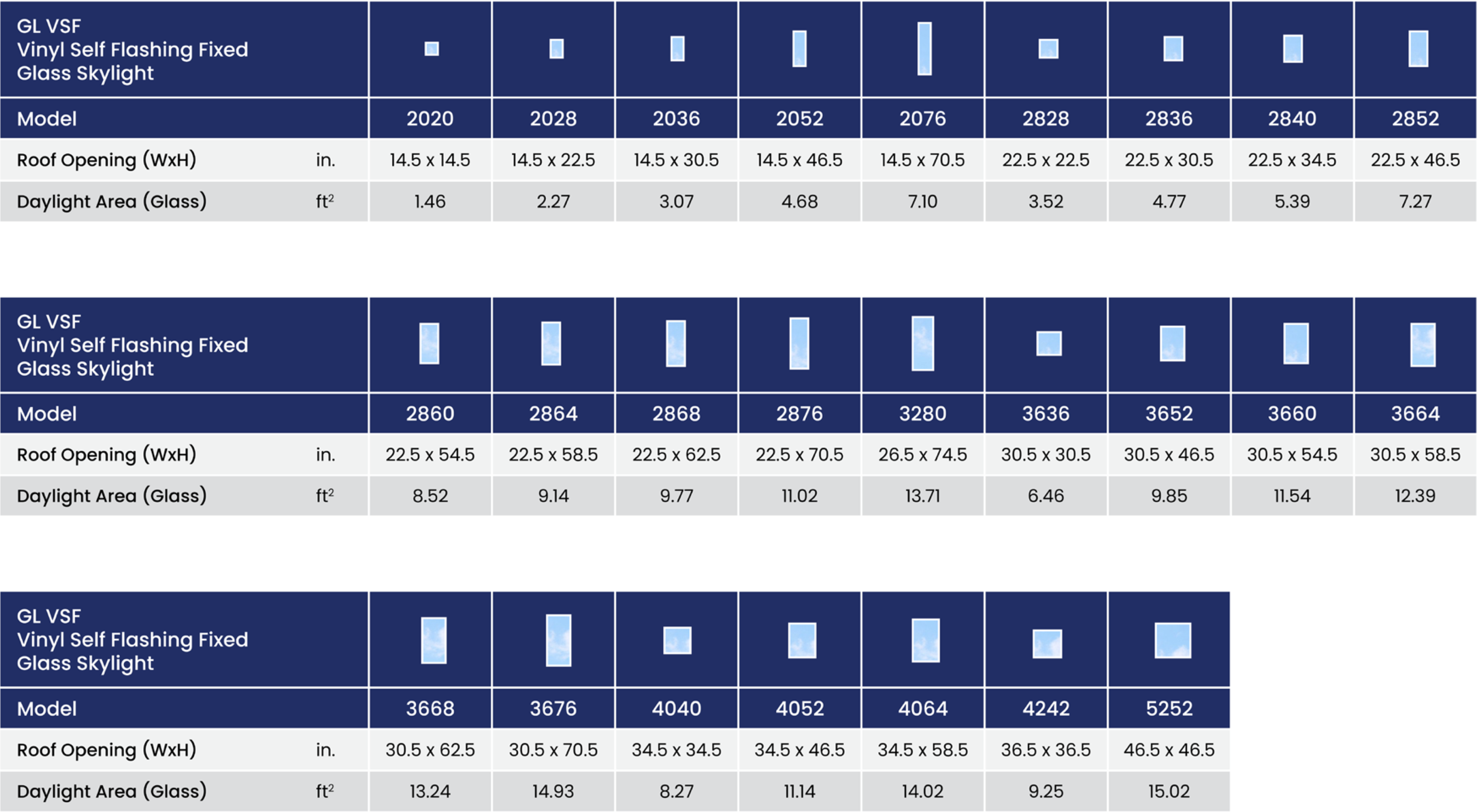

Size Chart – Summary
Pinch to enlarge.
NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use Columbia’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download two formats of this model’s technical drawings – (1) Detail or (2) Product Data. Also available, .dwg (CAD file) and Product Specifications as a Word Doc, PDF, or Text file.
For multiple models go to the Drawings & Specification Library page.
For multiple models go to the Drawings & Specification Library page.
Why Columbia
Canadian made skylights, designed for our harsh climate
Columbia skylights are specifically designed for life in our Canadian climate. Whether subjected to snow, ice, wind, hail, or intense heat, our products are engineered to outperform these demanding conditions.
Many imported skylights are designed for a more temperate climate and lack the performance and durability. Columbia has spent many decades manufacturing premium quality skylights that have stood up to the test of time in our Canadian climate.
Every aspect of the skylight has been studied, engineered, and tested.
Columbia utilizes the best materials available, including the latest glass technology.
Energy efficiency is a concern for Canadian homeowners because of our extreme climate. Columbia is the only Canadian manufacturer to offer Triple Glazing on all our skylight models, fixed and venting. We offer more ENERGY STAR® glass options than any other manufacturer.
New Mississauga distribution warehouse to better serve Ontario, Quebec & the Maritimes
We have relocated our eastern distribution warehouse to a newly constructed facility in Mississauga, Ontario. Columbia’s new distribution warehouse is larger and able to store a full range of ready to deliver Columbia, Slimlite, and FAKRO products.
The warehouse allows us to serve Eastern Canada with greater efficiency, and improved delivery times.
You might also be interested in…
Columbia GL VSF – Vinyl Self Flashing Fixed Glass Skylight
Brighten your home with the clarity of natural light. The Self Flashing fixed skylight is the choice of professionals and the do-it-yourselfer with built in white vinyl curb and flashing.
Learn More
Columbia AC VCM – Vinyl Curb Mount Fixed Acrylic Dome Skylight
Columbia’s Curb Mount acrylic dome & pyramid skylights are designed to perform flawlessly for decades, available in 2 frame configurations, AC VCM or AC AOF.
Learn More
Columbia AC AOF – Commercial Skylight
Featuring a strong and rigid aluminum external and internal frame. Available in Columbia’s full range of acrylic options. Dome and pyramid.
Learn More
Columbia GL OSF – Glass Self Flashing Manual Venting Glass Skylight
Self Flashing manually operated venting glass skylight provides the benefits of natural light and fresh air ventilation. Ideal for easy to reach areas such as bathrooms and bedrooms.
Learn More
