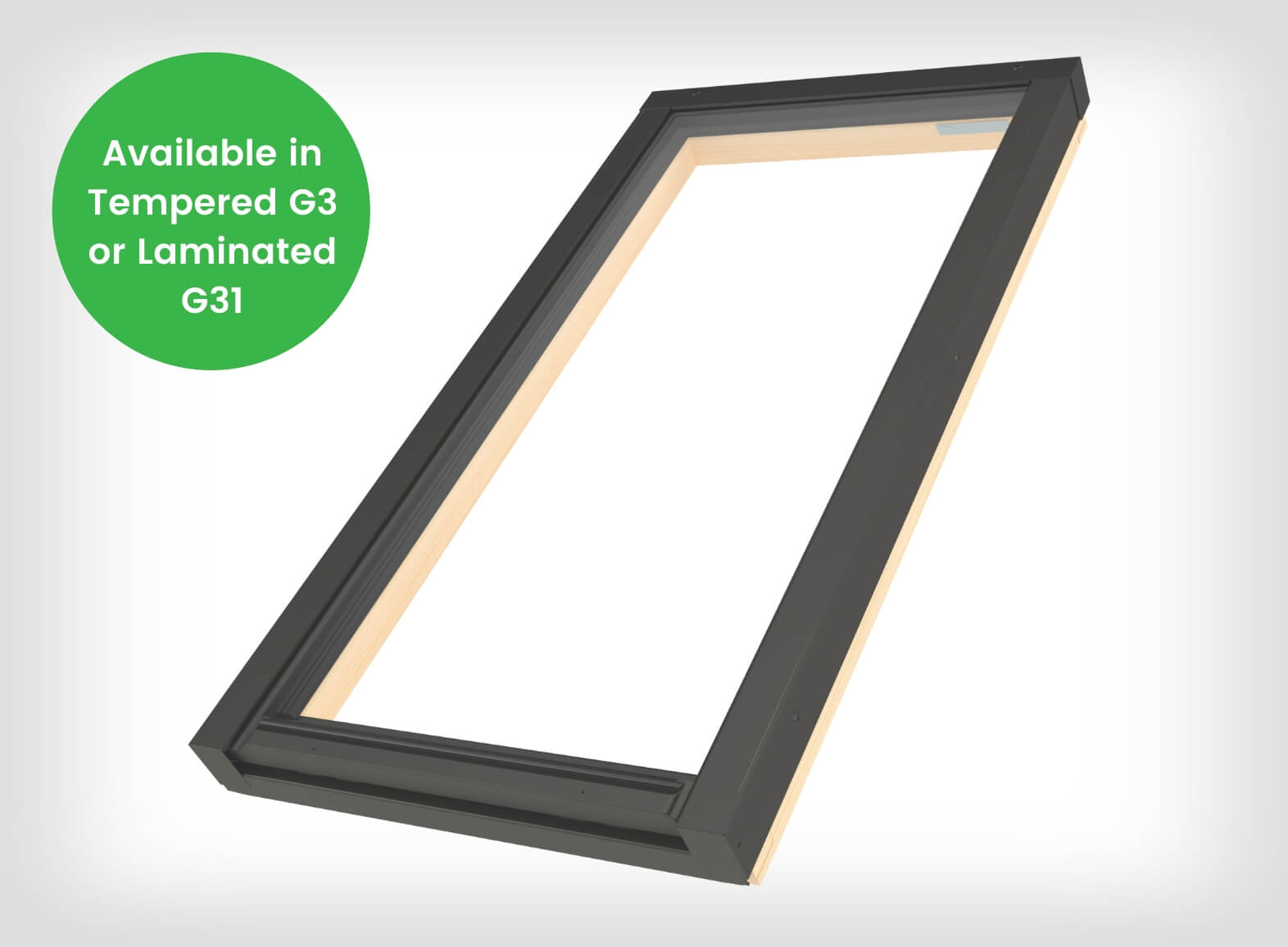

FX – Deck Mounted Fixed Skylight
- You want to bring a room to life with the beauty and warmth of natural light, while enhancing your home’s elegance and sophistication. Our FX deck mounted fixed skylight is the perfect choice.
- Natural light contributes to the livability of your home, adding comfort, functionality and positively impacting your health and mental well being.
- Our most popular skylight for years, the FX is a proven leader in skylight design, manufactured to the highest standard in Europe and providing the elegance of factory lacquered solid natural wood construction.
FEATURES
- ENERGY STAR® Certified.
- Suitable for roof pitches between 15-85° degrees.
- Triple coated advanced LoE with superior heat reflecting glazing.
- Warm spacer increases condensation resistance.
- Internal gasket system to collect and drain any possible condensation to the outside.
- Perimeter gasket underneath the frame.
- Solid wood construction, provides superior thermal performance and aesthetic beauty.
- Blackout (SRF-MX) or light filtering (SRP-MX) blinds are available.
- Low profile design complements your roof design.
- Easy ‘bracket free’ installation system.
- UV resistant polyester paint coated aluminum frame for long life.
- Note: For the warranty to be valid, FAKRO skylights must be installed with a FAKRO flashing kit.
Highlights of the FX – Deck Mounted Fixed Skylight
ENERGY STAR® Certified
- The FX skylight is so well insulated that it achieves ENERGY STAR® Canada certification with standard EL or EH/EH-A flashing.
- For northern climates we recommend using EL-T or EH-AT Thermo flashing.
One Person Installation Saves Your Roofer Time & You Money
- Metal pins hold the skylight in place during installation. The elimination of the skylight sliding allows for one person installation.
- 4 to 6 screws drilled through the frame to secure the skylight to the roof deck. Perfect for new builds and retrofits.
- A template is supplied that is specific to the
skylight model, for fast and easy marking of the rough opening.
World Class European Quality
- FAKRO products are renowned the world over for their outstanding European design and manufacturing quality.
- FAKRO skylights and roof windows feature thick wooden frames made of select narrow grain pine, seasoned and vacuum pressure treated. Factory lacquered before final assembly.
- 20 year warranty against sealed unit failure.

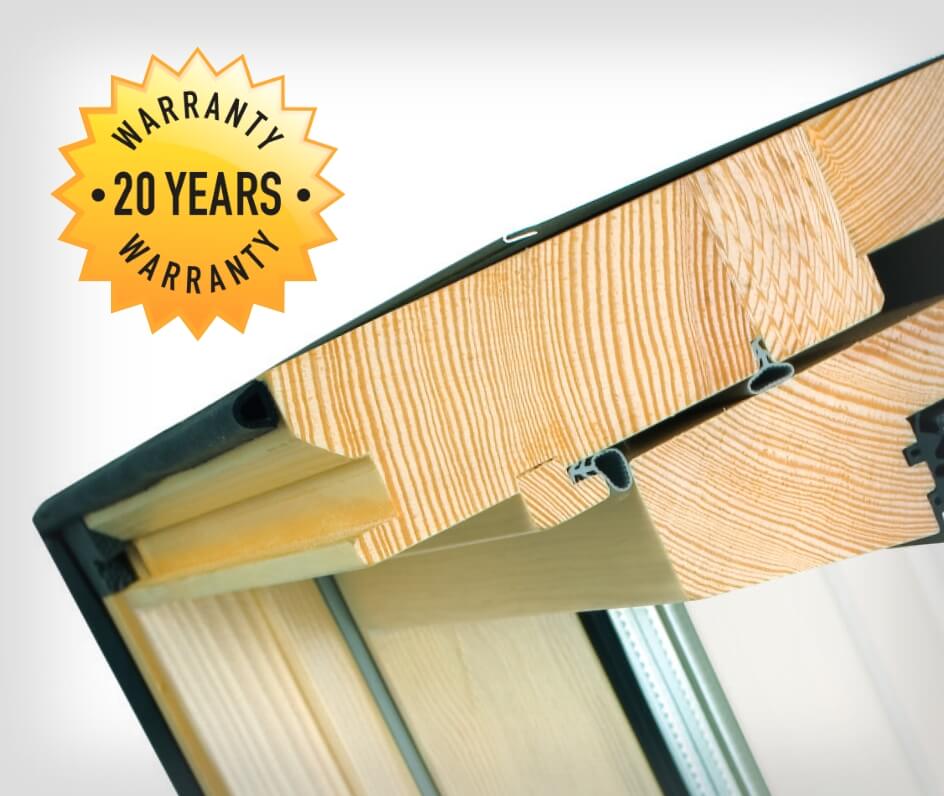

Thick Wood Frames Deliver Superior Insulation
- Manufactured with an exceptionally thick sold wood frame that significantly improves thermal performance.
- Wood is proven to be an excellent natural insulator.
Upgrade Your Skylights with Blackout & Light Filtering Blinds
- Blackout blinds can block the sun completely.
- Light filtering lets in a reduced amount of light, softening the ambiance in your room
- Designed to complement any room – a wide range of fabrics to choose from.
- Available in manual, electric or solar versions.

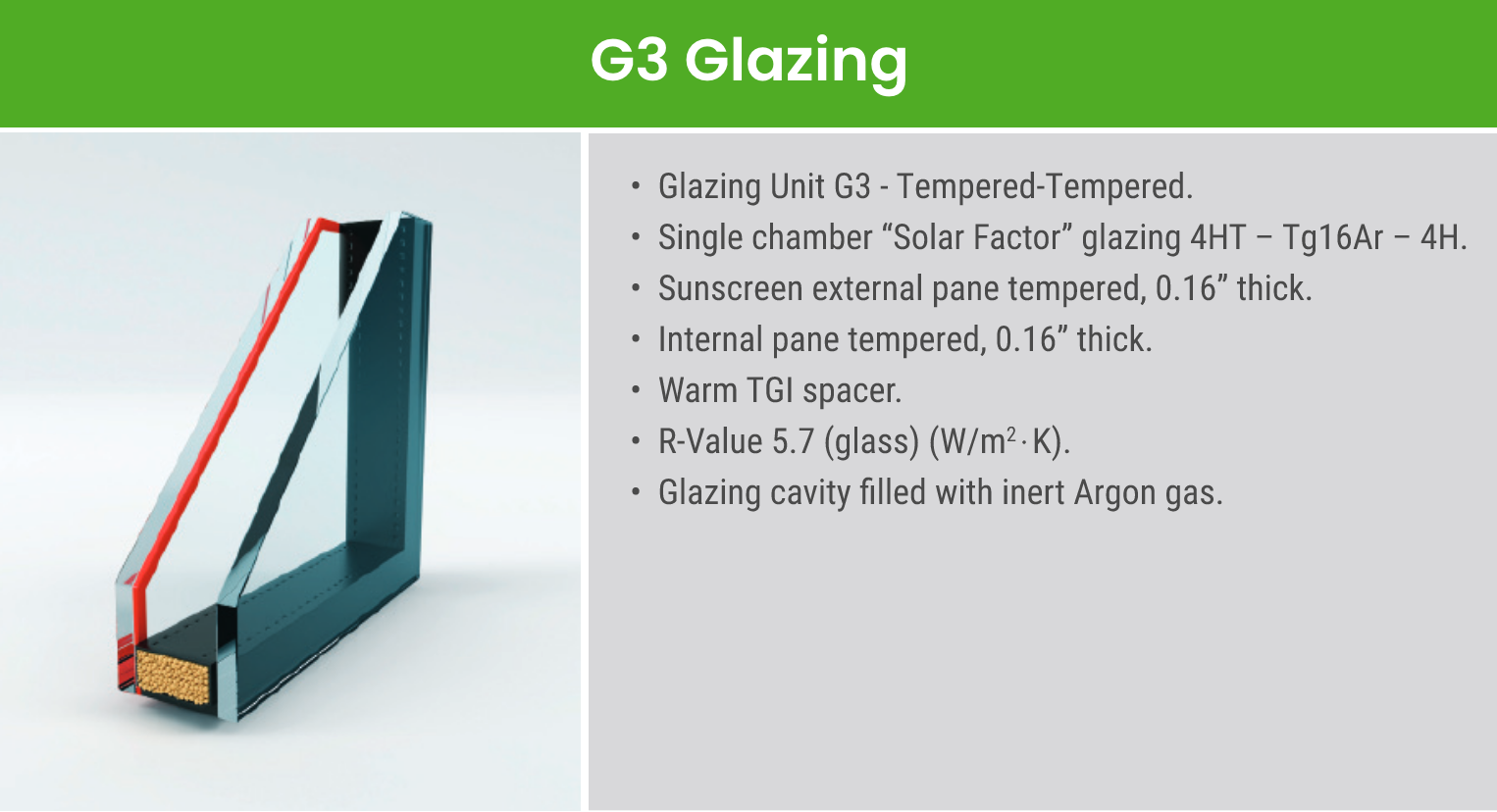

Available in a choice of glazing configurations.

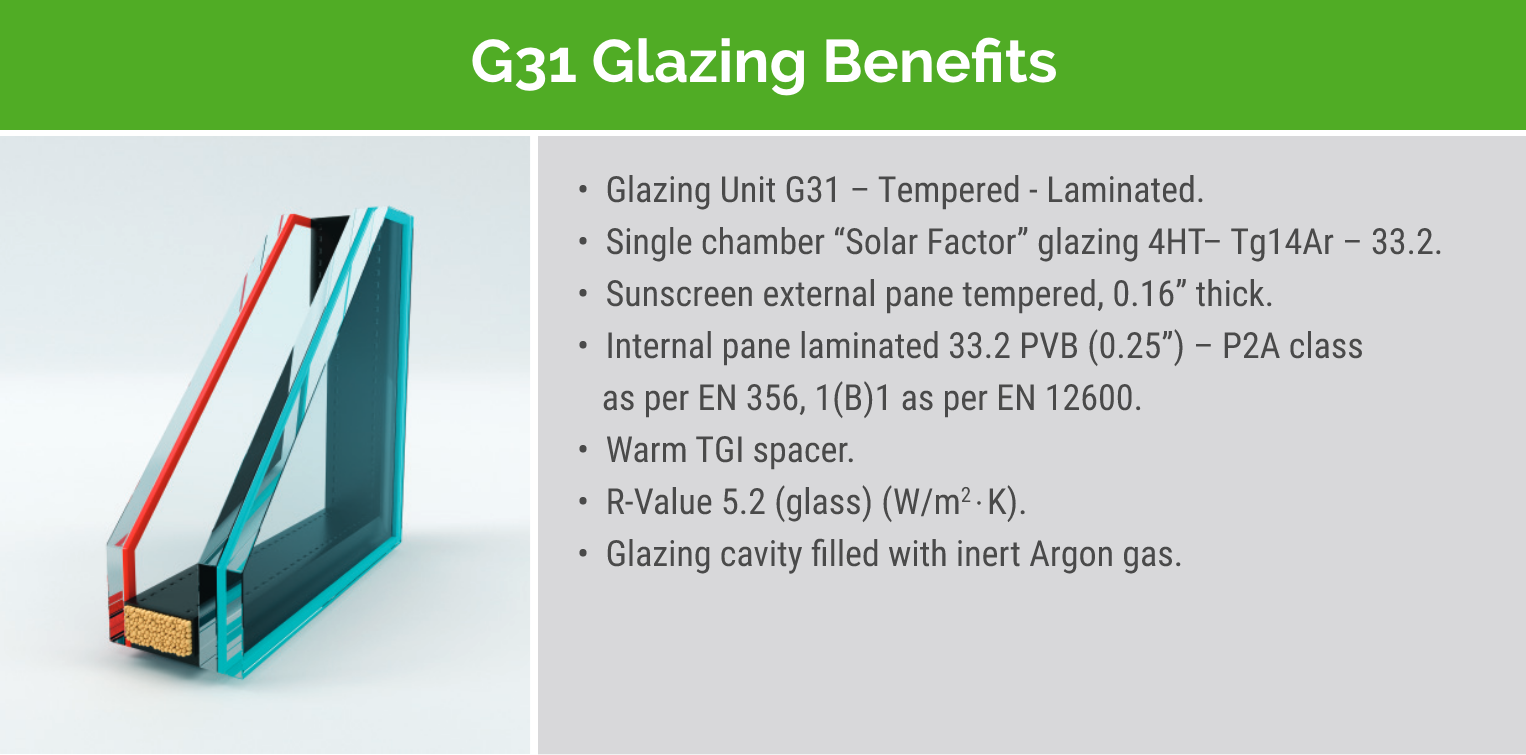

The Features of FAKRO’s Laminated Glass
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.
FAKRO’s Premium Wood Frames
FAKRO skylights are made with extra thick pressure treated solid wood frames, up to:

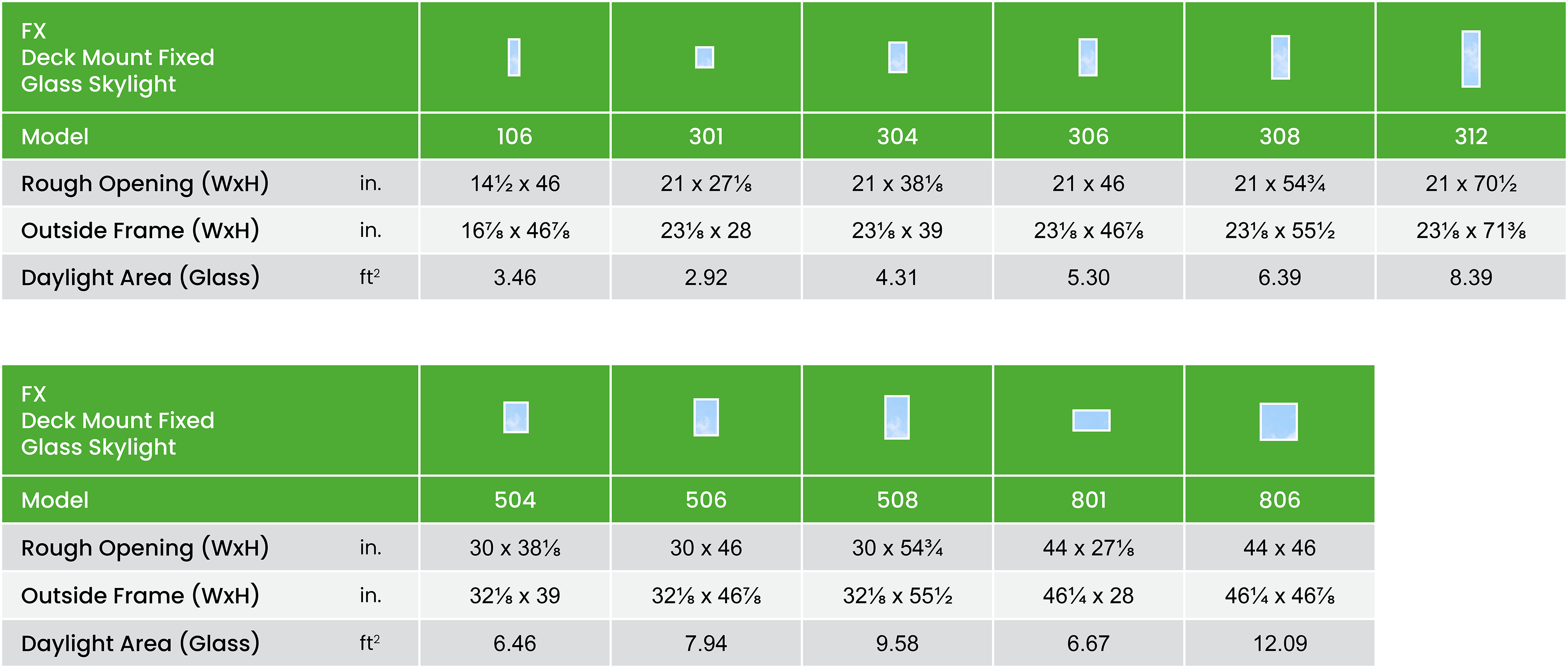

Rough Opening | 14½ | 21 | 30 | 44 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27⅛ |
Model: 301
Rough Opening (WxH)
21″ x 27⅛” Outside Frame (WxH)
23⅛” x 28” Daylight Area (Glass)
2.92 sq.ft. Model: 301
Rough Opening (WxH)
531mm x 689mm Outside Frame (WxH)
586mm x 710mm Daylight Area (Glass)
0.27 m2 |
Model: 801
Rough Opening (WxH)
44″ x 27⅛” Outside Frame (WxH)
46¼” x 28” Daylight Area (Glass)
6.67 sq.ft. Model: 801
Rough Opening (WxH)
1121mm x 689mm Outside Frame (WxH)
1176mm x 710mm Daylight Area (Glass)
0.62 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
38⅛ |
Model: 304
Rough Opening (WxH)
21″ x 38⅛” Outside Frame (WxH)
23⅛” x 39” Daylight Area (Glass)
4.31 sq.ft. Model: 304
Rough Opening (WxH)
531mm x 969mm Outside Frame (WxH)
586mm x 990mm Daylight Area (Glass)
0.40 m2 |
Model: 504
Rough Opening (WxH)
30″ x 38⅛” Outside Frame (WxH)
32⅛” x 39” Daylight Area (Glass)
6.46 sq.ft. Model: 504
Rough Opening (WxH)
761mm x 969mm Outside Frame (WxH)
816mm x 990mm Daylight Area (Glass)
0.60 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
46 |
Model: 106
Rough Opening (WxH)
14½” x 46” Outside Frame (WxH)
16⅞” x 46⅞” Daylight Area (Glass)
3.46 sq.ft. Model: 106
Rough Opening (WxH)
372mm x 1169mm Outside Frame (WxH)
427mm x 1190mm Daylight Area (Glass)
0.32 m2 |
Model: 306
Rough Opening (WxH)
21″ x 46” Outside Frame (WxH)
23⅛” x 46⅞” Daylight Area (Glass)
5.3 sq.ft. Model: 306
Rough Opening (WxH)
531mm x 1169mm Outside Frame (WxH)
586mm x 1190mm Daylight Area (Glass)
0.49 m2 |
Model: 506
Rough Opening (WxH)
30″ x 46” Outside Frame (WxH)
32⅛” x 46⅞” Daylight Area (Glass)
7.94 sq.ft. Model: 506
Rough Opening (WxH)
761mm x 1169mm Outside Frame (WxH)
816mm x 1190mm Daylight Area (Glass)
0.74 m2 |
Model: 806
Rough Opening (WxH)
44″ x 46” Outside Frame (WxH)
46¼” x 46⅞” Daylight Area (Glass)
12.09 sq.ft. Model: 806
Rough Opening (WxH)
1121mm x 1169mm Outside Frame (WxH)
1176mm x 1190mm Daylight Area (Glass)
1.12 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
54¾ |
Model: 308
Rough Opening (WxH)
21″ x 54¾” Outside Frame (WxH)
23⅛” x 55½” Daylight Area (Glass)
6.39 sq.ft. Model: 308
Rough Opening (WxH)
531mm x 1389mm Outside Frame (WxH)
586mm x 1410mm Daylight Area (Glass)
0.59 m2 |
Model: 508
Rough Opening (WxH)
30″ x 54¾” Outside Frame (WxH)
32⅛” x 55½” Daylight Area (Glass)
9.58 sq.ft. Model: 508
Rough Opening (WxH)
761mm x 1389mm Outside Frame (WxH)
816mm x 1410mm Daylight Area (Glass)
0.89 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
70½ |
Model: 312
Rough Opening (WxH)
21″ x 70½” Outside Frame (WxH)
23⅛” x 71⅜” Daylight Area (Glass)
8.39 sq.ft. Model: 312
Rough Opening (WxH)
531mm x 1791mm Outside Frame (WxH)
586mm x 1812mm Daylight Area (Glass)
0.78 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

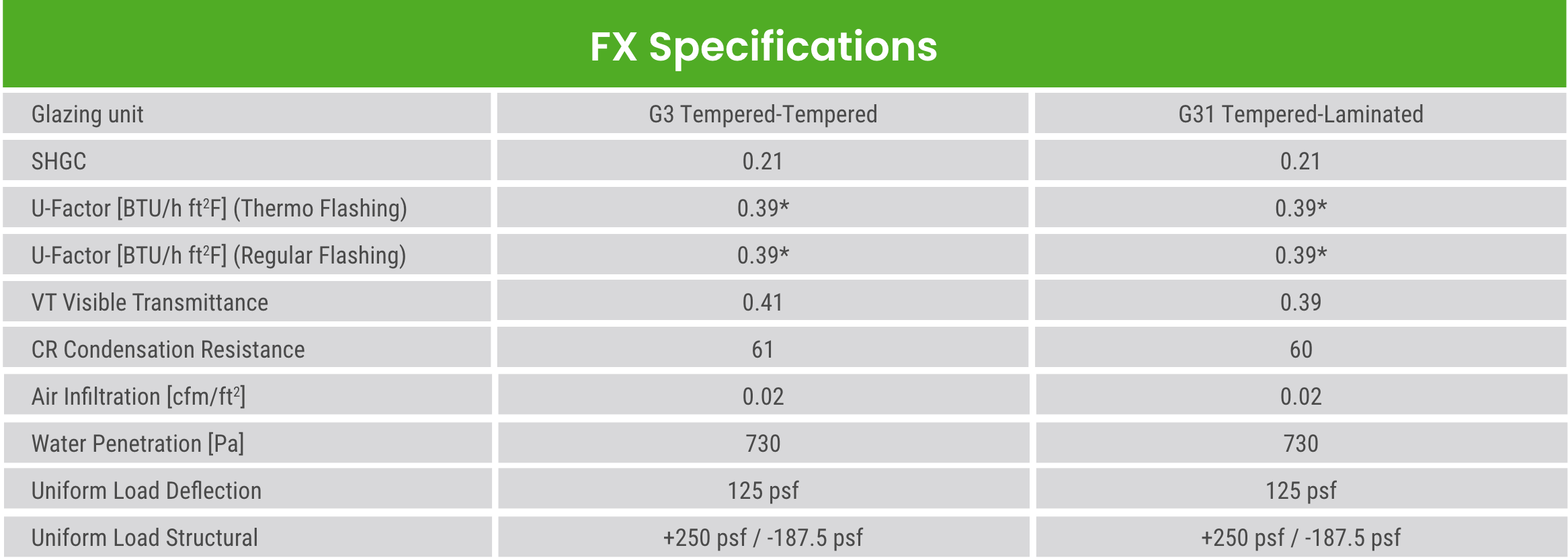

Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Flashing Systems
Including energy efficient thermo flashing.
Blackout Blinds
Designed to complement any interior designer’s vision.
