FVE – Deck Mounted Electric Venting Skylight.
FVE – Deck Mounted Electric Venting Skylight
- The premium FVE electric powered deck mounted skylights are ideal solutions for out of reach applications, where besides the natural light, you can enjoy fresh air.
- FVE skylights are equipped with the industry standard Z-Wave radio control system, allowing for easy remote operation and Smart Home integration.
- Z-Wave is used in hundreds of Smart Home products, thus it is well supported and updated on a regular basis.
- The FVE is designed to be hardwired into your home’s electrical system, being ideal for a situation where electric wiring is accessible, or where it is part of a major renovation or for custom homes.
The FAKRO premium deck mounted skylights carry a 20 year warranty on sealed glass failure. 10 years on parts, and 5 years on blinds and controls.
FEATURES
- ENERGY STAR® Certified with the use of ELA-T Thermo Flashing.
- Suitable for roof pitches between 15-85° degrees.
- Triple coated advanced LoE with superior heat reflecting glazing.
- Warm spacer increases condensation resistance.
- Perimeter gasket underneath the frame.
- Double seals between the frame and the sash.
- Internal gasket system to collect and drain any condensation to the outside.
- Standard removable insect screen.
- Blackout (SRF-MV) or light filtering (SRP-MV) blinds are available.
- Dual integrated rain sensors to close skylight in inclement weather.
- Remote control included.
- Allows for easy stand alone remote control operation.
- The Z-Wave radio control system included allowing for Smart Home system integration.
- Solid natural wood construction, providing superior thermal performance and aesthetic beauty.
- Low profile design complements your roof design.
- Easy ‘bracket free’ installation system.
- UV resistant polyester paint coated aluminum frame for long life.
- Note: For the warranty to be valid, FAKRO skylights must be installed with a FAKRO flashing kit.
Highlights of the FVE – Deck Mounted Electric Venting Skylight

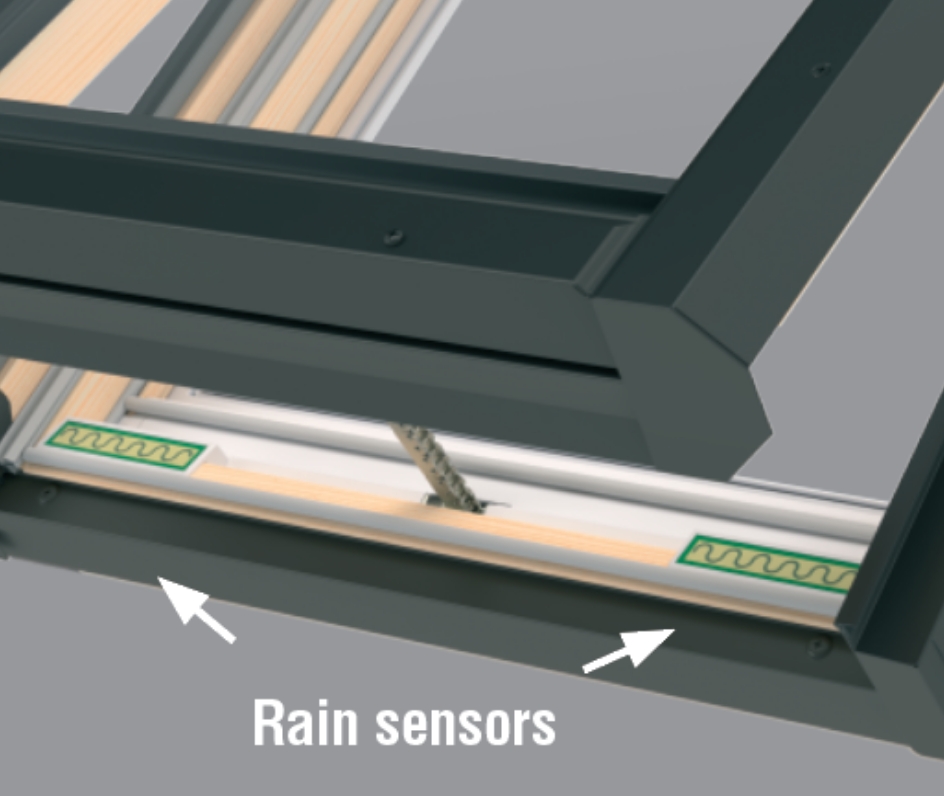

Responds to a Single Drop of Rain
- The FVE includes two integrated rain sensors that automatically close the skylight at the first sign of rain.
- So, you never have to worry about your skylight when you are away from home and it unexpectedly starts to rain.

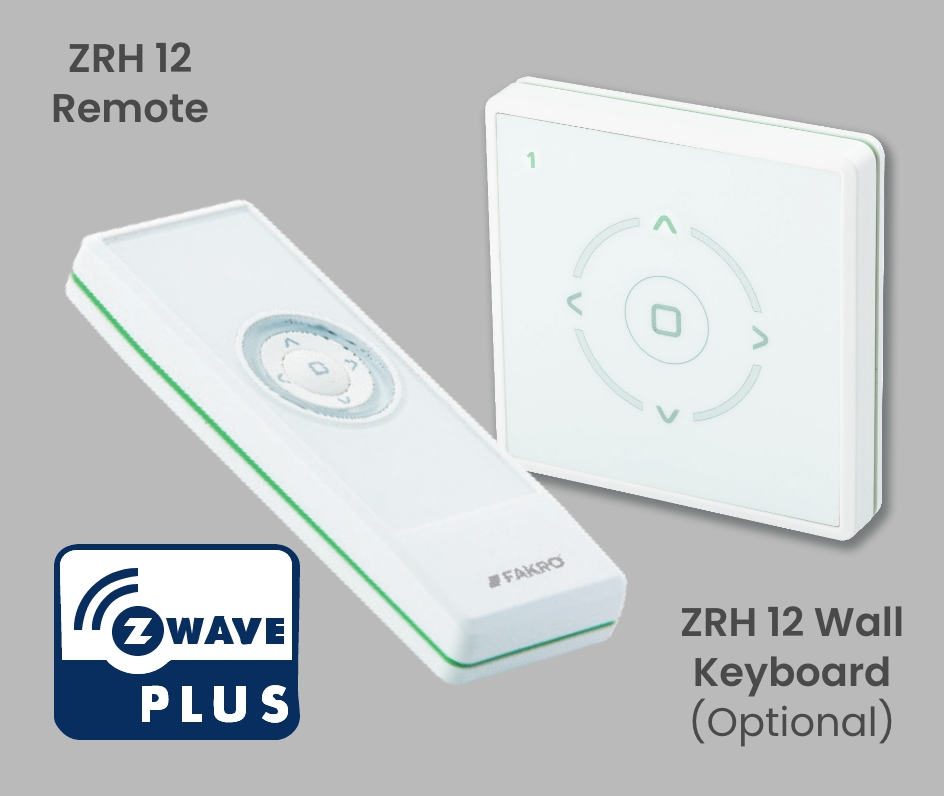

Smart Home & Remote Control Technology
- Control your FVE skylights as a stand alone or multi unit system using the included ZRH12 remote control.
- The remote controls up to 12 separate groups with up to 12 skylights per group (144 total).
- A wall keyboard is also available, ZRW7, operating up to 7 separate groups with up to 12 skylights per group (84 total).

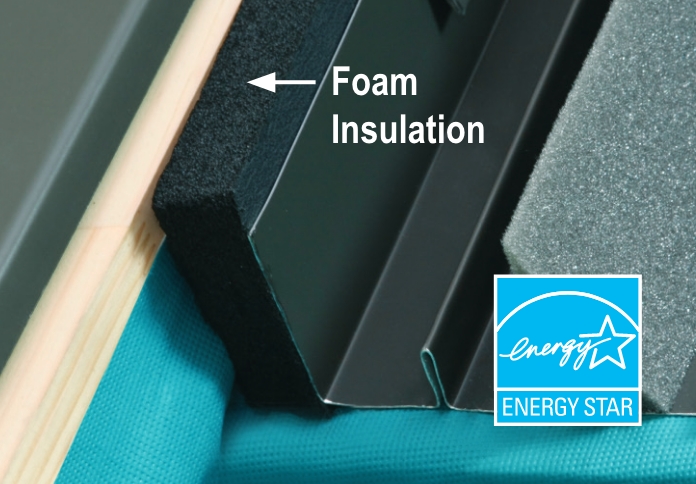

ENERGY STAR® with Insulated Thermo Flashing
- Installation with ELA-T Thermo insulated flashing achieves ENERGY STAR® Performance.
- FAKRO’s unique industry leading insulated flashing increases the R-value of the entire product by up to 10%.
Gasket System Prevents Air and Water Penetration
- Double seals between the frame and sash to prevent any air leakage.
- Perimeter gasket underneath the frame to ensure a water/air tight seal to roof deck.
One Person Installation Saves You Time & Money
- Metal pins hold the skylight in place during installation. The elimination of the skylight sliding allows for one person installation.
- 4 to 6 screws drilled through the frame to secure the skylight to the roof deck. Perfect for new builds and retrofits.
- A template is supplied that is specific to the skylight model, for fast and easy marking of the rough opening.
Thick Wood Frames Deliver Superior Insulation
- Manufactured with an exceptionally thick solid wood frame that significantly improves thermal performance.
- Wood is proven to be an excellent natural insulator.

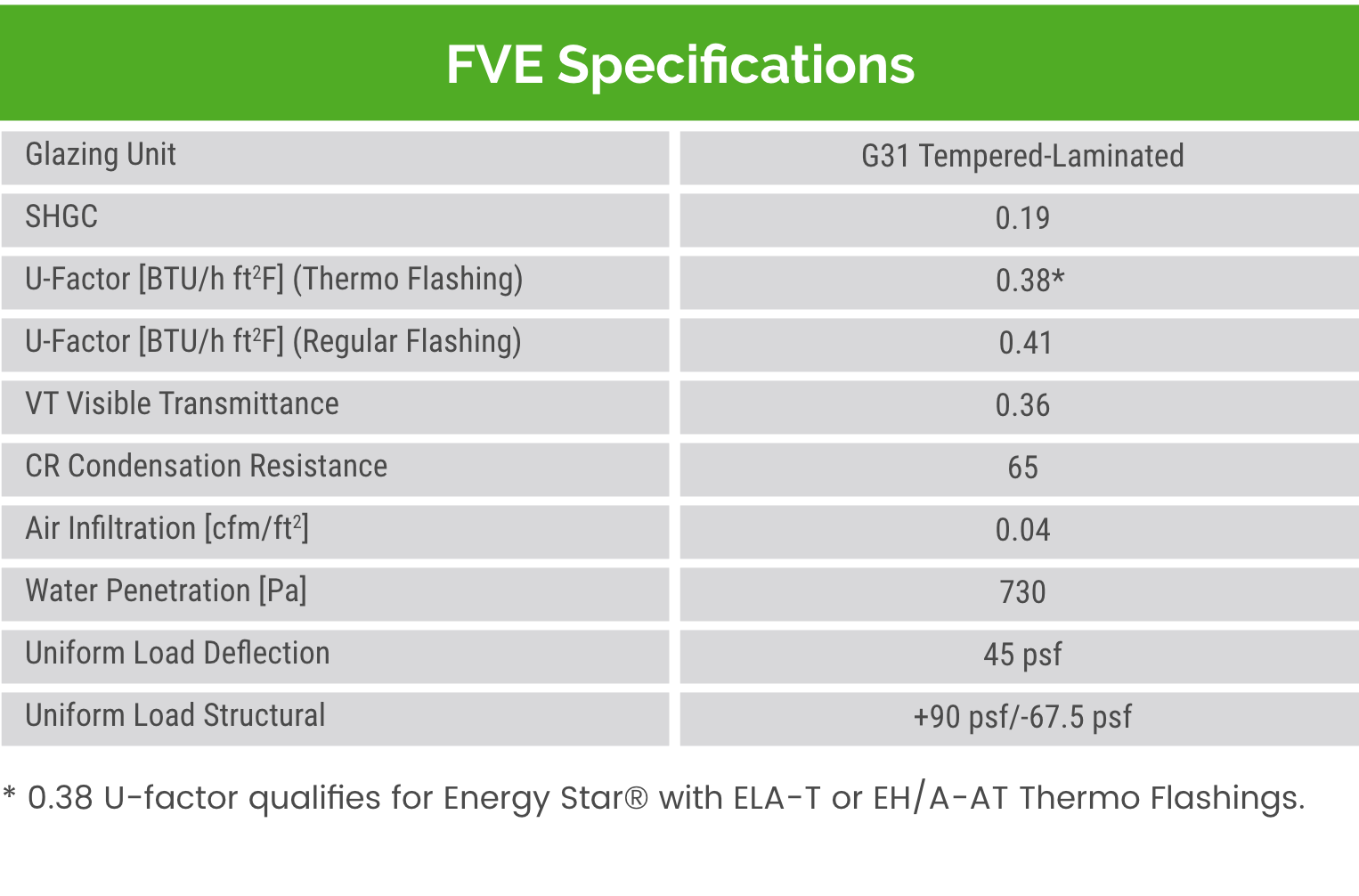

FAKRO’s Premium G31 Glazing Unit and Specifications
The Features of FAKRO’s Laminated Glass
FAKRO offers laminated glass on all its skylights and roof windows. FAKRO uses a number of different configurations of glazing based on the requirements of the skylight or roof window, this includes double, triple and now Canada’s first quadruple glass unit. Laminated glass has many benefits.
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.
FAKRO’s Premium Wood Frames
FAKRO skylights are made with extra thick pressure treated solid wood frames, up to:
Sizes FOR FVE – Deck Mounted Electric Venting Skylight
| Rough Opening | 21 | 30 | 44 |
|---|---|---|---|
| 27⅛ |
Model: 301
Rough Opening (WxH)
21″ x 27⅛” Outside Frame (WxH)
23⅛” x 28” Daylight Area (Glass)
2.37 sq.ft. Model: 301
Rough Opening (WxH)
530mm x 685mm Outside Frame (WxH)
585mm x 706mm Daylight Area (Glass)
0.22 m2 |
Model: 801
Rough Opening (WxH)
44″ x 27⅛” Outside Frame (WxH)
46¼” x 28” Daylight Area (Glass)
5.68 sq.ft. Model: 801
Rough Opening (WxH)
1120mm x 685mm Outside Frame (WxH)
1175mm x 706mm Daylight Area (Glass)
0.53 m2 |
|
| 38⅛ |
Model: 304
Rough Opening (WxH)
21″ x 38⅛” Outside Frame (WxH)
23⅛” x 39” Daylight Area (Glass)
3.64 sq.ft. Model: 304
Rough Opening (WxH)
530mm x 965mm Outside Frame (WxH)
585mm x 986mm Daylight Area (Glass)
0.34 m2 |
Model: 504
Rough Opening (WxH)
30″ x 38⅛” Outside Frame (WxH)
32⅛” x 39” Daylight Area (Glass)
5.62 sq.ft. Model: 504
Rough Opening (WxH)
760mm x 965mm Outside Frame (WxH)
815mm x 986mm Daylight Area (Glass)
0.52 m2 |
|
| 46 |
Model: 306
Rough Opening (WxH)
21″ x 46” Outside Frame (WxH)
23⅛” x 46⅞” Daylight Area (Glass)
4.54 sq.ft. Model: 306
Rough Opening (WxH)
530mm x 1165mm Outside Frame (WxH)
585mm x 1186mm Daylight Area (Glass)
0.42 m2 |
Model: 506
Rough Opening (WxH)
30″ x 46” Outside Frame (WxH)
32⅛” x 46⅞” Daylight Area (Glass)
7.03 sq.ft. Model: 506
Rough Opening (WxH)
760mm x 1165mm Outside Frame (WxH)
815mm x 1186mm Daylight Area (Glass)
0.65 m2 |
Model: 806
Rough Opening (WxH)
44″ x 46” Outside Frame (WxH)
46¼” x 46⅞” Daylight Area (Glass)
10.91 sq.ft. Model: 806
Rough Opening (WxH)
1120mm x 1165mm Outside Frame (WxH)
1175mm x 1186mm Daylight Area (Glass)
1.01 m2 |
| 54¾ |
Model: 308
Rough Opening (WxH)
21″ x 54¾” Outside Frame (WxH)
23⅛” x 55½” Daylight Area (Glass)
5.54 sq.ft. Model: 308
Rough Opening (WxH)
530mm x 1385mm Outside Frame (WxH)
585mm x 1406mm Daylight Area (Glass)
0.51 m2 |
Model: 508
Rough Opening (WxH)
30″ x 54¾” Outside Frame (WxH)
32⅛” x 55½” Daylight Area (Glass)
8.57 sq.ft. Model: 508
Rough Opening (WxH)
760mm x 1385mm Outside Frame (WxH)
815mm x 1406mm Daylight Area (Glass)
0.8 m2 |
|
| 70½ |
Model: 312
Rough Opening (WxH)
21″ x 70½” Outside Frame (WxH)
23⅛” x 71⅜” Daylight Area (Glass)
7.37 sq.ft. Model: 312
Rough Opening (WxH)
530mm x 1787mm Outside Frame (WxH)
585mm x 1808mm Daylight Area (Glass)
0.68 m2 |

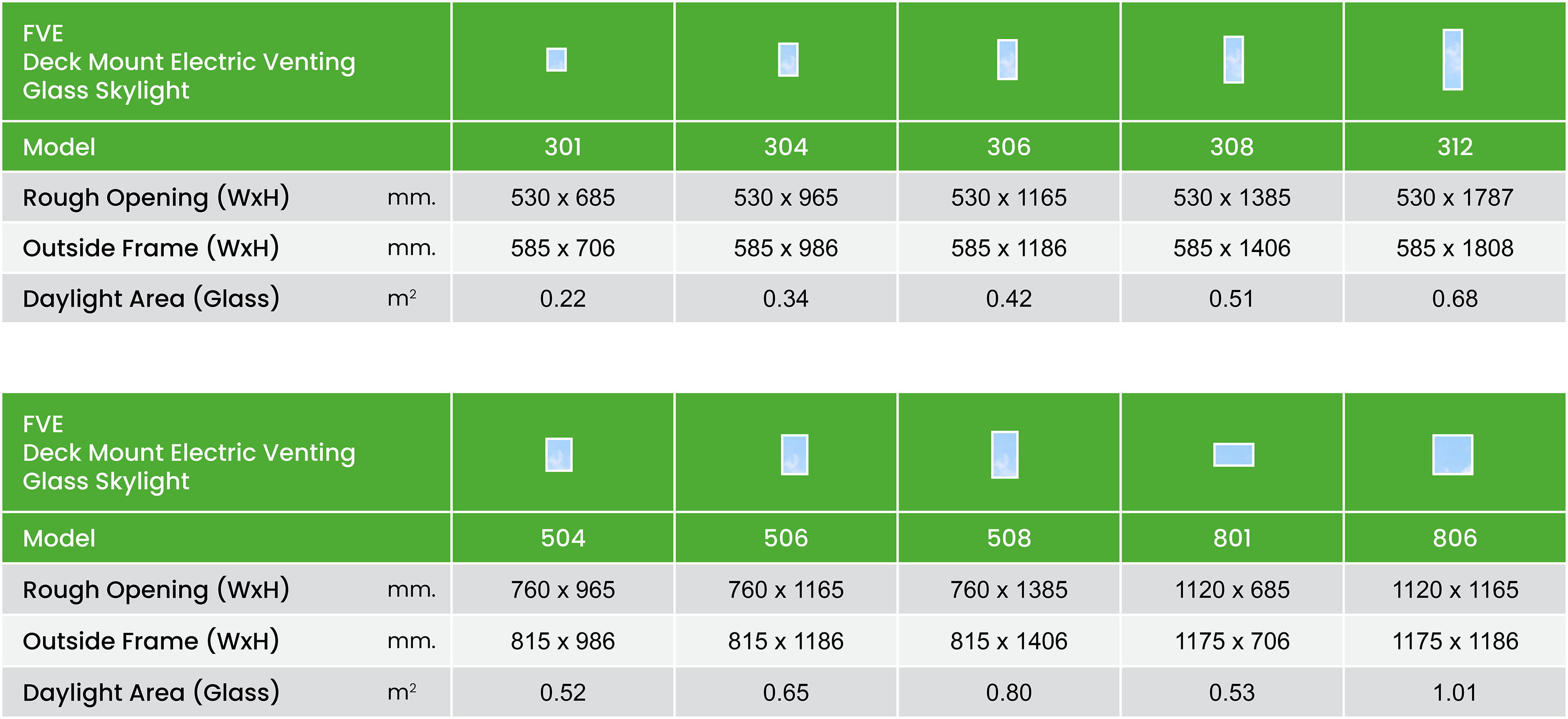

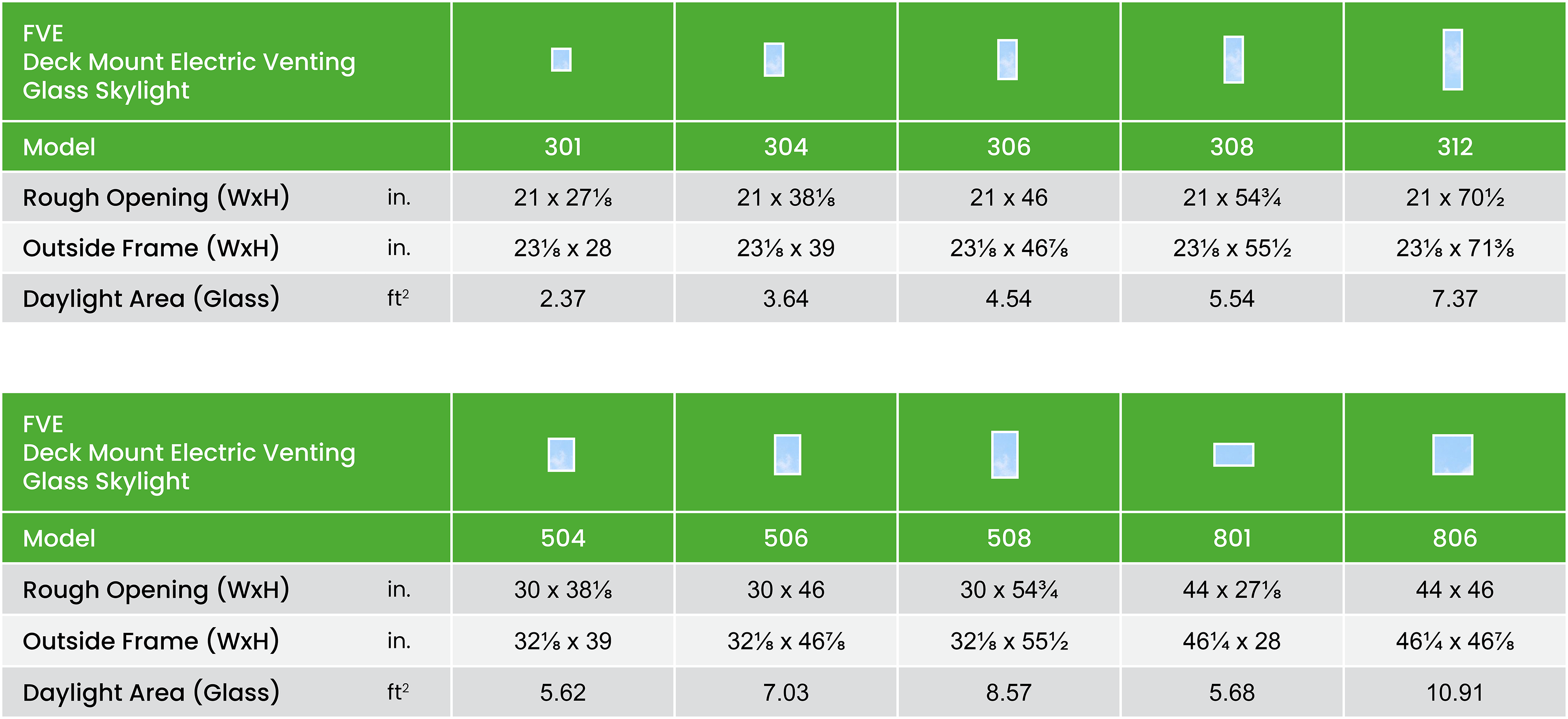

Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use FAKRO’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download a 3D Drawing (.dwg CAD file), BIM Model (.rfa), and Cross Sections as .dwg and PDF.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
High Performance
Flashing Systems
Flashing Systems
FAKRO manufactures a series of exceptional flashing systems tailored to the needs of its products.
Including energy efficient thermo flashing.
Including energy efficient thermo flashing.
Light Filtering &
Blackout Blinds
Blackout Blinds
FAKRO produces an extensive range of high quality light filtering and blackout blinds in a range of designer fabrics and colours.
Designed to complement any interior designer’s vision.
Designed to complement any interior designer’s vision.
FAKRO Radio Control System (FVE)
- FAKRO FVE skylights are equipped with the industry standard Z-Wave Smart Home radio technology. Z-Wave is one of the most widely used wireless broadcasting systems, so our products easily integrate with your Smart Home systems.
- Z-Wave is well supported, being constantly improved and updated to adjust to changing technology, removing the risk of a proprietary system offered by competitive manufacturers that may lack the support necessary to keep it up to date.
- Alternatively, the skylight can be operated without being connected to a Smart Home Hub, with the included ZRH 12 Remote Control controlling the skylight directly.
- The Z-Wave technology links all compatible Smart Home Hubs and devices into a single network: skylights and blinds, lighting, thermostats, alarms, computers, telephones, and air conditioning. Integrating with popular Smart Home systems such as Samsung SmartThings, Wink, Nest, Alexa, and Apple HomeKit.
- Z-Wave is easy to install, expand, and manage, saving you time and money, while maximizing usability. Z-Wave eliminates unnecessary control units and wiring between electronic devices. Ideal for new builds, renovations or adding to an existing system.

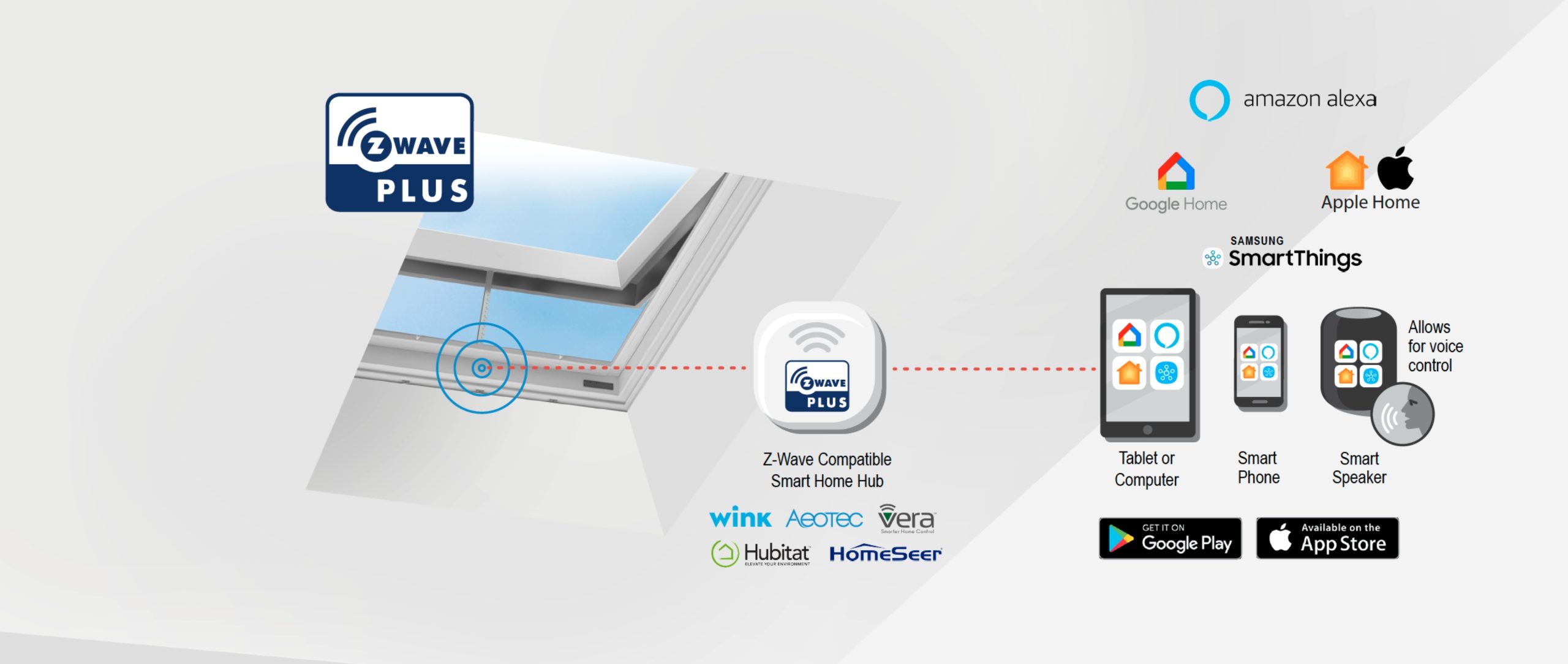

Your Smart Home Solution – Control Your FAKRO Smart Skylight (FVE) Using Your Z-Wave Smart Home System
All FAKRO FVE (solar) skylights are equipped with a Z-Wave radio control system, allowing for easy Smart Home system integration.
An easy 3 step process:
- Purchase or use existing Smart Home Hub with Z-Wave compatibility.
- Install and connect FAKRO skylights to your Z-Wave network.
- Your skylights are now part of your Smart Home network. Control your FAKRO skylights through a variety of devices.

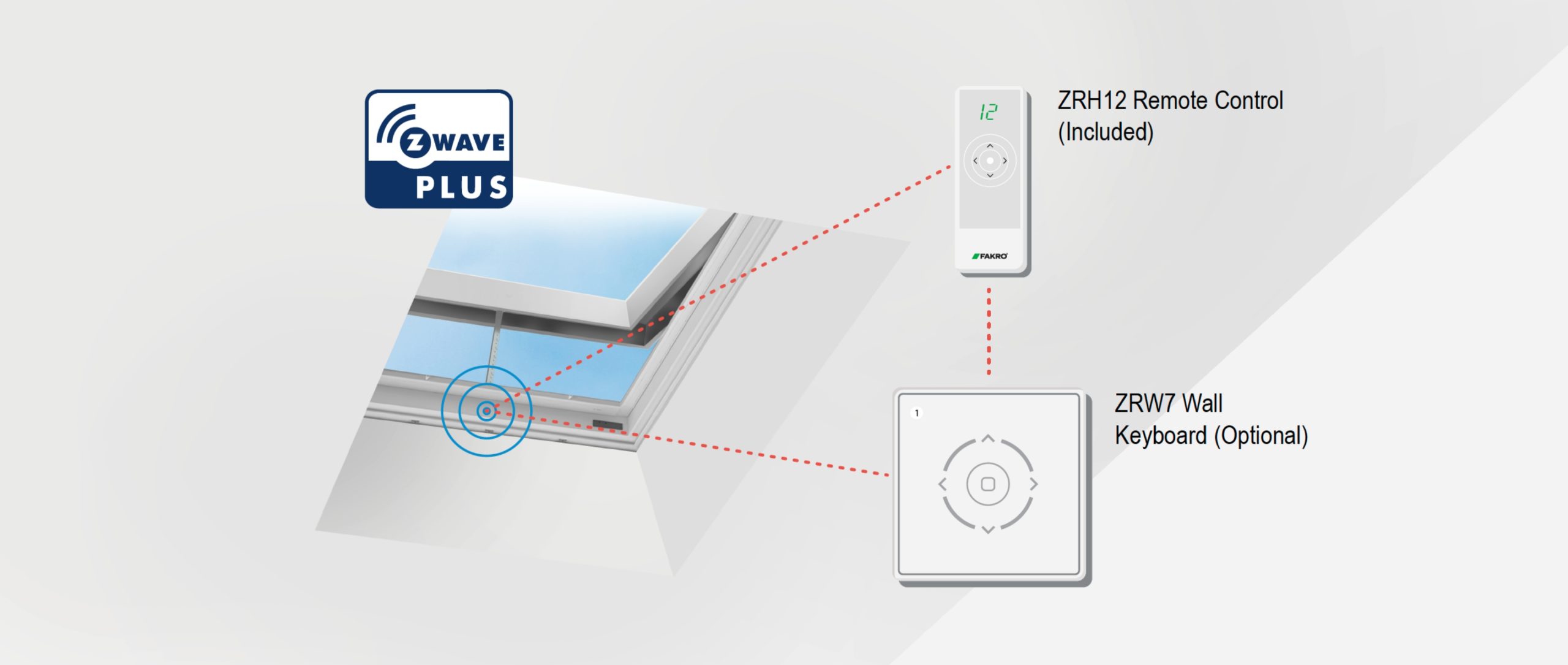

Control Your FAKRO Skylight (FVE) Using Our Remote Control or Keyboard
- Control your FVE skylights as a stand alone or multi unit system using the included ZRH12 remote control.
- The remote controls up to 12 separate groups with up to 12 skylights per group (144 total).
- A wall keyboard is available, ZRW7, operating up to 7 separate groups with up to 12 skylights per group (84 total).
