DEG (Solar or Electric) Venting Flat Roof Deck Mounted Skylight – Double Glazed.
DEG (Solar Or Electric) Venting FLAT ROOF Deck Mounted Skylight – Double Glazed
- FAKRO’s DEG combines outstanding European engineering and design, maximizing the daylight entering your home, while delivering excellent energy efficiency and thermal insulation in the P2 double glazed unit.
- The DEG is engineered to provide natural light, and the health benefits of fresh air ventilation. Allowing you to cool your home naturally, and flush out airborne pollutants like odour and dust -helping to improve interior comfort.
- Choose either solar or electrically powered opening, with FAKRO’s Smart Home wireless Z-Wave system. FAKRO provides a handheld ZRH12 remote, or purchase the ZRW7 wall keyboard.
- The window is covered from the top with a special glass section that consists of 4 mm or 6 mm tempered glass depending on the unit size combined with a unique aluminium black profile. The glass section is factory applied to the window which substantially reduces its installation time.
The FAKRO premium deck mounted skylights carry a 20 year warranty on sealed glass failure. 10 years on parts, and 5 years on blinds and controls.
FEATURES
- The DEG opening mechanism is powered by solar or electric – operated using Z-Wave Smart Home wireless technology.
- Controlled via a ZRH12 handheld remote or ZRW7 wall keyboard.
- Offered with P2 glazing unit which comes with a Class P2A inner laminated pane to secure safety of use and protect against shards of glass in case of damage.
- Optionally, there is available laminated P4 anti burglary glazing unit featuring P4A class.
- In addition to standard sizes, type G windows can be manufactured in non standard dimensions (in the range of 60×60 cm – 120×220 cm).
- An ideal solution for flat roof applications where the skylights are hard to reach. Suitable for roofs with pitches between 2-15° degrees.
- The DEG can be installed in the roof pitch as low as 2° or 0° with the XRD/A base thanks to the innovative method of rain water drainage from the window surface.
- Internal and external accessories available.
- Windows come in sizes from 60x60cm to 120x120cm and also in custom sizes in this range. This allows for easy replacement of existing skylights.
- Up to 16% greater glazing area when compared with other manufacturer’s windows of a similar size.
- Can be used with roofing products such as TPO, PVC, EPDM single ply or torched down membranes.
- Blackout (ARF-D) blinds are available.
Highlights of the DEG (Solar or Electric) Venting Deck Mounted Skylights for Flat Roofs
Solar Powered
- The DEG Solar Venting flat roof skylights are powered by an integrated solar panel. Not needing to be hard wired into your home’s electrical system and reducing your energy bill.
- FAKRO’s high performance solar panel works in cloudy and sunny conditions.
- Positioned clear from snow and ice build up.
Responds to a Single Drop of Water
- The DEG flat roof skylight includes an integrated rain sensor that automatically closes the skylight at the first sign of rain.
- So, you never have to worry about your skylight when you are away from home or the office and it unexpectedly starts to rain.
Remote Control Technology
- Control your DEG skylights as a stand alone or multi unit system using the included ZRH12 remote control.
- The remote controls up to 12 separate groups with up to 12 skylights per group (144 total).
A wall keyboard is also available, ZRW7, operating up to 7 separate groups with up to 12 skylights per group (84 total).
Stylish Black Frame and Bezel
- The DEG features an elegant black frame that wraps the edge of the glazing unit incorporated with a black bezel, delivering a sleek contemporary look. Up to 16% greater glazing area compared to competitive offerings. Create a striking architectural feature, ideal when the skylight can be seen from above.
- Buildings with flat roofs often exclude natural light skylights and miss out on the benefits, but the DEG has been specifically designed for flat roofs.
Energy Efficient
- The DEG delivers excellent thermal insulation with the state of the art P2 glazing unit gazed unit. With a window U Value of 0.92 W/m²K and a glazing U Value of 1.1 W/m²K. The glass panes are filled with inert thermal efficient argon gas.
- On the inner side of the laminated glass it has a low emission coating which reduces penetration of UV rays by up to 99%.
Ug=1.1 W/m²K. - Excellent thermal insulation performance. The heat transfer coefficient for the complete window is 0.92 W/ m2K, which is 35% better than solutions offered by the competition.
Superior Sound Insulation
- A quiet calm home environment is essential to modern families. The DEG provides outstanding sound insulation from its state of the art glazing.
- A quiet working environment is critical to many modern businesses, dramatically improving productivity, allowing employees a quiet place to concentrate, talk and think.
- The DEG flat roof window has been tested for sound insulation during rainfall (ISO 10140-1/A2:2014) and obtained very good results. The LIA co-efficent for DEG P2 windows is 42.1 dB.
Green Roof Installation with Additional XRD/W Base
- Flat roof glass skylights can also be mounted on an additional XRD/W base with a height of 5⅞” for installation on green or living roofs.
- 2 XRD bases can be installed on top of each other for applications requiring additional height, such as a ‘green’ roof.
See installation instructions.
Sleek Architectural Design
- FAKRO’s flat roof skylights are designed to be a dramatic, sleek and modern architectural feature. Utilizing the latest technology and material to advance their design.
- Create an architectural ‘wow’ factor that will get noticed. The design compliments the aesthetic style of modern architects and designers.
- The FAKRO flat roof skylight series (triple and double glazed) can be installed individually, in a row, or in a group. Discuss the necessary structural requirements with your architect and engineer.
- The DEG comes with an additional operational feature – a button on the inside of the skylight frame, allowing you to open and close the skylight without the Z-Wave Smart Home remote control.
- If the skylight is within reach, press the button to open the skylight and again to close it.
- A light flashes green when it is fully open and fully closed.
- NOTE: You do have the option of installing a ZRW7 Wall Switch (purchased separately).

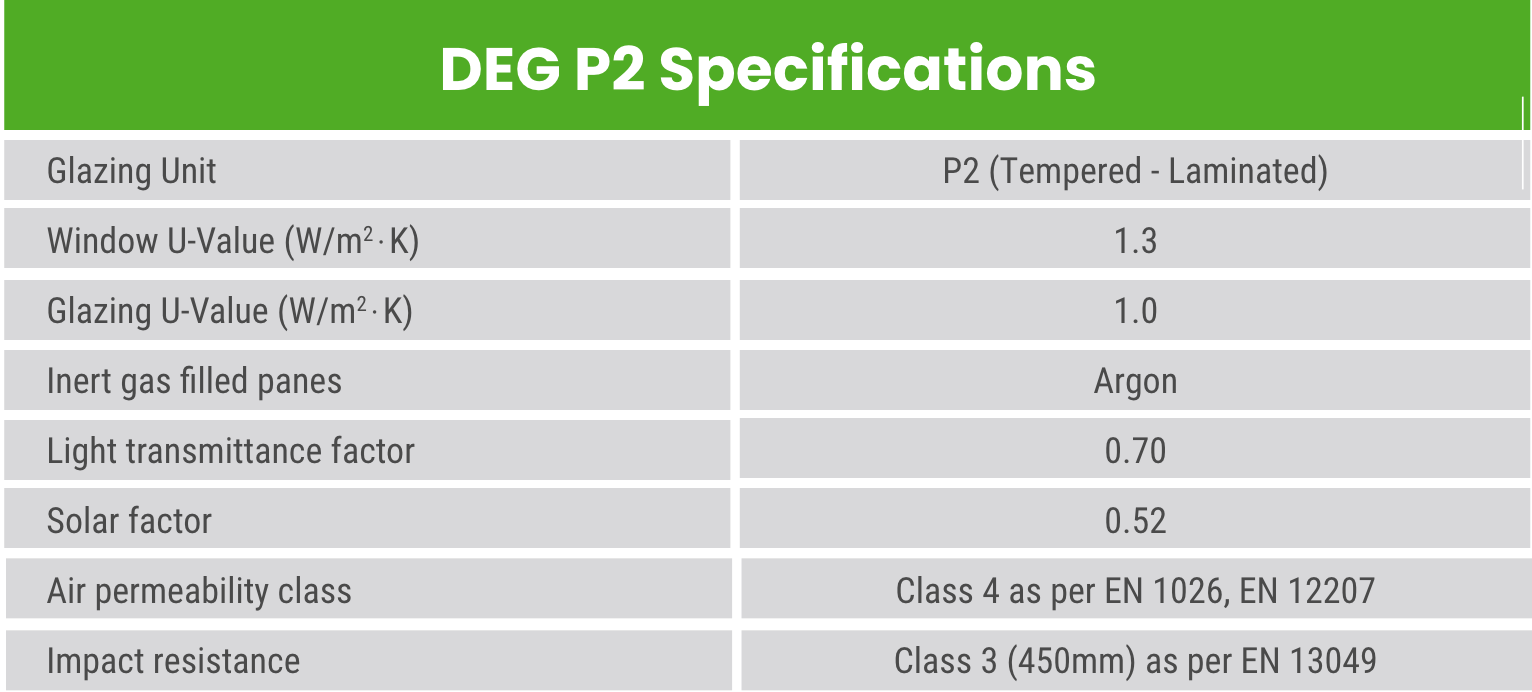

FAKRO’s Premium P2 Glazing Unit and Specifications
Laminated P4 anti burglary glazing unit featuring P4A glass by special order.
Call for more information.
Tested in accordance with EN-14351. European standard for windows and doors.
The Features of FAKRO’s Laminated Glass
FAKRO offers laminated glass on all its skylights and roof windows. FAKRO uses a number of different configurations of glazing based on the requirements of the skylight or roof window, this includes double, triple and now Canada’s first quadruple glass unit. Laminated glass has many benefits.
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.
Sizes For DEG (Solar or Electric) Venting Flat Roof Deck Mounted Skylight
| Rough Opening | 23⅝ | 27½ | 31½ | 35 | 39⅜ | 47¼ | 55⅛ |
|---|---|---|---|---|---|---|---|
| 23⅝ |
Model: 6060
Rough Opening (WxH)
23⅝” x 23⅝” Outside Frame (WxH)
32¼” x 32¼” Daylight Area (Glass)
3.88 sq.ft. Model: 6060
Rough Opening (WxH)
600mm x 600mm Outside Frame (WxH)
819mm x 819mm Daylight Area (Glass)
0.36 m2 |
||||||
| 27½ |
Model: 7070
Rough Opening (WxH)
27½” x 27½” Outside Frame (WxH)
36¼” x 36¼” Daylight Area (Glass)
5.27 sq.ft. Model: 7070
Rough Opening (WxH)
700mm x 700mm Outside Frame (WxH)
921mm x 921mm Daylight Area (Glass)
0.49 m2 |
||||||
| 31½ |
Model: 8080
Rough Opening (WxH)
31½” x 31½” Outside Frame (WxH)
40⅛” x 40⅛” Daylight Area (Glass)
6.89 sq.ft. Model: 8080
Rough Opening (WxH)
800mm x 800mm Outside Frame (WxH)
1019mm x 1019mm Daylight Area (Glass)
0.64 m2 |
||||||
| 35 |
Model: 6090
Rough Opening (WxH)
23⅝” x 35” Outside Frame (WxH)
32¼” x 44⅛” Daylight Area (Glass)
5.81 sq.ft. Model: 6090
Rough Opening (WxH)
600mm x 900mm Outside Frame (WxH)
819mm x 1121mm Daylight Area (Glass)
0.54 m2 |
Model: 9090
Rough Opening (WxH)
35” x 35” Outside Frame (WxH)
44⅛” x 44⅛” Daylight Area (Glass)
8.72 sq.ft. Model: 9090
Rough Opening (WxH)
900mm x 900mm Outside Frame (WxH)
1121mm x 1121mm Daylight Area (Glass)
0.81 m2 |
|||||
| 39⅜ |
Model: 100100
Rough Opening (WxH)
39⅜” x 39⅜” Outside Frame (WxH)
48″ x 48” Daylight Area (Glass)
10.76 sq.ft. Model: 100100
Rough Opening (WxH)
1000mm x 1000mm Outside Frame (WxH)
1219mm x 1219mm Daylight Area (Glass)
1 m2 |
||||||
| 47¼ |
Model: 90120
Rough Opening (WxH)
35” x 47¼” Outside Frame (WxH)
44⅛” x 55⅞” Daylight Area (Glass)
11.63 sq.ft. Model: 90120
Rough Opening (WxH)
900mm x 1200mm Outside Frame (WxH)
1121mm x 1419mm Daylight Area (Glass)
1.08 m2 |
Model: 120120
Rough Opening (WxH)
47¼” x 47¼” Outside Frame (WxH)
55⅞” x 55⅞” Daylight Area (Glass)
15.5 sq.ft. Model: 120120
Rough Opening (WxH)
1200mm x 1200mm Outside Frame (WxH)
1419mm x 1419mm Daylight Area (Glass)
1.44 m2 |
|||||
| 55⅛ |
Model: 140140
Rough Opening (WxH)
55⅛” x 55⅛” Outside Frame (WxH)
63¾” x 63¾” Daylight Area (Glass)
21.1 sq.ft. Model: 140140
Rough Opening (WxH)
1400mm x 1400mm Outside Frame (WxH)
1619mm x 1619mm Daylight Area (Glass)
1.96 m2 |
||||||
| 59 |
Model: 100150
Rough Opening (WxH)
39⅜” x 59” Outside Frame (WxH)
48″ x 67¾” Daylight Area (Glass)
16.15 sq.ft. Model: 100150
Rough Opening (WxH)
1000mm x 1500mm Outside Frame (WxH)
1219mm x 1718mm Daylight Area (Glass)
1.5 m2 |

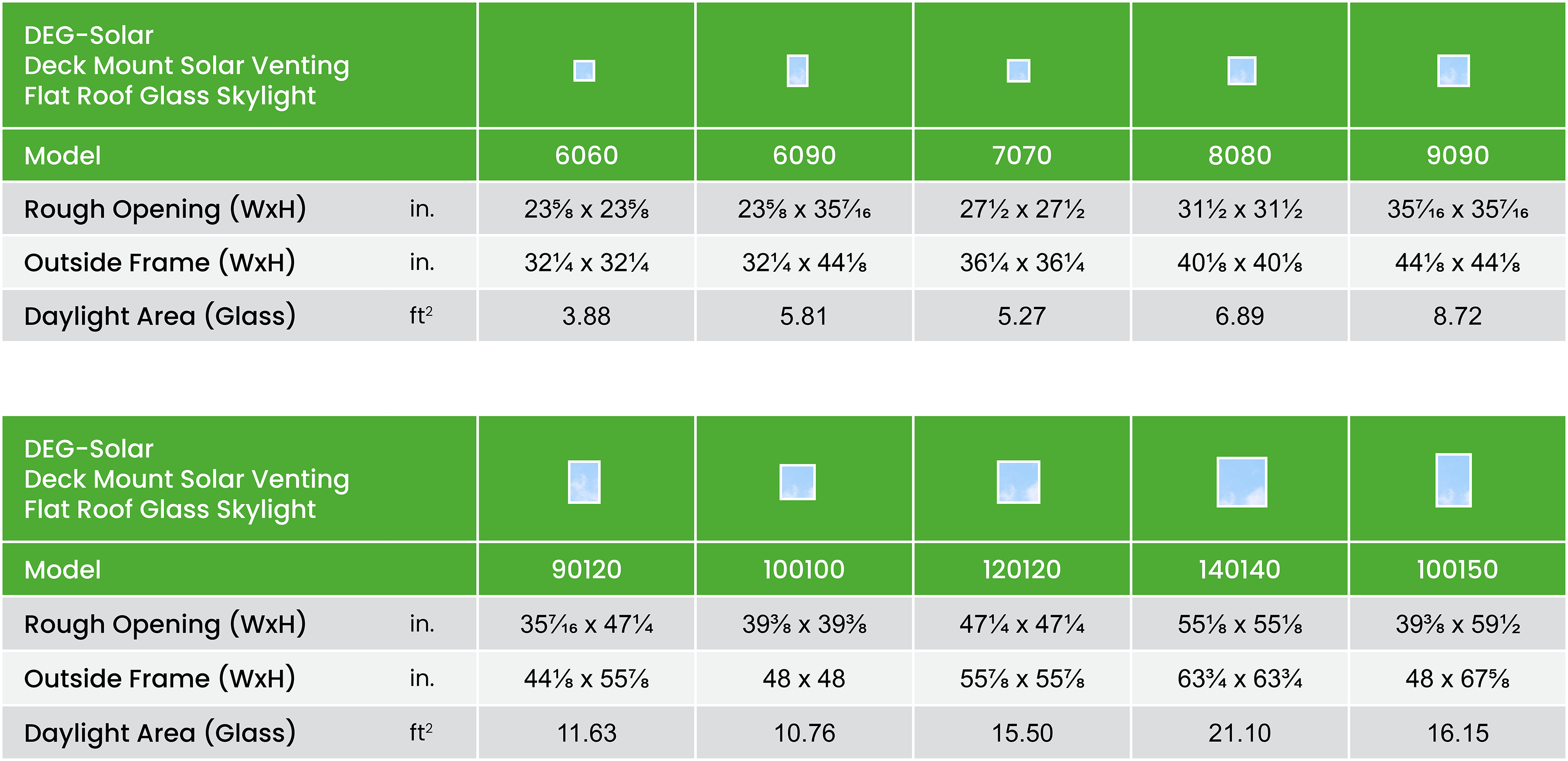

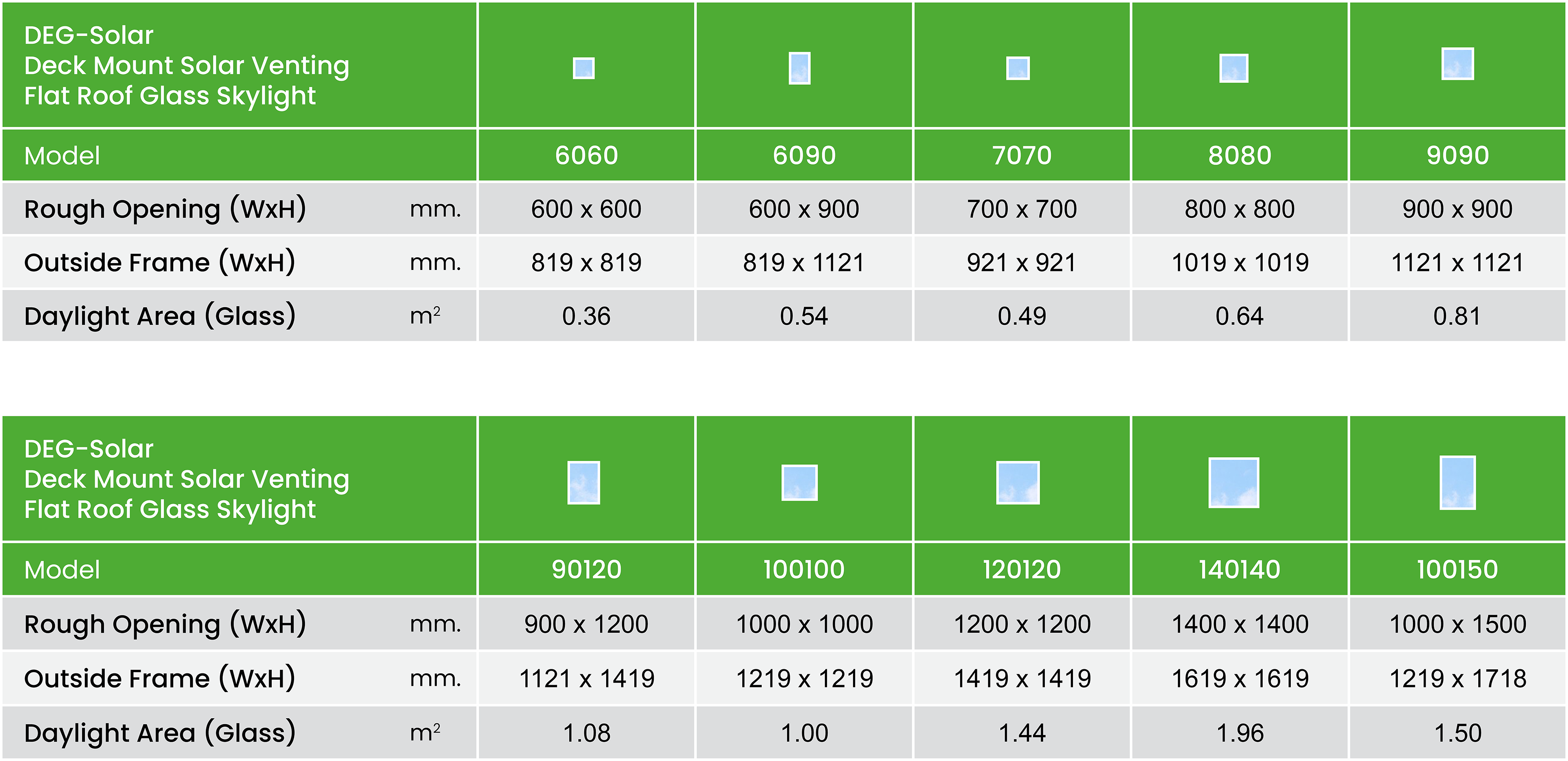

Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use FAKRO’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download a 3D Drawing (.dwg CAD file), BIM Model (.rfa), and Cross Sections as .dwg and PDF.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Light Filtering &
Blackout Blinds
Blackout Blinds
FAKRO produces an extensive range of high quality light filtering and blackout blinds in a range of designer fabrics and colours.
Designed to complement any interior designer’s vision.
Designed to complement any interior designer’s vision.
FAKRO Radio Control System (DEG)
- FAKRO DEG skylight is equipped with the industry standard Z-Wave Smart Home radio technology. Z-Wave is one of the most widely used wireless broadcasting systems, so our products easily integrate with your Smart Home systems.
- Z-Wave is well supported, being constantly improved and updated to adjust to changing technology, removing the risk of a proprietary system offered by competitive manufacturers that may lack the support necessary to keep it up to date.
- Alternatively, the skylight can be operated without being connected to a Smart Home Hub, with the included ZRH 12 Remote Control controlling the skylight directly.
- The Z-Wave technology links all compatible Smart Home Hubs and devices into a single network: skylights and blinds, lighting, thermostats, alarms, computers, telephones, and air conditioning. Integrating with popular Smart Home systems such as Samsung SmartThings, Wink, Nest, Alexa, and Apple HomeKit.
- Z-Wave is easy to install, expand, and manage, saving you time and money, while maximizing usability. Z-Wave eliminates unnecessary control units and wiring between electronic devices. Ideal for new builds, renovations or adding to an existing system.
Your Smart Home Solution – Control Your FAKRO Smart Skylight (DEG) Using Your Z-Wave Smart Home System
Your Smart Home Solution – Control Your FAKRO Smart Skylight (DEG) Using Your Z-Wave Smart Home System
An easy 3 step process:
- Purchase or use existing Smart Home Hub with Z-Wave compatibility.
- Install and connect FAKRO skylights to your Z-Wave network.
- Your skylights are now part of your Smart Home network. Control your FAKRO skylights through a variety of devices.
Control Your FAKRO Skylight (DEG) Using Our Remote Control or Keyboard
- Control your DEG skylights as a stand alone or multi unit system using the included ZRH12 remote control.
- The remote controls up to 12 separate groups with up to 12 skylights per group (144 total).
- A wall keyboard is available, ZRW7, operating up to 7 separate groups with up to 12 skylights per group (84 total).
