AC ASF – Aluminum Self Flashing Fixed ACRYLIC DOME Skylight
- The AC ASF is a durable acrylic or polycarbonate aluminum self flashing skylight engineered to perform flawlessly for decades. Providing the clarity of natural light for sloped roof residential installation, recreational vehicles, and mobile homes. Improve the comfort and livability of your interior with the beauty of natural light.
- The robust aluminum self flashing flange makes installation quick and easy, which can make a difference on larger multi skylight projects.
- You can choose the optimal quality of natural light for your project, as the AC ASF comes in clear, white and bronze tinting.
- Available as acrylic dome and pyramid models (pyramid only available in square dimensions).
- Can be manufactured in acrylic and polycarbonate. Polycarbonate provides an extra level of security with its exceptional strength.
- Self flashing skylights mount directly to the roof deck and are used in Eastern markets only. The most popular skylight for both East and West markets remains the curb mounted skylight.
- Self flashing skylights must be installed on a minimum 3:12 slope.
FEATURES
- Suitable for sloped asphalt shingle or cedar shake roof only. We recommend using Columbia’s underlayment for watertight installation.
- Includes built in PVC curb and wide aluminum self flashing flange for optimum seal.
- The easiest skylight model to install – no flashing kit or wood curb required.
- Durable, weather resistant, extruded aluminum exterior retaining frame with baked enamel paint finish.
- Seven standard frame colours (including black), unlimited custom options.
- Custom sizes also available.
- Low Maintenance white extruded fusion welded vinyl (PVC) base frame interior.
- The thermally broken vinyl base frame features double wall frame design for rigidity and optimal insulation.
- Integrated 4 sided gutter (our Condensation Control Technology) collects and wicks away condensation caused by Canada’s extreme climate.
- Featuring aluminum flashing flange.
- Available in double or triple glazed acrylic, choose from clear, bronze or translucent white tints.
- Performance tested in Canada’s harsh climate for over 30 years!
- Manufactured in Canada with 100% North American sourced parts and raw materials.
- Industry leading warranty.
Available in ultra strong Polycarbonate
For applications that require additional security
Recommended
Location
- Residential
- Warehouses
- Recreational Vehicles
- Mobile Homes

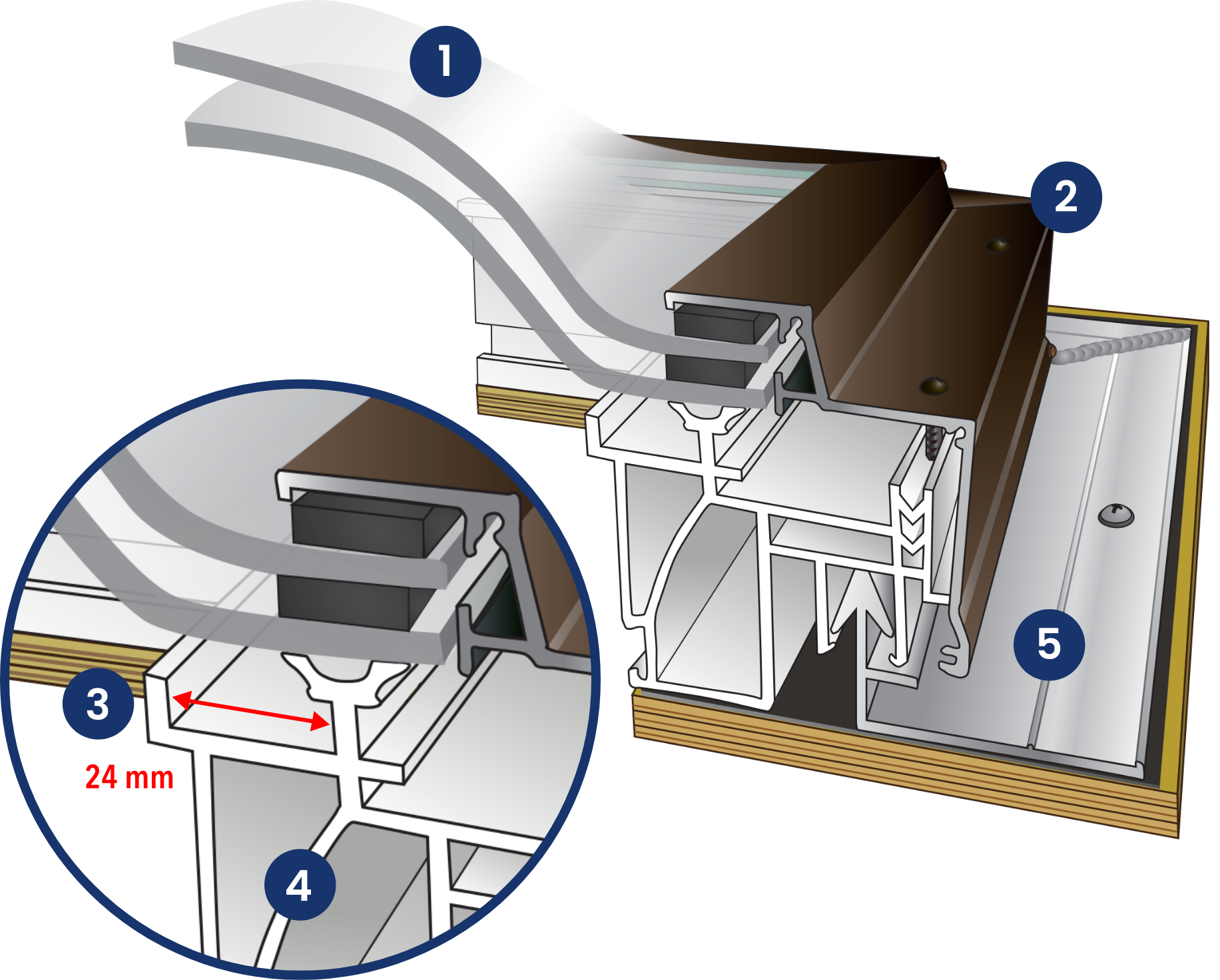

Industry Leading Aluminum Self Flashing Skylight Design
- Glazing
Standard Double Glazed Clear acrylic.
Also available in: Single, Double and Triple Glazed Clear, Bronze & White, acrylic as well as polycarbonate. - Aluminum Cap
Standard exterior aluminum frame with brown baked enamel finish.Black, Grey, White or Sandalwood aluminum frame available on all models. Mill finish, clear anodized or custom colour aluminum frame available. - Condensation Gutter
Four sided 24 mm wide drainage condensation gutter. Condensation is dispersed to the outside roof along our unique gutter. - Vinyl Base Frame
Maintenance free, thermally broken white vinyl base frame. - Aluminum Self Flashing Flange
Easy to install, aluminum flange, creating an exceptionally durable and rigid installation.
Acrylic is the right choice for many applications
- Columbia manufactures skylights in acrylic and polycarbonate.
- These versatile glazing materials are able to be produced in double and triple glazing options.
- Acrylic and polycarbonate come in three tints – clear, bronze, and translucent white.

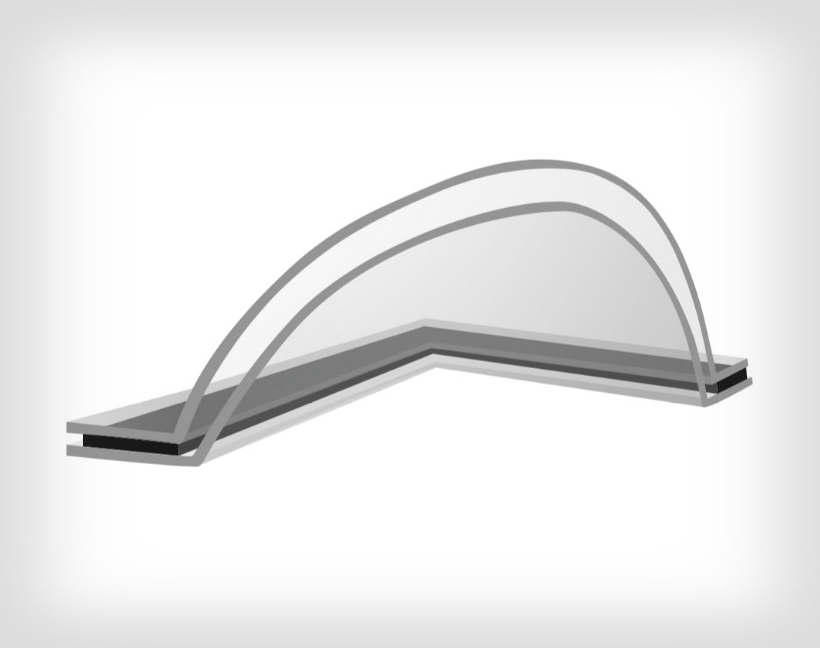

Double Glazed Clear
Double Glazed Clear
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Clear acrylic gives bright natural light.

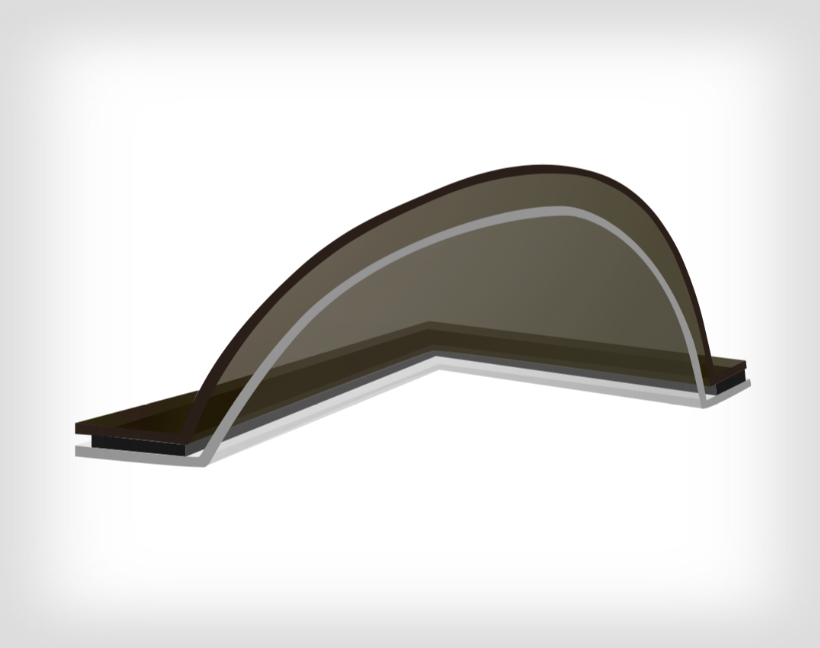

Double Glazed Bronze
Double Glazed Bronze
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Bronze acrylic delivers the maximum protection from extreme sunlight, reducing glare and solar heat gain.

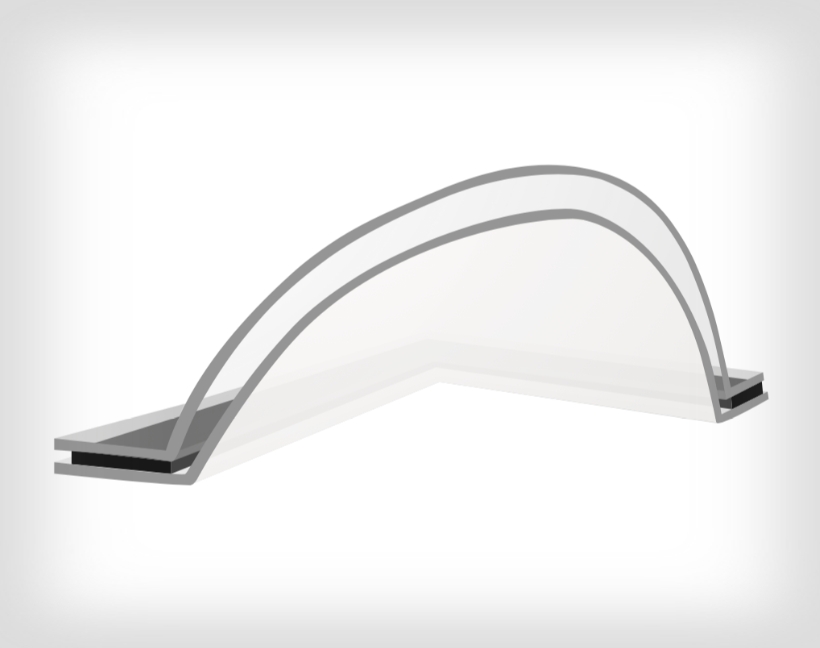

Double Glazed White
Double Glazed White
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.

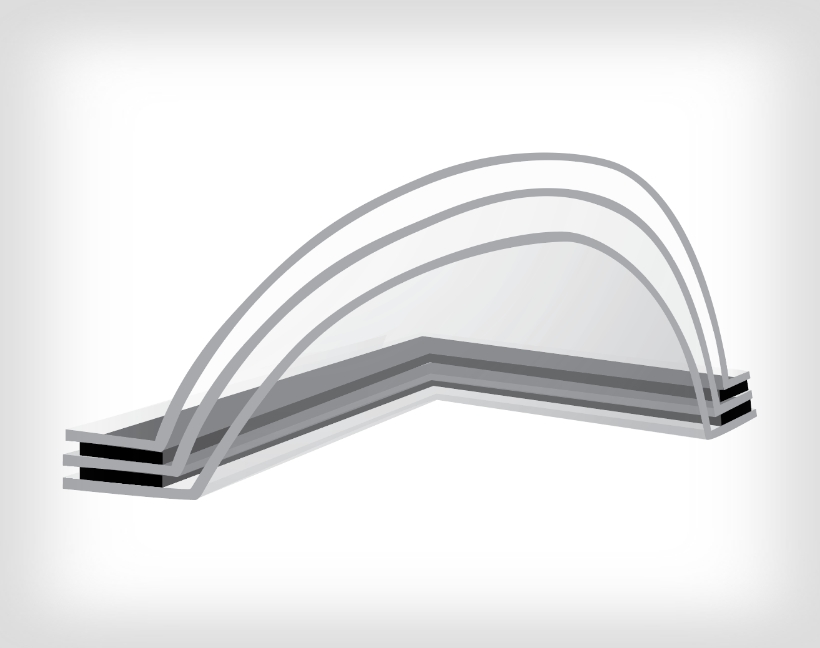

Triple Glazed Clear
Triple Glazed Clear
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Additional comfort in your interior space.

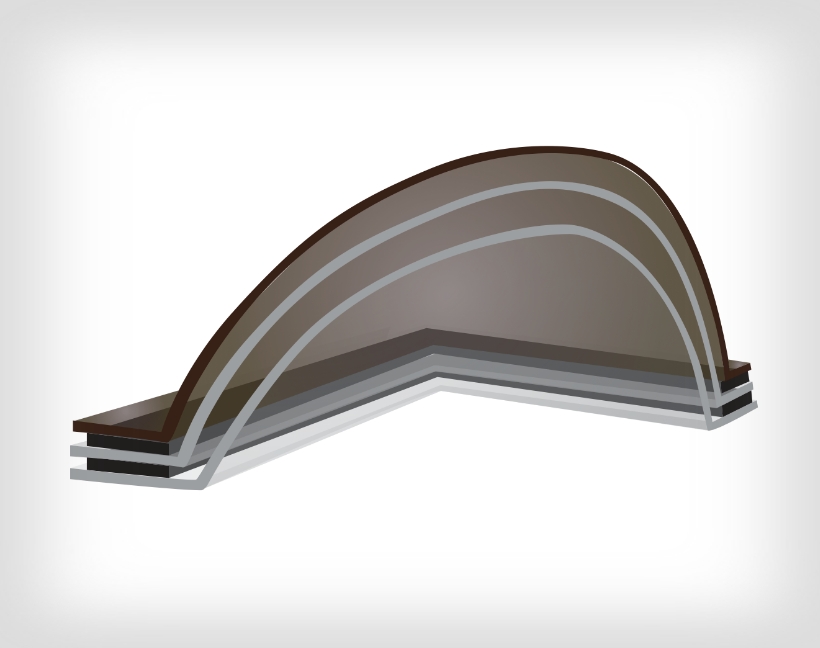

Triple Glazed Bronze
Triple Glazed Bronze
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, reducing glare and solar heat gain.
- Additional comfort in your interior space.

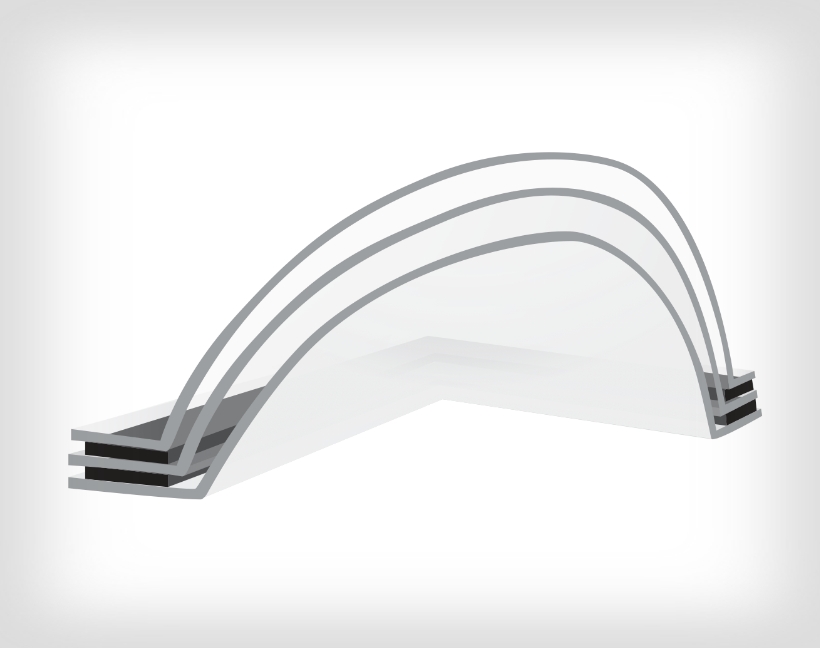

Triple Glazed White
Triple Glazed White
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Additional comfort in your interior space.
Columbia offers the widest choice of skylight frame colours in North America
With the growing selection of asphalt shingle and steel metal roof colour options, Columbia allows you to match your skylight frame colour to the colour of your roofing material or window package. Columbia offers seven standard colours and unlimited custom colour matching. Save time and money by choosing a standard colour, or provide your dealer with a colour chip and we will match it.
Sizes for AC ASF – Aluminum Self Flashing Fixed Acrylic Dome Skylight
Available in the sizes shown in the chart below (Imperial and Metric). You can also review the most popular sizes. If you don’t see the size you need below, then please visit our Custom Sizes page. You can also download a printable PDF of the chart.
GO TO CUSTOM SIZES
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
Popular Sizes
The yellow star indicates the most popular sizes.
| Roof Opening | 14½ | 22½ | 26½ | 30½ | 32½ | 34½ | 36½ | 46½ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14½ |
Model: 2020
Roof Opening (WxH)
14½” x 14½” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Roof Opening (WxH)
368mm x 368mm Daylight Area (Glass)
0.14 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22½ |
Model: 2028
Roof Opening (WxH)
14½” x 22½” Daylight Area (Glass)
2.27 sq.ft. Model: 2028
Roof Opening (WxH)
368mm x 572mm Daylight Area (Glass)
0.21 m2 |
Model: 2828
Roof Opening (WxH)
22½” x 22½” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Roof Opening (WxH)
572mm x 572mm Daylight Area (Glass)
0.33 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30½ |
Model: 2036
Roof Opening (WxH)
14½” x 30½” Daylight Area (Glass)
3.07 sq.ft. Model: 2036
Roof Opening (WxH)
368mm x 775mm Daylight Area (Glass)
0.29 m2 |
Model: 2836
Roof Opening (WxH)
22½” x 30½” Daylight Area (Glass)
4.77 sq.ft. Model: 2836
Roof Opening (WxH)
572mm x 775mm Daylight Area (Glass)
0.44 m2 |
Model: 3636
Roof Opening (WxH)
30½” x 30½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Roof Opening (WxH)
775mm x 775mm Daylight Area (Glass)
0.60 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 34½ |
Model: 2840
Roof Opening (WxH)
22½” x 34½” Daylight Area (Glass)
5.39 sq.ft. Model: 2840
Roof Opening (WxH)
572mm x 876mm Daylight Area (Glass)
0.50 m2 |
Model: 4040
Roof Opening (WxH)
34½” x 34½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Roof Opening (WxH)
876mm x 876mm Daylight Area (Glass)
0.77 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36½ |
Model: 4242
Roof Opening (WxH)
36½” x 36½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Roof Opening (WxH)
927mm x 927mm Daylight Area (Glass)
0.86 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 46½ |
Model: 2052
Roof Opening (WxH)
14½” x 46½” Daylight Area (Glass)
4.68 sq.ft. Model: 2052
Roof Opening (WxH)
368mm x 1181mm Daylight Area (Glass)
0.44 m2 |
Model: 2852
Roof Opening (WxH)
22½” x 46½” Daylight Area (Glass)
7.27 sq.ft. Model: 2852
Roof Opening (WxH)
572mm x 1181mm Daylight Area (Glass)
0.68 m2 |
Model: 3652
Roof Opening (WxH)
30½” x 46½” Daylight Area (Glass)
9.85 sq.ft. Model: 3652
Roof Opening (WxH)
775mm x 1181mm Daylight Area (Glass)
0.92 m2 |
Model: 4052
Roof Opening (WxH)
34½” x 46½” Daylight Area (Glass)
11.14 sq.ft. Model: 4052
Roof Opening (WxH)
876mm x 1181mm Daylight Area (Glass)
1.03 m2 |
Model: 5252
Roof Opening (WxH)
46½” x 46½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Roof Opening (WxH)
1181mm x 1181mm Daylight Area (Glass)
1.40 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 54½ |
Model: 2860
Roof Opening (WxH)
22½” x 54½” Daylight Area (Glass)
8.52 sq.ft. Model: 2860
Roof Opening (WxH)
572mm x 1384mm Daylight Area (Glass)
0.79 m2 |
Model: 3660
Roof Opening (WxH)
30½” x 54½” Daylight Area (Glass)
11.54 sq.ft. Model: 3660
Roof Opening (WxH)
775mm x 1384mm Daylight Area (Glass)
1.07 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 58½ |
Model: 2864
Roof Opening (WxH)
22½” x 58½” Daylight Area (Glass)
9.14 sq.ft. Model: 2864
Roof Opening (WxH)
572mm x 1486mm Daylight Area (Glass)
0.85 m2 |
Model: 3664
Roof Opening (WxH)
30½” x 58½” Daylight Area (Glass)
12.39 sq.ft. Model: 3664
Roof Opening (WxH)
775mm x 1486mm Daylight Area (Glass)
1.15 m2 |
Model: 4064
Roof Opening (WxH)
34½” x 58½” Daylight Area (Glass)
14.02 sq.ft. Model: 4064
Roof Opening (WxH)
876mm x 1486mm Daylight Area (Glass)
1.30 m2 |
Model: 5264
Roof Opening (WxH)
46½” x 58½” Daylight Area (Glass)
18.89 sq.ft. Model: 5264
Roof Opening (WxH)
1181mm x 1486mm Daylight Area (Glass)
1.75 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 62½ |
Model: 2868
Roof Opening (WxH)
22½” x 62½” Daylight Area (Glass)
9.77 sq.ft. Model: 2868
Roof Opening (WxH)
572mm x 1588mm Daylight Area (Glass)
0.91 m2 |
Model: 3668
Roof Opening (WxH)
30½” x 62½” Daylight Area (Glass)
13.24 sq.ft. Model: 3668
Roof Opening (WxH)
775mm x 1588mm Daylight Area (Glass)
1.23 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 70½ |
Model: 2076
Roof Opening (WxH)
14½” x 70½” Daylight Area (Glass)
7.10 sq.ft. Model: 2076
Roof Opening (WxH)
368mm x 1791mm Daylight Area (Glass)
0.66 m2 |
Model: 2876
Roof Opening (WxH)
22½” x 70½” Daylight Area (Glass)
11.02 sq.ft. Model: 2876
Roof Opening (WxH)
572mm x 1791mm Daylight Area (Glass)
1.02 m2 |
Model: 3676
Roof Opening (WxH)
30½” x 70½” Daylight Area (Glass)
14.93 sq.ft. Model: 3676
Roof Opening (WxH)
775mm x 1791mm Daylight Area (Glass)
1.39 m2 |
Model: 4076
Roof Opening (WxH)
34½” x 70½” Daylight Area (Glass)
16.89 sq.ft. Model: 4076
Roof Opening (WxH)
876mm x 1791mm Daylight Area (Glass)
1.57 m2 |
Model: 5276
Roof Opening (WxH)
46½” x 70½” Daylight Area (Glass)
22.77 sq.ft. Model: 5276
Roof Opening (WxH)
1181mm x 1791mm Daylight Area (Glass)
2.12 m2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 74½ |
Model: 3280
Roof Opening (WxH)
26½” x 74½” Daylight Area (Glass)
13.71 sq.ft. Model: 3280
Roof Opening (WxH)
673mm x 1892mm Daylight Area (Glass)
1.27 m2 |
Model: 3880
Roof Opening (WxH)
32½” x 74½” Daylight Area (Glass)
16.81 sq.ft. Model: 3880
Roof Opening (WxH)
826mm x 1892mm Daylight Area (Glass)
1.56 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

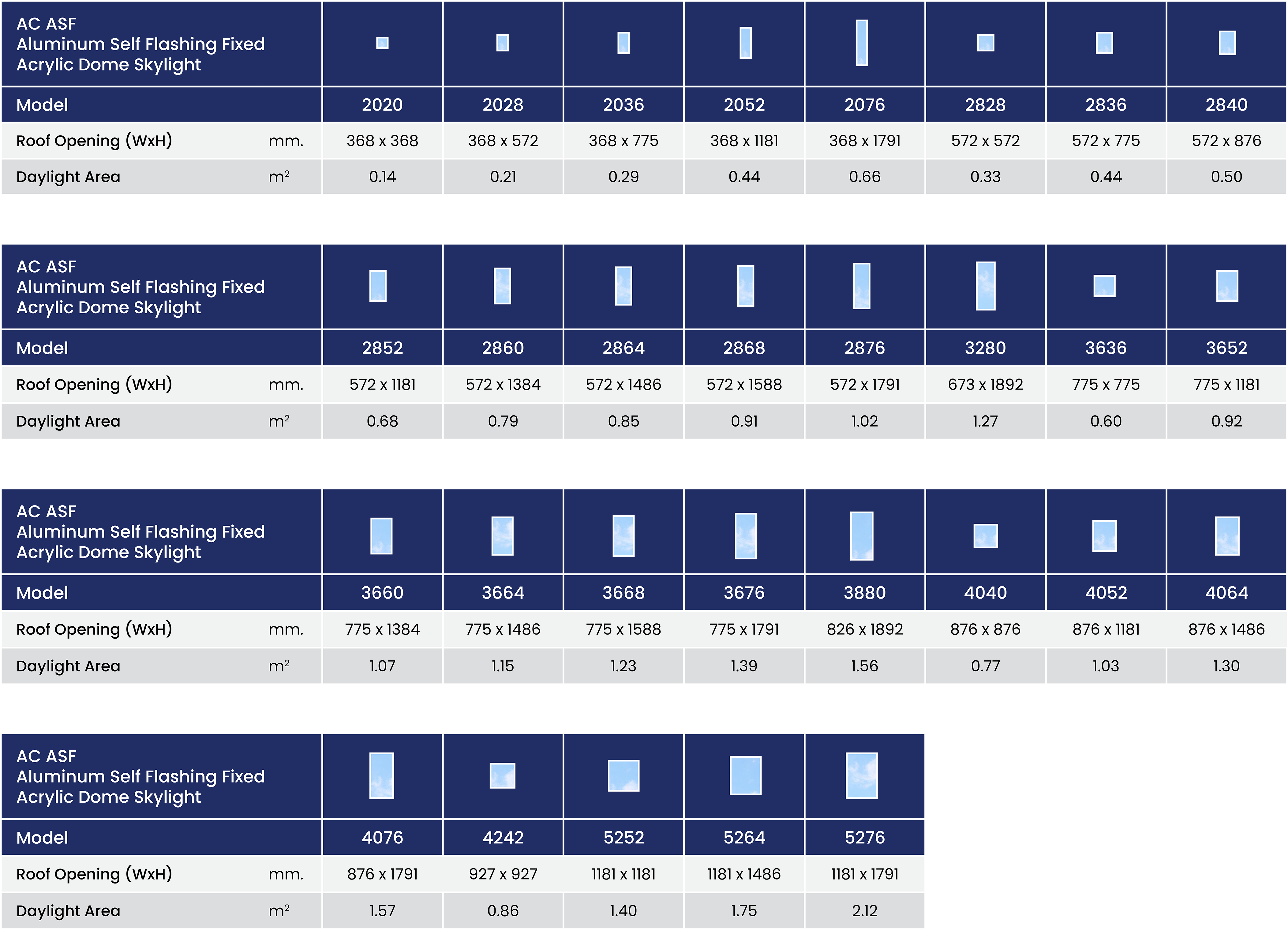

Size Chart – Summary
Pinch to enlarge.
NOTE: Sizes are reversible (must be specified at time of ordering). I.e. 3676 can be 7636.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use Columbia’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download two formats of this model’s technical drawings – (1) Detail or (2) Product Data. Also available, .dwg (CAD file) and Product Specifications as a Word Doc, PDF, or Text file.
For multiple models go to the Drawings & Specification Library page.
For multiple models go to the Drawings & Specification Library page.
