Double Glazed
Manual Venting
flat roof
Skylight
DMG Manual Venting Flat Roof Deck Mounted Skylight – Double Glazed.
DMG Manual Venting Flat Roof Deck MOUNTED Skylight – Double Glazed
- FAKRO’s DMG combines outstanding European engineering and design, maximizing the daylight entering your home, while delivering excellent energy efficiency and thermal insulation in the P2 double glazed unit.
- The DMG is engineered to provide natural light, and its proven health benefits, to flat roof buildings where installing a standard vertical window is not always possible.
- This flat roof skylight is the ideal solution, providing natural light to every room, benefiting the comfort and long term health of the people living or working below, and improving environmental comfort.
- The DMG skylight provides fresh air room ventilation, and energy saving with the highest level of thermal insulation. Now every room under a flat roof can be flooded with warm natural light.
The FAKRO premium deck mounted skylights carry a 20 year warranty on sealed glass failure. 10 years on parts, and 5 years on blinds and controls.
FEATURES
- The DMG is offered with P2 glazing unit which comes with a Class P2A inner laminated pane to secure safety of use and protect against shards of glass in case of damage.
- Optionally, there is available laminated P4 anti burglary glazing unit featuring P4A class.
- In addition to standard sizes, type G windows can be manufactured in non standard dimensions (in the range of 60×60 cm – 120×220 cm).
- The DMG can be installed in the roof pitch as low as 2° or 0° with the XRD/A base thanks to the innovative method of rain water drainage from the window surface.
- An ideal solution for flat roof applications requiring fresh air ventilation.
- Up to 16% greater glazing area when compared with other manufacturer’s windows of a similar size.
- Suitable for roofs with pitches between 2-15° degrees.
- Innovative glazing unit featuring leading edge design.
- Internal and external accessories available.
- Windows feature up to 16% greater glazing area when compared with other manufacturer’s windows of a similar size.
- Can be used with roofing products such as TPO, PVC, EPDM single ply or torched down membranes.
- Blackout (ARF-D) blinds are available.
Highlights of the DMG Manual Venting Flat Roof Skylight
Stylish Black Frame and Bezel
- The DMG features an elegant black frame that wraps the edge of the glazing unit incorporated with a black bezel, delivering a sleek contemporary look. Up to 16% greater glazing area compared to competitive offerings. Create a striking architectural feature, ideal when the skylight can be seen from above.
- Buildings with flat roofs often exclude natural light skylights and miss out on the benefits, but the DMG has been specifically designed for flat roofs.
Sleek Architectural Design
- FAKRO’s flat roof skylights are designed to be a dramatic, sleek and modern architectural feature. Utilizing the latest technology and material to advance their design.
- Create an architectural ‘wow’ factor that will get noticed. The design compliments the aesthetic style of modern architects and designers.
- The FAKRO flat roof skylight series (triple and double glazed) can be installed individually, in a row, or in a group. Discuss the necessary structural requirements with your architect and engineer.
Energy Efficient
- The DMG delivers excellent thermal insulation with the state of the art P2 glazing unit gazed unit. With a window U Value of 0.92 W/m²K and a glazing U Value of 1.1 W/m²K. The glass panes are filled with inert thermal efficient argon gas.
- On the inner side of the laminated glass it has a low emission coating which reduces penetration of UV rays by up to 99%.
Ug=1.1 W/m²K. - Excellent thermal insulation performance. The heat transfer coefficient for the complete window is 0.92 W/ m2K, which is 35% better than solutions offered by the competition.
Superior Sound Insulation
- A quiet calm home environment is essential to modern families. The DEF provides outstanding sound insulation from it’s state of the art glazing.
- A quiet working environment is critical to many modern businesses, dramatically improving productivity, allowing employees a quiet place to concentrate, talk and think.
- The DEF flat roof window featuring a double chamber DU6 glazing has been tested for sound insulation during heavy rain. The result, LIA= 36 [dB]*, confirms the high level of resistance against sound penetration making the skylight ideal for sound reduction.
Green Roof Installation with Additional XRD/W Base
- Flat roof glass skylights can also be mounted on an additional XRD/W base with a height of 5⅞” for installation on green or living roofs.
- 2 XRD bases can be installed on top of each other for applications requiring additional height, such as a ‘green’ roof.
See installation instructions.
Accessories
- Supplied with a ZSD telescopic pole (4-10ft) which works with DMF/DMG/DMZ flat roof manual venting skylights and ARF/D and ARP/D manual blinds designed for them.
- An optional flexible tipped SZS (5-10ft) and SZS Mini (20”) aluminum control rods are also available for easier alignment with angled installations. The same control rods will operate on all deck mount manual venting skylights (FV), flat roof manual venting skylights (DMF, DMG and DMZ) and all FAKRO manual blinds.

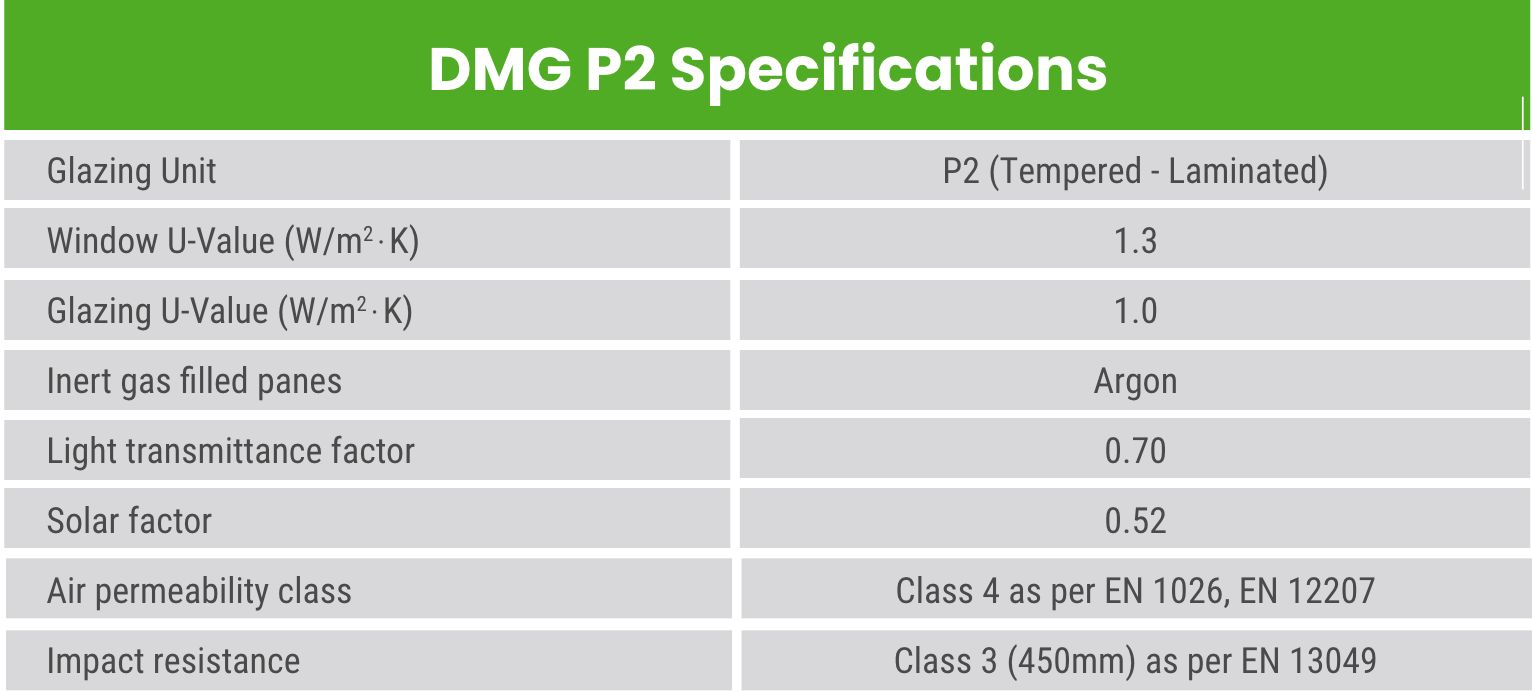

FAKRO’s Premium P2 Glazing Unit and Specifications
Laminated P4 anti burglary glazing unit featuring P4A glass by special order. Call for more information.
Tested in accordance with EN-14351. European standard for windows and doors.
The Features of FAKRO’s Laminated Glass
FAKRO offers laminated glass on all its skylights and roof windows. FAKRO uses a number of different configurations of glazing based on the requirements of the skylight or roof window, this includes double, triple and now Canada’s first quadruple glass unit. Laminated glass has many benefits.
Superior Sound Reduction
Reduces the effects of sound by up to 30% compared to standard double pane glass, and up to 50% less than a acrylic skylight. Bring natural light in without additional noise such as traffic or planes.
Additional Security
Laminated glass is more difficult to break and penetrate. So, if you are concerned about security it is worth considering. The vinyl interlayer holds the glass together in case of breakage.
Best in class UV Protection
Laminated glass lets the light in but protects your home from UV rays. The ideal choice to prevent fading of your floors, furniture and artwork.
Increased Safety
Laminated glass provides additional safety. Even when broken it does not shatter because the two inner layers of glass are bonded to a thin plastic membrane.
Many building codes require laminated glass for out of reach applications.
Sizes For DMG Manual Venting Flat Roof Skylight
| Rough Opening | 23⅝ | 27½ | 31½ | 35 | 39⅜ | 47¼ | 55⅛ |
|---|---|---|---|---|---|---|---|
| 23⅝ |
Model: 6060
Rough Opening (WxH)
23⅝” x 23⅝” Outside Frame (WxH)
32¼” x 32¼” Daylight Area (Glass)
3.88 sq.ft. Model: 6060
Rough Opening (WxH)
600mm x 600mm Outside Frame (WxH)
819mm x 819mm Daylight Area (Glass)
0.36 m2 |
||||||
| 27½ |
Model: 7070
Rough Opening (WxH)
27½” x 27½” Outside Frame (WxH)
36¼” x 36¼” Daylight Area (Glass)
5.27 sq.ft. Model: 7070
Rough Opening (WxH)
700mm x 700mm Outside Frame (WxH)
921mm x 921mm Daylight Area (Glass)
0.49 m2 |
||||||
| 31½ |
Model: 8080
Rough Opening (WxH)
31½” x 31½” Outside Frame (WxH)
40⅛” x 40⅛” Daylight Area (Glass)
6.89 sq.ft. Model: 8080
Rough Opening (WxH)
800mm x 800mm Outside Frame (WxH)
1019mm x 1019mm Daylight Area (Glass)
0.64 m2 |
||||||
| 35 |
Model: 6090
Rough Opening (WxH)
23⅝” x 35” Outside Frame (WxH)
32¼” x 44⅛” Daylight Area (Glass)
5.81 sq.ft. Model: 6090
Rough Opening (WxH)
600mm x 900mm Outside Frame (WxH)
819mm x 1121mm Daylight Area (Glass)
0.54 m2 |
Model: 9090
Rough Opening (WxH)
35” x 35” Outside Frame (WxH)
44⅛” x 44⅛” Daylight Area (Glass)
8.72 sq.ft. Model: 9090
Rough Opening (WxH)
900mm x 900mm Outside Frame (WxH)
1121mm x 1121mm Daylight Area (Glass)
0.81 m2 |
|||||
| 39⅜ |
Model: 100100
Rough Opening (WxH)
39⅜” x 39⅜” Outside Frame (WxH)
48″ x 48” Daylight Area (Glass)
10.76 sq.ft. Model: 100100
Rough Opening (WxH)
1000mm x 1000mm Outside Frame (WxH)
1219mm x 1219mm Daylight Area (Glass)
1 m2 |
||||||
| 47¼ |
Model: 90120
Rough Opening (WxH)
35” x 47¼” Outside Frame (WxH)
44⅛” x 55⅞” Daylight Area (Glass)
11.63 sq.ft. Model: 90120
Rough Opening (WxH)
900mm x 1200mm Outside Frame (WxH)
1121mm x 1419mm Daylight Area (Glass)
1.08 m2 |
Model: 120120
Rough Opening (WxH)
47¼” x 47¼” Outside Frame (WxH)
55⅞” x 55⅞” Daylight Area (Glass)
15.5 sq.ft. Model: 120120
Rough Opening (WxH)
1200mm x 1200mm Outside Frame (WxH)
1419mm x 1419mm Daylight Area (Glass)
1.44 m2 |
|||||
| 55⅛ |
Model: 140140
Rough Opening (WxH)
55⅛” x 55⅛” Outside Frame (WxH)
63¾” x 63¾” Daylight Area (Glass)
21.1 sq.ft. Model: 140140
Rough Opening (WxH)
1400mm x 1400mm Outside Frame (WxH)
1619mm x 1619mm Daylight Area (Glass)
1.96 m2 |
||||||
| 59 |
Model: 100150
Rough Opening (WxH)
39⅜” x 59” Outside Frame (WxH)
48″ x 67¾” Daylight Area (Glass)
16.15 sq.ft. Model: 100150
Rough Opening (WxH)
1000mm x 1500mm Outside Frame (WxH)
1219mm x 1718mm Daylight Area (Glass)
1.5 m2 |

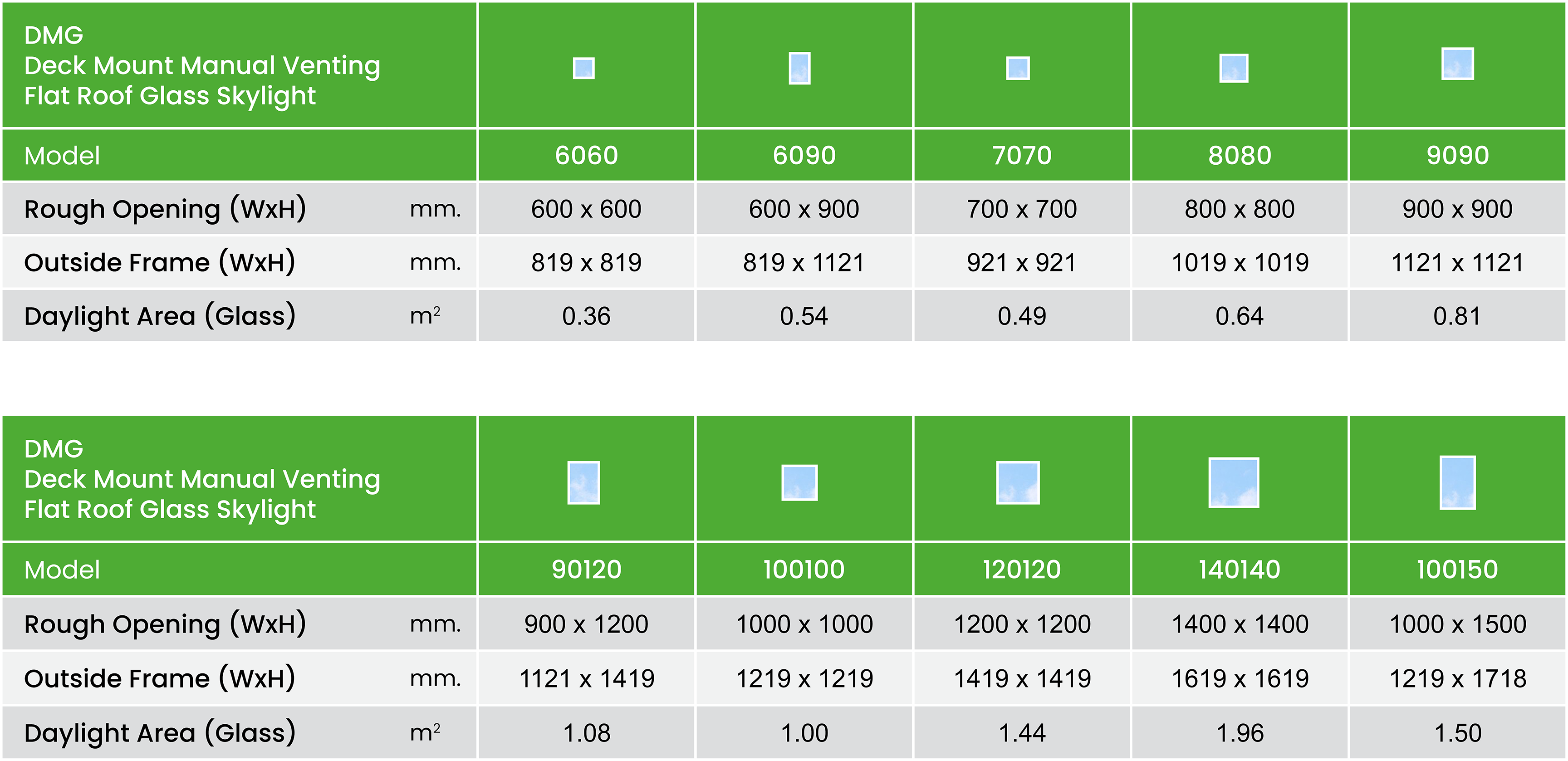

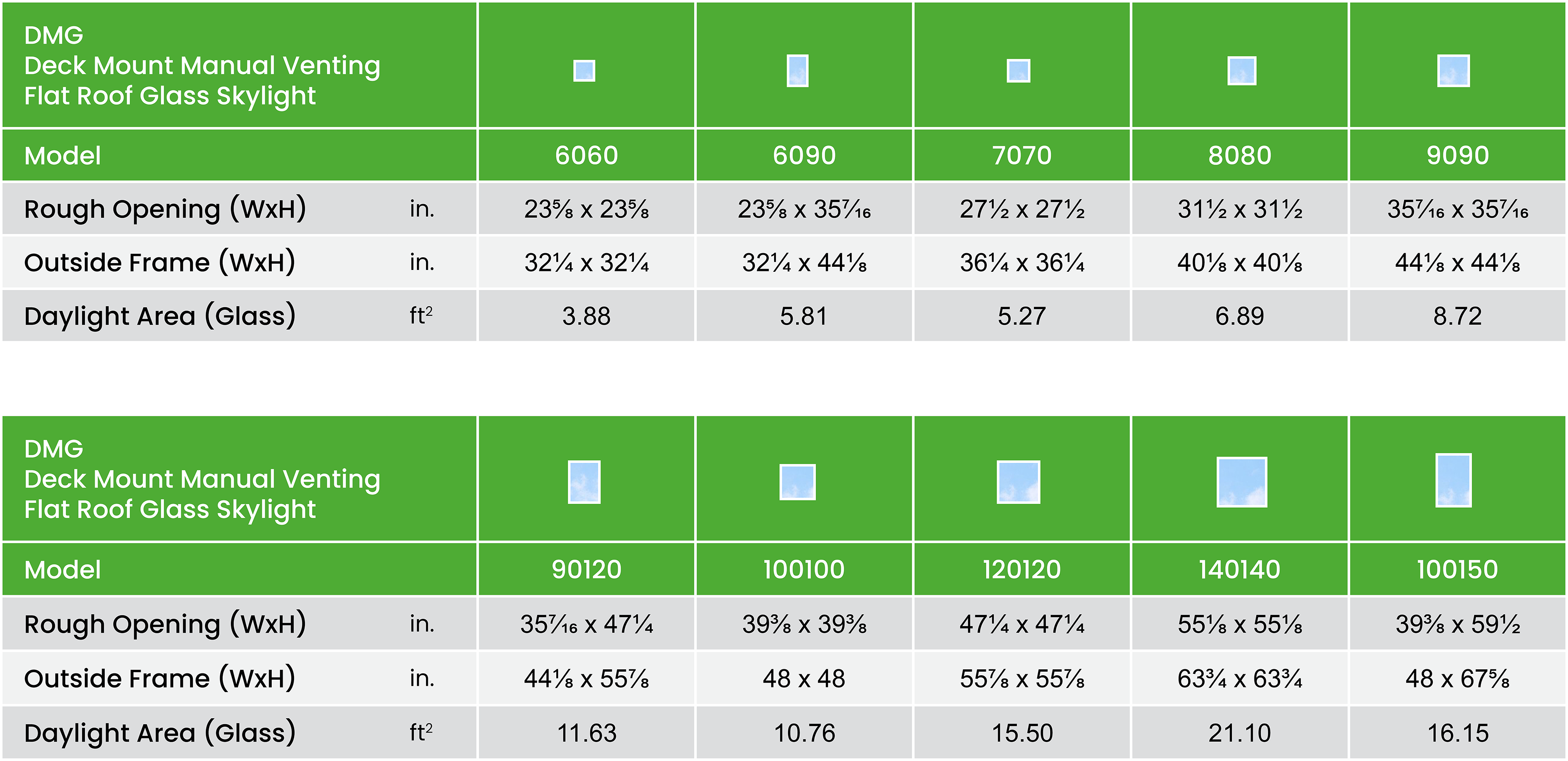

Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Download
Size Chart
Size Chart
Installation
Instructions
Instructions
Use FAKRO’s installation instructions to ensure a successful installation.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Drawings &
Specifications
Specifications
Download a 3D Drawing (.dwg CAD file), BIM Model (.rfa), and Cross Sections as .dwg and PDF.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Product Specifications as a Word Doc or PDF.
For multiple models go to the Drawings & Specification Library page.
Light Filtering &
Blackout Blinds
Blackout Blinds
FAKRO produces an extensive range of high quality light filtering and blackout blinds in a range of designer fabrics and colours.
Designed to complement any interior designer’s vision.
Designed to complement any interior designer’s vision.
