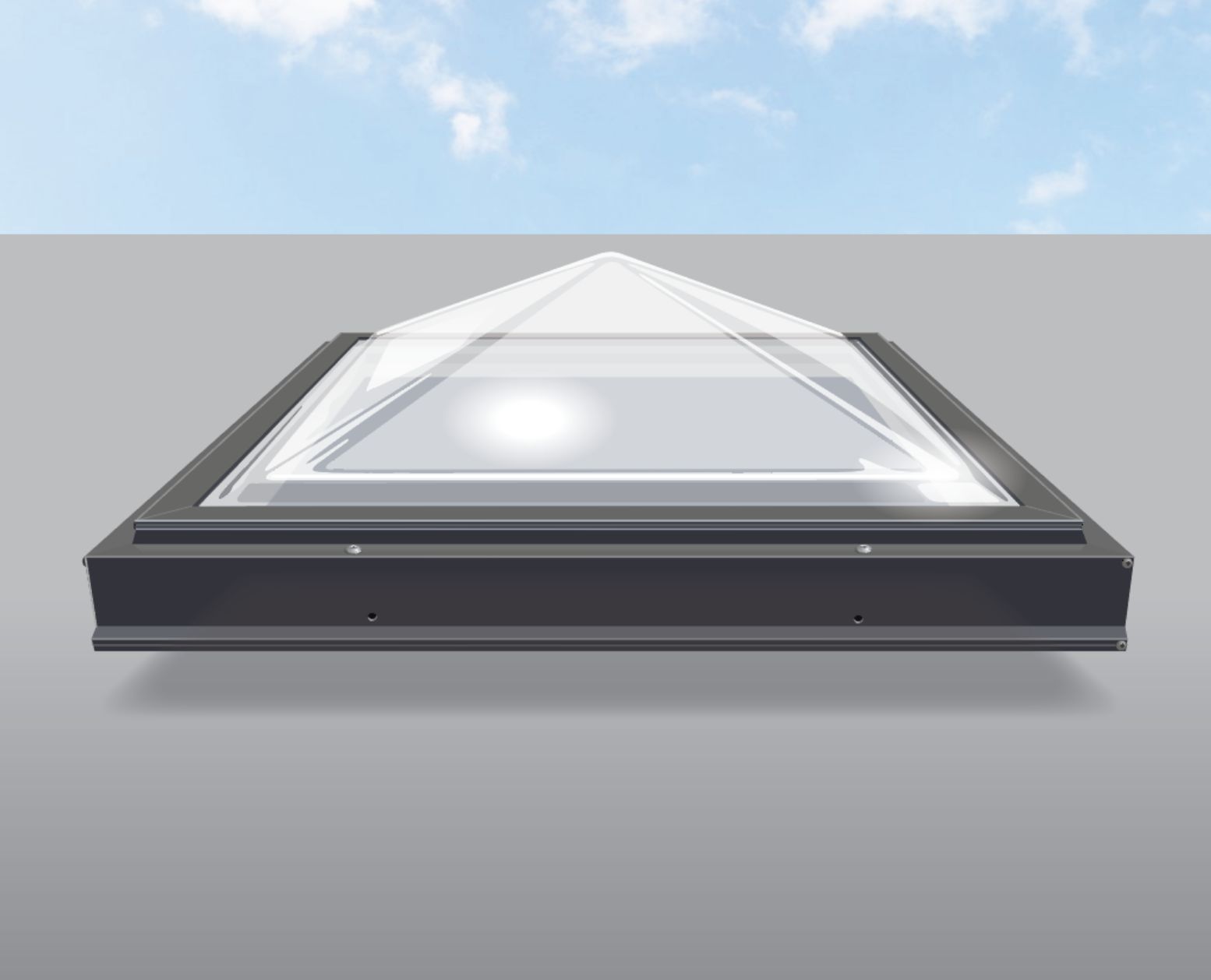

VCM P / AOF P – Curb Mount Pyramid – Fixed
- The Curb Mount Pyramid Skylight is ideal for any residential application, the unique shape lets in a significant amount of natural light. Designed for flat or sloped roofs, it adds a dramatic architectural feature with its distinctive acrylic pyramid shape.
- It is ideal for regions with heavy snow and rainfall. The pyramid shape allows water to easily run off, creating effective drainage.
- Columbia offers the widest range of frame finishes, double and triple acrylic glazing, and standard and custom sizes are also available.
- This pyramid skylight is available as a fixed and venting model (special order).
- Pyramid shaped acrylic skylights can only be manufactured as a square with equal side dimensions.
FEATURES
- Provides your home with distinct architectural flare.
- Available in square shaped standard and custom sizes.
- The aesthetically pleasing shape adds drama to your inner and outer decor, letting in an optimum amount of natural light.
- Can be installed on all types of site built curbs; flat or sloped roofs.
- Available in fixed (VCM P / AOF P) or (OCM P).
- Venting available on models 2020 to 5252.
- Maintenance free, white PVC, thermally broken vinyl base frame on models 2020 to 6464.
- Model AOF – Aluminum thermally broken heavy duty base frame for models 7676 to 100100.
- Model VCM P is inside fastening and designed for standard 1 ½” wide curb.
- Model AOF P is outside fastening and designed to fit on minimum 2” wide curb.
Custom Sizes
Available in standard & custom sizes. Acrylic & polycarbonate from 14 ½” x 14 ½” to 94 ½” x 94 ½”
Recommended
Location
- Foyers
- Stairwells
- Living Rooms
- Warehouses
- Dining Room
Available in two Base Frames
(Vinyl Curb Mount)
Note: Pyramid skylights are only available in square sizes.

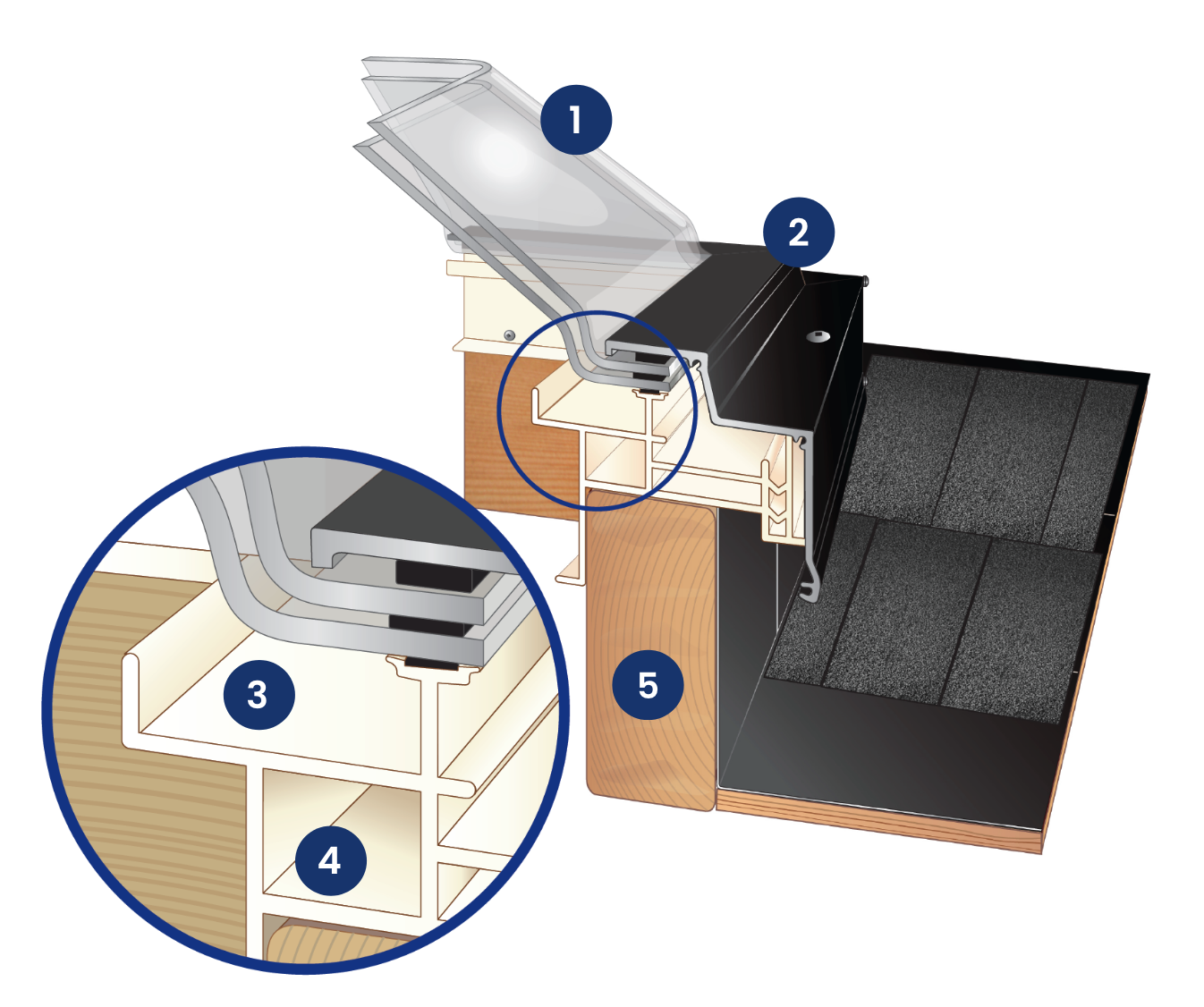

- Glazing
Standard Double Glazed Clear. Also available in: Single, Double and Triple Glazed Clear, Bronze & White, as well as polycarbonate. - Aluminum Cap
Durable Aluminum extrusion, baked enamel coating in seven standard colours. - Condensation Gutter
Effective four sided rigid wide condensation gutter. - PVC Base Frame
PVC (Polyvinyl Chloride) white, maintenance free, thermally broken inside fastening tubular vinyl base frame. - Curb
Can be installed on 2” x 4”, 2” x 6” or 2” x 8” curb (not supplied).

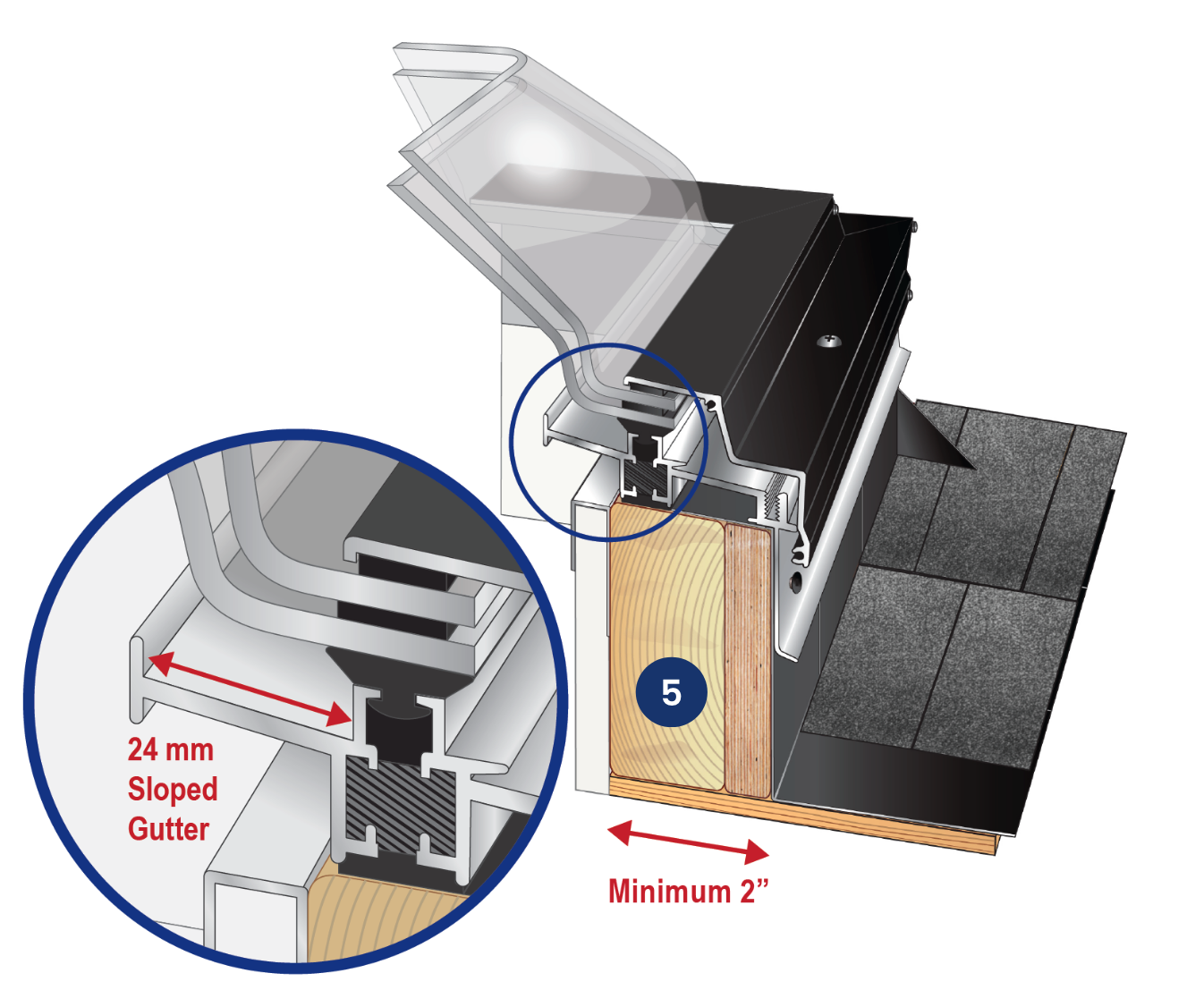

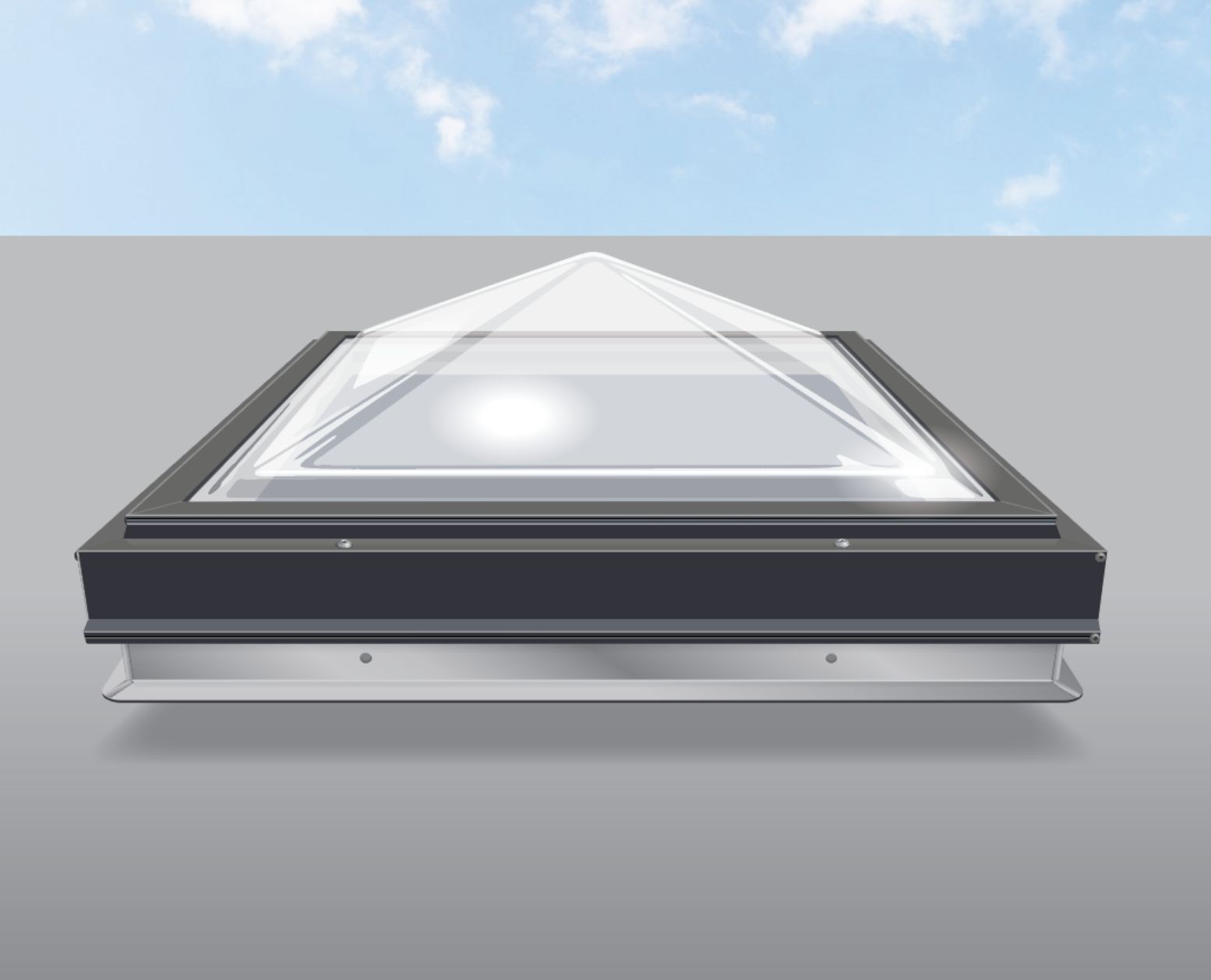

(Aluminum Outside Fastening)
- Glazing
Standard Double Glazed Clear.
Also available in: Single, Double and Triple Glazed Clear, Bronze & White, as well as polycarbonate. - Aluminum Cap
Durable Aluminum extrusion, baked enamel coating in seven standard colours. - Sloped Condensation Gutter
Four sided sloped positive drainage wide condensation gutter. - Base Frame
Maintenance free, thermally broken outside fastening aluminum base frame. - Curb
Can be installed on 2” x 4”, 2” x 6” or 2” x 8” curb (not supplied). Must be minimum full 2” width.
Acrylic is the right choice for many applications
- Columbia manufactures skylights in acrylic and polycarbonate.
- These versatile glazing materials are able to be produced in double and triple glazing options.
- Acrylic and polycarbonate come in three tints – clear, bronze, and translucent white.
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Clear acrylic gives bright natural light.
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- Bronze acrylic delivers the maximum protection from extreme sunlight, reducing glare and solar heat gain.
- Double glazing is the right choice for most Canadian applications.
- Gives a high degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Clear acrylic gives bright natural light.
- Additional comfort in your interior space.
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- Bronze acrylic delivers protection from extreme sunlight, reducing glare and solar heat gain.
- Additional comfort in your interior space.
- Triple glazing is the preferred choice for Canadian climate, and provides additional energy efficiency.
- Provides a superior degree of insulation.
- White acrylic reduces the impact of extreme sunlight, reducing glare and solar heat gain.
- Provides privacy.
- Additional comfort in your interior space.
Columbia offers the widest choice of skylight frame colours in North America
Sizes for VCM P / AOF P Curb Mount Pyramid – Fixed
If you can’t find the size you want in our standard sizes, go to our Custom size page.
Standard skylight measurement are available in both options.
The yellow star indicates the most popular sizes.
| Inside Curb | 14½ | 22½ | 30½ | 34½ | 36½ | 46½ | 54½ | 58½ | 70½ | 78½ | 94½ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14½ |
Model: 2020
Inside Curb (WxH)
14½” x 14½” Outside Curb (WxH)
17½” x 17½” Daylight Area (Glass)
1.46 sq.ft. Model: 2020
Inside Curb (WxH)
368mm x 368mm Outside Curb (WxH)
445mm x 445mm Daylight Area (Glass)
0.14 m2 |
||||||||||
| 22½ |
Model: 2828
Inside Curb (WxH)
22½” x 22½” Outside Curb (WxH)
25½” x 25½” Daylight Area (Glass)
3.52 sq.ft. Model: 2828
Inside Curb (WxH)
572mm x 572mm Outside Curb (WxH)
648mm x 648mm Daylight Area (Glass)
0.33 m2 |
||||||||||
| 30½ |
Model: 3636
Inside Curb (WxH)
30½” x 30½” Outside Curb (WxH)
33½” x 33½” Daylight Area (Glass)
6.46 sq.ft. Model: 3636
Inside Curb (WxH)
775mm x 775mm Outside Curb (WxH)
851mm x 851mm Daylight Area (Glass)
0.60 m2 |
||||||||||
| 34½ |
Model: 4040
Inside Curb (WxH)
34½” x 34½” Outside Curb (WxH)
37½” x 37½” Daylight Area (Glass)
8.27 sq.ft. Model: 4040
Inside Curb (WxH)
876mm x 876mm Outside Curb (WxH)
953mm x 953mm Daylight Area (Glass)
0.77 m2 |
||||||||||
| 36½ |
Model: 4242
Inside Curb (WxH)
36½” x 36½” Outside Curb (WxH)
39½” x 39½” Daylight Area (Glass)
9.25 sq.ft. Model: 4242
Inside Curb (WxH)
927mm x 927mm Outside Curb (WxH)
1003mm x 1003mm Daylight Area (Glass)
0.86 m2 |
||||||||||
| 46½ |
Model: 5252
Inside Curb (WxH)
46½” x 46½” Outside Curb (WxH)
49½” x 49½” Daylight Area (Glass)
15.02 sq.ft. Model: 5252
Inside Curb (WxH)
1181mm x 1181mm Outside Curb (WxH)
1257mm x 1257mm Daylight Area (Glass)
1.39 m2 |
||||||||||
| 54½ |
Model: 6060
Inside Curb (WxH)
54½” x 54½” Outside Curb (WxH)
57½” x 57½” Daylight Area (Glass)
20.63 sq.ft. Model: 6060
Inside Curb (WxH)
1384mm x 1384mm Outside Curb (WxH)
1460mm x 1460mm Daylight Area (Glass)
1.92 m2 |
||||||||||
| 58½ |
Model: 6464
Inside Curb (WxH)
58½” x 58½” Outside Curb (WxH)
61½” x 61½” Daylight Area (Glass)
23.77 sq.ft. Model: 6464
Inside Curb (WxH)
1486mm x 1486mm Outside Curb (WxH)
1562mm x 1562mm Daylight Area (Glass)
2.21 m2 |
||||||||||
| 70½ |
Model: 7676 AOF
Inside Curb (WxH)
70½” x 70½” Outside Curb (WxH)
74¼” x 74¼” Daylight Area (Glass)
34.52 sq.ft. Model: 7676 AOF
Inside Curb (WxH)
1791mm x 1791mm Outside Curb (WxH)
1886mm x 1886mm Daylight Area (Glass)
3.21 m2 |
||||||||||
| 78½ |
Model: 8484 AOF
Inside Curb (WxH)
78½” x 78½” Outside Curb (WxH)
82¼” x 82¼” Daylight Area (Glass)
42.79 sq.ft. Model: 8484 AOF
Inside Curb (WxH)
1994mm x 1994mm Outside Curb (WxH)
2089mm x 2089mm Daylight Area (Glass)
3.98 m2 |
||||||||||
| 94½ |
Model: 100100 AOF
Inside Curb (WxH)
94½” x 94½” Outside Curb (WxH)
98¼” x 98¼” Daylight Area (Glass)
62.02 sq.ft. Model: 100100 AOF
Inside Curb (WxH)
2401mm x 2401mm Outside Curb (WxH)
2496mm x 2496mm Daylight Area (Glass)
5.76 m2 |

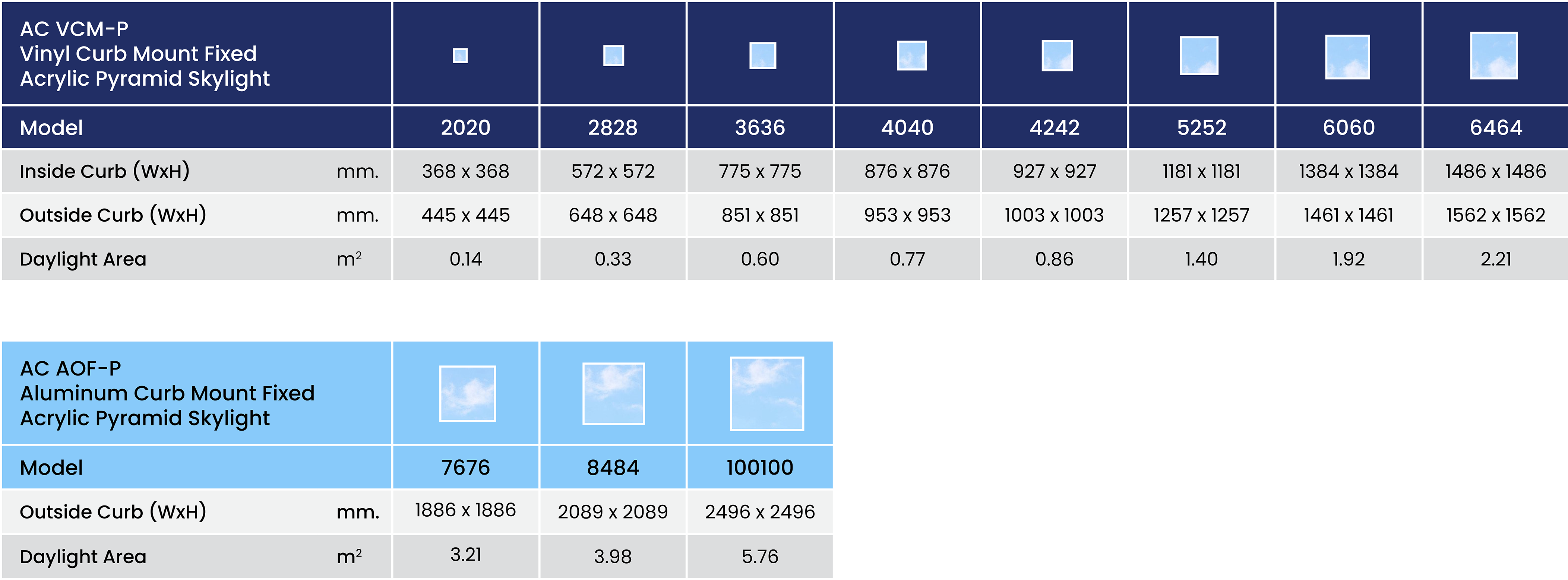

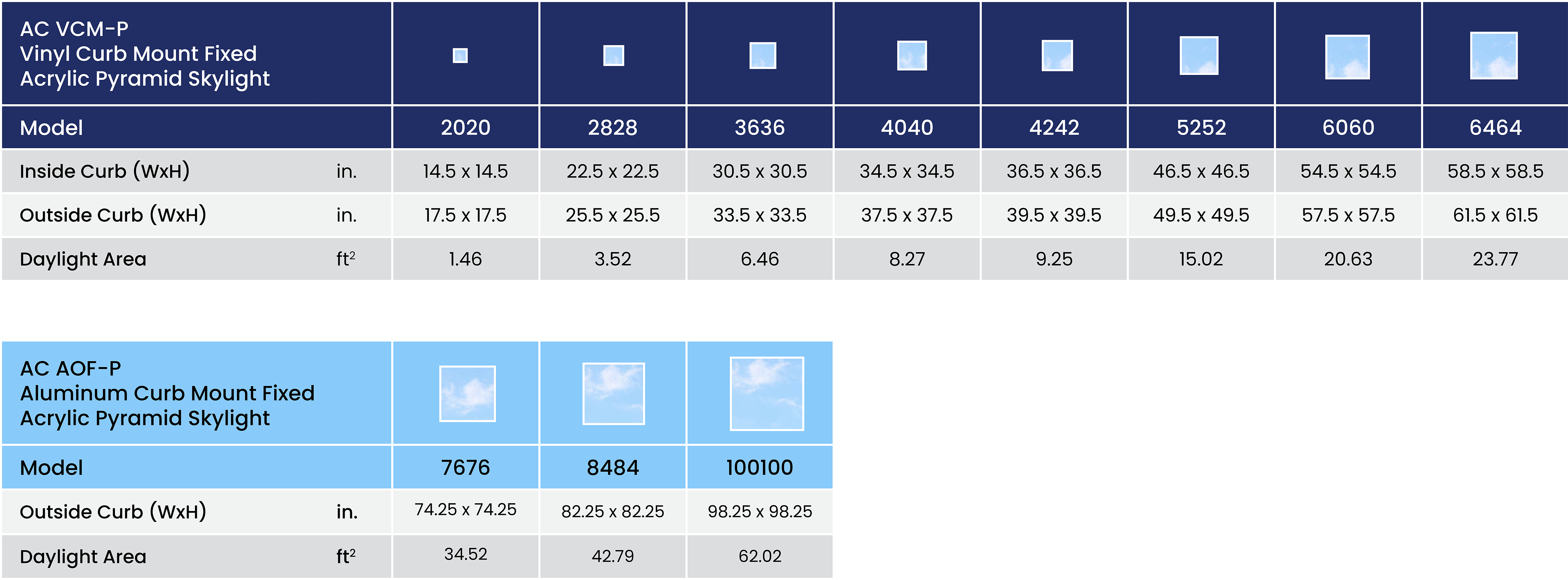

Size Chart – Summary
Pinch to enlarge.
Technical Information
Each model comes with a downloadable information package to help you select, specify, and install our product. If you do not find what you need, don’t hesitate to call our Columbia Customer Service Team at 604 437 3377 (Toll Free: 888 437 5557) or email info@columbiaskylights.com.
Size Chart
Instructions
Download the instructions for this model, or if you need multiple models go to the Installation Instruction Library page.
Specifications
For multiple models go to the Drawings & Specification Library page.
Why Columbia
New Mississauga distribution warehouse to better serve Ontario, Quebec and the Maritimes
We have relocated our eastern distribution warehouse to a newly constructed facility in Mississauga, Ontario. Columbia’s new distribution warehouse is larger and able to store a full range of ready to deliver Columbia and FAKRO products.
The warehouse is located on Meadowvale Boulevard near the 401 and Mississauga Road, providing easy highway access .
The warehouse allows us to serve Eastern Canada with greater efficiency, improved delivery times and allowing us to carry larger inventories.
Review our FAKRO Premium European skylights, roof windows & flat roof skylights
FAKRO produces the highest quality European designed & manufactured skylights in the world, delivering exceptional performance and energy efficicency. If you want the best for your home, FAKRO skylights & roof windows are what you are looking for, with outstanding craftsmanship and finish.
Columbia is proud to be the exclusive Canadian distributor of FAKRO skylights and roof windows. For over 30 years, the FAKRO group has produced beautifully designed, technically superior skylights. All of the FAKRO skylights are produced in their European plants.
As the second largest skylight manufacturer in the world, FAKRO supplies up to 15% of the global skylight market – with over 8 million skylights sold in more than 50 countries.
You might also be interested in…

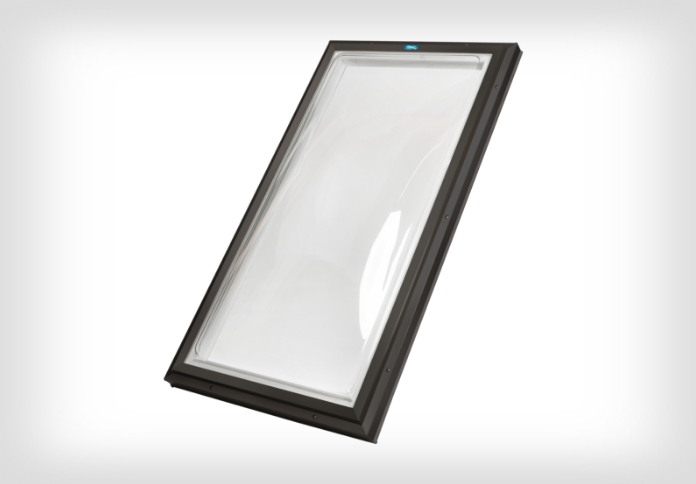

Columbia AC VCM – Vinyl Curb Mount Fixed Acrylic Dome Skylight
Columbia’s Curb Mount acrylic dome & pyramid skylights are designed to perform flawlessly for decades, available in 2 frame configurations, AC VCM or AC AOF.
Learn More

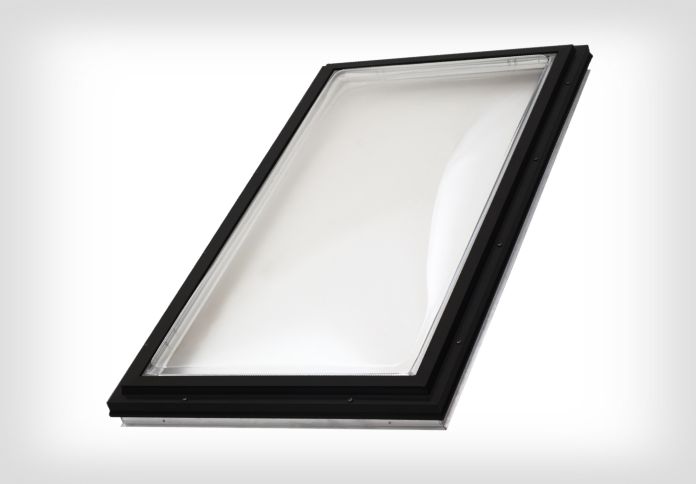

Columbia AC AOF – Commercial Skylight
Featuring a strong and rigid aluminum external and internal frame. Available in Columbia’s full range of acrylic options. Dome and pyramid.
Learn More

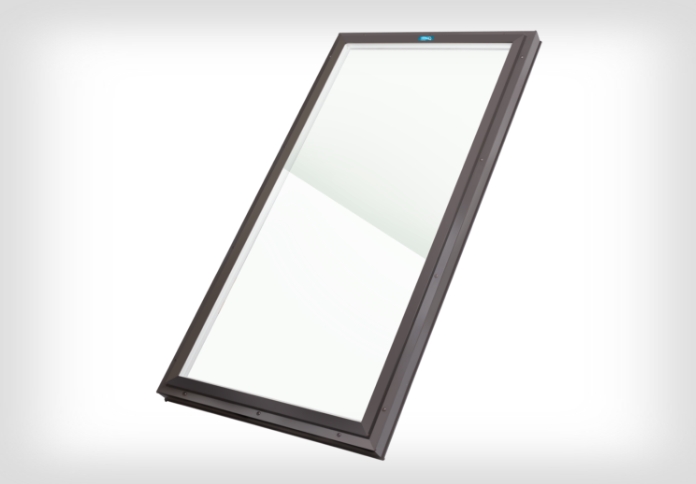

Columbia GL VCM – Curb Mount Fixed Glass Skylight
